Product description

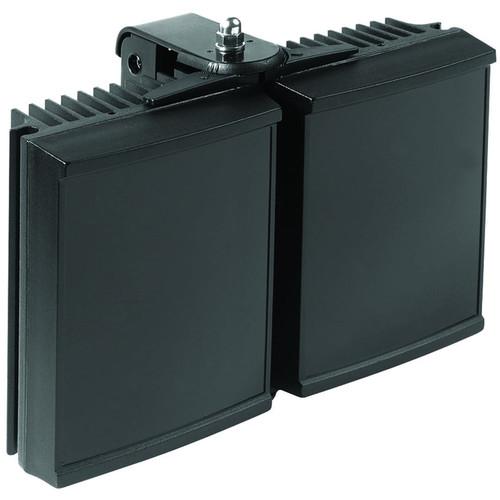

The RM100-AI-30 Semi-Covert IR Illuminator from Raytec is a high-performance IR lighting solution used in night surveillance operations. It is designed to offer a long life (10 years) and zero maintenance. With surface mount IR LEDs, it dissipates heat to run at high power, and provides high-quality images in complete darkness with enhanced optical output. Adaptive Illumination allows installers to adjust the angle (30 to 60°) of light projection according to specific security needs and a camera's field-of-view. The IR Illuminator includes the Advanced Cool Running system that drives away heat from the LEDs and protects it from abnormal stress for a constant level of light throughout the life of the illuminator. Even illumination reduces bit rates and lowers storage requirements, useful for digital recording systems. It also includes Active LED Life Control that controls LED output during the illuminator's life cycle. The RM100-AI-30 IR Illuminator, with a wavelength of 850nm, is suitable for low-light installations, to a range of up to 262'. It has a polycarbonate lens design that protects the illuminator against blows from crowbars, baseball bats, and successive shots from air pistols and rifles. The lighting enables the camera to capture images in darkness. The illuminator includes a power supply with features such as adjustable power output, photocell, and telemetry control.
  • High-performance IR lighting solution used in night surveillance operations
  • Adaptive Illumination technology provides a way for installers to adjust the angle (30 to 60°) of light projection to specific security needs and a camera's field-of-view
  • Advanced Cool Running system that drives away heat from the LEDs
  • Even illumination reduces bit rate and lowers storage requirements for encoding and digital recording systems
  • Active LED Life Control controls LED output during the illuminator's life cycle
  • Suitable for low light installations up to , to a range of up to 262'.
  • Polycarbonate lens design protects the illuminator against blows from crowbars, baseball bats, and successive shots from air pistols and rifles
  • Includes a power supply with adjustable power output, photocell, and telemetry control
In the Box Raytec RM100-AI-30 Semi-Covert IR Illuminator with Power Supply (30 to 60°, Black)
  • Power Supply Unit
  • Limited 5-Year Warranty
  • Table of Contents




    Upload User Manual

    Have you got an user manual for the Raytec RM100-AI-30 Semi-Covert IR Illuminator with Power Supply in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    Raytec RAYMAX 100 Specs

    Maximum Distance At 30°: 262' (80 m)
    At 60°: 173' (53 m)
    Angle 30 to 60°
    Optics SMT LEDs
    Wavelength 850 nm
    Cable Length 8.2' (2.5 m)
    Voltage 13.5 V current controlled
    Maximum Power Consumption 50 W
    Environmental IP66
    Temperature Range -58 to 122°F (-50 to 50˚C)
    Dimensions 8 x 6 x 3" (210 x 150 x 65 mm)
    Weight 5.5 lb (2.5 kg)
    Input Universal 100 to 230 VAC auto-sensing
    Maximum Output 50 W
    Temperature -58 to 122°F (-50 to 50˚C)
    Dimensions 6 x 6 x 4" (160 x 160 x 90 mm)
    Weight 3.3 lb (1.5 kg)
