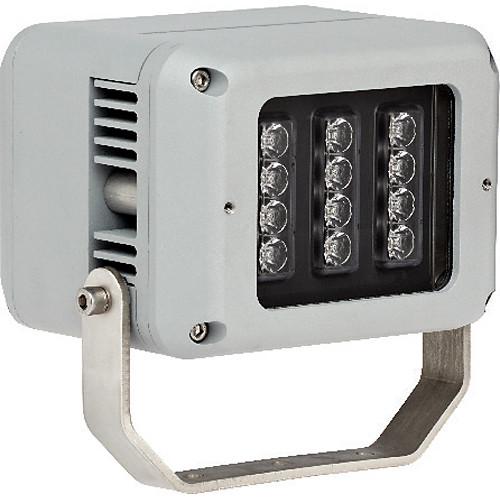

User Manual for Raytec SPARTAN 12 LED IR Illuminator Click to enlarge the picture
Contents of the user manual for the Raytec SPARTAN 12 LED IR Illuminator
- Product category: Illuminators Raytec
- Brand: Raytec
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Raytec Illuminators
|
User manual for the Raytec SPARTAN 12 LED IR Illuminator contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Raytec product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Raytec user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Raytec product will considerably shorten its lifespan!
|
Product description The SPARTAN 12 LED IR Illuminator from Raytec is designed specifically for hazardous environments which require high performance, high reliability IR illumination. It features 12 IR LEDs that emit a circular beam pattern of 120 x 120°. Using Raytec's long-life LED technology, this IR LED light fixture is ATEX- and IEC Ex-approved for all Zone 1 and Zone 2 applications and rated for T4, T5 and T6 environments. The unit allows for flexible installation. Its modular design allows key components to be accessed and serviced if required, making inspection and maintenance quicker and easier. The PSU chassis can be removed and located remotely at ground level for areas with difficult access. The compact design makes it suitable for installations in restricted spaces. The SPARTAN IR Illuminator uses CoolExtrude thermal management technology, ensuring a much cooler LED operating temperature and better heat dissipation than traditional lighting solutions. - Ultra-powerful LED technology
- Circular beam pattern of 120 x 120°
- Operating temperature range of -58 to 131°F with a T4/T5/T6 rating for challenging conditions
- LEDs protected by vibration-resistant and waterproof potting compound
- Both the LED and PSU modules are accessible for maintenance and inspection
- Removable PSU housing allows power supply to be fitted remotely
- Utilizes CoolExtrude thermal management technology
- SMART access wiring system for safe and efficient installation, setup, and ongoing inspection
- Complies to ISO9001 and ISO14001 standards
- ATEX & IEC EX approved - Zone 1 & 2 UL/CSA approved, including C1D2
In the Box Raytec SPARTAN 12 LED IR Illuminator (120x 120 Circular Beam) Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Raytec SPARTAN 12 LED IR Illuminator in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRaytec SPX-FL12-I-120120 Specs | | | Beam Pattern | 120 x 120°, circular | | LED | 12 x Platinum Elite SMT IR LEDs | | Distance | 59' (18 m) | | | | Input | 110-254 V, 50/60 Hz AC only | | Power | 34 W | | Termination | Incoming terminal block suitable for looping 4-core 4 mm² cable | | Power Factor | >0.95 | | Cable Entry | 2 x M20 (comes with one ATEX/IEC Ex approved blanking plug) | | | | Burning Position | Universal | | IP Rating | IP66 & IP67 | | Temperature Range | -58 to 131°F (-50 to 55°C) | | Certification | ATEX Rating: ATEX and IEC Ex rated for gas and dust
Hazardous Area Rating: Zone 1 & 2 - gas and dust
Certificates: CML13ATEX3007 & IEC Ex CML 14.0001
UL/CSA approved, including C1D2
Gas:
II 2 GD Ex emb IIC T5 or T4 Gb, Ta -58 to 131°F (-50 to 55°C)
II 2 GD Ex emb IIC T6 Gb, Ta -58 to 118.4°F (-50 to 48°C)
Dust:
Ex tb IIIC T82°C Db
IP66 & IP67, Ta -58 to 131°F (-50 to 55°C) | | | | Enclosure | Silver (RAL 9006), marine-grade aluminum epoxy powder-coated
Toughened glass
All external fasteners and brackets are marine-grade stainless steel | | Mounting | U bracket | | Dimensions | 7.6 x 8.1 x 6.4" (192 x 206 x 170 mm) | | Weight | 11 lb (5 kg) |
