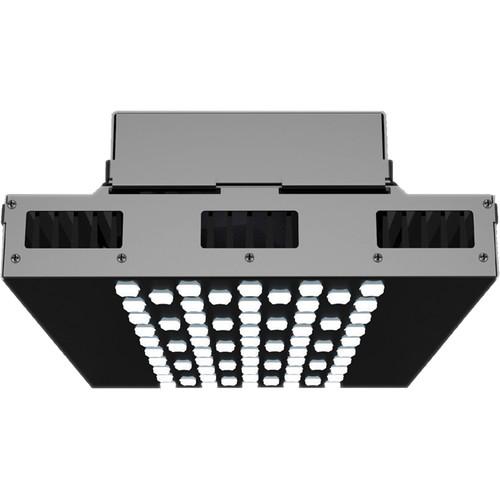

User Manual for Raytec URBAN BAY Cool White LED Light Industrial Bay Fixture Click to enlarge the picture
Contents of the user manual for the Raytec URBAN BAY Cool White LED
- Product category: Illuminators Raytec
- Brand: Raytec
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Raytec Illuminators
|
User manual for the Raytec URBAN BAY Cool White LED contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Raytec product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Raytec user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Raytec product will considerably shorten its lifespan!
|
Product description The silver URBAN BAY Cool White Light Industrial Bay LED Lighting Fixture from Raytec is designed for use in industrial environments and optimized to provide down lighting at typical mounting heights of 16 to 48'. It features SMT LED technology and cool running thermal management and consumes up to 145W of power. The unit offers an operational LED life of over 50,000 hours. It emits cool white light in a wide-angle circular beam pattern for illuminating lower and wider areas. -
- SMT LED Technology
- Supports mounting heights from 16 to 48’
- "Cool Running" Thermal Management System
- 50,000 hours LED life
- Rack-optimized spread
- Can interface with all major lighting controls with no need to rewire
- Requires no warmup time
- Compatible with Canalis trunking, 6 or 8mm threaded bar, chain suspension, and BESA
- Can be directly mounted to a ceiling
- Enhanced color rendition
- Even output illumination
In the Box Raytec URBAN BAY Cool White LED Light Industrial Bay Fixture Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Raytec URBAN BAY Cool White LED Light Industrial Bay Fixture in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRaytec UBBAY-70-C-001 Specs | Luminous Flux | 12,936 lumens | | Optics | SMT LEDs | | Consumption | 145 W | | Efficacy | 89 lumens/W | | Color Temperature | 5300K | | CRI | 75 | | Input | Integrated LED Light Engine: 100 to 240 VAC | | Voltage | 90 to 305 VAC | | Environmental | IP21 | | Temperature Range | -40 to 104°F (-40 to 40°C) | | Wavelength | White Light | | Dimensions | 14.4 x 10.01 x 4.22" (366.5 x 256 x 107.23 mm) | | Weight | 15.4 lbs (7 kg) supplied in 2 parts |
