Product description The black VAR2-i6-2 Long-Range Double-Panel IR Illuminator from Raytec uses PLATINUM Elite SMT LED technology to achieve illumination ranges up to 925'. It features an interchangeable lens system with Hot-spot Reduction Technology and Adaptive Illumination to deliver even illumination. Adaptive Illumination allows an installer to adjust the angle of light projection from a single unit to fit the specific demands of any installation. With the optional handheld remote control, this illuminator makes installation and commissioning quick and easy. -
- Utilizes PLATINUM Elite SMT LED technology together with Cool Running thermal management system
- Angle of illumination can be quickly adjusted by changing the VARIO holographic lens insert, to match the specific camera field of view
- Hot-spot Reduction Technology delivers a highly diffused, elliptical beam shape and prevents overexposure of foreground objects
- LED status indicator for quick operational feedback on status and performance of the illuminator
- Programming inputs on both a VARIO remote control (not included) and on the VARIO2 illuminator can be disabled if required
- Built-in green features such as power adjust, telemetry control, and timer function enhance the potential for energy savings
- Supports power adjusting from 20 to 100%
- Built-in photocell for automatic on/off operation
- Photocell following output

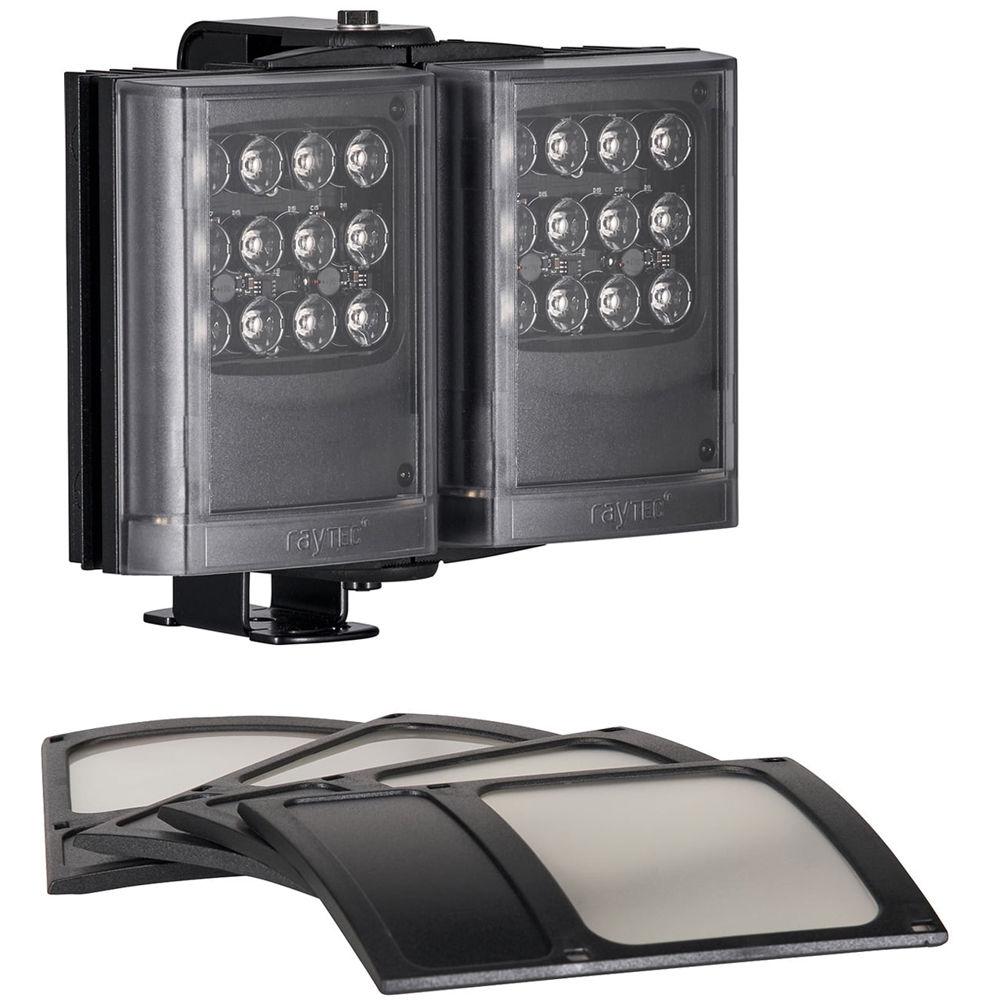

In the Box Raytec VAR2-i6-2 Long-Range Double-Panel IR Illuminator (850nm, Black) 10 x 10° Lens 60 x 25° Lens Adaptive Illumination Mounting Bracket Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Raytec VAR2-i6-2 Long-Range Double-Panel IR Illuminator in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRaytec VARIO 2 Specs | Maximum Operating Distance | 925' / 282 m | | Input | 12 VAC / 24 VDC | | Consumption | 50 W maximum | | Beam Pattern | Elliptical with HRT (Hot-spot Reduction Technology) | | Beam Angle | 10 x 10°
35 x 10° (fitted as standard)
60 x 25°
80 x 30° (optional)
120 x 50° (optional) | | Distance | Narrow Angle Distance:
925' / 282 m at 10°
554' / 169 m at 35°
325' / 99 m at 60°
233' / 71 m at 80°
138' / 42 m at 120°
Wide Angle Distance:
656' / 200 m at 20°
394' / 120 m at 70°
230' / 70 m at 120°
174' / 53 m at 140°
115' / 35 m at 180° | | LED | 24 x Platinum Elite SMT LEDs | | Wavelength | 850 nm | | IP Rating | IP66 | | Temperature Range | -58 to 122°F / -50 to 50°C | | Cable Length | 8.2' / 2.5 m | | Dimensions | 8 x 7 x 3" / 209 x 178 x 67 mm approximately | | Weight | 5 lb / 2.3 kg |
