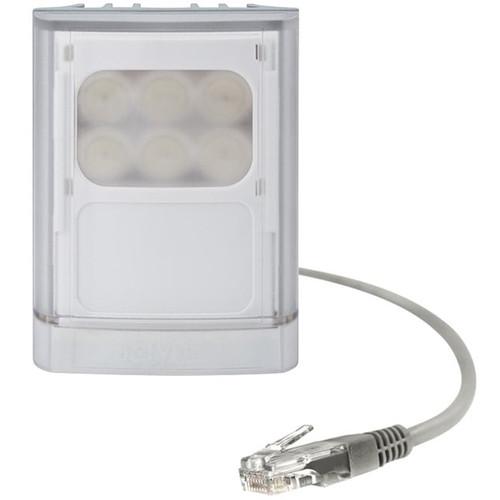

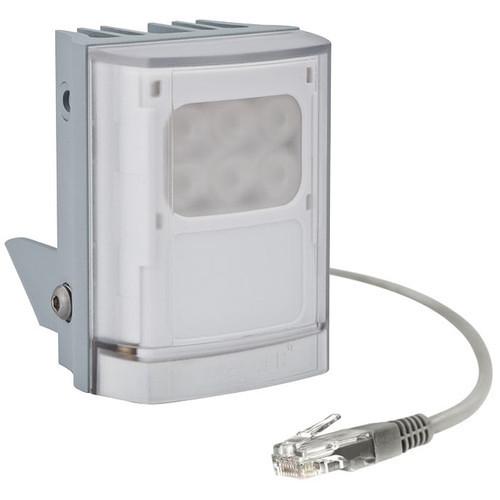

User Manual for Raytec VAR2-POE-w2-1 Short-Range White-Light PoE Illuminator Click to enlarge the picture
Contents of the user manual for the Raytec VAR2-POE-w2-1 Short-Range White-Light PoE Illuminator
- Product category: Illuminators Raytec
- Brand: Raytec
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Raytec Illuminators
 |
User manual for the Raytec VAR2-POE-w2-1 Short-Range White-Light PoE Illuminator contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Raytec product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Raytec user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Raytec product will considerably shorten its lifespan!
|
Product description The silver VAR2-POE-w2-1 Short-Range White-Light PoE Illuminator from Raytec uses PLATINUM Elite SMT LED technology to achieve operating distances of up to 138'. It features an interchangeable lens system with HRT to deliver even illumination without overexposed white spots. It comes with three lenses, including a 10 x 10° circular, a 35 x 10°, and a 60 x 25° lens to fit your needs. The unit is IP66-rated for protection from dust and water, making it suitable for outdoor use. - Three interchangeable lenses included for custom field of view
- Hot-Spot Reduction Technology and the elliptical beam help cameras produce accurate images at night
- PLATINUM Elite SMT LED technology and Cool Running thermal management system for high power at long distances
- LED status indicator for quick status updates
- 20-100% adjustable LED power
- Photocell with on/off operation and adjustable sensitivity
- Disable program mode functionality
- IP66-rated for outdoor use
- Compatible with VARIO remote control (available separately)
- Dedicated PoE lighting for network systems

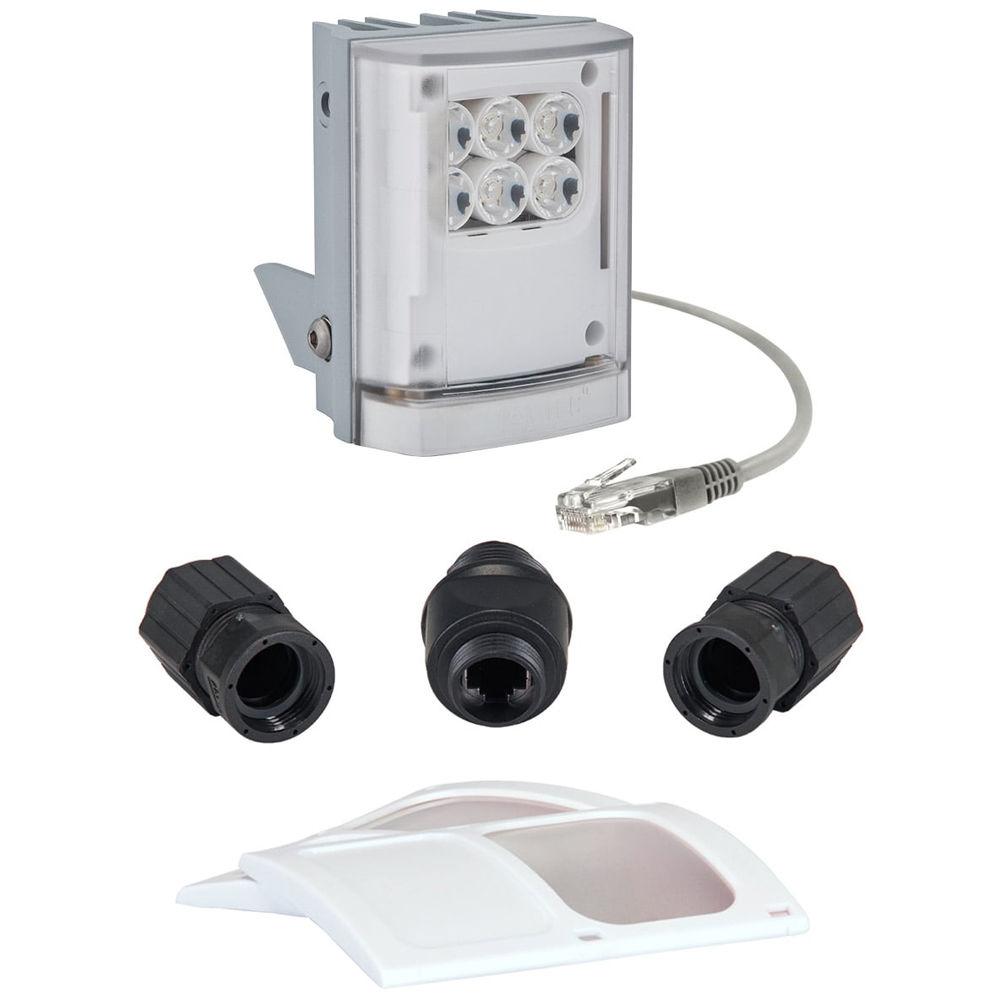

In the Box Raytec VAR2-POE-w2-1 Short-Range White-Light PoE Illuminator (Silver) 10 x 10° Lens 35 x 10° Lens (Preinstalled) 60 x 25° Lens U-Bracket Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Raytec VAR2-POE-w2-1 Short-Range White-Light PoE Illuminator in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRaytec VARIO 2 Specs | Brightness | 466 lumens per luminaire | | Maximum Operating Distance | 138' (42 m) | | Input | PoE IEEE802.3af | | Beam Pattern | Elliptical with HRT | | Beam Angle | VARIO Interchangeable Lens System
10 x 10°: 138' (42 m)
35 x 10° (Fitted as Standard): 92' (28 m)
60 x 25°: 59' (18 m)
80 x 30° (Optional): 46' (14 m)
120 x 50° (Optional): 26' (8 m) | | Consumption | 9 W | | LED | 3 x PLATINUM Elite SMT LEDs | | Wavelength | White light | | IP Rating | IP66 | | Color Temperature | 6000K | | Color Reproduction | Index: >70 | | Temperature Range | -58 to 122°F (-50 to 50°C) | | Cable Length | 8.2' (2.5 m) | | Dimensions | 3 x 4 x 2.5" (75 x 100 x 64 mm) | | Weight | 1.3 lb (0.6 kg) |
