User Manual for Raytec VARIO D-Zoom i8-C LED Illuminator with Remotely Adjustable Beam Angle Click to enlarge the picture
Contents of the user manual for the Raytec VARIO D-Zoom i8-C LED Illuminator
- Product category: Illuminators Raytec
- Brand: Raytec
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Raytec Illuminators
 |
User manual for the Raytec VARIO D-Zoom i8-C LED Illuminator contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Raytec product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Raytec user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Raytec product will considerably shorten its lifespan!
|

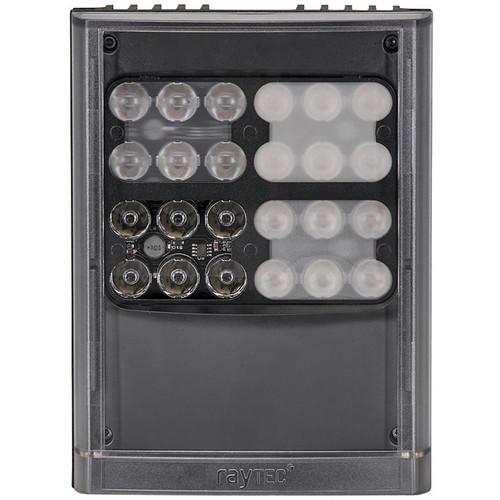

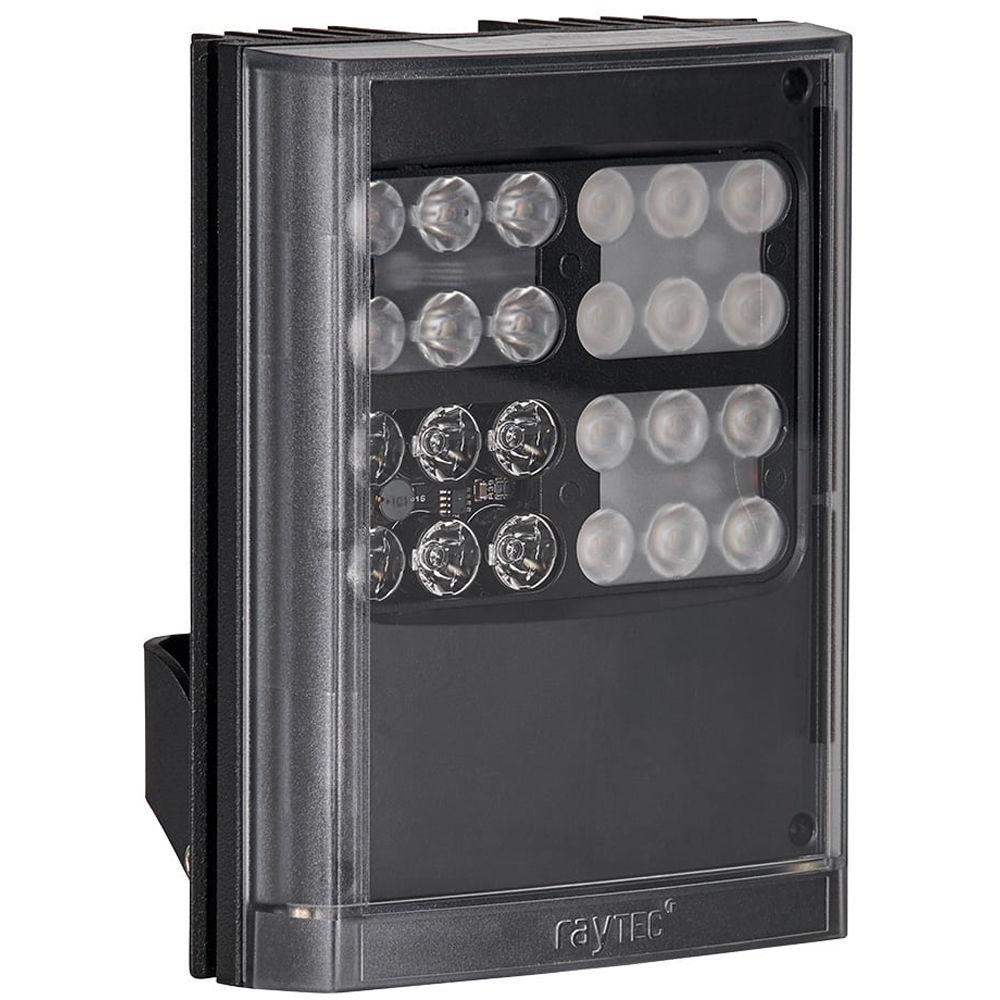

Product description The black VARIO D-Zoom i8 IR LED Illuminator from Raytec can be adjusted remotely from 10 to 80° without any moving parts. It features a zoomable lighting system that integrates with any CCTV, IP, or PTZ camera system. The VARIO D-Zoom beam allows users to match its angle of illumination to a required field of view and incorporates HRT (Hot-spot Reduction Technology) for improved image quality. The HRT system delivers a diffused elliptical beam shape to deliver light directly where it is most needed, allowing for better illumination range, reducing light and energy wastage, and preventing the overexposure of foreground objects. The VARIO LED status indicator provides instant operational feedback on status and performance of the illuminator. It comes with a bracket and can be operated directly from a 12 to 24V input. -
- Zoomable beam angle with no moving parts
- Angle adjustment from 10 to 80° from one single unit
- Smooth transition between beam angles
- Integrates with your surveillance system
- VARIO holographic lenses with HRT (Hot-spot Reduction Technology)
- LED status indicator
- Angle of illumination can be adjusted remotely via a volt-free input

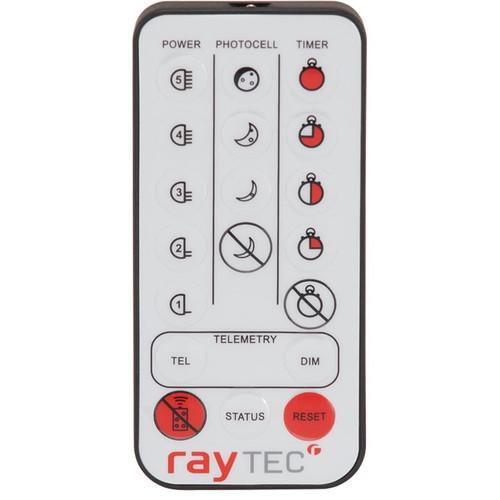

- Optional VARIO Remote Control allows quick setup and safety from ground level and provides access to advanced setup features
- LED Status Indicator: Operational feedback on status and performance of the illuminator and allows simple commissioning and maintenance reviews
- Built-in photocell for automatic on/off operation
- LED status indicator provides status on performance of the unit
- Photocell following output
In the Box Raytec VARIO D-Zoom i8-C LED Illuminator with Remotely Adjustable Beam Angle (Black) U Bracket Limited 5-year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Raytec VARIO D-Zoom i8-C LED Illuminator with Remotely Adjustable Beam Angle in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRaytec VARIO Specs | Max Distance | Camera and lens dependant | | Angle | 10 to 80° smooth transition | | Distances Supported | Camera and lens dependant | | Consumption | 48 W maximum | | Input Voltage | 12 to 24 VAC or DC | | IP Rating | IP66 | | Temperature Range | -58 to 122°F / -50 to 50°C | | Cable Length | 8.2' / 2.5 m | | Cable | Red/Black: Power
White/Yellow: Photocell following contact output
Orange/Purple: Telemetry input
Blue/Green: Zoom control | | Wavelength | 940 nm | | Certification | CE | | Dimensions | 5 x 7 x 3.2" / 135 x 180 x 68.2 mm approximately | | Weight | 3.6 lb / 1.65 kg |
