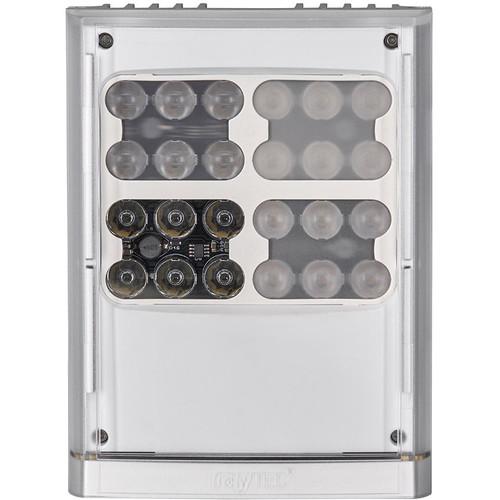

Product description The silver VARIO D-Zoom i8 IR LED Illuminator from Raytec can be adjusted remotely from 10 to 80° without any moving parts. It features a zoomable lighting system that integrates with any CCTV, IP, or PTZ camera system. The VARIO D-Zoom beam allows users to match its angle of illumination to a required field of view and incorporates HRT (Hot-spot Reduction Technology) for improved image quality. The HRT system delivers a diffused elliptical beam shape to deliver light directly where it is most needed, allowing for better illumination range, reducing light and energy wastage, and preventing the overexposure of foreground objects. The VARIO LED status indicator provides instant operational feedback on status and performance of the illuminator. It comes with a bracket and can be operated directly from a 12 to 24V input. -
- Zoomable beam angle with no moving parts
- Angle adjustment from 10 to 80° from one single unit
- Smooth transition between beam angles
- Integrates with your surveillance system
- VARIO holographic lenses with HRT (Hot-spot Reduction Technology)
- LED status indicator
- Angle of illumination can be adjusted remotely via a volt-free input
- Optional VARIO Remote Control allows quick setup and safety from ground level and provides access to advanced setup features
- LED Status Indicator: Operational feedback on status and performance of the illuminator and allows simple commissioning and maintenance reviews
- Built-in photocell for automatic on/off operation
- LED status indicator provides status on performance of the unit
- Photocell following output
In the Box Raytec VARIO D-Zoom White Light LED Illuminator with Remotely Adjustable Beam Angle (Silver) U Bracket Limited 5-year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Raytec VARIO D-Zoom White Light LED Illuminator with Remotely Adjustable Beam Angle in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRaytec VARIO Specs | Max Distance | 295' / 90 m | | Angle | 10 to 80° smooth transition | | Distances Supported | 295' / 90 m at 10°
66' / 20 m at 80° | | Consumption | 48 W maximum | | Input Voltage | 12 to 24 VAC or DC | | IP Rating | IP66 | | Temperature Range | -58 to 122°F / -50 to 50°C | | Cable Length | 8.2' / 2.5 m | | Cable | Red/Black: Power
White/Yellow: Photocell following contact output
Orange/Purple: Telemetry input
Blue/Green: Zoom control | | Wavelength | White light (5700K) | | CRI | 74-80 | | Certification | CE | | Dimensions | 5 x 7 x 3.2" / 135 x 180 x 68.2 mm approximately | | Weight | 3.6 lb / 1.65 kg |
