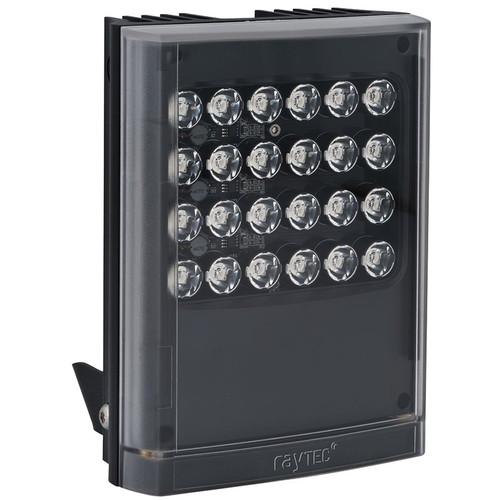

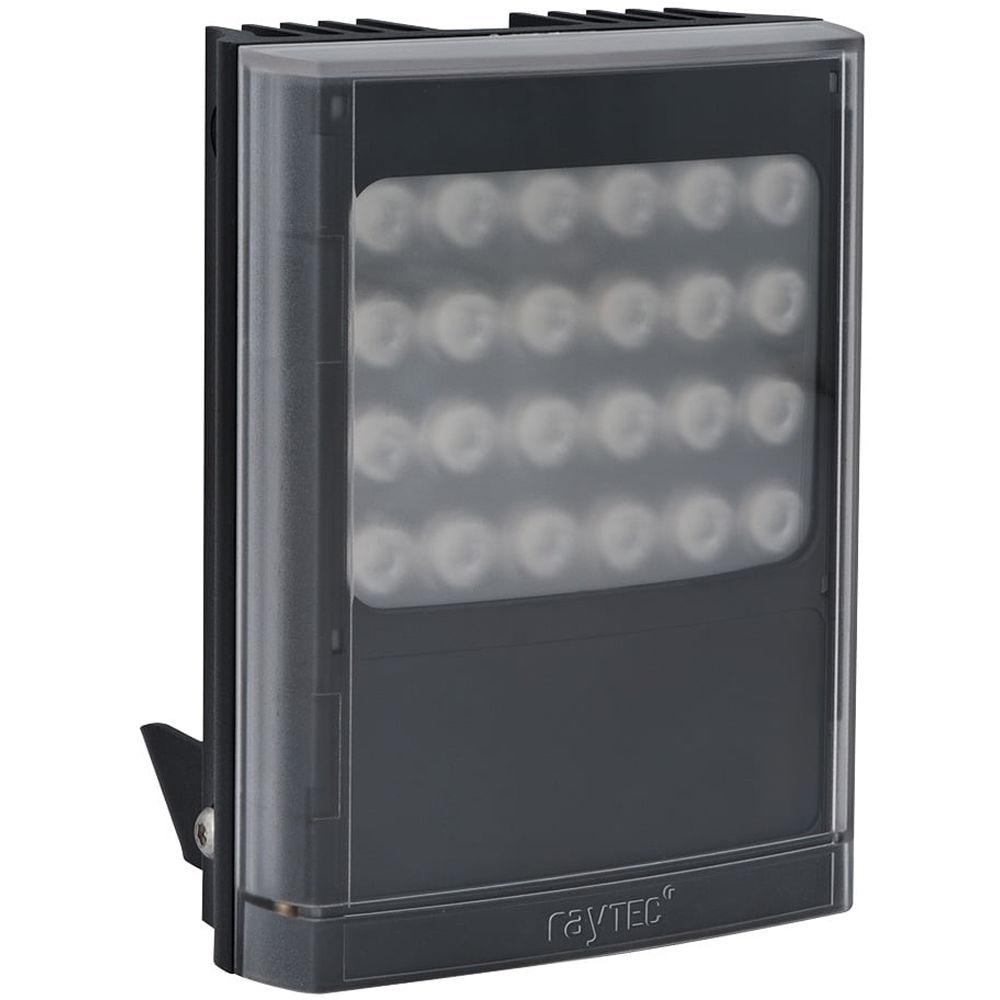

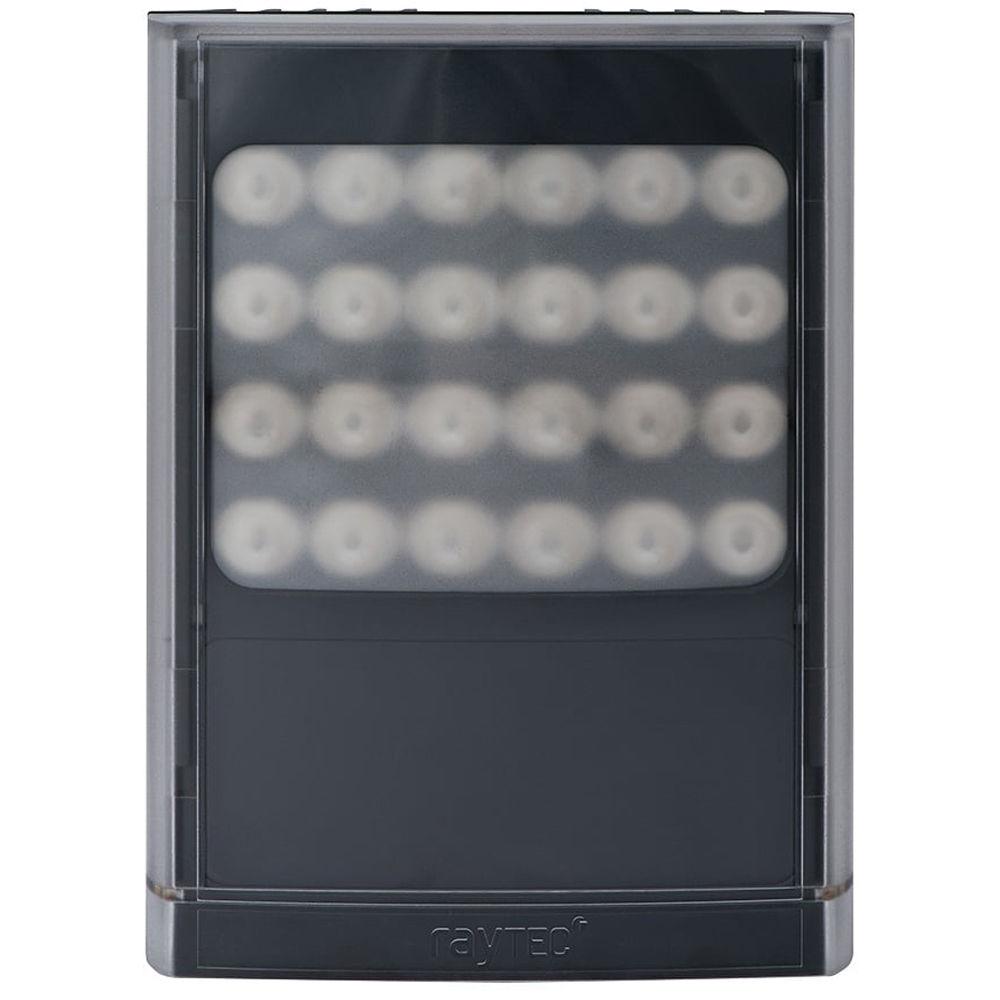

Product description The black Vario Hybrid Infrared and White-Light Illuminator from Raytec is specifically designed for use with external detectors or alarm inputs. The infrared emitters can be used for night vision surveillance and the white light LEDs can be triggered on alarm to act as a deterrent or provide color video. The VARIO beam pattern allows users to precisely match the angle of illumination to the required field of view by selecting the required lens insert. The use of Hot-spot Reduction technology provides a highly diffused elliptical beam shape to deliver light where it is most needed. - Interchangeable lenses change angle of illumination
- Green technology features include power adjustment, telemetry control, and a timer function that enhances the potential for energy savings

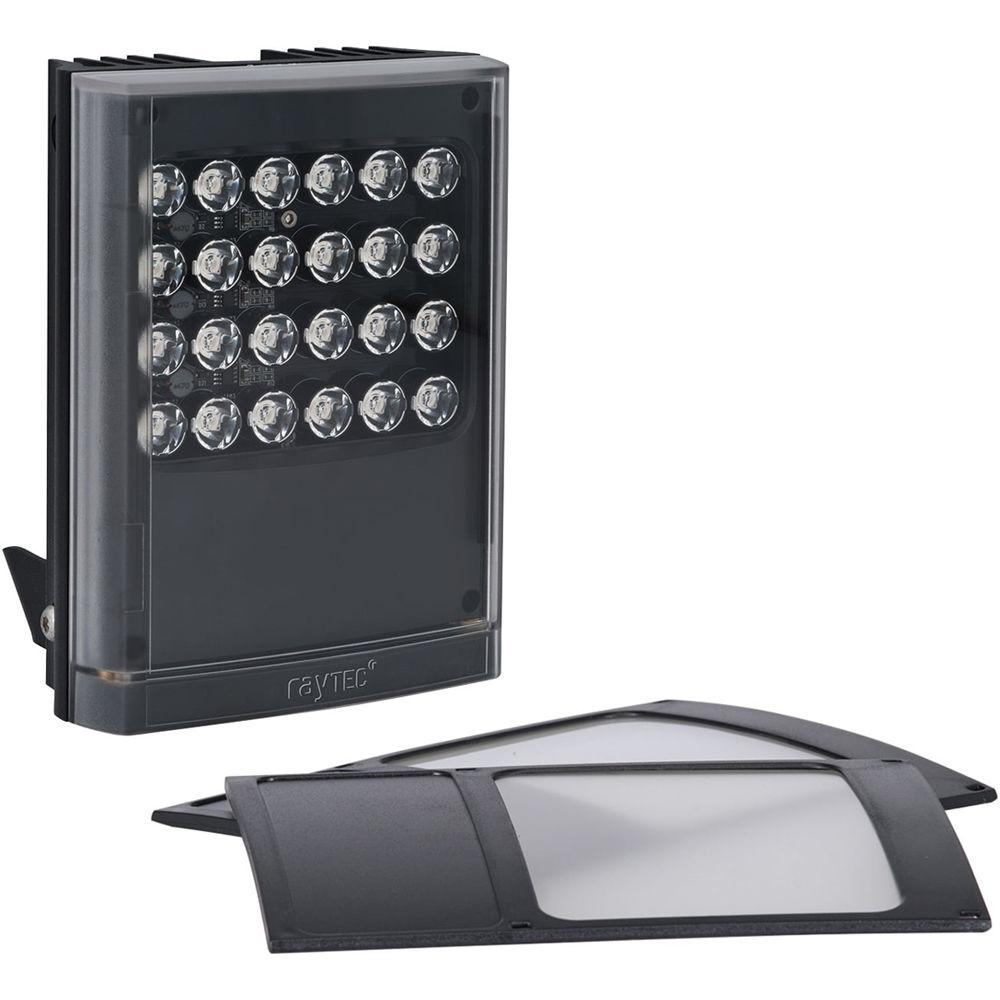

In the Box Raytec Vario Hybrid Infrared and White Light Illuminator (Black, 940nm) 10 x 10° Lens 60 x 25° Lens U-Bracket Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Raytec Vario Hybrid Infrared and White Light Illuminator in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRaytec VAR-HY8-1-C Specs | Max Distance | Infrared:
Not specified by the manufacturer
White Light:
10 x 10°: 440' / 134 m
35 x 10°: 236' / 72 m
60 x 25°: 131' / 40 m
80 x 30°: 89' / 27 m
120 x 50°: 59' / 18 m | | Lumens | 2650 lumens | | Temperature Adaptive Color | White Light: 5700 | | CRI | White Light: 65 to 70 | | Angle | 10 x 10°
35 x 10°
60 x 25° | | LEDs | Platinum elite SMT LEDS | | IR Frequency | 940nm | | Consumption | 48 W maximum | | Input Voltage | 12 to 24 VAC or DC | | Environmental | IP66 | | Temperature Range | -58 to 122°F / -50 to +50°C | | Cable Length | 8.2' / 2.5 m | | Cable | Red/Black: Power
White/Yellow: Photocell following contact output
Orange/Purple: Telemetry input | | Dimensions | 5 x 7 x 3.2" / 135 x 180 x 68.2 mm | | Weight | 3.6 lb / 1.65 kg |
