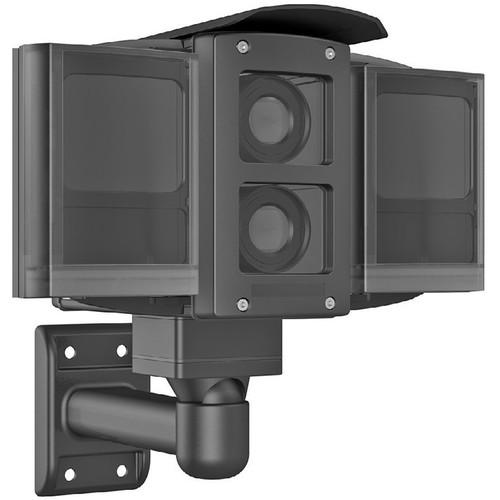

Product description The black VARIO Lighthouse Kit from Raytec is a fully integrated lighting and housing solution designed for easy camera integration and supports up to two IP or analog cameras. It features two integrated VARIO IR LED illuminators. Lighting and cameras can be used together for CCTV, ANPR/LPR, and thermal applications. Lighting can be easily configured for activation via photocell or on-demand via camera or external input (e.g. on detection of motion). The integrated photocell can be used to trigger switching of day/night mode in conjunction with the illuminators. The kit features an integrated bracket for quick and easy mounting. The Lighthouse kit is cable-managed and pre-wired with power cable and Cat 5e cable. PoE for the cameras is available using an external PoE source (not supplied). An optional VARIO PSU is available to provide 24 VAC/DC and the option for Cat 5e termination. VARIO illuminators offer interchangeable lenses with angles of 10, 35, and 60° out of the box. The interchangeable lenses, incorporating VARIO's HRT (Hot-spot Reduction Technology) allow you to alter the angle of illumination. VLK also offers Adaptive Illumination to adapt the horizontal beam angle. -
- Accommodates up to two IP or analog cameras
- Suitable for CCTV, ANPR/LPR, machine vision, and thermal camera applications
- Two IR LED illuminators
- Integrated control interface and flexible set up
- Easily configured camera and lighting integration
- Lighting triggered on demand via camera, detector, or alarm
- Cable managed, integrated bracket, and fully pre-wired
- Easy mounting and quick installation
- VARIO Interchangeable Lensing: Angle of illumination can be easily adjusted by changing the VARIO holographic lens insert to match the specific camera field of view
- HRT (Hot-spot Reduction Technology) delivers a diffused, elliptical beam shape to help cameras achieve improved images at night and generate longer illumination distances, whilst reducing light and energy wastage and preventing the overexposure of foreground objects
- Built-in photocell for automatic on/off operation
- LED status indicator provides status on performance of the unit
- Photocell following output
- Adaptive Illumination
In the Box Raytec VARIO Lighthouse Kit with Covert LED Illuminators (Black) Standard Integrated Cable Managed Wall Bracket Cat 5e Cable Power/Aux Cable Camera Mounting Plates Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Raytec VARIO Lighthouse Kit with Covert LED Illuminators in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRaytec VARIO Specs | Input | 15 to 24 VAC/DC | | Consumption | 59 W
2 x Illuminators: 48 W
Camera: 6 W (typical)
Camera Heater: 5 W | | Cable | Cat 5e, 8 x 24 AWG and power/aux 6-core | | Cable Length | 13' / 4 m | | IP Rating | IP66 | | Temp Ranges for Storage Humidity | 58 to 122°F / -50 to 50°C | | Illumination Angle | 10 x 10° circular
35 x 10° (fitted as standard)
60 x 25° elliptical lenses | | Optics | SMT LED's | | Wavelength | 940nm | | Dimensions | Drilling: 4 x M5 holes 1.57 x 2.44" (40 x 62 mm) | | Maximum Camera Size (LxWxH) | Top Maximum Camera Space (L x H x W): 8.8 x 2.4 x 3.5" / 224.5 x 61 x 90.5 mm
Bottom Maximum Camera Space (L x H x W): 7.8 x 2.2 x 2.9" / 200.1 x 56.6 x 74.5 mm or 8.8 x 1.8 x 2.9" / 224.5 x 48 x 74.5 mm | | Dimensions | Excluding Bracket: 13.2 x 11.9 x 6.8" / 336 x 302 x 173 mm | | Weight | 10 lb / 4.6 kg including wires and bracket |
