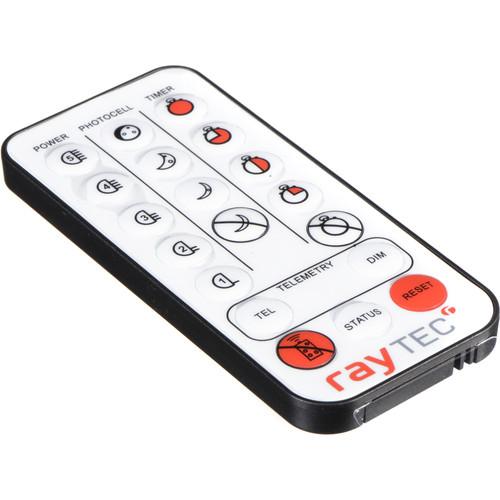

User Manual for Raytec VARIO Remote Control Click to enlarge the picture
Contents of the user manual for the Raytec VARIO Remote Control
- Product category: Illuminator Accessories Raytec
- Brand: Raytec
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Raytec Illuminator Accessories
|
User manual for the Raytec VARIO Remote Control contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Raytec product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Raytec user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Raytec product will considerably shorten its lifespan!
|
Product description Adjust settings of a VARIO illuminator with the VARIO Remote Control from Raytec. Adjust and control illuminator power, photocell sensitivity, and timer settings remotely. It is compatible with a volt-free or TTL telemetry input to be used with a switch or input from an alarm system, PIR motion sensor, control room, video management software, or a camera. The remote is powered by a single CR2025 battery (included). - Compatible with all VARIO illuminators
- Adjustable power from 20 to 100% in increments of 20%
- Select photocell sensitivity to trigger the illuminator to turn on at a predetermined ambient light level
- Timer function for use with telemetry input
- Volt-free or TTL telemetry input for use with a remote switch, alarm system, PIR motion sensor, control room, video management system, or a camera
- Enable and disable illuminator LED status indicators
In the Box Raytec VARIO Remote Control CR2025 Battery Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Raytec VARIO Remote Control in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRaytec VAR-RC Specs | Compatibility | Raytec VARIO illuminators | | Power Adjustment Range | 20, 40, 60, 80, 100% | | Photocell | 25 lux on, 50 lux off
10 lux on, 30 lux off
5 lux on, 15 lux off
Disable photocell | | Telemetry | Volt-Free Input:
Non-polarity sensitive
Short Circuit: Light on
TTL Input:
Orange: TTL positive
Purple: TTL negative (GND)
0 V: Light on
3 V: Light off | | Timer | 1, 3, 10, 30 minutes, or disabled | | Power | CR2025 battery | | Dimensions | 1.6 x 3.4 x 0.3" (40 x 87 x 7.5 mm) | | Weight | 0.4 oz (10 g) | | | | Package Weight | 0.1 lb | | Box Dimensions (LxWxH) | 4.8 x 2.8 x 1.1" |
