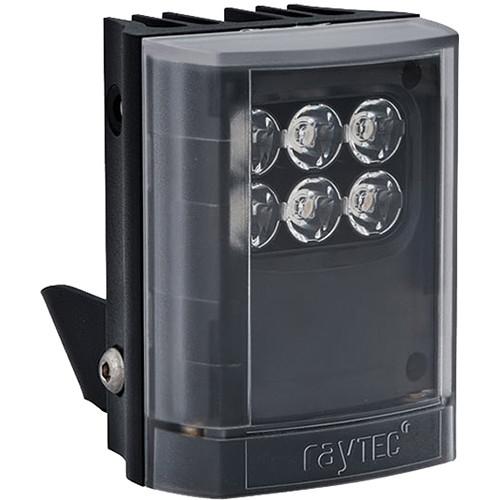

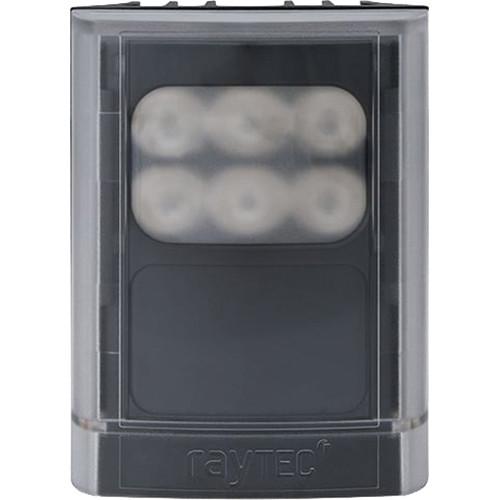

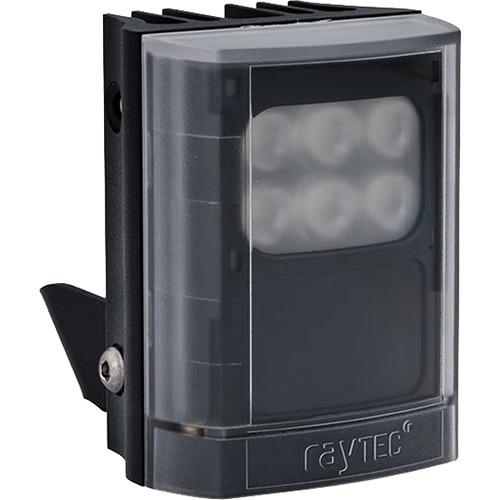

Product description The VARIO2 i2 Short-Range Semi-Covert IR Illuminator from Raytec has six 850nm IR LEDs to help night vision cameras produce clear images in complete darkness. It features an interchangeable lens system with HRT to deliver even illumination without overexposed white spots. It comes with three lenses, including a 10 x 10° circular, a 35 x 10°, and a 60 x 25° lens to fit your needs. The unit is IP66-rated for protection from dust and water, making it suitable for outdoor use. - Three interchangeable lenses included for custom field of view
- Hot-Spot Reduction Technology and the elliptical beam help night vision cameras produce accurate images
- PLATINUM Elite SMT LED technology and Cool Running thermal management system for high-power at long distances
- LED status indicator for quick status update
- Six 850nm semi-covert IR LEDs
- 20-100% adjustable LED power
- Photocell with on/off operation and adjustable sensitivity
- Disable program mode functionality
- IP66-rated for outdoor use
- Compatible with VARIO remote control (available separately)
In the Box Raytec VARIO2 i2 Short-Range Semi-Covert IR Illuminator 10 x 10° Lens 35 x 10° Lens (Preinstalled) 60 x 25° Lens U-Bracket Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Raytec VARIO2 i2 Short-Range Semi-Covert IR Illuminator in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRaytec VAR2-I2-1 Specs | Maximum Operating Distance | 256' (78 m) | | Input | 12 to 24 VAC/VDC | | Beam Pattern | Elliptical with HRT | | Beam Angle | 10° x 10°: 256' (78 m)
35° x 10°(Fitted as Standard): 177' (5 4 m)
60° x 25°: 118' (36 m)
80° x 30° (Optional): 79' (24 m)
120° x 50° (Optional): 59' (18 m) | | Consumption | 10 W maximum | | LED | 6 x PLATINUM Elite SMT LEDs | | Wavelength | 850 nm | | IP Rating | IP66 | | Temperature Range | -58 to 122°F / -50 to 50°C | | Cable Length | 8.2' / 2.5 m | | Dimensions | 3 x 4 x 2.5" / 7.5 x 10 x 6.4 cm approximately | | Weight | 1.3 lb / 0.6 kg | | | | Package Weight | 1.785 lb | | Box Dimensions (LxWxH) | 8.55 x 4.85 x 4.8" |
