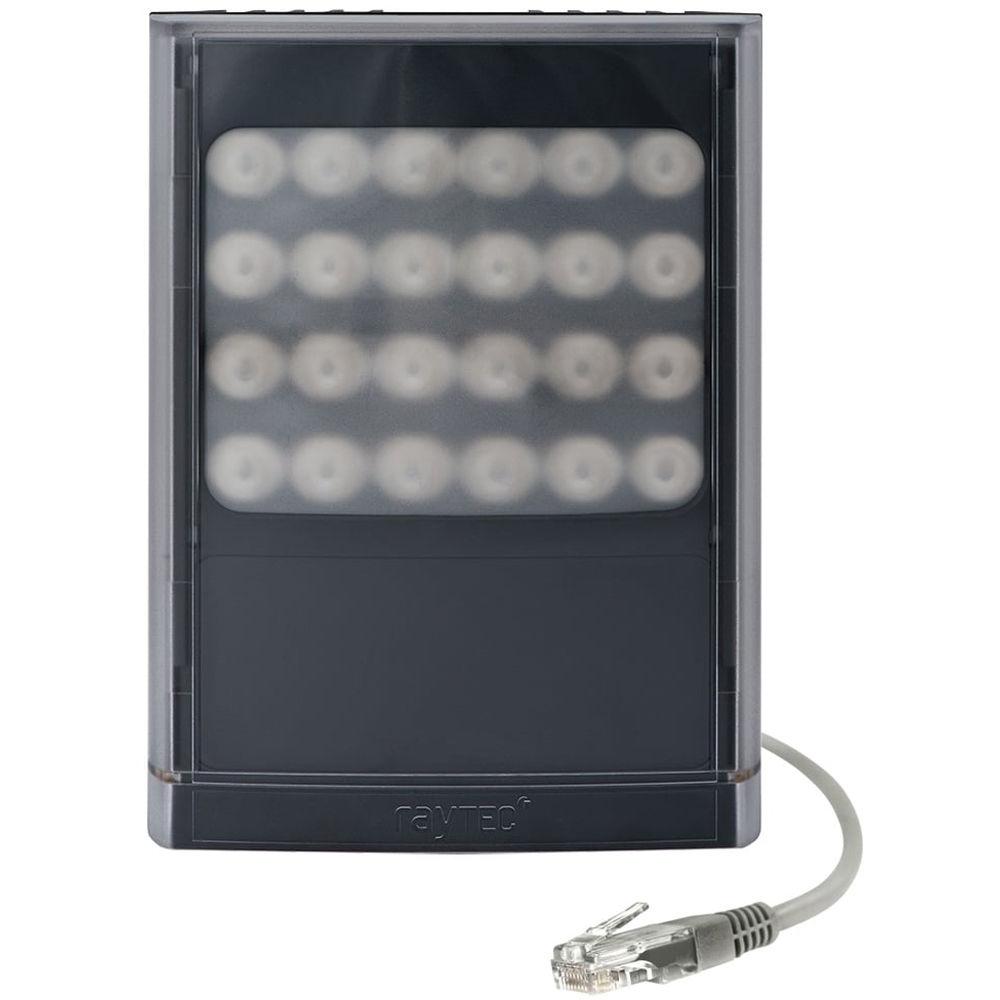

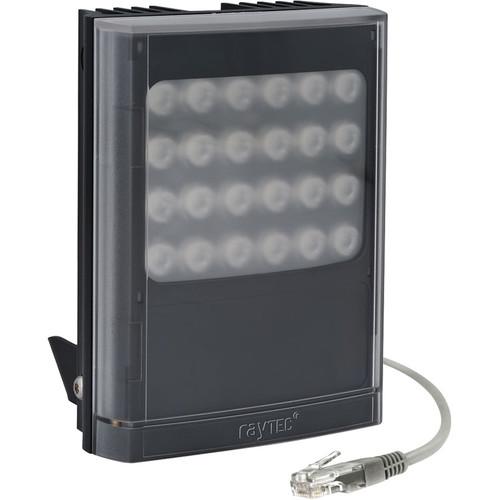

Product description The black VARIO2 IP PoE i8 Long-Range Covert Infrared Network Illuminator from Raytec uses PLATINUM Elite SMT LED technology to deliver IR light to distances up to 1148'. It provides situation-dependent lighting for video surveillance and can be fully integrated into an IP ecosystem. The VARIO2 IP enables users to create dynamic lighting systems capable of controlling illuminators individually or in groups. It features an interchangeable lens system with Hot-spot Reduction Technology to deliver even illumination. - Dedicated IR lighting with PoE
- Integrated web interface provides a quick access screen for instant response to live events in real time
- Advanced user-defined settings and diagnostics tools
- Dedicated API for seamless integration into third-party technology platforms such as VMS, BMS, and access control systems
- HTTP commands can be used to control VARIO2 IP illuminators from any network-enabled device

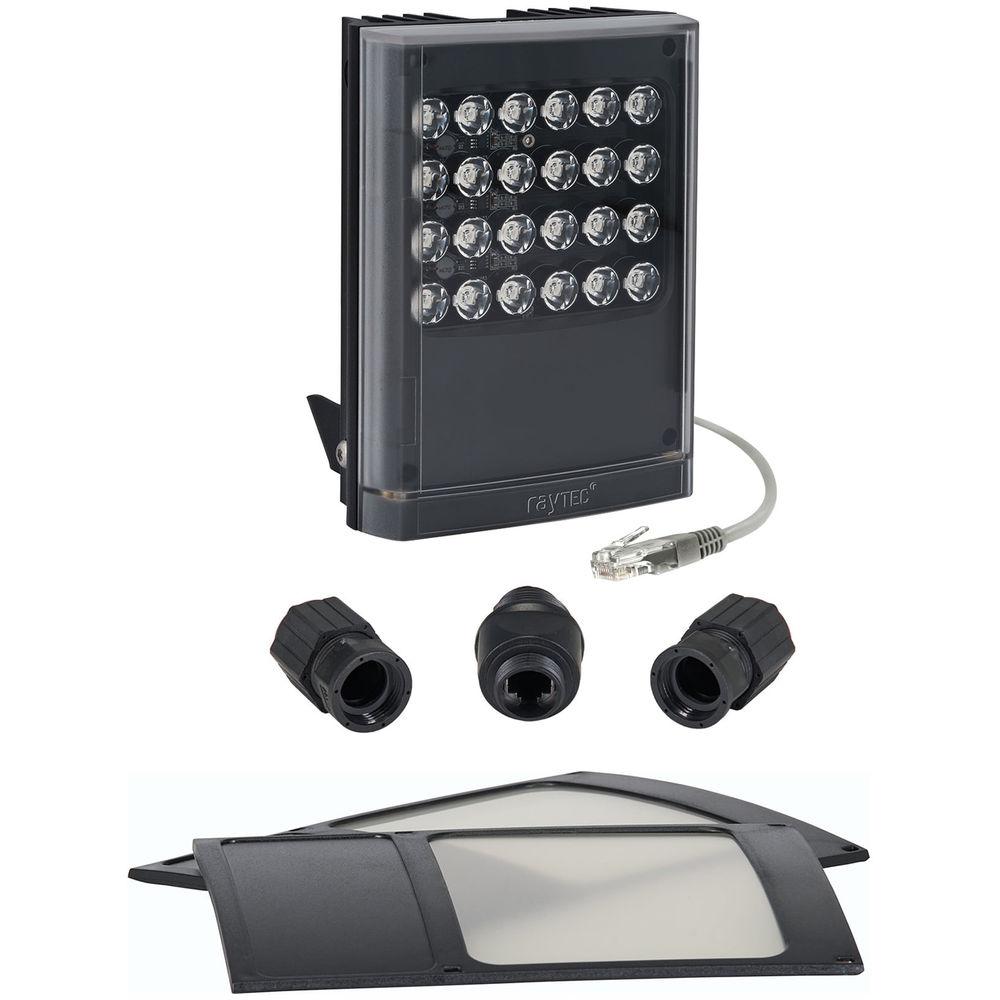

In the Box Raytec VARIO2 IP PoE i8 Long-Range Covert Infrared Network Illuminator (940nm, Black) 10 x 10° Lens 60 x 25° Lens U-Bracket Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Raytec VARIO2 IP PoE i8 Long-Range Covert Infrared Network Illuminator in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRaytec VAR2-IP POE-I8-1-C Specs | Maximum Operating Distance | 1148' (350 m) | | Input | 60 W PoE++ (4-pair PoE) or 24 VDC | | Consumption | 49 W | | Data Input | Cat 5 Cable | | Beam Pattern | Elliptical with HRT (Hot-spot Reduction Technology) | | Beam Angle | 10 x 10°
35 x 10° (Fitted as Standard)
60 x 25°
80 x 30° (Optional)
120 x 50° (Optional) | | LED | 24 x Platinum Elite SMT LEDs | | Wavelength | 940 nm | | IP Rating | IP66 | | Temperature Range | -58 to 122°F (-50 to 50°C) | | Cable Length | 2 x 8.2' (2.5 m) | | Minimum System Requirements | PC running Windows 7 with IE8 and network access | | Dimensions | 5.0 x 7.0 x 3.2" (135.0 x 180.0 x 68.2 mm) approximately | | Weight | 3.6 lb (1.65 kg) |
