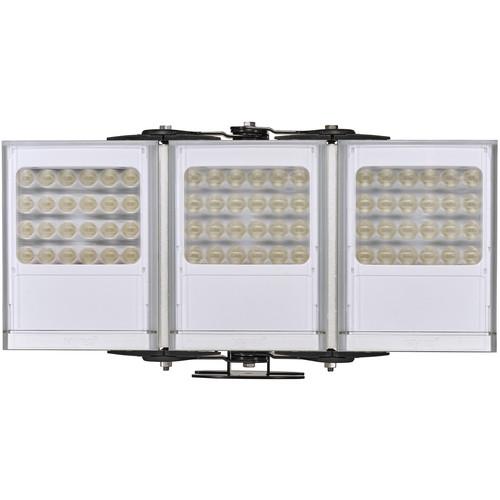

User Manual for Raytec VARIO2 IP PoE w8 Medium-Range White Light Network Illuminator Click to enlarge the picture
Contents of the user manual for the Raytec VARIO2 IP PoE w8 Medium-Range
- Product category: Illuminators Raytec
- Brand: Raytec
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Raytec Illuminators
|
User manual for the Raytec VARIO2 IP PoE w8 Medium-Range contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Raytec product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Raytec user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Raytec product will considerably shorten its lifespan!
|
Product description The silver VARIO2 IP PoE w8 Medium-Range White Light Network Illuminator from Raytec uses PLATINUM Elite SMT LED technology to deliver power and achieve a maximum illumination range of 591'. It provides a solution for smart, situation-dependent lighting for video surveillance and can be fully integrated into an IP ecosystem. The VARIO2 IP enables users to create dynamic lighting systems capable of controlling illuminators individually or in groups to automatically deliver the exact amount of light where and when it is needed. It features an interchangeable lens system with Hot-spot Reduction Technology to deliver even illumination. - Dedicated IP lighting with PoE
- Integrated web interface provides quick access screen for instant response to live events in real time
- Advanced user-defined settings and diagnostic tools
- Dedicated API for integration into third-party technology platforms such as VMS, BMS, and access control systems
- HTTP commands can be used to control VARIO2 IP illuminators from any network-enabled device
In the Box Raytec VARIO2 IP PoE w8 Medium-Range White Light Network Illuminator (Silver) 10 x 10° Lens 60 x 25° Lens U-Bracket Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Raytec VARIO2 IP PoE w8 Medium-Range White Light Network Illuminator in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRaytec VAR2-IPPOE-W8-3 Specs | Number of Panels | Triple | | Lumens | Total Lumens: 3727 lumens per luminaire | | Maximum Operating Distance | 591' / 180 m | | Input | Per Panel: 60 W PoE++ (4-pair PoE) or 24 VDC | | Data Input | Cat 5 Cable | | Beam Pattern | Elliptical with HRT (Hot-spot Reduction Technology) | | Beam Angle | 10 x 10°: 472' (144 m)
35 x 10° (Fitted as Standard): 256' (78 m)
60 x 25°: 177' (54 m)
80 x 30° (Optional): 118' (36 m)
120 x 50° (Optional): 79' (24 m) | | Consumption | 15 W | | LED | 72 x Platinum Elite SMT LEDs | | Wavelength | White light at 6000K | | IP Rating | IP66 | | Temperature Range | -58 to 122°F (-50 to 50°C) | | Cable Length | 2 x 8.2' (2.5 m) | | Minimum System Requirements | PC running Windows 7 with IE8 and network access | | Dimensions | Each Panel: 5 x 7 x 2.6" (135 x 180 x 68.2 mm) approximately | | Weight | Per Panel: 3.6 lb (1.6 kg) |
Rating50% users recommend this product to others. And what about you?
This product has already been rated by 50 owners. Add your rating and experience with the product.
