User Manual for Raytec VARIO2 Medium-Range Double-Panel White Light Illuminator with Adaptive Illumination Click to enlarge the picture
Contents of the user manual for the Raytec VARIO2 Medium-Range Double-Panel White Light
- Product category: Illuminators Raytec
- Brand: Raytec
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Raytec Illuminators
 |
User manual for the Raytec VARIO2 Medium-Range Double-Panel White Light contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Raytec product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Raytec user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Raytec product will considerably shorten its lifespan!
|

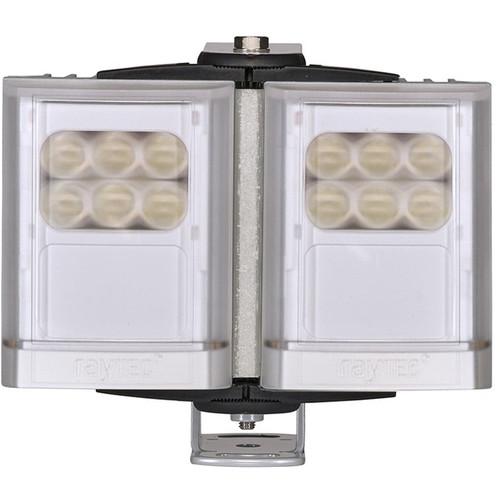

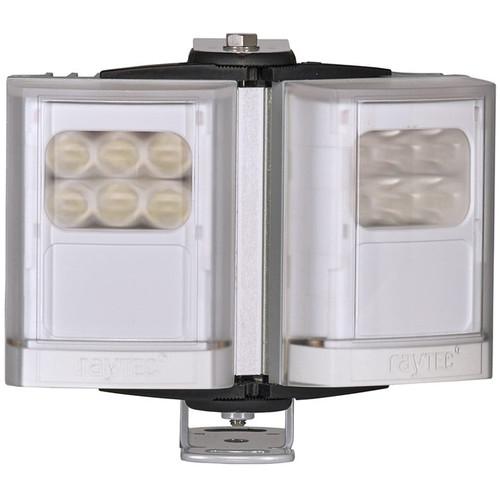

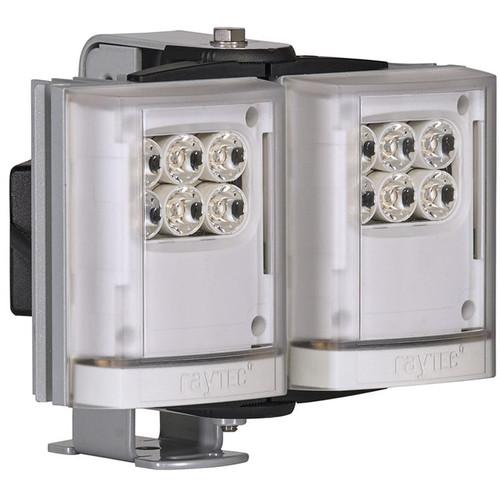

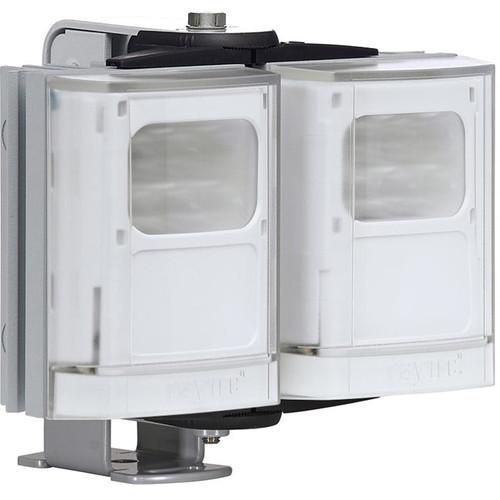

Product description The silver VARIO2 Medium-Range Double-Panel White Light Illuminator from Raytec helps improve the performance of any video surveillance system in low light conditions. It uses PLATINUM Elite SMT LED technology to deliver more power from a smaller platform. It can cast light to a distance of 295'. The double-panel illuminator features an interchangeable lens system with Hot-spot Reduction Technology, and Adaptive Illumination to deliver even illumination for improving the overall image quality. -

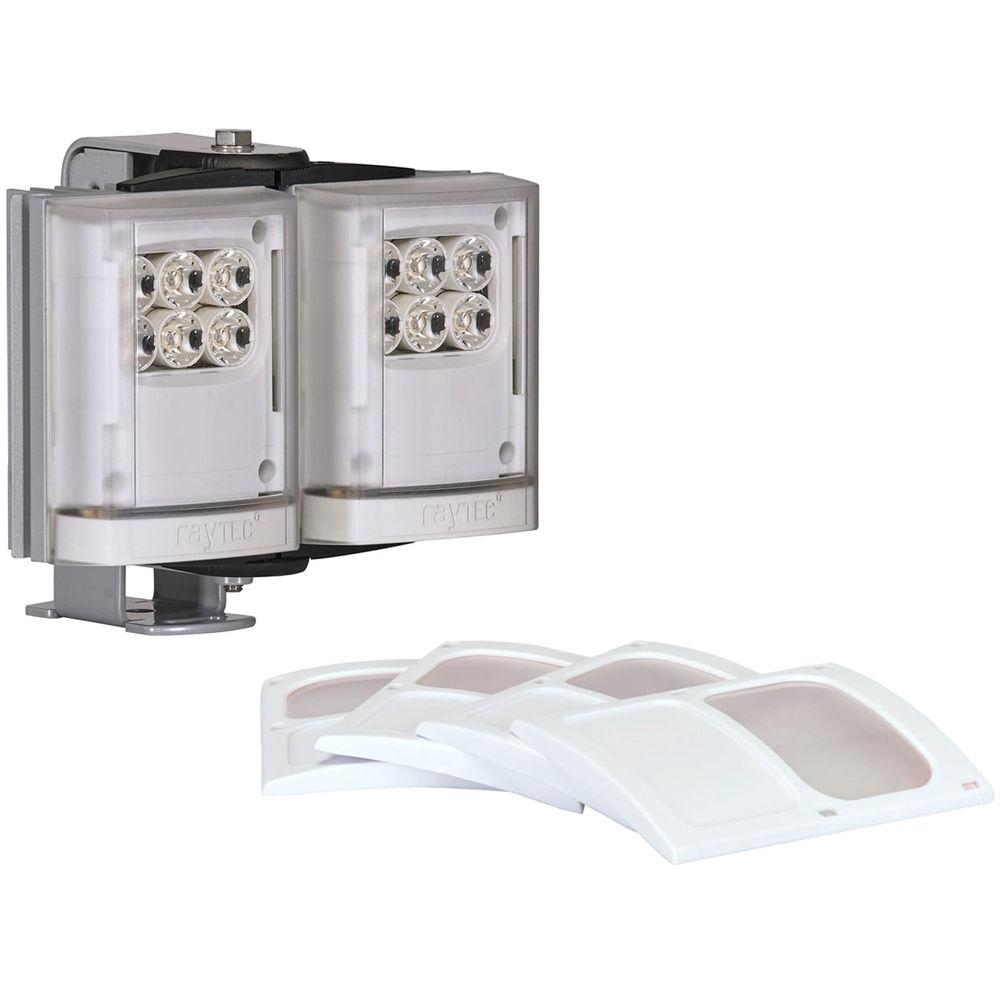

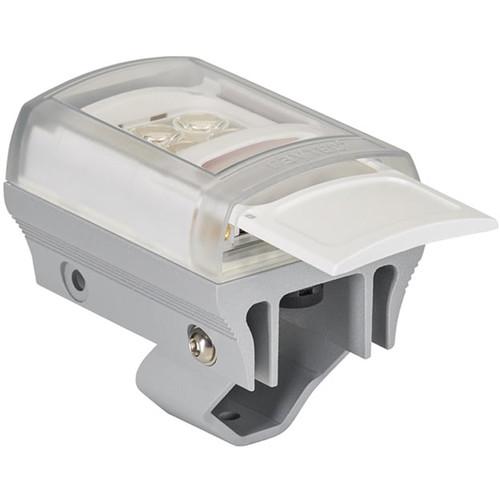

- Angle of illumination can be adjusted by changing the VARIO holographic lens insert to match a specific field of view
- HRT (Hot-spot Reduction Technology) delivers a diffused, elliptical beam shape to deliver more light where needed
- HRT system prevents overexposure of foreground objects
- Optional VARIO Remote Control allows for quick and safe setup
- LED status indicator for quick operational feedback on status and performance of the illuminator
- PLATINUM Elite SMT LED technology with enhanced Cool Running thermal management system
- Programming inputs on both the VARIO remote control (sold separately) and on the VARIO2 illuminator can be disabled
- VARIO remote control can be given a PIN code to lock in settings and limit access
- Built-in green features such as power adjustment, telemetry control, and timer function
- Power adjustable from 20 to 100%
- Builit-in photocell for automatic on/off operation
In the Box Raytec VARIO2 Medium-Range Double-Panel White Light Illuminator with Adaptive Illumination (Silver) Adaptive Illumination Mounting Bracket Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Raytec VARIO2 Medium-Range Double-Panel White Light Illuminator with Adaptive Illumination in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRaytec VAR2-W2-2 Specs | Lumens | 1864 lumens | | Maximum Distance | 295' / 90 m | | Angle | 10 x 10° circular
35 x 10° standard
60 x 25° elliptical | | Input | 12/24 VAC/DC | | Distances Supported | 10 x 10 °:
Narrow Angle: 295' / 90 m at 10° ()
Wide Angle: 210' / 64 m at 20°
35 x 10°:
Narrow Angle: 184' / 56 m at 35°
Wide Angle: 131' / 40 m at 70°
60 x 25°:
Narrow Angle: 115' / 35 m at 60°
Wide Angle: 82' / 25 m at 180° | | Consumption | 22 W maximum | | Beam Pattern | Elliptical with HRT (Hot-spot Reduction Technology) | | Beam Angle | VARIO interchangeable lens system | | LED | Platinum Elite SMT LEDs | | Number of LEDs | 12 | | Wavelength | White light | | Color Temperature | 6000K | | CRI | >70 | | IP Rating | IP66 | | Temperature Range | -58 to 122°F / -50° to 50°C | | Cable Length | 8.2' / 2.5 m | | Dimensions | Approximately 6 x 5 x 2.5" / 159 x 144 x 63 mm | | Weight | 3.3 lb / 1.5 kg |
