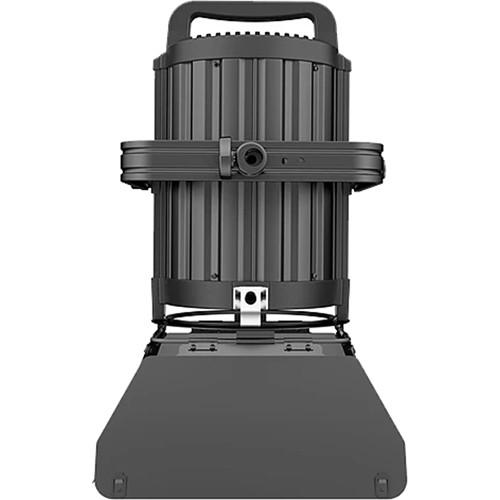

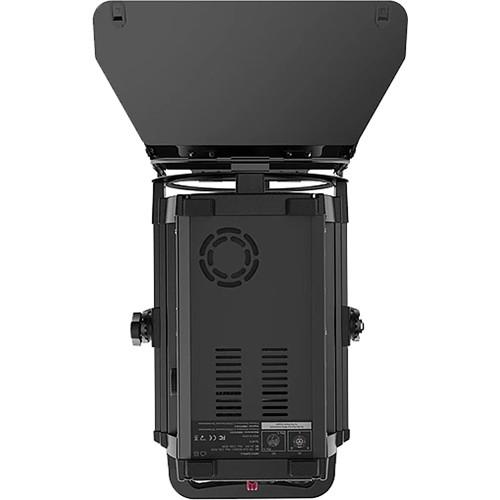

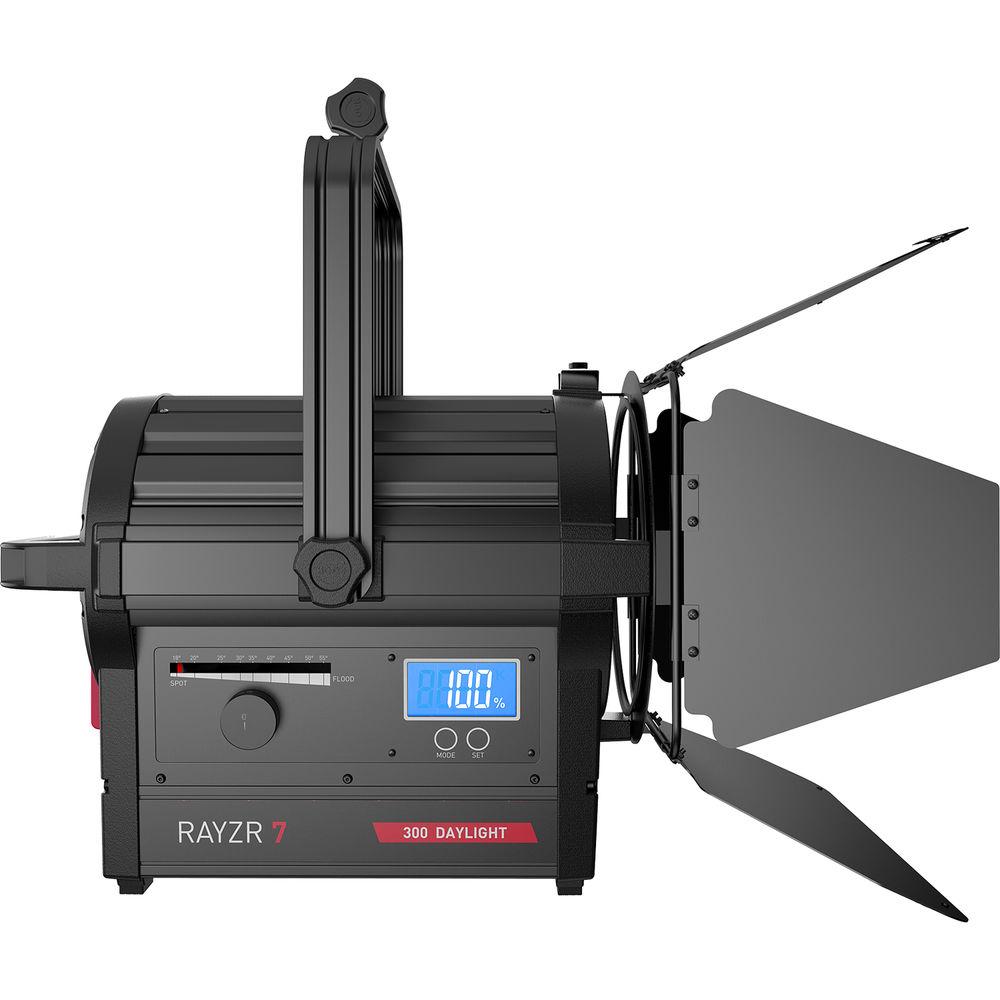

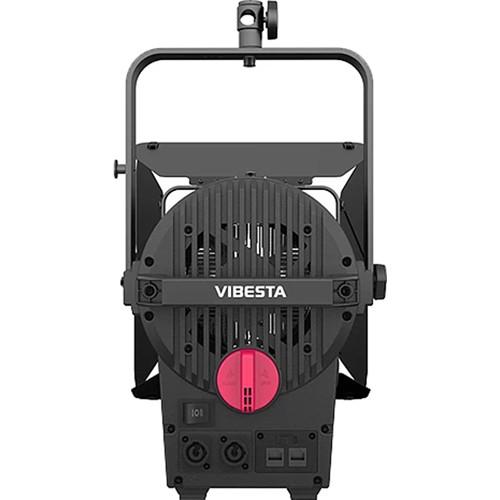

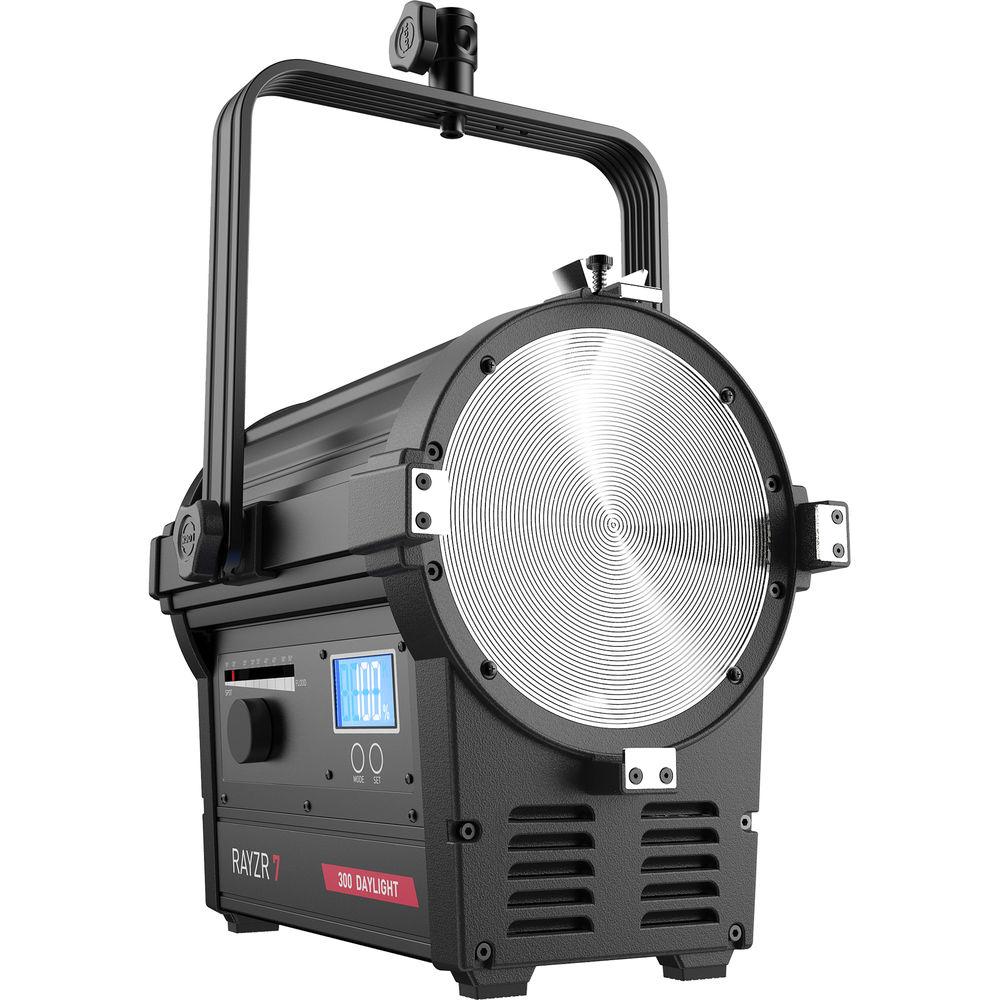

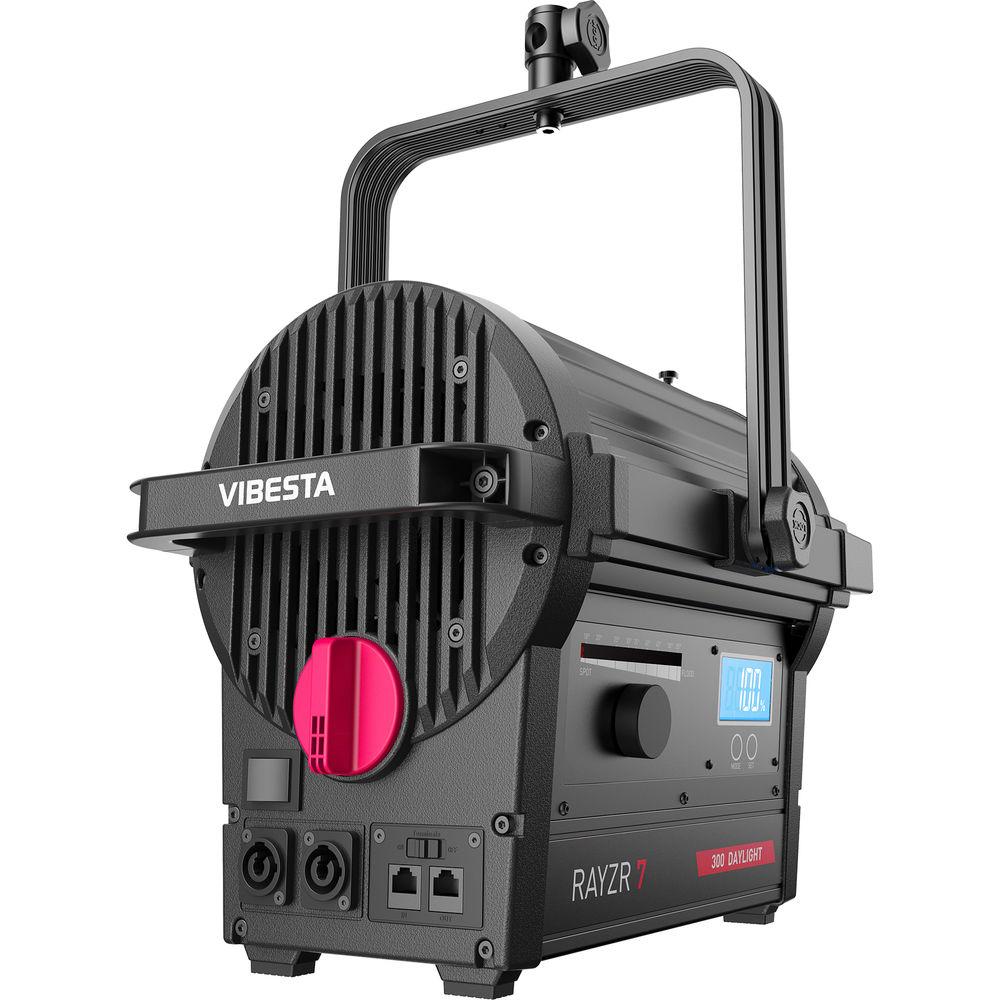

Product description The black 7" 200W Bi-Color LED Fresnel Light (Premium Pack) from Rayzr offers a total power output of 200W (100W + 100W) and uses a silent passive cooling system. It offers a color temperature of 3200 to 5600K (bi-color)) and beam angle of 18 to 50°. The light comes with a RJ45 DMX in and through control and an onboard controller. In addition to the 7" LED Fresnel, the premium pack includes 4-leaf barndoor, a power supply, and a travel case. - 200W (100W + 100W) power output
- Flicker-free operation up to 15,000 fps
- Even and uniform light beam
- Full control over light beam shaping

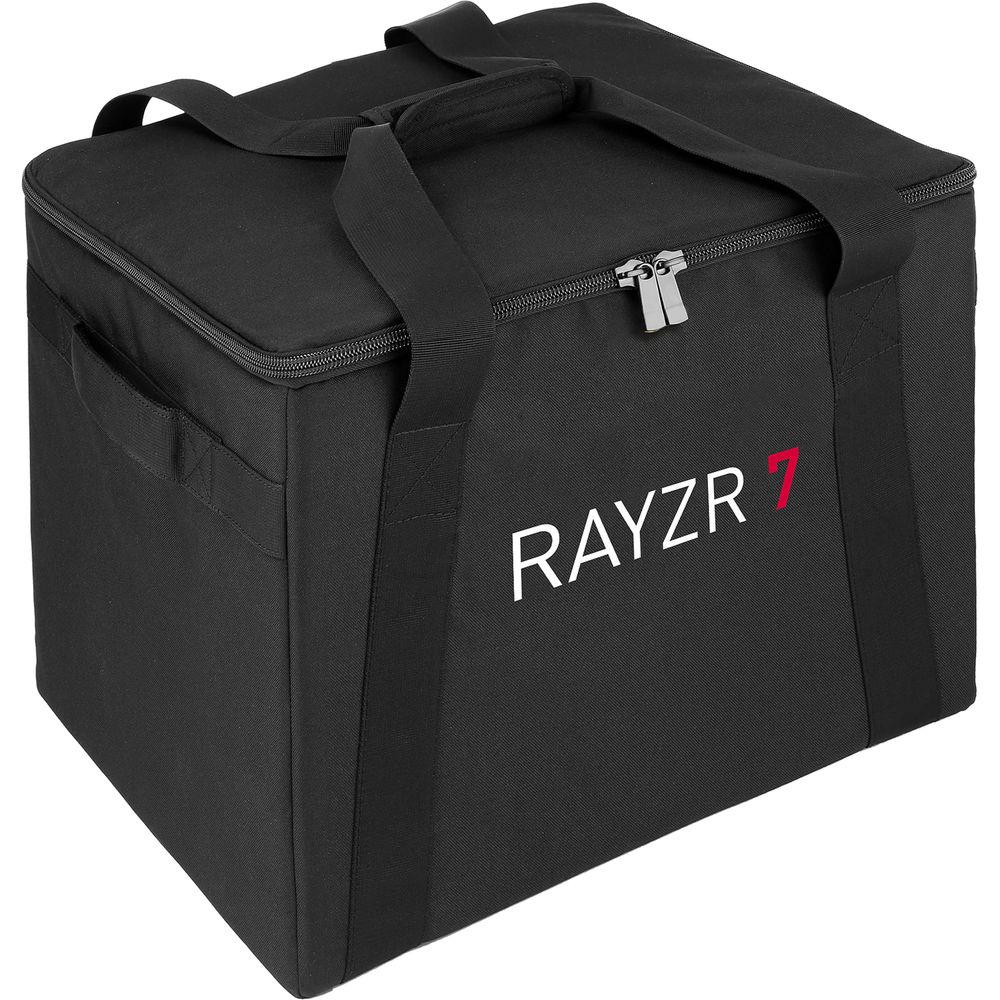

In the Box Rayzr 7 7" 200W Bi-Color LED Fresnel Light (Premium Pack) Power Supply 4-Leaf Barndoor for Rayzr 7 LED Fresnel vbecqfcq Travel Case Limited 1-Year Warranty Quick start Guide PDF 426.1kb Table of Contents
|
Upload User Manual
Have you got an user manual for the Rayzr 7 7" 200W Bi-Color LED Fresnel Light in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRayzr 7 200BM Bi-Color Specs | Rating | 200 W (100 W + 100 W) | | Beam Angle | 18 to 50° (half peak angle) | | White Light Lamp | Bi-color 3200 to 5600K
Continuously Variable CCT | | Photometric Data | Spot: 18°
At 9.84' (3 m)
100% 3200K: 3086 lux, 287 fc
100% 5600K: 3531 lux, 328 fc
At 16.4' (5 m)
100% 3200K: 1111 lux, 103 fc
100% 5600K: 1271 lux, 118 fc
At 23' (7 m)
100% 3200K: 567 lux, 53 fc
100% 5600K: 649 lux, 60 fc
At 29.5' (9 m)
100% 3200K: 343 lux, 32 fc
100% 5600K: 392 lux, 36 fc
Middle: 30°
100% 3200K: 1858 lux, 173 fc
100% 5600K: 2152 lux, 200 fc
At 16.4' (5 m)
100% 3200K: 669 lux, 62 fc
100% 5600K: 775 lux, 72 fc
At 23' (7 m)
100% 3200K: 341 lux, 32 fc
100% 5600K: 395 lux, 37 fc
At 29.5' (9 m)
100% 3200K: 206 lux, 19 fc
100% 5600K: 239 lux, 22 fc
Flood: 50°
100% 3200K: 757 lux, 70 fc
100% 5600K: 867 lux, 81 fc
At 16.4' (5 m)
100% 3200K: 272 lux, 25 fc
100% 5600K: 312 lux, 29 fc
At 23' (7 m)
100% 3200K: 139 lux, 13 fc
100% 5600K: 159 lux, 15 fc
At 29.5' (9 m)
100% 3200K: 84 lux, 8 fc
100% 5600K: 96 lux, 9 fc | | Color Temperature Tolerance | +/- 150K (nominal) | | CRI / TLCI | CRI 94 ± 2 / TLCI 95 to 98 | | Control | RJ-45 DMX in and through, onboard controller | | LED Lifetime | Estimated: 50,000 hours (15 years of average use) | | Current | Input Current Range: Maximum 1.3 A @ 90 V, 0.44 A @ 264 V | | Power Consumption | Nominal: 111 W
Maximum: 115 W | | Power Connection Type | Neutrik power CON TRUE1 NAC3MPX
Plug: Neutrik power CON TRUE1 NAC3FX-W | | DC Voltage | Power Voltage Range: 12 to 24 VDC
Input Current Range: Maximum 9 A @ 12 V
4.5 A @ 24 V
Power Consumption: 104 W (nominal), 108 W (maximum)
Power Connection: Neutrik speak ON NL2MP, Plug: Neutrik speak ON NL2FX | | Optical System | Focusable fresnel | | Lens Diameter | 6.7" (170 mm) | | Thermal Design | Silent passive cooling | | Tilt Angle | +/- 90° | | Ambient Temperature | -4 to +113°F (-20 to 45°C) | | Protection Class | IP20 | | Certifications | CE, FCC, RoHS, REACH | | Operating Voltage | 90 to 264 VAC, 50/60 Hz | | Dimming | 0 to 100% continuous | | Cable | Power cable | | Mount | 0.6" (16 mm) / 1.1" (28 mm) combo pin (Baby 5/8" / Junior 1-1/8" combo pin) | | Dimensions | 18.8 x 10.9 x 14.3" (478 x 250 x 363 mm) | | Weight | 15.9 lb (7.2 kg) | | | | Package Weight | 30.05 lb | | Box Dimensions (LxWxH) | 21.9 x 17.4 x 17.3" |
