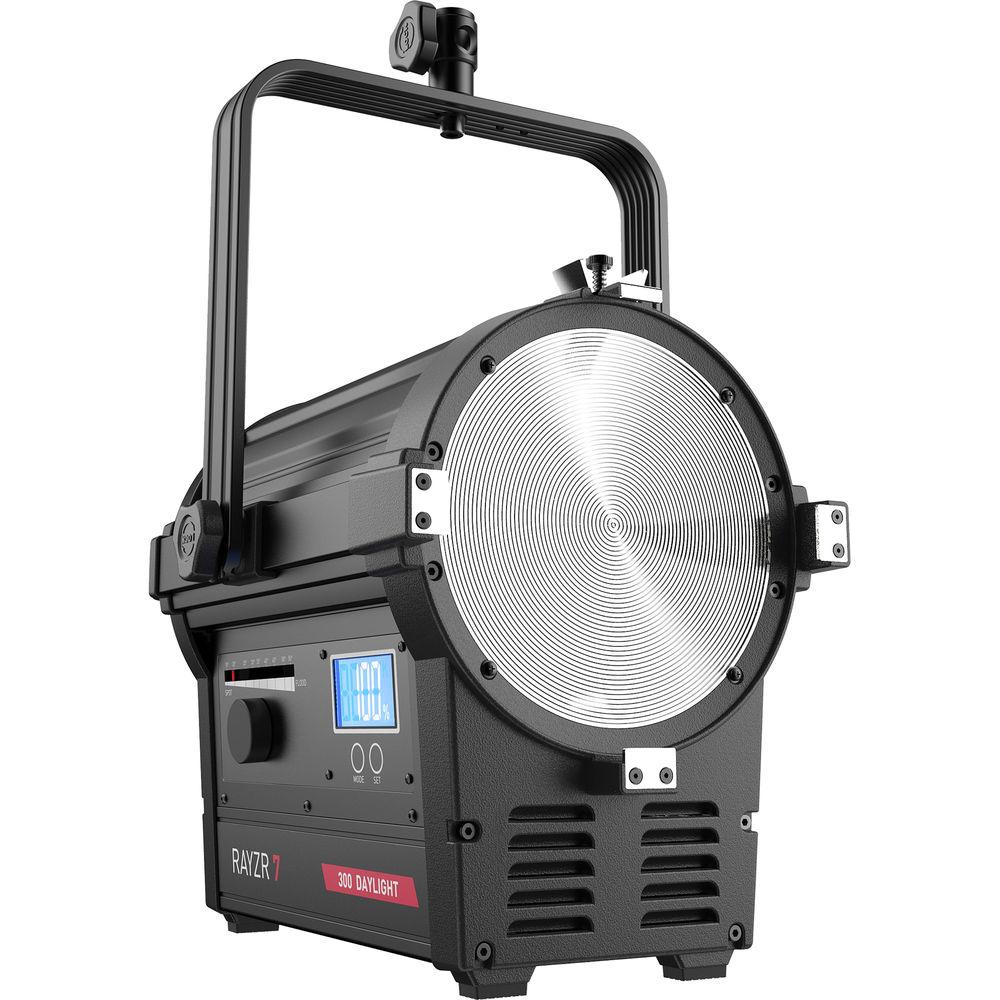

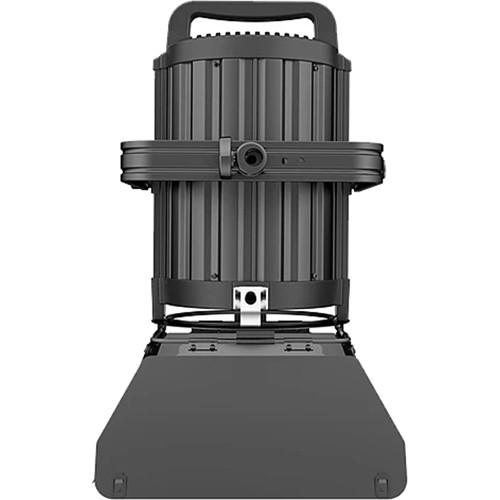

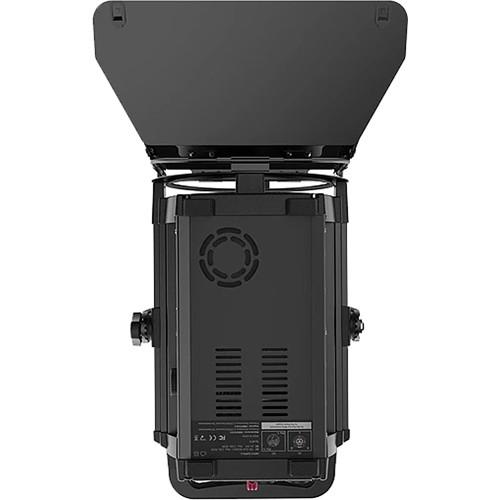

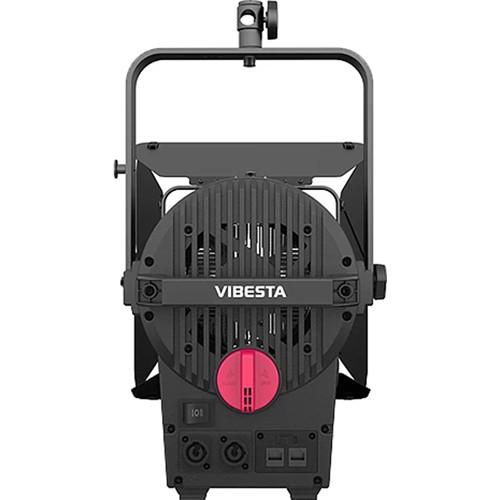

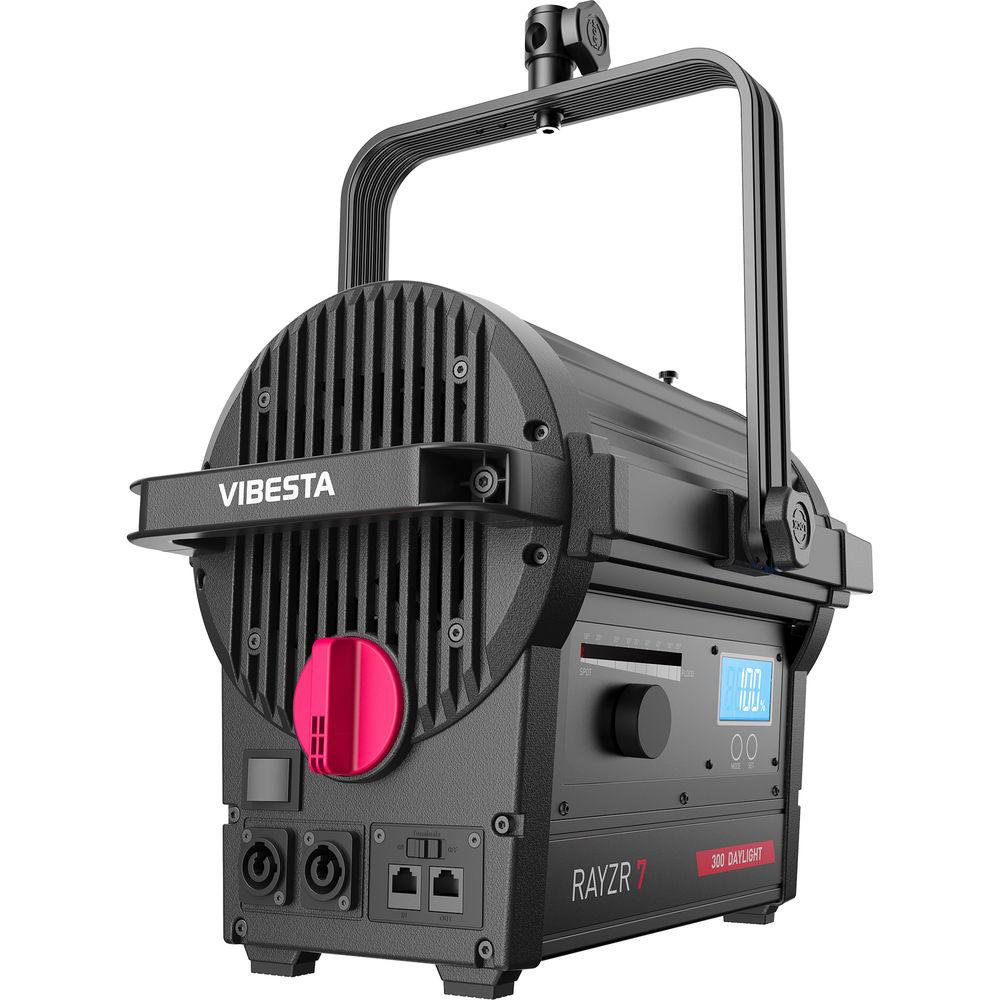

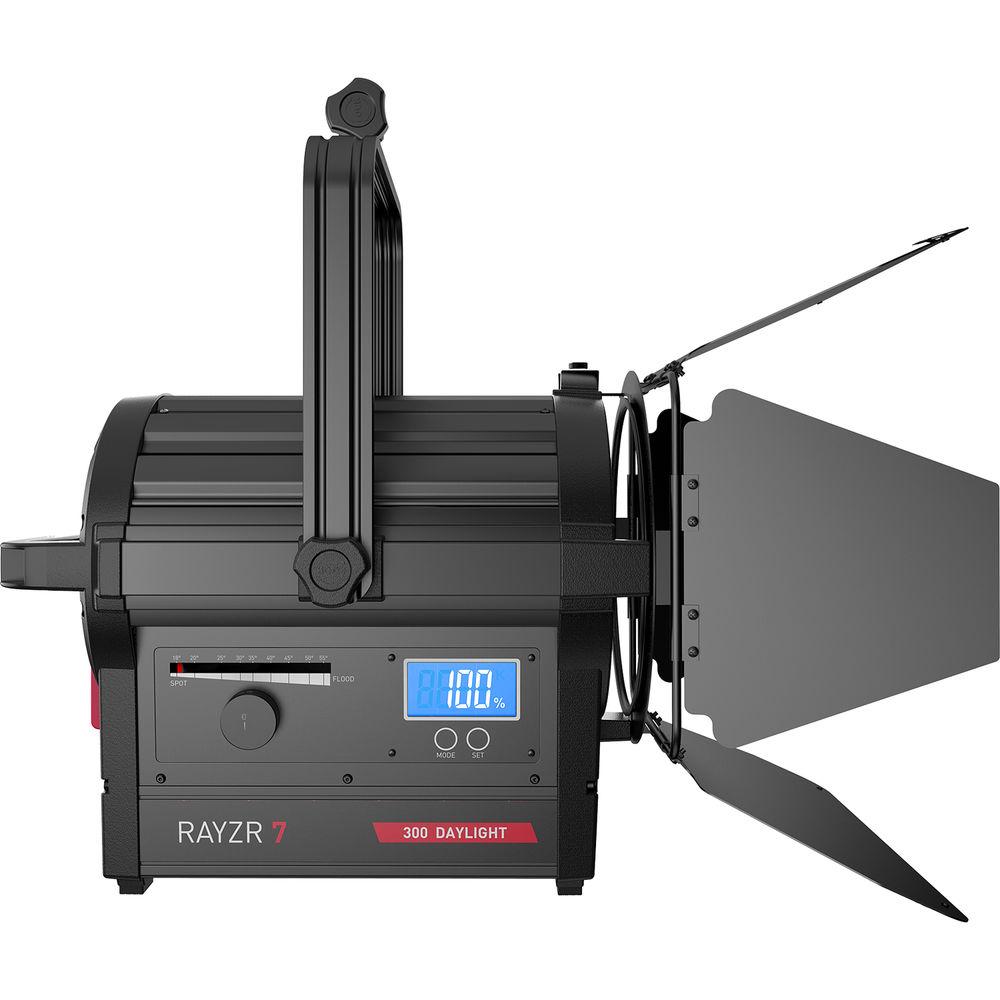

Product description The black 7" 200W Daylight LED Fresnel Light (Premium Pack) from Rayzr offers a total power output of 200W (100W + 100W) and uses a vapor passive cooling system. It offers a color temperature of 5600K (daylight) and beam angle of 18 to 50°. The light comes with an RJ45 DMX in / through control and an onboard controller. In addition to the 7" LED Fresnel, the premium pack includes 4-leaf barndoor, a power supply, and a travel case. - 200W (100W + 100W) power output
- Flicker-free operation up to 15,000 fps
- Even and uniform light beam
- Full control over light beam shaping

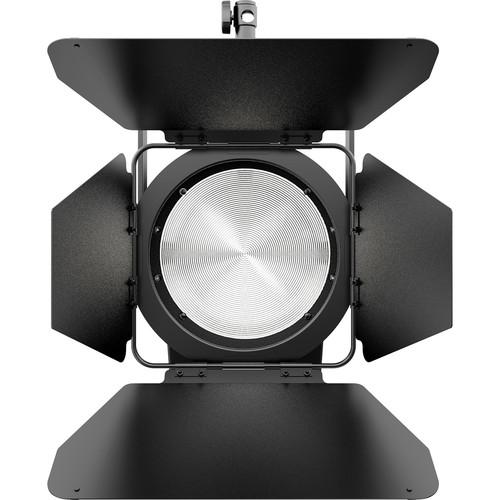

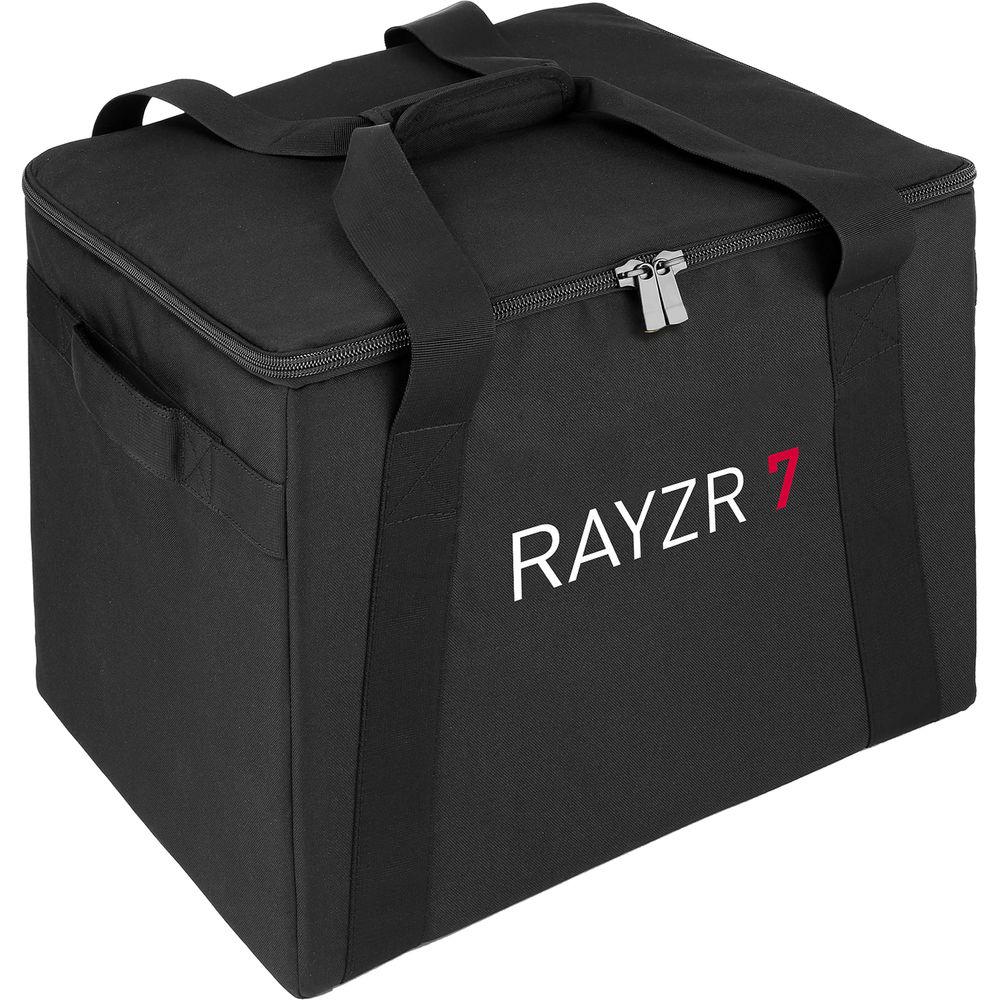

In the Box Rayzr 7 7" 200W Daylight LED Fresnel Light (Premium Pack) Power Supply 4-Leaf Barndoor for Rayzr 7 LED Fresnel Travel Case Limited 1-Year Warranty Quick start Guide PDF 426.1kb Table of Contents
|
Upload User Manual
Have you got an user manual for the Rayzr 7 7" 200W Daylight LED Fresnel Light in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRayzr 7 200 Daylight Specs | Rating | 200 W | | Beam Angle | 18 to 50° (half peak angle) | | White Light Lamp | Daylight 5600K | | Photometric Data | Spot: 18°
At 9.84' (3 m): 7289 lux, 678 fc
At 16.4' (5 m): 2624 lux, 244 fc
At 23' (7 m): 1339 lux, 124 fc
At 29.5' (9 m): 810 lux, 75 fc
Middle: 30°
At 9.84' (3 m): 4409 lux, 410 fc
At 16.4' (5 m): 1587 lux, 148 fc
At 23' (7 m): 810 lux, 75 fc
At 29.5' (9 m): 490 lux, 46 fc
Flood: 50°
At 9.84' (3 m): 1863 lux, 173 fc
At 16.4' (5 m): 671 lux, 62 fc
At 23' (7 m): 342 lux, 32 fc
At 29.5' (9 m): 207 lux, 19 fc | | Color Temperature Tolerance | +/- 150K (nominal) | | CRI / TLCI | CRI 94 ± 2 / TLCI 95 to 98 | | Control | RJ-45 DMX in and through, onboard controller | | LED Lifetime | Estimated: 50,000 hours (15 years of average use) | | Current | Input Current Range: Maximum 2.5 A @ 90 V, 0.9 A @ 264 V | | Power Consumption | Nominal: 204 W
Maximum: 223 W | | Power Connection Type | Neutrik powerCON TRUE1 NAC3MPX
Plug: Neutrik powerCON TRUE1 NAC3FX-W | | DC Voltage | Power Voltage Range: 24 to 36 VDC
Input Current Range: Maximum 8 A @ 12 V
5.3 A @ 24 V
Power Consumption: 192 W (nominal), 210 W (maximum)
Power Connection: Neutrik speak ON NL2MP, Plug: Neutrik speak ON NL2FX | | Optical System | Focusable Fresnel | | Lens Diameter | 6.7" (170 mm) | | Thermal Design | Vapor cooling | | Tilt Angle | +/- 90° | | Ambient Temperature | -4 to +113°F (-20 to 45°C) | | Protection Class | IP20 | | Certifications | CE, FCC, RoHS, REACH | | Operating Voltage | 90 to 264 VAC, 50/60 Hz | | Dimming | 0 to 100% continuous | | Cable | Power cable | | Mount | 0.6" (16 mm) / 1.1" (28 mm) combo pin (Baby 5/8" / Junior 1-1/8" combo pin) | | Dimensions | 18.8 x 10.9 x 14.3" (478 x 250 x 363 mm) | | Weight | 14.1 lb (6.4 kg) |
