User Manual for Rayzr 7 7" 300W Daylight LED Fresnel Light Click to enlarge the picture
Contents of the user manual for the Rayzr 7 7" 300W Daylight LED
- Product category: LED Lights Rayzr 7
- Brand: Rayzr 7
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Rayzr 7 LED Lights
 |
User manual for the Rayzr 7 7" 300W Daylight LED contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Rayzr 7 product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Rayzr 7 user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Rayzr 7 product will considerably shorten its lifespan!
|

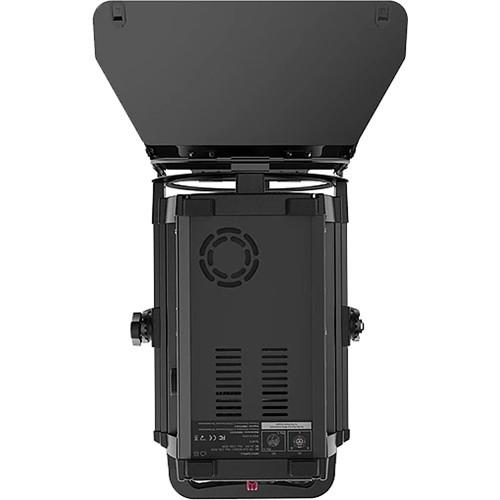

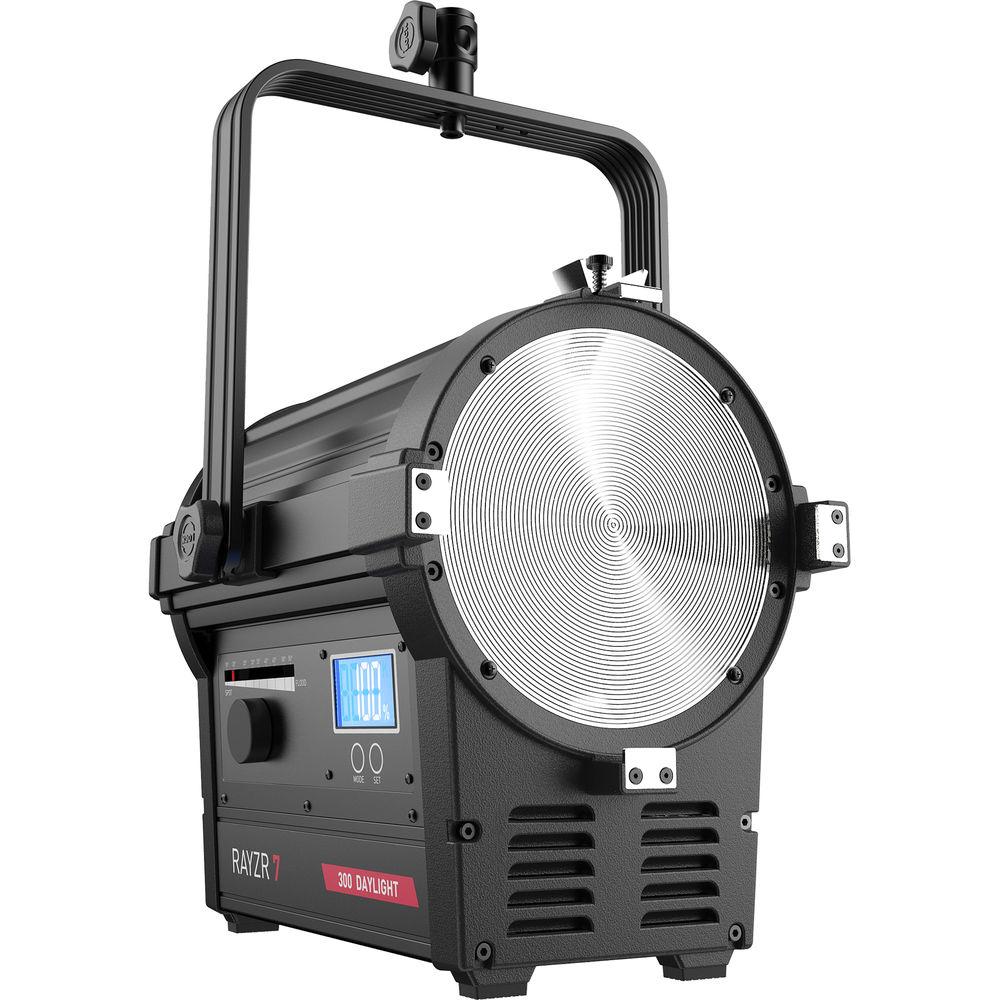

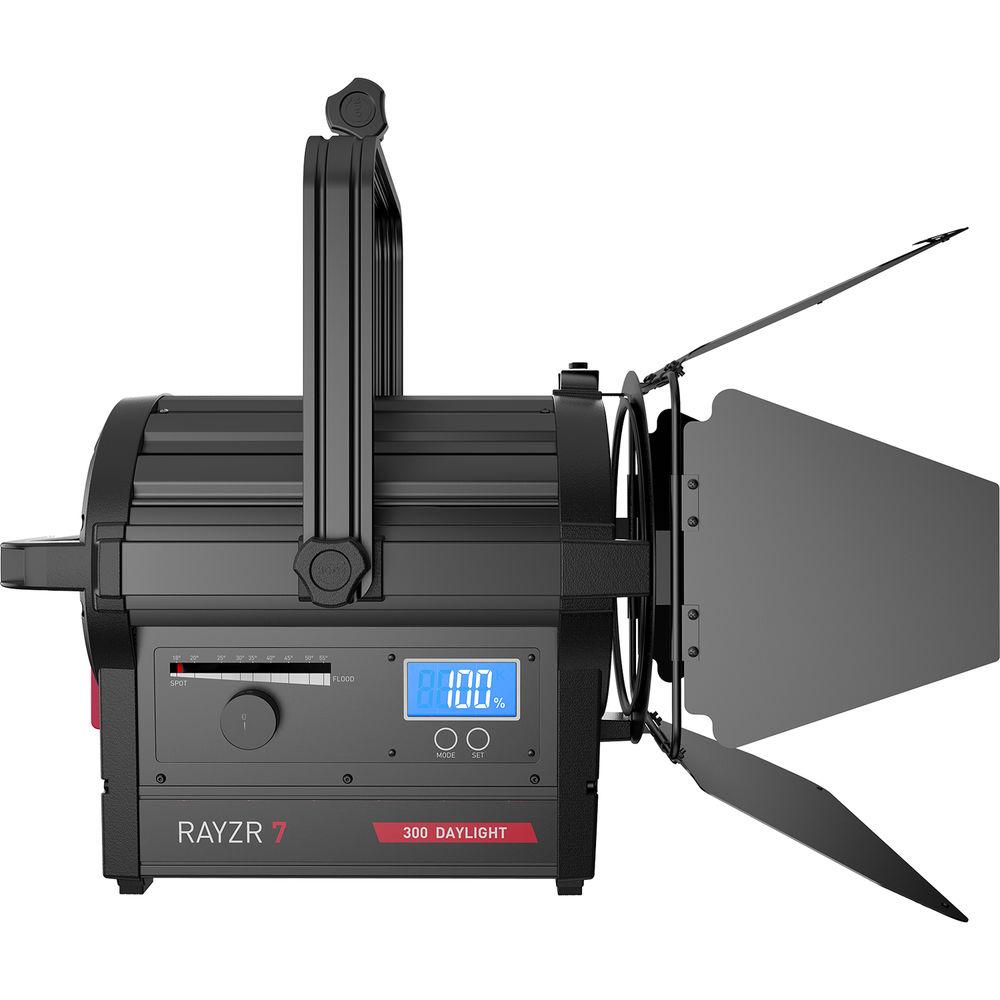

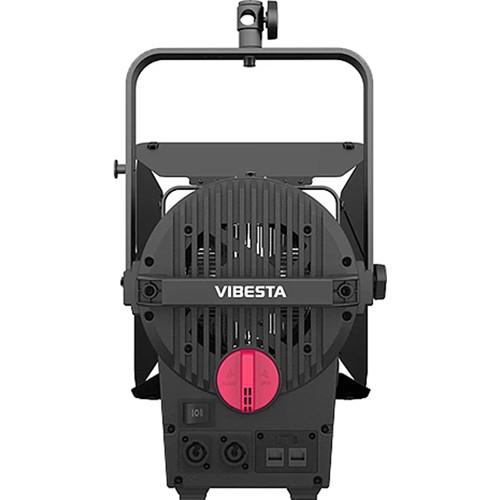

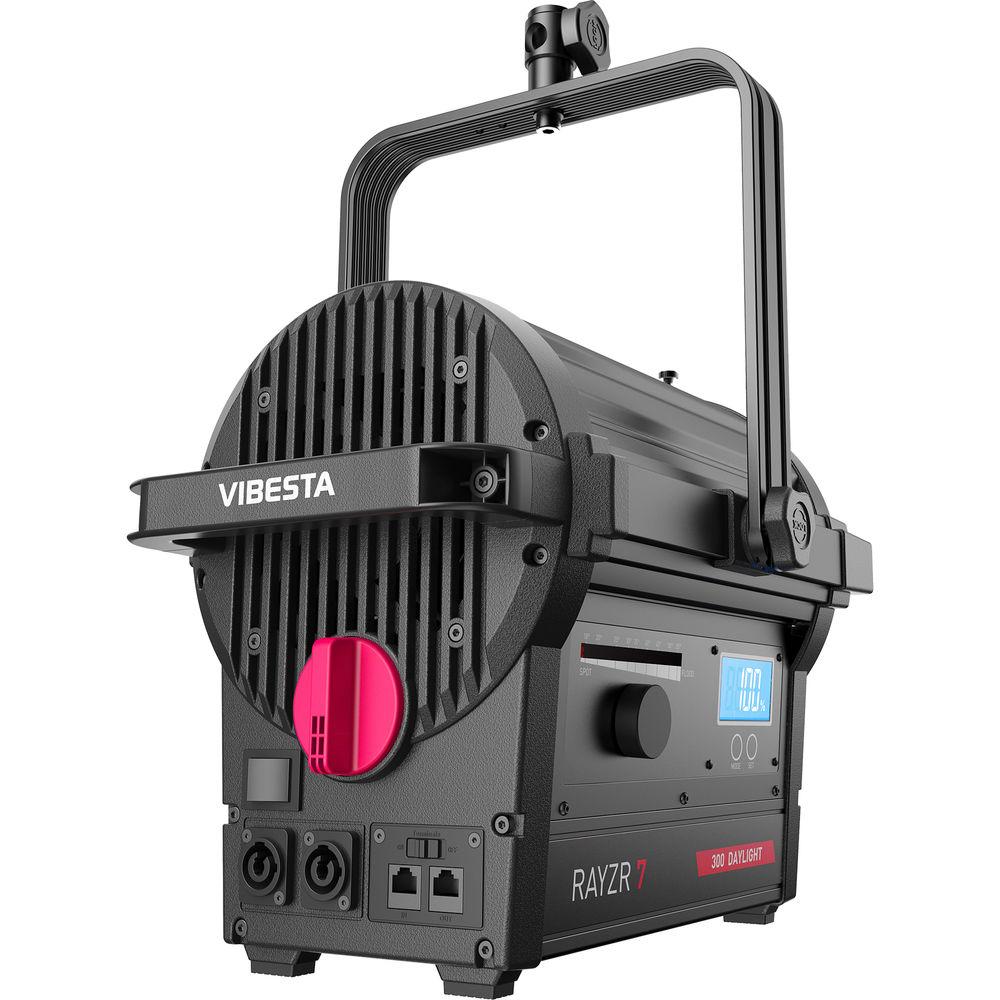

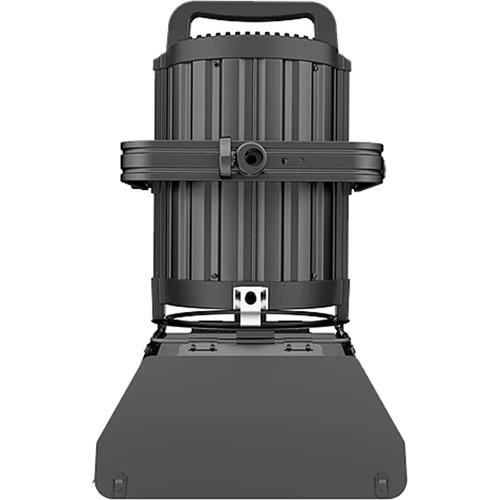

Product description The black 7" 300W Daylight LED Fresnel Light (Premium Pack) from Rayzr offers a total power output of 300W and uses a vapor cooling system. It offers a color temperature of 5600K (daylight) and beam angle of 18 to 55°. The light comes with a RJ45 DMX in and through control and an onboard controller. In addition to the 7" LED Fresnel, the premium pack includes a 4-leaf barndoor, power supply, and a travel case. - Flicker-free operation up to 15,000 fps
- Even and uniform light beam
- Full control over light beam shaping

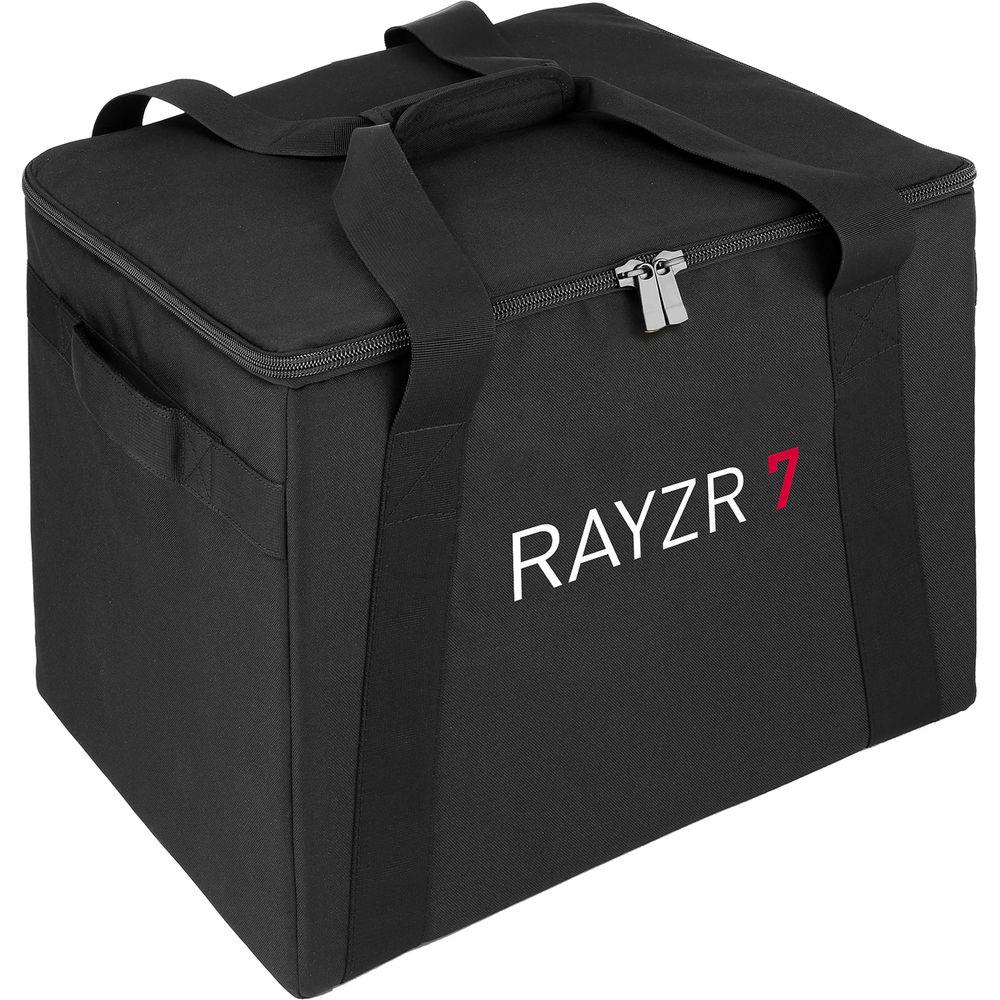

In the Box Rayzr 7 7" 300W Daylight LED Fresnel Light (Premium Pack) 4-Leaf Barndoor for Rayzr 7 LED Fresnel Power Supply Travel Case Limited 1-Year Warranty Quick start Guide PDF 426.1kb Table of Contents
|
Upload User Manual
Have you got an user manual for the Rayzr 7 7" 300W Daylight LED Fresnel Light in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRayzr 7 300 Daylight Specs | Rating | 300 W | | Beam Angle | 18 to 55° (half peak angle) | | White Light Lamp | Daylight 5600K | | Photometric Data | Spot: 18°
At 9.84' (3 m): 10675 lux, 992 fc
At 16.4' (5 m): 3843 lux, 357 fc
At 23' (7 m): 1961 lux, 182 fc
At 29.5' (9 m): 1187 lux, 110 fc
Middle: 30°
At 9.84' (3 m): 5819 lux, 541 fc
At 16.4' (5 m): 2095 lux, 195 fc
At 23' (7 m): 1069 lux, 99 fc
At 29.5' (9 m): 674 lux, 60 fc
Flood: 50°
At 9.84' (3 m): 2565 lux, 238 fc
At 16.4' (5 m): 924 lux, 86 fc
At 23' (7 m): 472 lux, 44 fc
At 29.5' (9 m): 285 lux, 26 fc | | Color Temperature Tolerance | +/- 150K (nominal) | | CRI / TLCI | CRI 94 ± 2 / TLCI 95 to 98 | | Control | RJ-45 DMX in and through, onboard controller | | LED Lifetime | Estimated: 50,000 hours (15 years of average use) | | Power Supply Input Range | 90 to 132 VAC, 50 to 60 Hz | | Power Consumption | Nominal: 331 W
Maximum: 352 W | | Power Connection Type | Neutrik power CON TRUE1 NAC3MPX
Plug: Neutrik power CON TRUE1 NAC3FX-W | | DC Voltage | Power Voltage Range: 24 to 36 VDC
Input Current Range: Maximum 13.75 A @ 24 V
9.17 A @ 36 V
Power Consumption: 311 W (nominal), 330 W (maximum)
Power Connection: Neutrik speak ON NL2MP, Plug: Neutrik speak ON NL2FX | | Optical System | Focusable fresnel | | Lens Diameter | 6.7" (170 mm) | | Thermal Design | Vapor cooling system | | Tilt Angle | +/- 90° | | Ambient Temperature | -4 to +113°F (-20 to 45°C) | | Protection Class | IP20 | | Certifications | CE, FCC, RoHS, REACH | | Operating Voltage | 90 to 132 VAC, 50/60 Hz | | Dimming | 0 to 100% continuous | | Cable | Power cable | | Mount | 0.6" (16 mm) / 1.1" (28 mm) combo pin (Baby 5/8" / Junior 1-1/8" combo pin) | | Dimensions | 18.8 x 10.9 x 14.3" (478 x 250 x 363 mm) | | Weight | 14.1 lb (6.4 kg) | | | | Package Weight | 30.0 lb | | Box Dimensions (LxWxH) | 21.7 x 18.3 x 17.5" |
