Product description

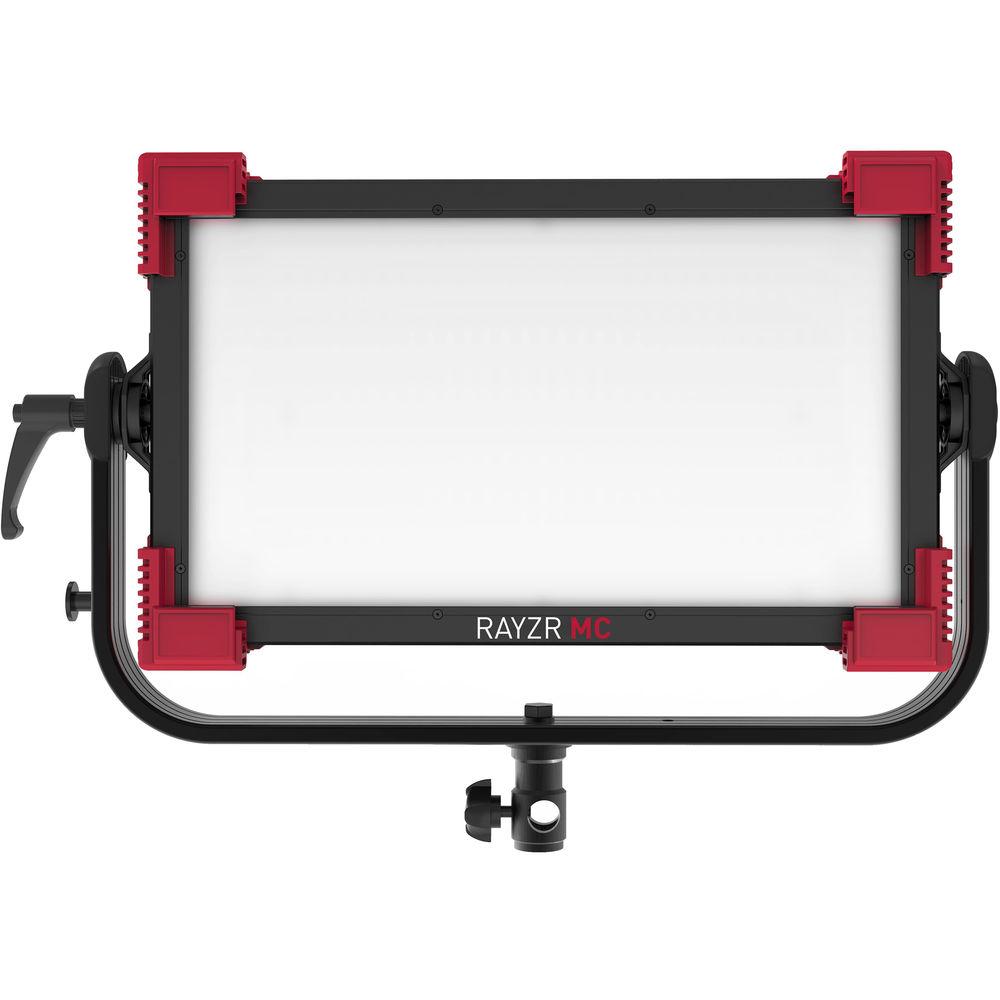

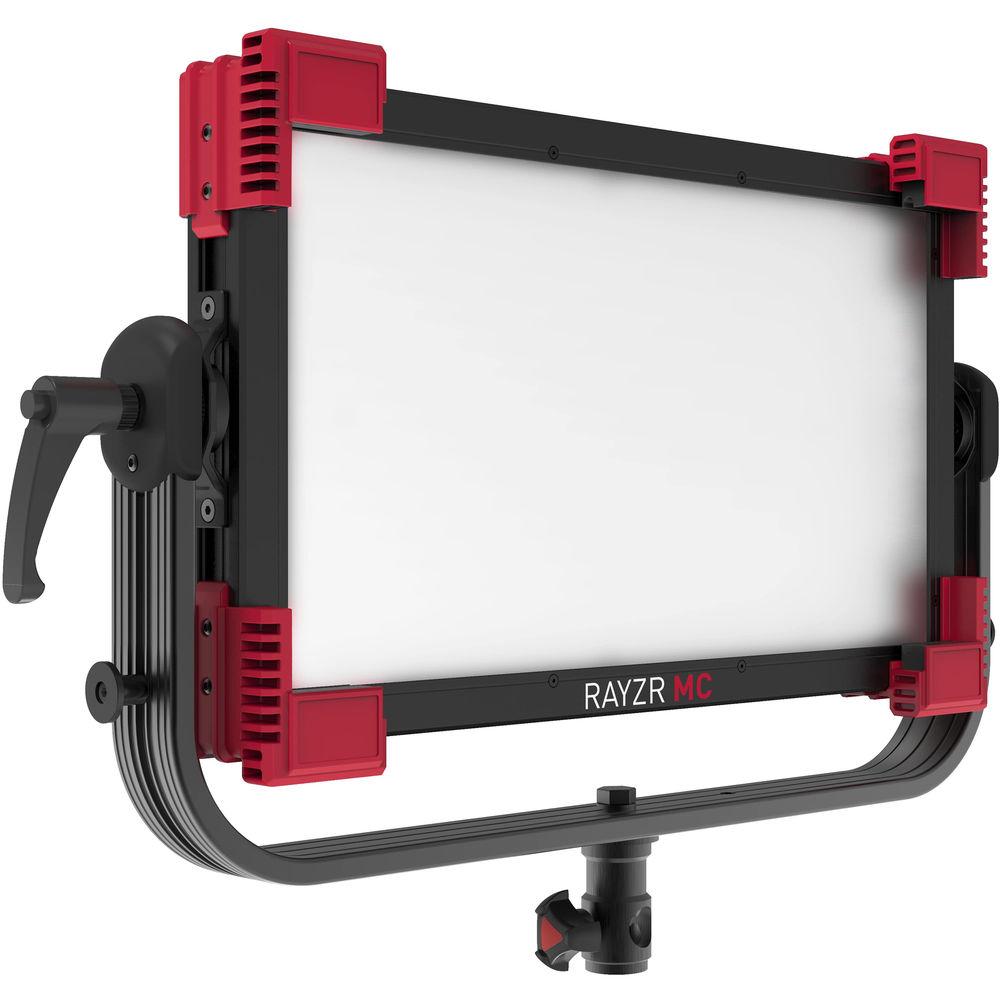

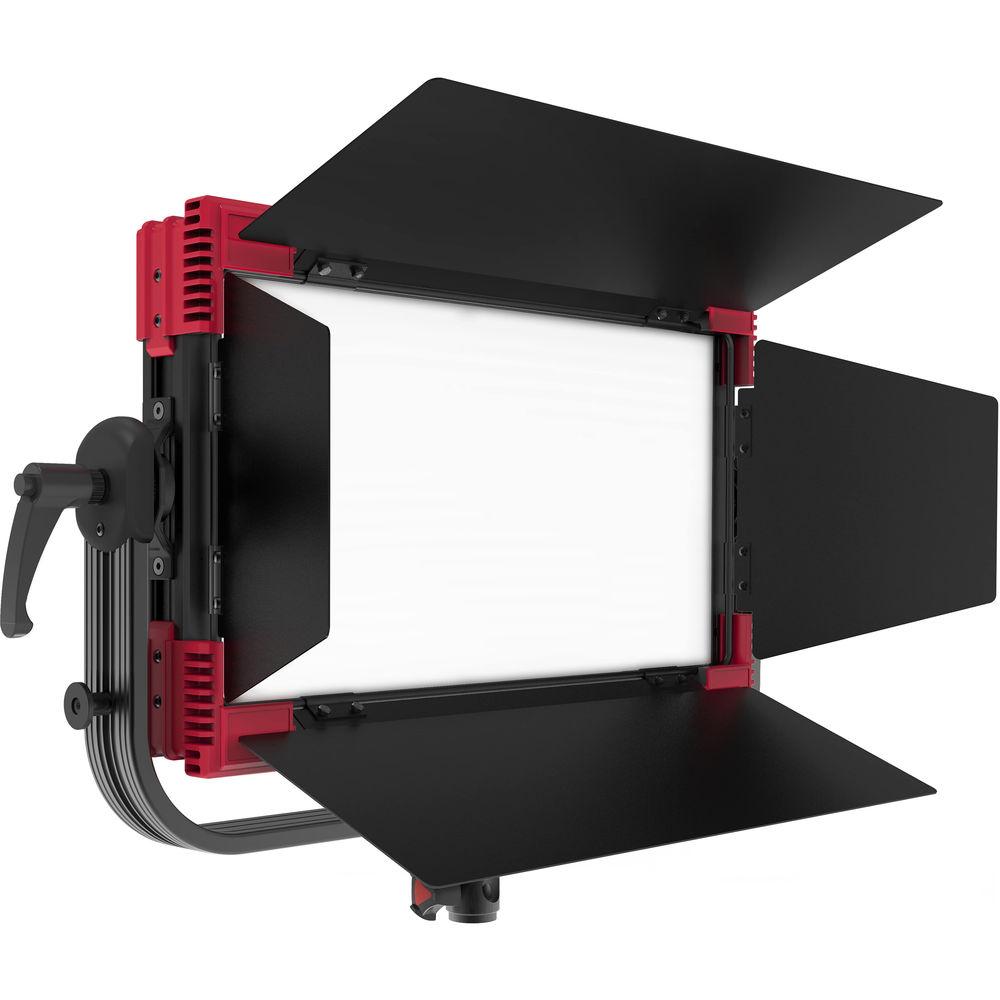

Featuring sturdy metal construction and loaded with a full boat of advanced features, the MC100 Multi Color RGB, WW, CW Soft LED Panel Light from Rayzr is a 19.7 x 13.6 x 3.7" fixture with a wide 120-degree beam spread that can be controlled and contoured with its four-way barndoors, and while it draws just 98W, it outputs many times that number in tungsten equivalence. The MC100 has a white light color temperature of 2400-9900K and a high CRI of 95 indicating a highly accurate level of color fidelity. It's also got RGB, WW, CW mixing modes, as well as +/- Green/Magenta control to give you access to the full 360-degree color gamut and literally millions of color combinations. Light intensity is variable too from 0 to 100% and while you can make color and dimming adjustments locally on the light, you can also make them remotely from a console via onboard DMX, or wirelessly using Wi-Fi. For fine tuning and linear output in specific situations, the MC100 also has four user-selectable dimming curves - Linear is a 1:1 translation, Exponential provides fine control in the low end, whereas Logarithmic provides fine control in the high end. The S Curve is a combination of Exponential and Logarithmic. Yet another handy feature is the filter library that contains more than 300 widely used filters that can be employed with no light loss, and since all the filters are built in digitally, there are no gels to carry around. The MC100 also provides special effects such as Party, Candle, Club, Cop Car, Fire, Fireworks, Light Strobe, Lightning, and Television to add realism and creative flair to your shoot. Despite these eye-catching effects, the MC100 is seen but not heard, a benefit of its passive fan-less cooling system that's a real asset in sound-sensitive situations. The MC100 is ready for worldwide use thanks to its included multi-voltage power adapter, but you can also run the light on batteries when mains power is unavailable via the panel's V-Mount battery plate.
    Bring Consistency to Your Lighting
  • With Source Match you can make your lighting more consistent and save time in post fixing non




Upload User Manual

Have you got an user manual for the Rayzr 7 MC100 Multi Color RGB, WW, CW Soft LED Panel Light in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Upload PDF user manual Upload DOC user manual
Please enter here the link to the user manual of this product:





OR

Enter here the file with the user manual of this product from your computer/phone:
(60MB max; Permitted formats: PDF)

0%


Technical parameters

Rayzr 7 MC 100 Specs

Beam Angle 120°
Color Temperature 2400 to 9900K
Color Accuracy Standard CRI 95
TLCI 98
Cooling System Passive
Dimming Yes, 0 to 100%
Display LCD
Housing Material Metal
Photometrics 120° at 5600K:
207 fc / 2227.3 lux at 3.28' / 1 m
120° at 3200K:
184 fc / 1979.8 lux at 3.28' / 1 m
Fixture Dimensions 19.7 x 13.6 x 3.7" / 500.0 x 345.0 x 93.0 mm (Including Yoke & Barndoors)
Fixture Weight 7.7 lb / 3.49 kg

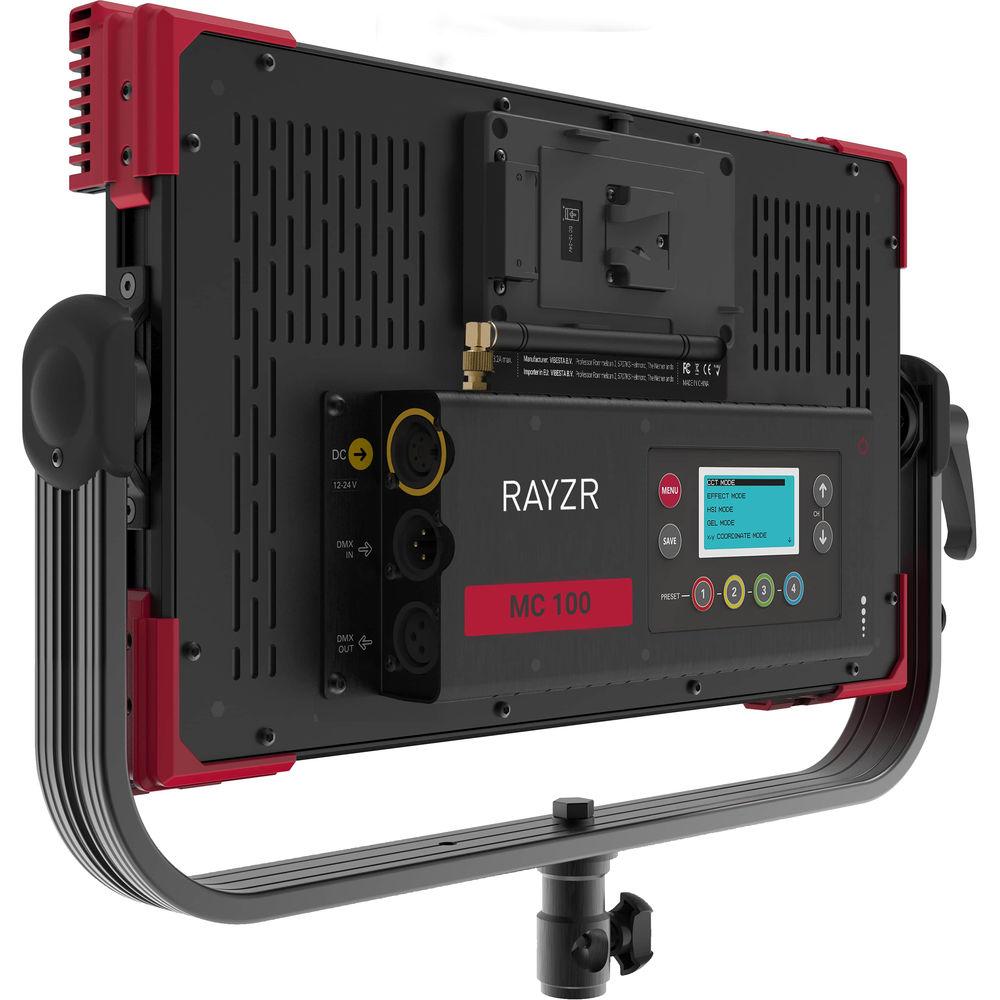

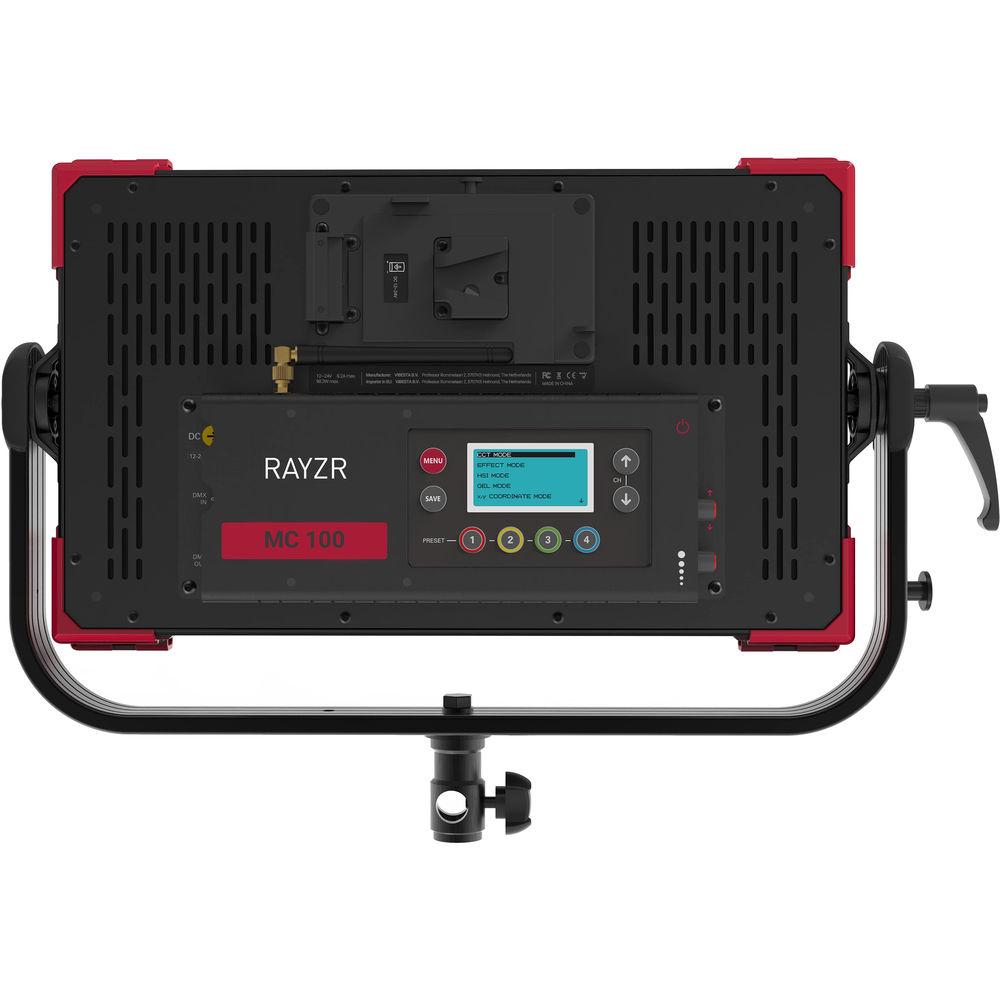

Battery Plate 1 x V-Mount
Power Input Connector 4-Pin XLR
DMX Connector 3-Pin XLR
Fixture Mount None
Accessory Mount None
Yoke Material Metal
Yoke Type Yoke/Bracket
Remote Control Type DMX, Wi-Fi
DC Input Power 12 to 24 VDC at 9.8 A
Power Source AC Adapter, External Battery
Max Power Consumption 98 W
IP Rating IP20
