User Manual for Rayzr 7 MC200 Multi Color RGB, WW, CW Soft LED Panel Light Click to enlarge the picture
Contents of the user manual for the Rayzr 7 MC200 Multi Color RGB,
- Product category: LED Lights Rayzr 7
- Brand: Rayzr 7
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Rayzr 7 LED Lights
 |
User manual for the Rayzr 7 MC200 Multi Color RGB, contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Rayzr 7 product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Rayzr 7 user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Rayzr 7 product will considerably shorten its lifespan!
|

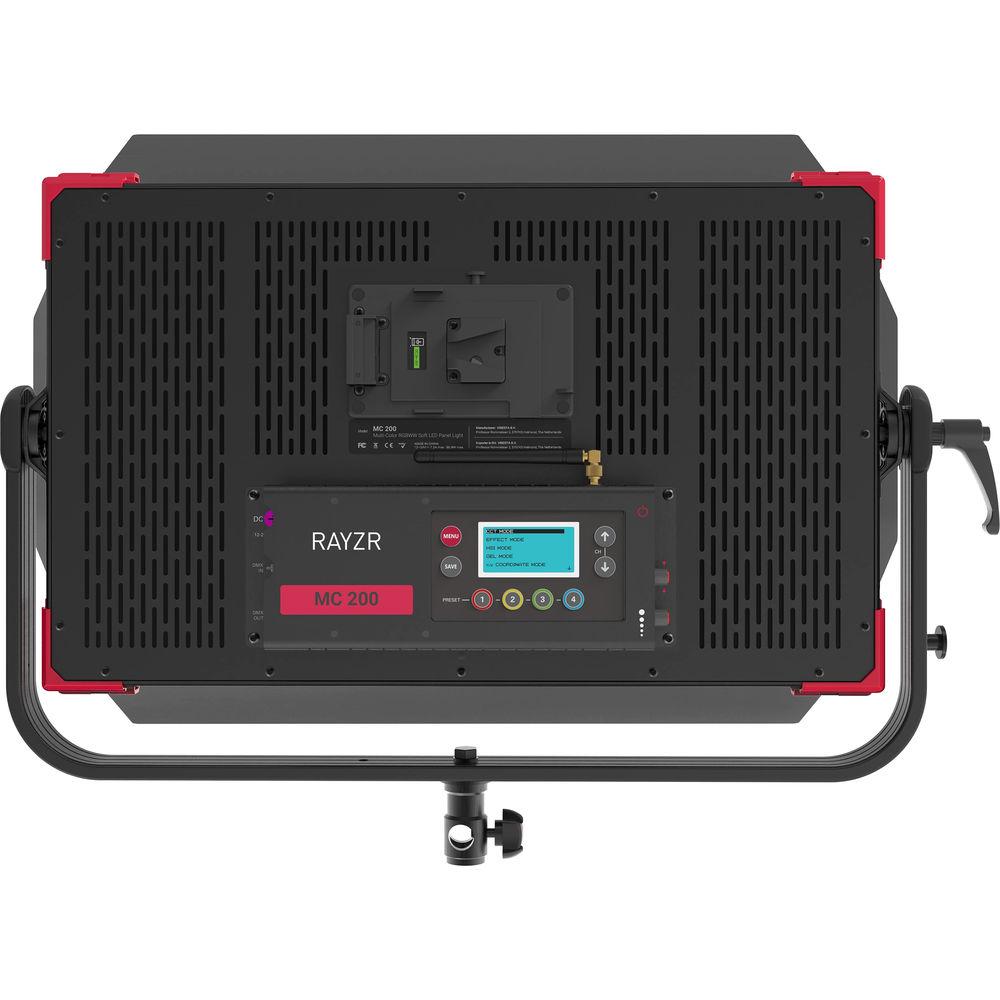

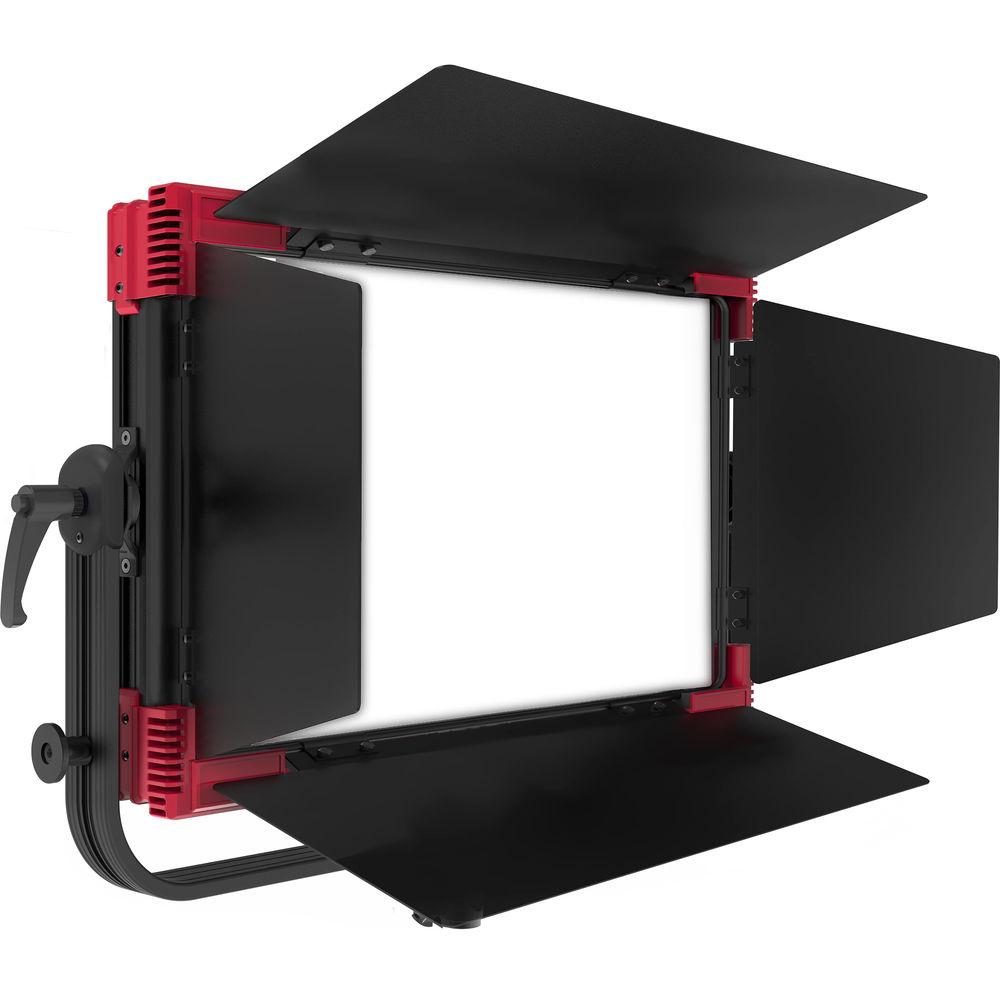

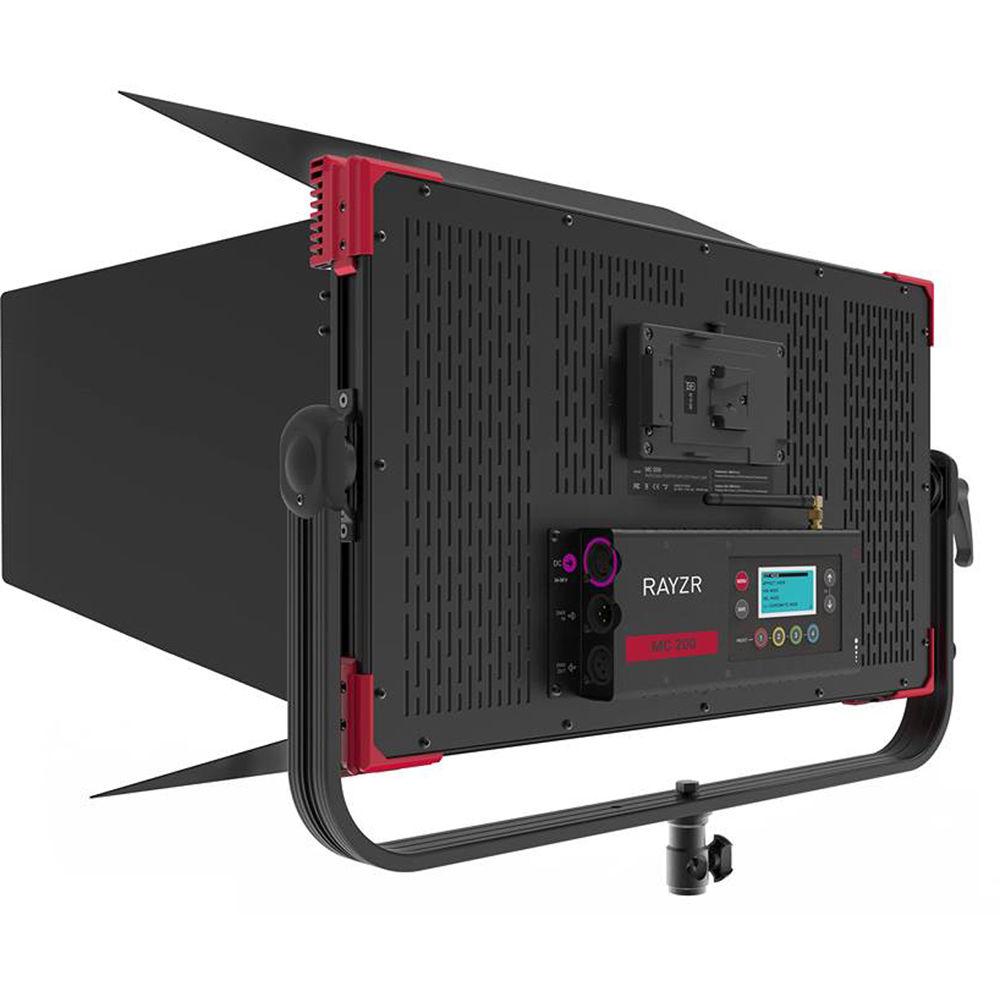

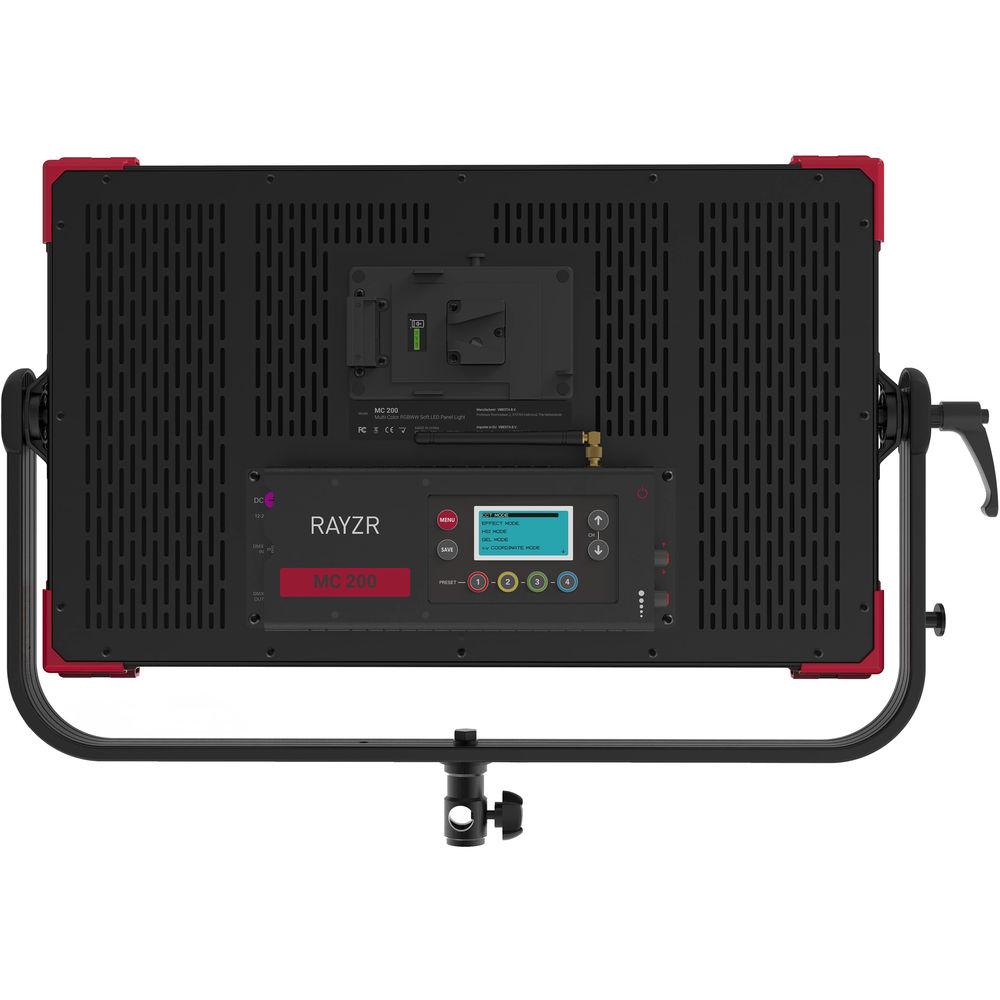

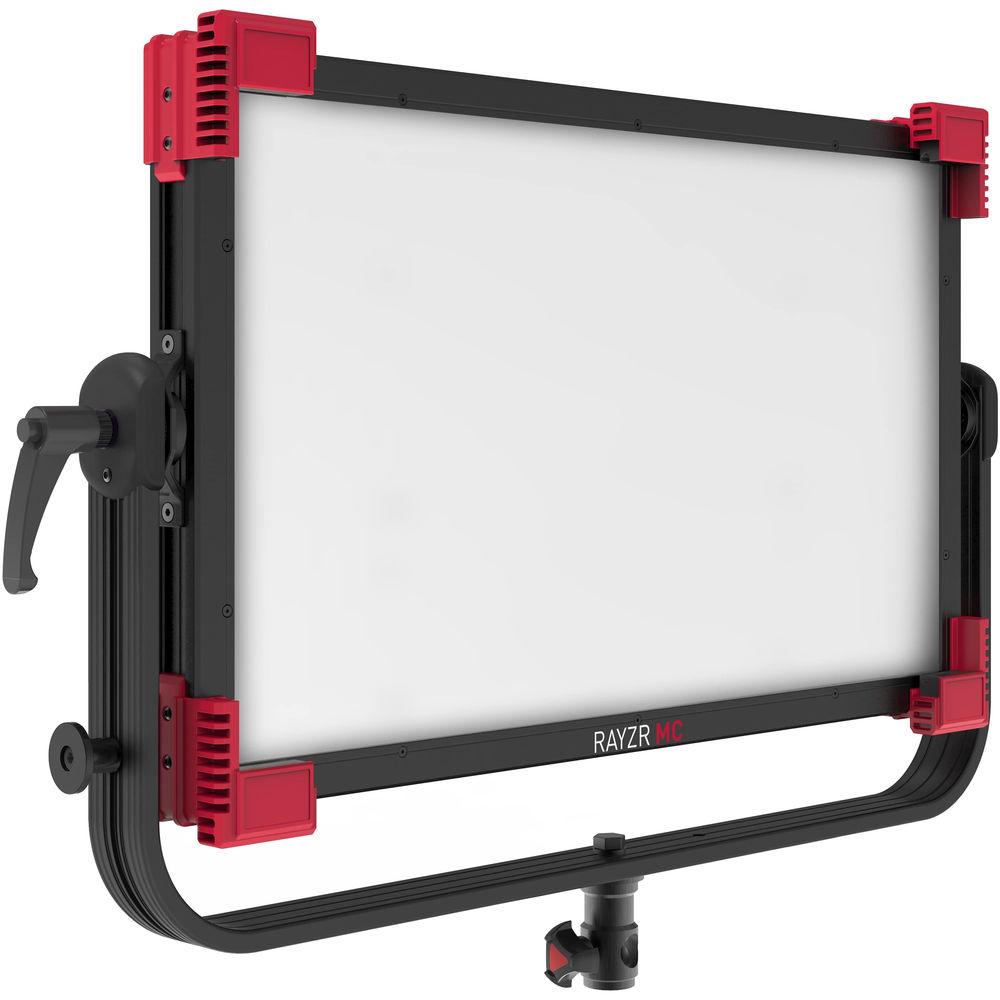

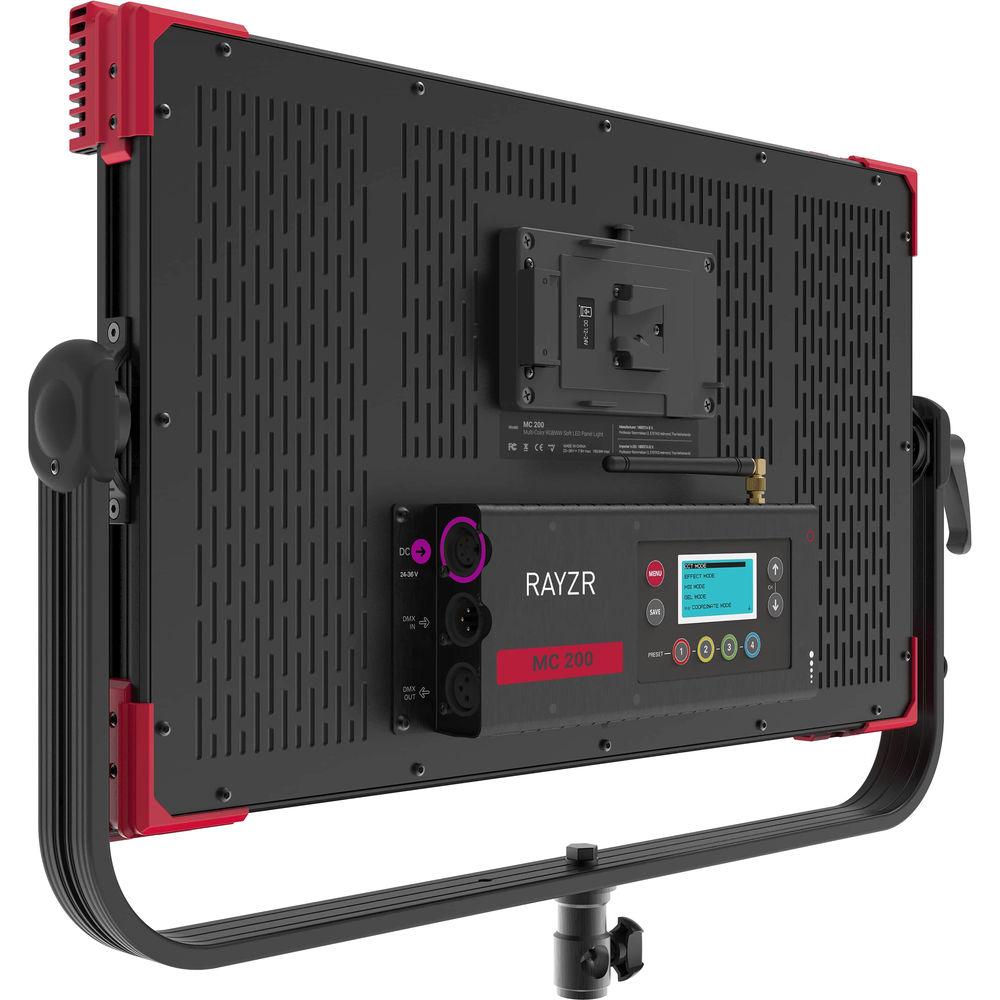

Product description Featuring sturdy metal construction and loaded with a full boat of advanced features, the MC200 Multi Color RGB, WW, CW Soft LED Panel Light from Rayzr is a 25 x 17.4 x 3.7" fixture with a wide 120-degree beam spread that can be controlled and contoured with its four-way barndoors, and while it draws just 190W, it outputs many times that number in tungsten equivalence. The MC200 has a white light color temperature of 2400-9900K and a high CRI of 95 indicating a highly accurate level of color fidelity. It's also got RGB, WW, CW mixing modes, as well as +/- Green/Magenta control to give you access to the full 360-degree color gamut and literally millions of color combinations. Light intensity is variable too from 0 to 100% and while you can make color and dimming adjustments locally on the light, you can also make them remotely from a console via onboard DMX, or wirelessly using Wi-Fi. For fine tuning and linear output in specific situations, the MC200 also has four user-selectable dimming curves - Linear is a 1:1 translation, Exponential provides fine control in the low end, whereas Logarithmic provides fine control in the high end. The S Curve is a combination of Exponential and Logarithmic. Yet another handy feature is the filter library that contains more than 300 widely used filters that can be employed with no light loss, and since all the filters are built in digitally, there are no gels to carry around. The MC200 also provides special effects such as Party, Candle, Club, Cop Car, Fire, Fireworks, Light Strobe, Lightning, and Television to add realism and creative flair to your shoot. Despite these eye-catching effects, the MC200 is seen but not heard, a benefit of its passive fan-less cooling system that's a real asset in sound-sensitive situations. The MC200 is ready for worldwide use thanks to its included multi-voltage power adapter, but you can also run the light on batteries when mains power is unavailable via the panel's V-Mount battery plate. - Bring Consistency to Your Lighting
- With Source Match you can make your lighting more consistent and save time in post fixing non
|
Upload User Manual
Have you got an user manual for the Rayzr 7 MC200 Multi Color RGB, WW, CW Soft LED Panel Light in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRayzr 7 MC 200 Specs | | | Beam Angle | 120° | | Color Temperature | 2400 to 9900K | | Color Accuracy Standard | CRI 95
TLCI 98 | | Cooling System | Passive | | Dimming | Yes, 0 to 100% | | Display | LCD | | Housing Material | Metal | | Photometrics | 120° at 5600K:
387.5 fc / 4171 lux at 3.28' / 1 m
120° at 3200K:
356.3 fc / 3835 lux at 3.28' / 1 m | | Fixture Dimensions | 24.9 x 17.4 x 3.7" / 632.0 x 441.0 x 93.0 mm (Including Yoke & Barndoors) | | Fixture Weight | 10 lb / 4.54 kg | | | | Battery Plate | 1 x V-Mount | | Power Input Connector | 4-Pin XLR | | DMX Connector | 3-Pin XLR | | | | Fixture Mount | None | | Accessory Mount | None | | | | Yoke Material | Metal | | Yoke Type | Yoke/Bracket | | | | Remote Control Type | DMX, Wi-Fi | | | | DC Input Power | 12 to 24 VDC at 9.8 A | | Power Source | AC Adapter, External Battery | | Max Power Consumption | 190 W |
