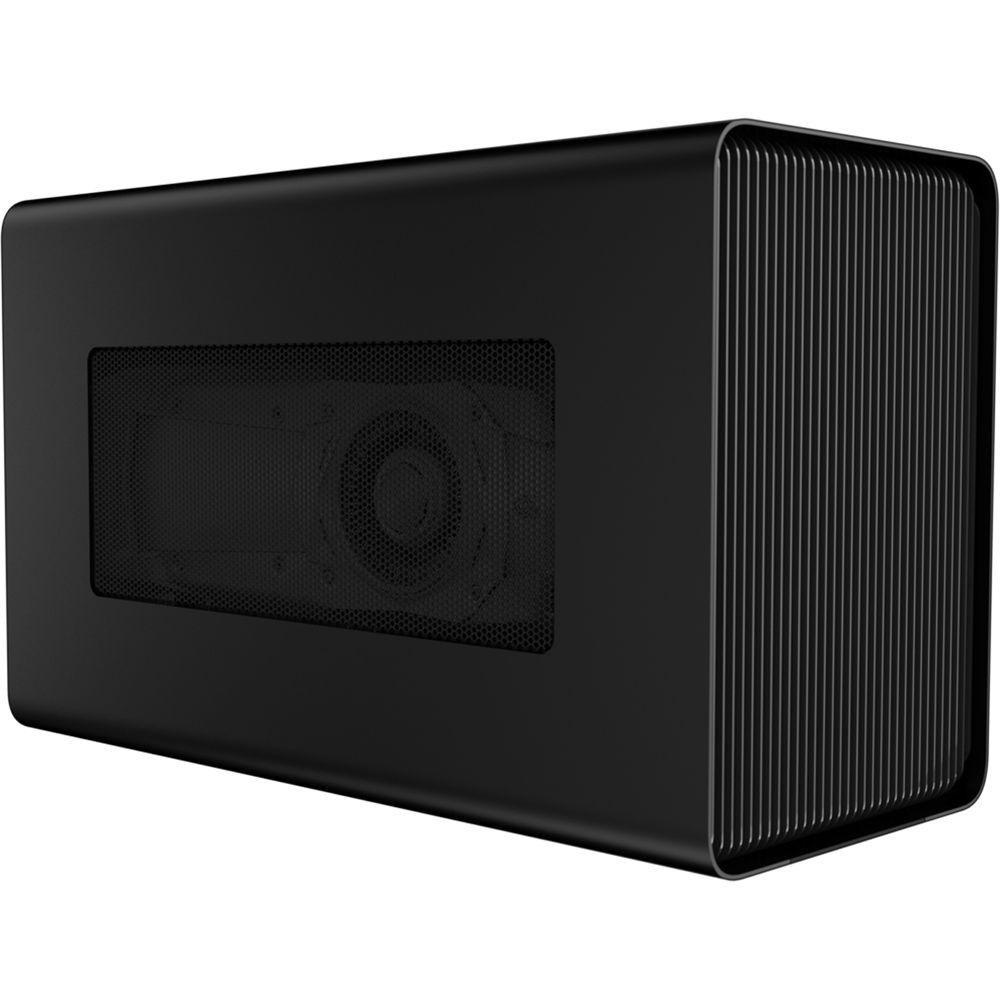

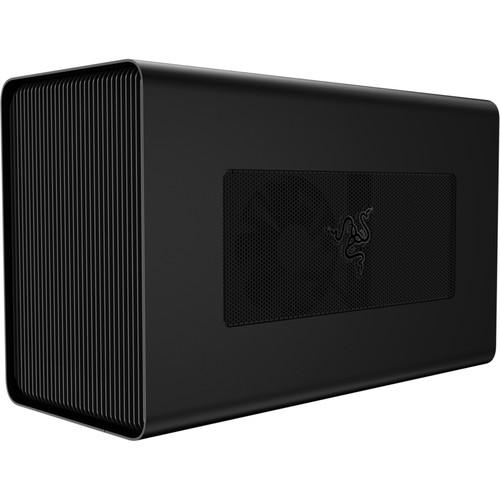

User Manual for Razer Core X Thunderbolt 3 Graphics Expansion Chassis with 650W Power Supply Click to enlarge the picture
Contents of the user manual for the Razer Core X Thunderbolt 3 Graphics
- Product category: Expansion Chassis Razer
- Brand: Razer
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Razer Expansion Chassis
 |
User manual for the Razer Core X Thunderbolt 3 Graphics contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Razer product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Razer user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Razer product will considerably shorten its lifespan!
|

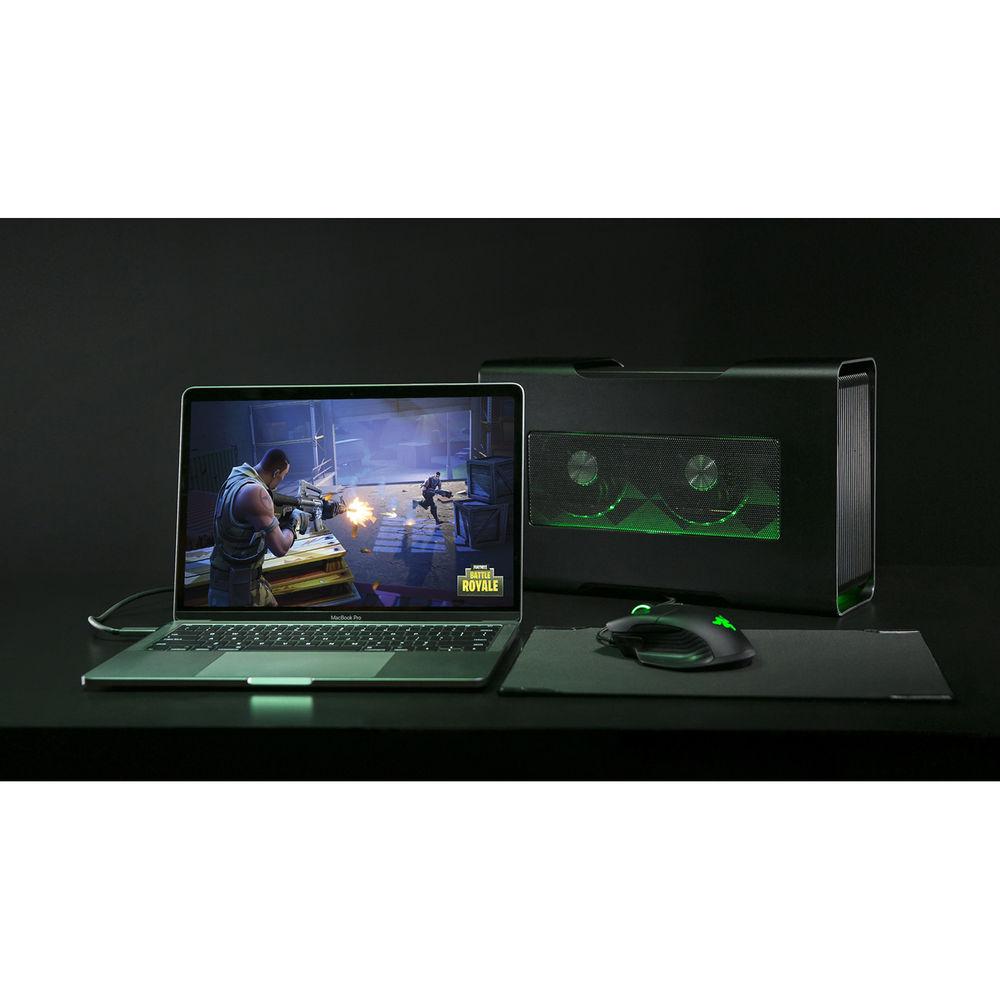

Product description Increase the graphical capabilities of your Thunderbolt 3 Windows 10 and Mac laptops with the Core X Graphics Expansion Chassis from Razer. The Core X connects to your system via Thunderbolt 3 and provides a single PCIe x16 slot for a user-supplied NVIDIA or AMD graphics card. The chassis offers ample space to accommodate a single 3-slot wide, full-length graphics card. The Core X supports NVIDIA GeForce and Quadro graphics cards as well as AMD XConnect enabled Radeon cards. Moreover, Razer has outfitted the Core X with an internal 650W power supply that allots up to 500W of power to the GPU and up to 100W for the host system. Core X Features - Versatile Compatibility
- The Razer Core X is compatible with Thunderbolt 3 systems running Windows 10 RS1 or later and Macs running macOS High Sierra 10.13.4 or later.
- Power Supply
- Razer Core X lets you easily upgrade your graphics card, so you can instantly give your laptop a boost and get access to the 650W ATX power supply anytime.
- Cooling
- The Razer Core X features additional cooling and open vents in its aluminum body for optimized thermal performance.
- Plug and Play
- For quick connection to your game session, Razer Core X is plug and play when connected with Razer Blade Stealth, Razer Blade, and Razer Blade Pro (GTX 1060 version) with Thunderbolt 3 port.
Windows 10 Compatible Graphics Chipsets - NVIDIA GeForce Graphics Chipsets
-
- NVIDIA GeForce RTX 2080 Ti
- NVIDIA GeForce RTX 2080
- NVIDIA GeForce RTX 2070
- NVIDIA GeForce RTX 2060
- NVIDIA GeForce GTX Titan X
- NVIDIA GeForce GTX Titan V
- NVIDIA GeForce GTX Titan Xp
- NVIDIA GeForce GTX 1080 Ti
- NVIDIA GeForce GTX 1080
- NVIDIA GeForce GTX 1070 Ti
- NVIDIA GeForce GTX 1070
- NVIDIA GeForce GTX 1060
- NVIDIA GeForce GTX 1050 Ti
- NVIDIA GeForce GTX 1050
- NVIDIA GeForce GTX 980 Ti
- NVIDIA GeForce GTX 980
- NVIDIA GeForce GTX 970
- NVIDIA GeForce GTX 960
- NVIDIA GeForce GTX 950
- NVIDIA GeForce GTX 750 Ti
- NVIDIA GeForce GTX 750
- NVIDIA Quadro Graphics Chipsets
-
- NVIDIA Quadro P4000
- NVIDIA Quadro P5000
- NVIDIA Quadro P6000
- NVIDIA Quadro GP100
- AMD Radeon Graphics Chipsets
-
- AMD Radeon VEGA RX 64
- AMD Radeon VEGA RX 56
- AMD Radeon RX 500 Series
- AMD Radeon RX 400 Series
- AMD Radeon R9 Fury
- AMD Radeon R9 Nano
- AMD Radeon R9 300 Series
- AMD Radeon R9 290X
- AMD Radeon R9 290
- AMD Radeon R9 285
Mac Compatible Graphics Chipsets - AMD Radeon Graphics Chipsets
-
- AMD Radeon RX 570
- AMD Radeon RX580
- AMD Radeon Pro WX 7100
- AMD Radeon RX Vega 56
- AMD Radeon RX Vega 64
- AMD Vega Frontier Edition Air
- AMD Radeon Pro WX 9100
UPC: 814855028016 In the Box Razer Core X Thunderbolt 3 Graphics Expansion Chassis with 650W Power Supply Power Cable Thunderbolt 3 Cable Limited 1-Year Warranty More info from Razer Table of Contents
|
Upload User Manual
Have you got an user manual for the Razer Core X Thunderbolt 3 Graphics Expansion Chassis with 650W Power Supply in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRazer Core X Specs | | | Expansion Slots | 1 x PCIe 3.0 x16 | | GPU | None | | Supported PCI Card Sizes | Full-Length, Triple-Width | | Maximum GPU Length | 12.99" / 32.99 cm | | Host Connection | Thunderbolt 3 | | Ports | 1 x USB Type-C Thunderbolt 3 | | Data Transfer Rates | Thunderbolt 3: 40 Gb/s | | Operating System Support | Windows, macOS/OS X | | | | Power Source Type | 1 x 650 W Internal PSU | | Port Power Delivery | 100 W Max | | | | Form Factor | Desktop | | Construction Material | Aluminum | | Audible Alarm | No | | Dimensions | 6.6 x 9.0 x 14.7" / 16.8 x 22.9 x 37.3 cm |
