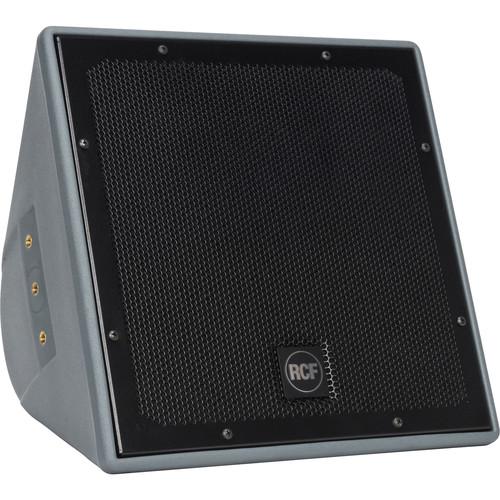

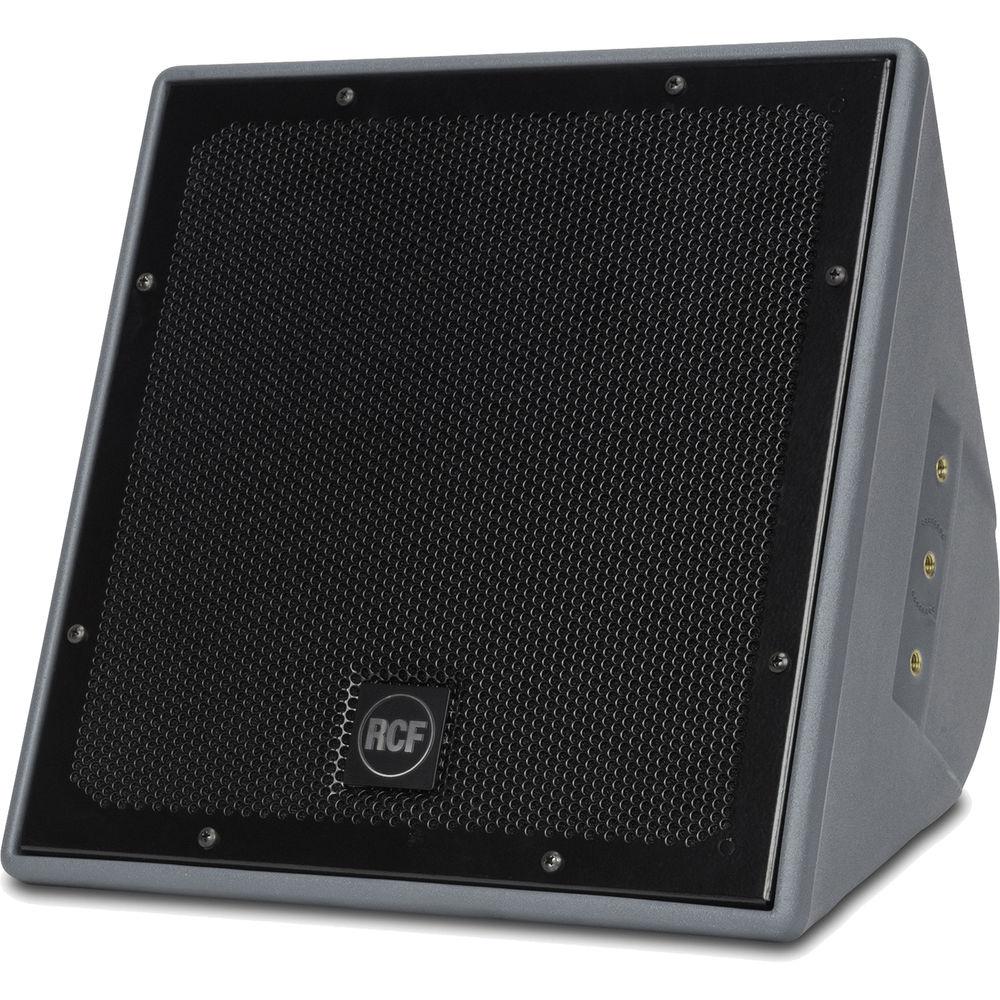

Product description The 10" 200W Coaxial Weatherproof 2-Way Speaker System from RCF is a weatherproof, full-range, wide-dispersion, coaxial two-way loudspeaker system offering substantial power and efficiency for a variety of professional indoor or outdoor applications.

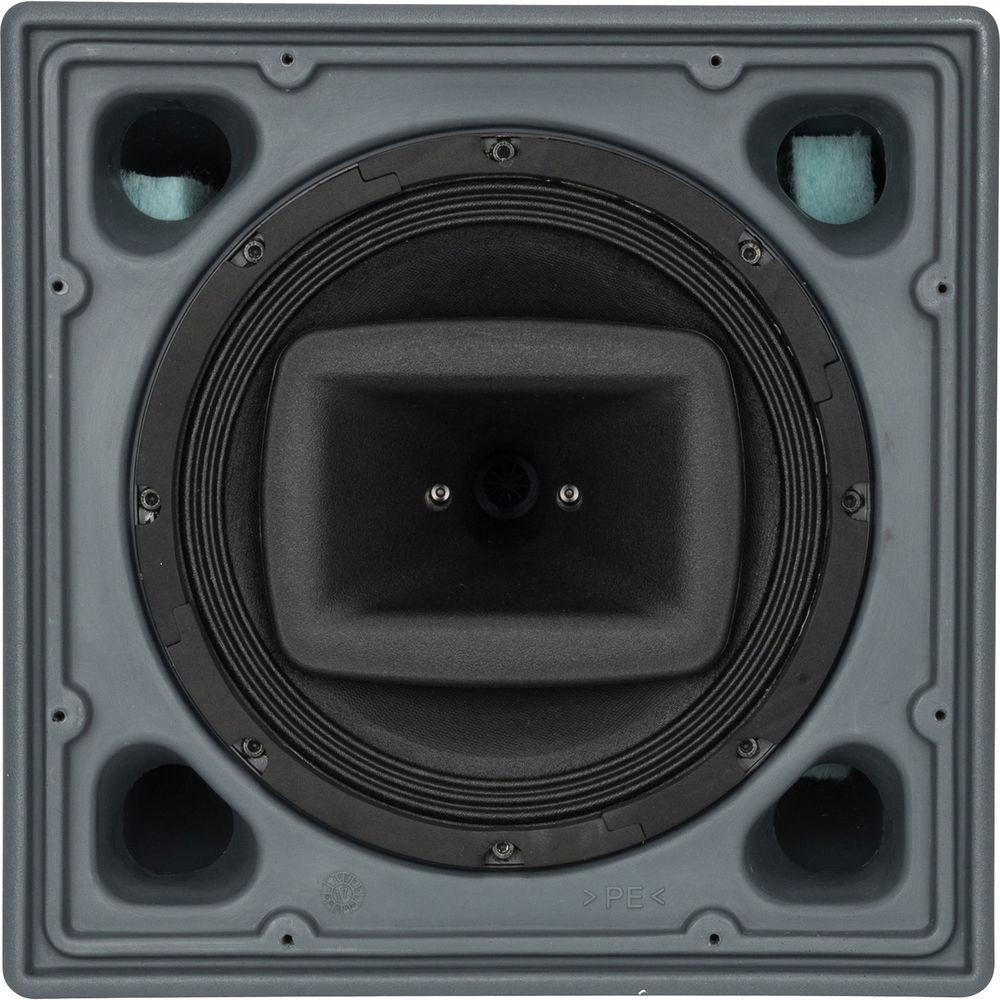

The high-frequency section is a constant directivity CMD horn loaded to a 1" RCF precision compression driver with a 1.5" diaphragm assembly for smooth, wide dispersion. The low-frequency transducer is a 10" woofer with a 2.5" voice coil. The cabinet is a single piece rotation molded in medium density polyethylene and is fully UV protected.

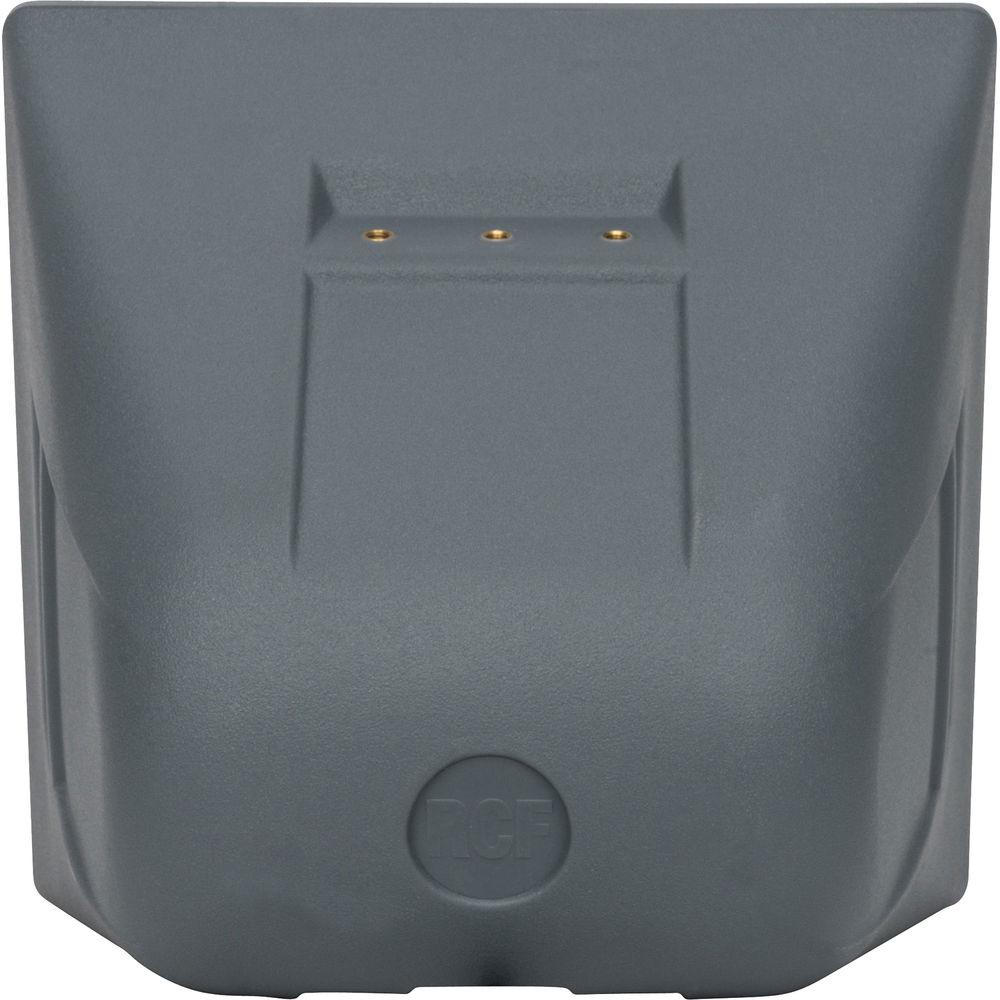

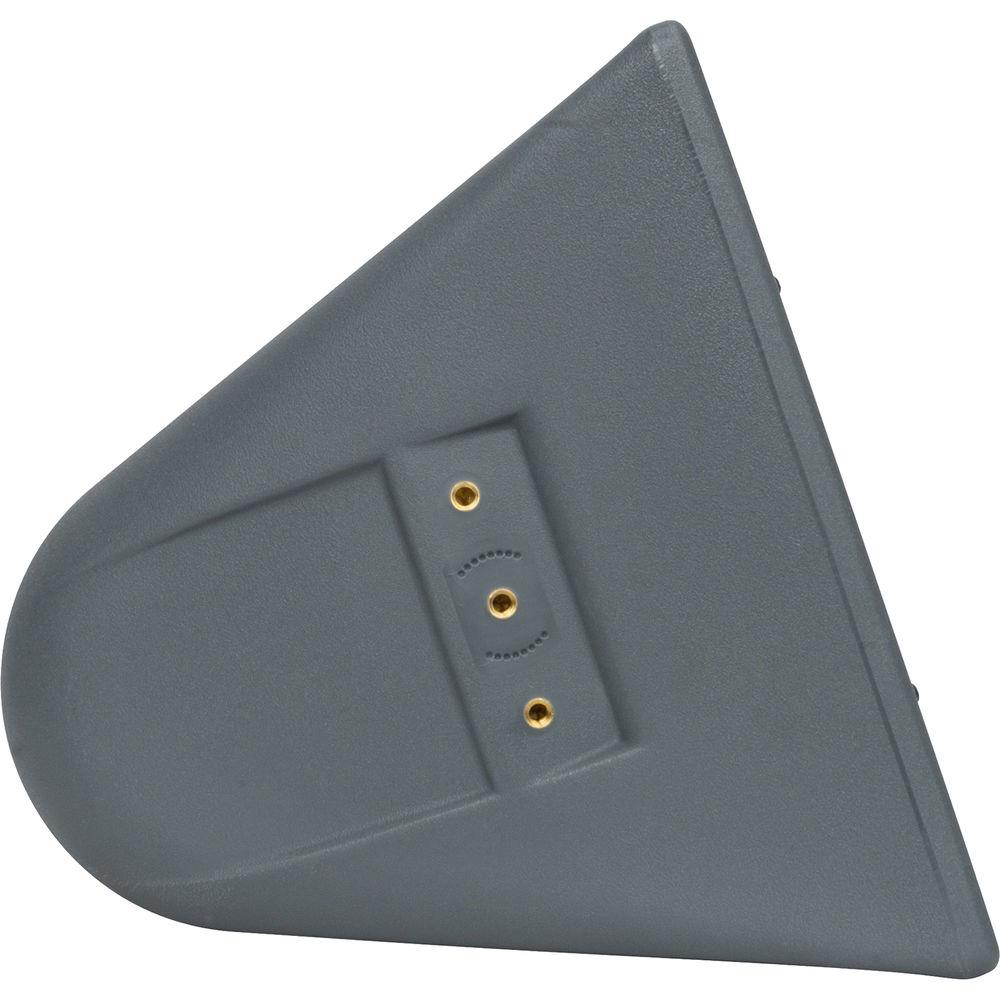

The cabinet is equipped with 12 x M 8 brass inserts, a stainless steel U-bracket, and a pair of spacers for 90° mounting. The front logo is aluminum and rotatable.

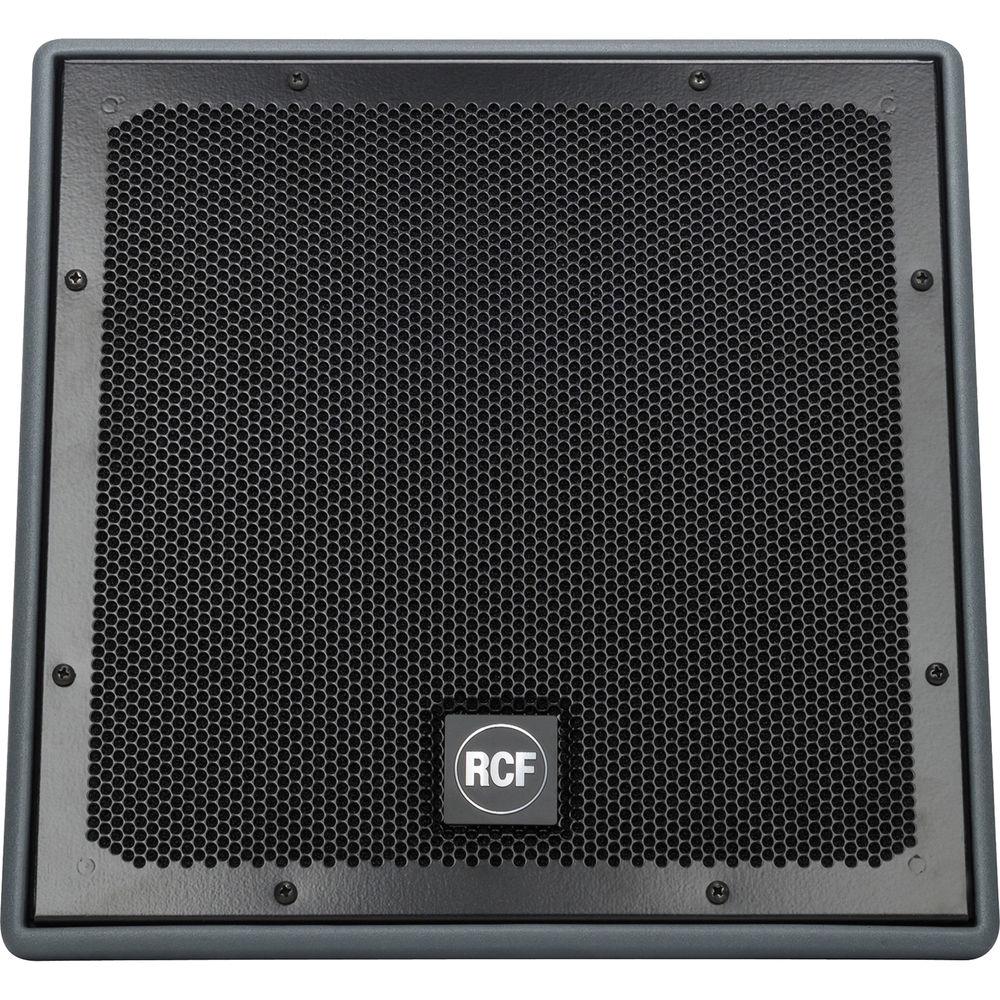

The grille is in custom perforated aluminum with open-cell fibers and water-repellent woven fabric backing. The system meets the requirements of IP55 code. - Cabinet is a single piece rotation molded in medium density polyethylene, fully UV protected and waterproof IP 55
- Front grille in custom perforated aluminum with open-cell fibers and water repellent woven fabric backing
- One 10" high-output LF transducer with 2" voice coil
- One RCF precision 1" compression driver with 1.5" voice coil
- 40 x 90° constant directivity horn
- Built in passive crossover and selectable line transformer
- 10x20° enclosure sides for array configurations
- Active mosfet compression driver protection
- LICC (Low Impedance Compensated Crossover) network
- 12 Brass suspension points (M8)
In the Box RCF 10" 200W Coaxial Weatherproof 2-Way Speaker System 12 x M8 Brass Inserts Steel U-Bracket 2 x Spacers 4 x Input Cables Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the RCF 10" 200W Coaxial Weatherproof 2-Way Speaker System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRCF P2110T Specs | | | Frequency Response | 95 Hz - 20 kHz | | Maximum SPL | 124 dB @ 1 m | | Coverage Angle | Horizontal: 90°
Vertical: 40° | | Directivity | Index, Q: 11 | | Sensitivity | 95 dB | | Impedance | 16 ohms | | Power Handling | 200 W | | Peak Power Output | 800 W | | Recommended Amplifier Power | 400 W | | Protection | Dynamic | | Crossover Frequencies | 2000 Hz | | | | Driver | 1.0" (25.4 mm) HF diver, 1.5" (38.1 mm) voice coil | | Woofer | 10" (254 mm) woofer, 2.5" (63.5 mm) voice coil | | Impedance | Compression Driver: 8 ohms
Woofer: 16 ohms | | Input Power | Compression Driver: 25 W AES
Woofer: 180 W AES | | Sensitivity | Compression Driver: 106 dB

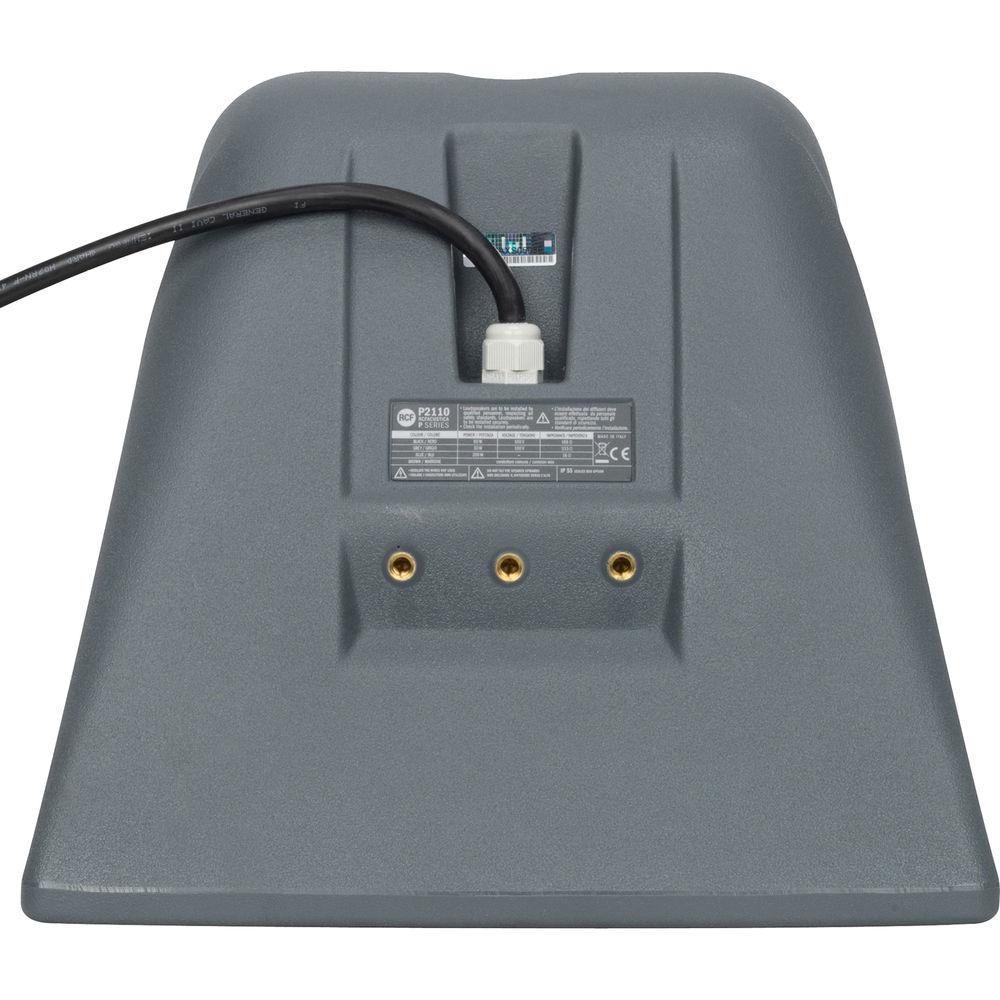

Woofer: 95 dB | | | | Input Connector | 4 x 16.4' (5 m) Neoprene cable | | Voltage | Constant Voltage Transformer: 70/100 | | Power | Selection: 70 V/ 30 W, 15 W; 100 V/ 60 W, 30 W | | | | Material | Polyethylene roto-molded | | Grille | Custom perforated aluminum grille with open-cell fiber and water repellent woven fabric backing | | Dimensions | 13.78 x 13.78 x 12.60" (350 x 350 x 320 mm) | | Weight | 29.75 lb (13.50 kg) |
