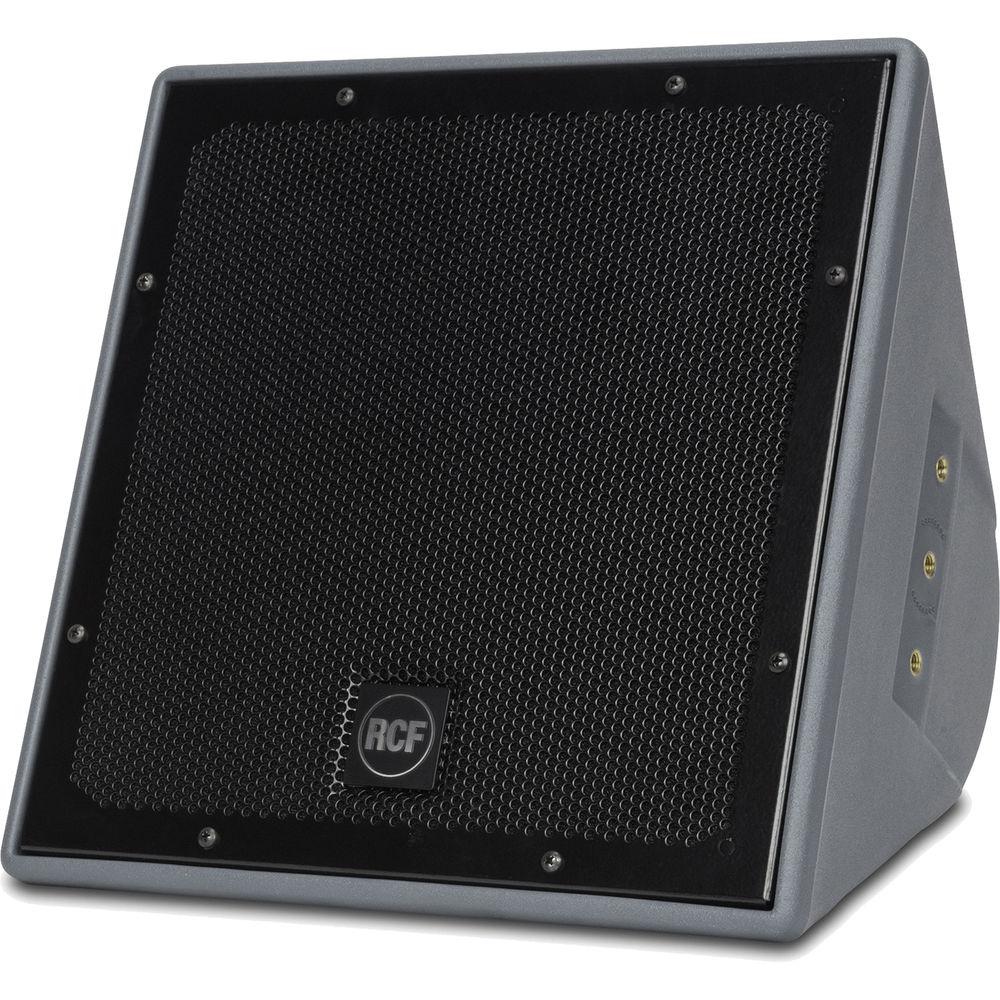

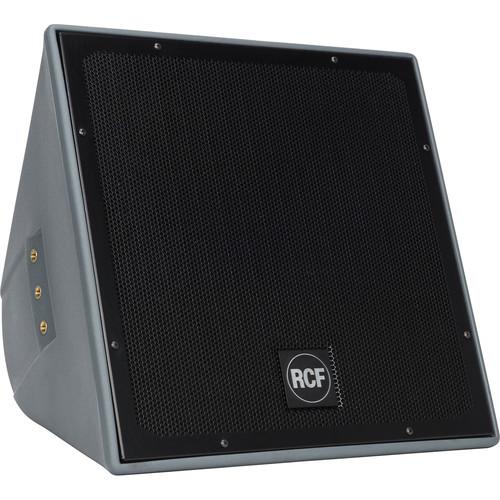

Product description 15" 300W Coaxial Weatherproof 2-Way Speaker System from RCF is a weatherproof, full-range, wide-dispersion, coaxial 2-way loudspeaker system offering substantial power and efficiency for a variety of professional indoor or outdoor applications.

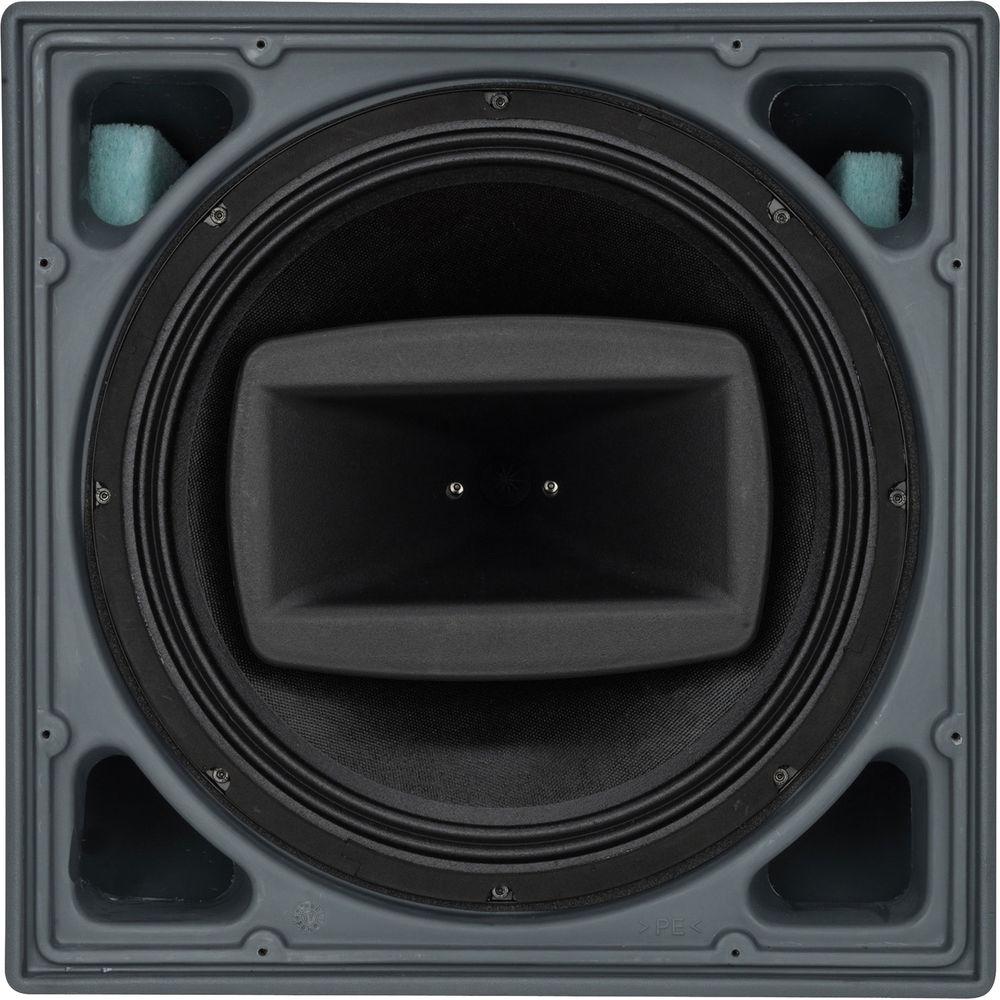

The high-frequency section is a constant directivity CMD horn loaded to a 1" RCF precision compression driver with a 1.5" diaphragm assembly for smooth, wide dispersion. The low-frequency transducer is a 15" woofer with a 2.5" voice coil. The cabinet is a single piece rotation molded in medium density polyethylene and is fully UV protected.

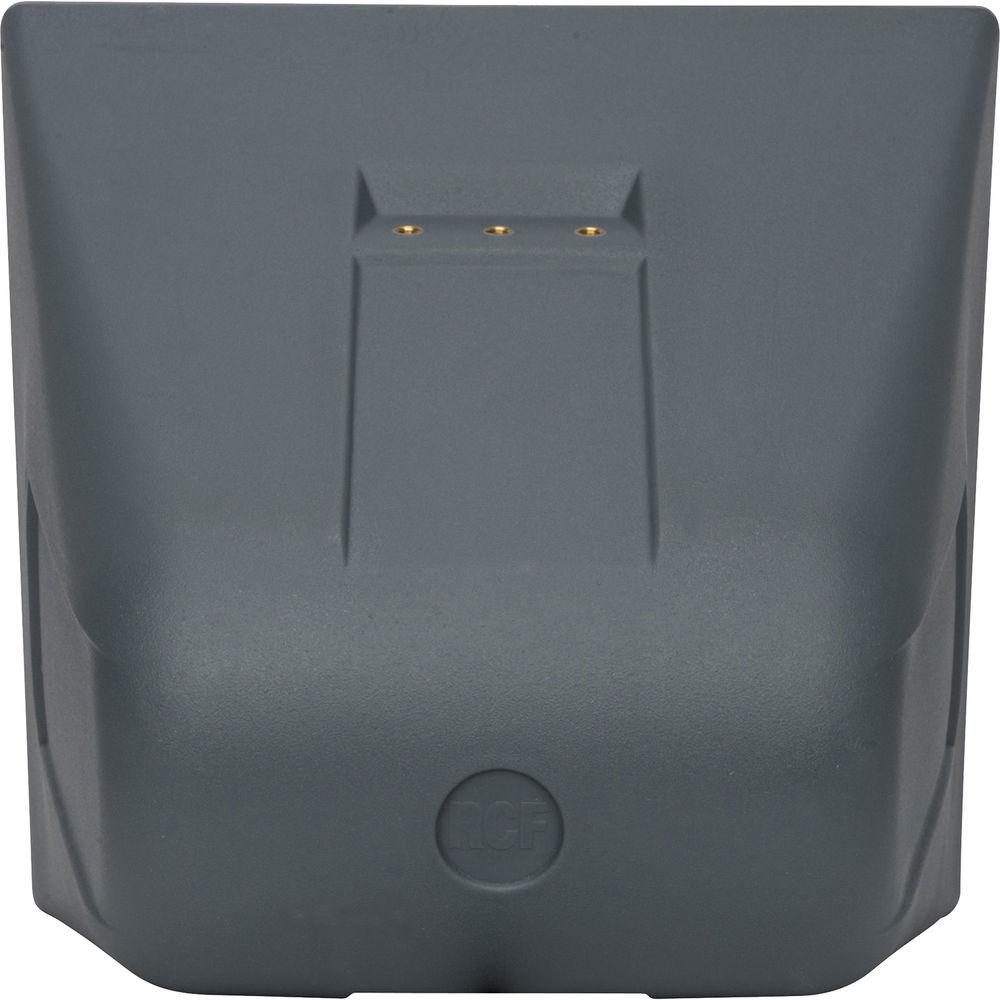

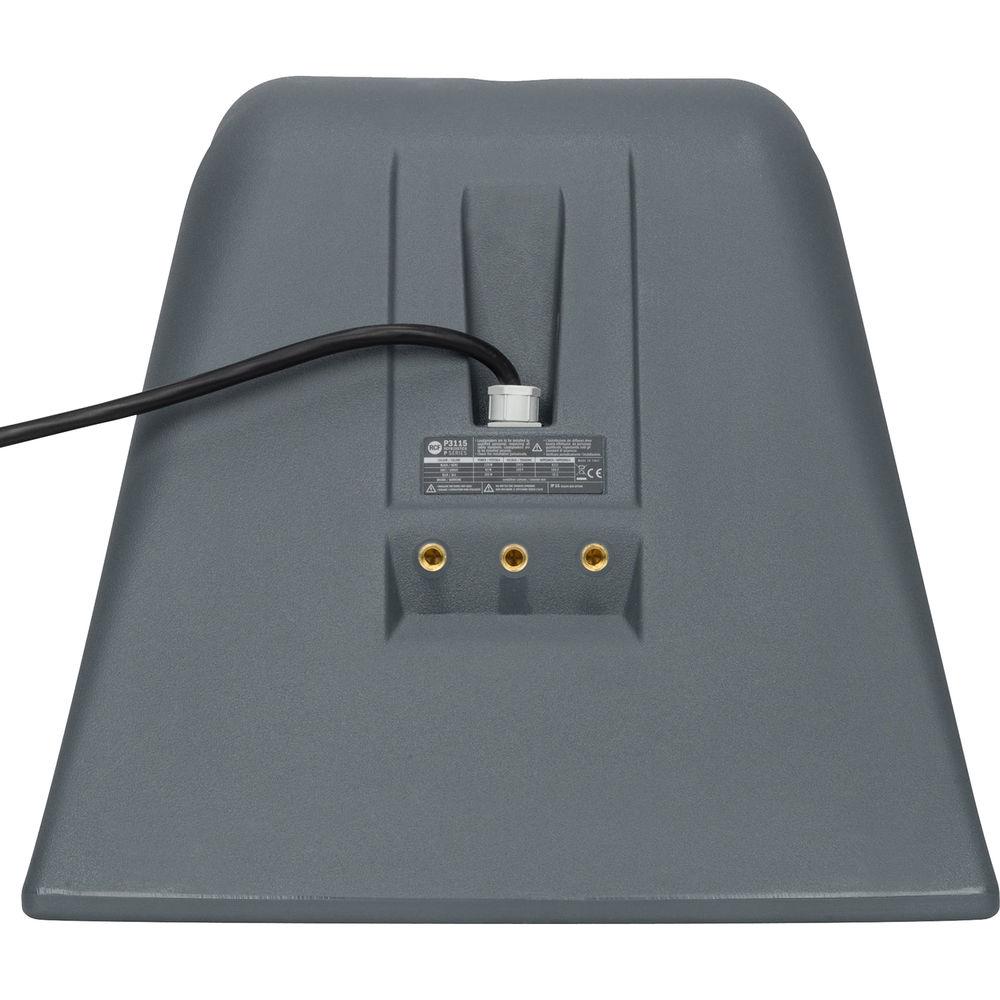

The cabinet is equipped with 12 x M 10 brass inserts, a stainless steel U-bracket and pair of spacers for 90° mounting. The system meets the requirements of the IP55 code. - Cabinet is a single piece rotation molded in medium density polyethylene, fully UV protected and waterproof IP 55

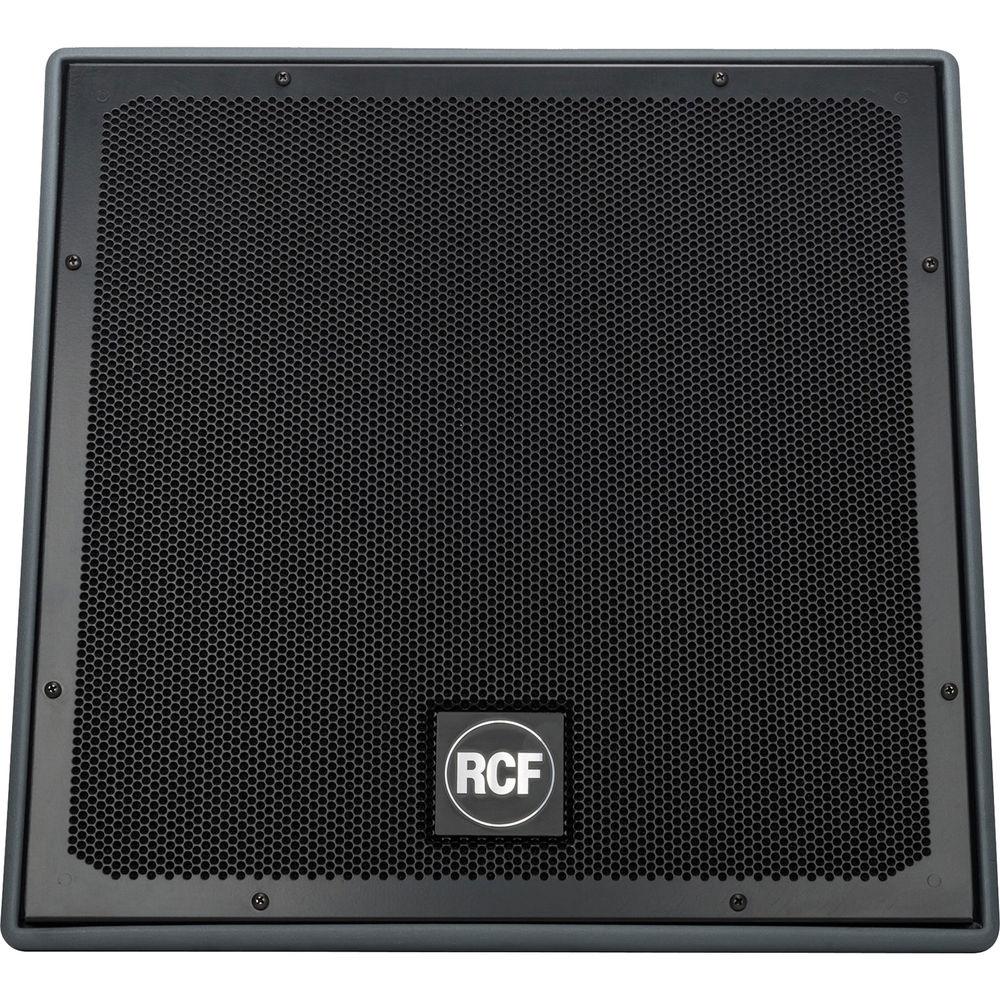

- Front grille in custom perforated aluminum with open-cell fibers and water repellent woven fabric backing
- One 15" high-output LF transducer with 2.5" voice coil
- One RCF precision 1" compression driver with 1.5" voice coil
- 60 x 90° constant directivity horn

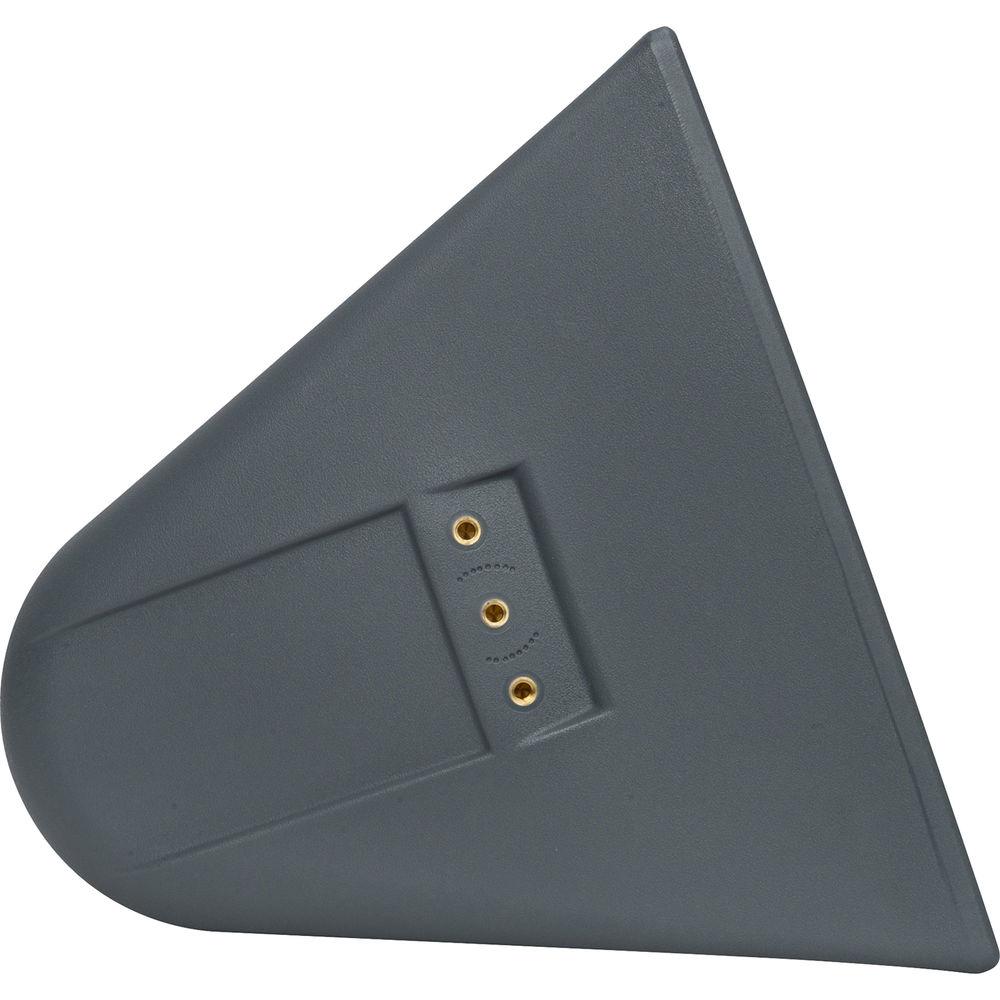

- 10 x 20° enclosure sides for array configurations
- Active mosfet cvompression driver protection
- 12 brass suspension points (M10)
In the Box RCF 15" 300W Coaxial Weatherproof 2-Way Speaker System 12 x M10 Brass Inserts Steel U-Bracket 2 x Spacers 4 x Input Cables Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the RCF 15" 300W Coaxial Weatherproof 2-Way Speaker System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRCF P3115T Specs | | | Frequency Response | 75 Hz - 20 kHz | | Maximum SPL | 129 dB @ 1 m | | Coverage Angle | Horizontal: 90°
Vertical: 60° | | Directivity | Index, Q: 13.3 | | Sensitivity | 98 dB | | Impedance | 16 ohms; | | Power Handling | 300 W | | Peak Power Output | 1200 W | | Protection | Dynamic | | Crossover Frequencies | 1300 Hz | | | | Driver | 1.00" (2.54 mm) HF diver, 1.5" (38.1 mm) voice coil | | Woofer | 15" (381 mm) woofer, 2.5" (63.5 mm) voice coil | | Impedance | Compression Driver: 8 ohms
Woofer: 16 ohms | | Input Power | Compression Driver: 25 W AES
Woofer: 250 W AES | | Sensitivity | Compression Driver: 108 dB
Woofer: 98 dB | | | | Input Connector | 4 x Neoprene cable | | Cable Length | 16.4' (5 m) | | Voltage | Constant Voltage Transformer: 70/100 | | Power | Selection: 70 V/ 30 W, 15 W; 100 V/ 60 W, 30 W | | | | Material | Polyethylene roto-molded | | Grille | Custom perforated aluminum grille with open-cell fiber and water repellent woven fabric backing | | Dimensions | 18.22 x 18.22 x 17.04" (463 x 463 x 433 mm) | | Weight | 42.76 lb (19.40 kg) |
