User Manual for RCF 15" 600W Coaxial Weatherproof 2-Way Speaker System Click to enlarge the picture
Contents of the user manual for the RCF 15" 600W Coaxial Weatherproof 2-Way
- Product category: Installed Speakers RCF
- Brand: RCF
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for RCF Installed Speakers
 |
User manual for the RCF 15" 600W Coaxial Weatherproof 2-Way contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any RCF product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official RCF user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a RCF product will considerably shorten its lifespan!
|

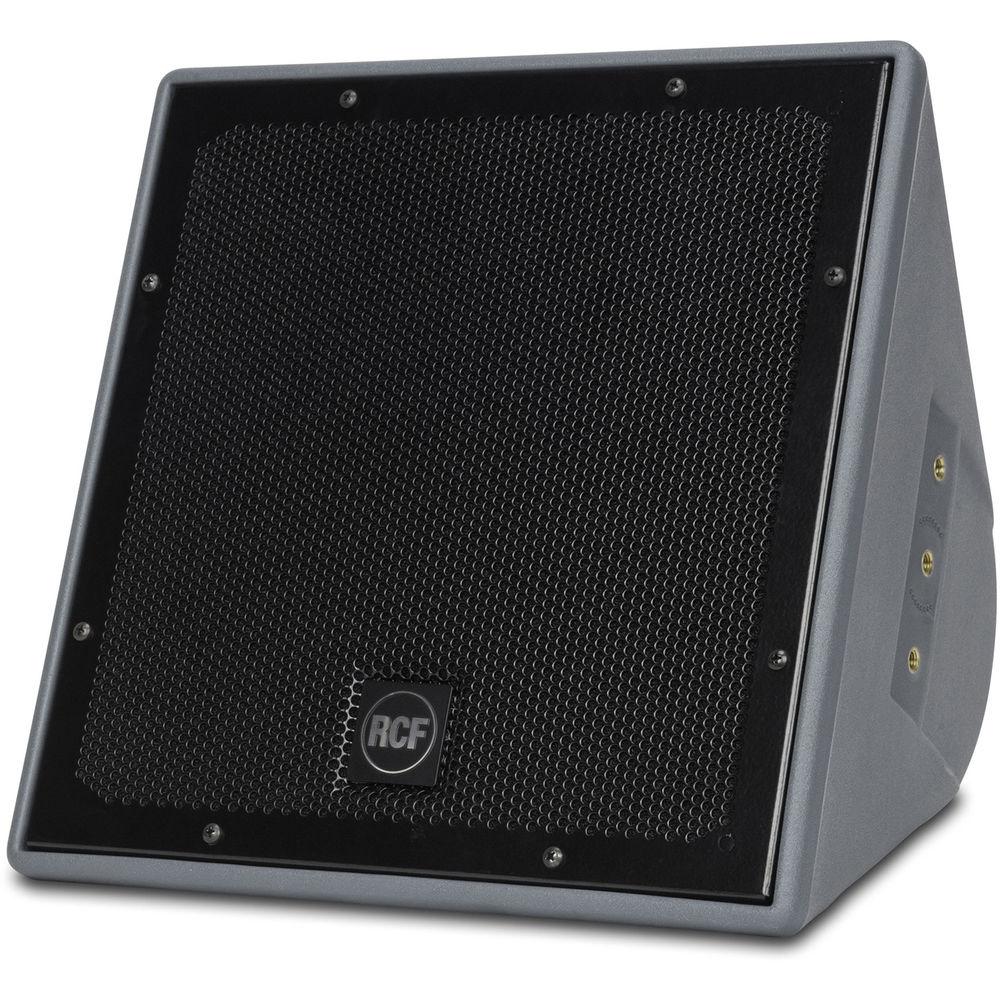

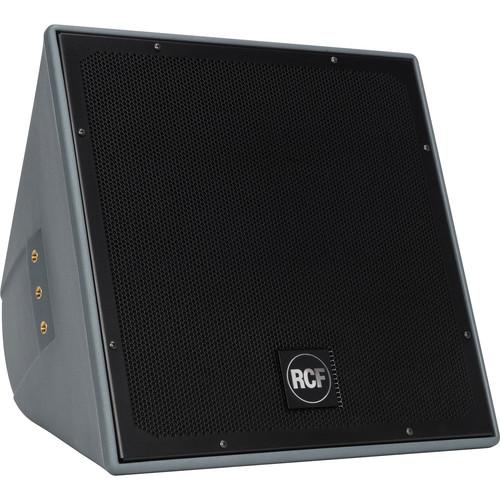

Product description RCF's 15" 600W Coaxial Weatherproof 2-Way Speaker System is a weatherproof full-range, wide-dispersion, coaxial two-way loudspeaker system for very high output and longer throw applications.
The high-frequency section is a constant directivity CMD horn loaded to a 1.3" RCF Precision Neodymium compression driver with a 2.5" diaphragm assembly for smooth, wide dispersion.

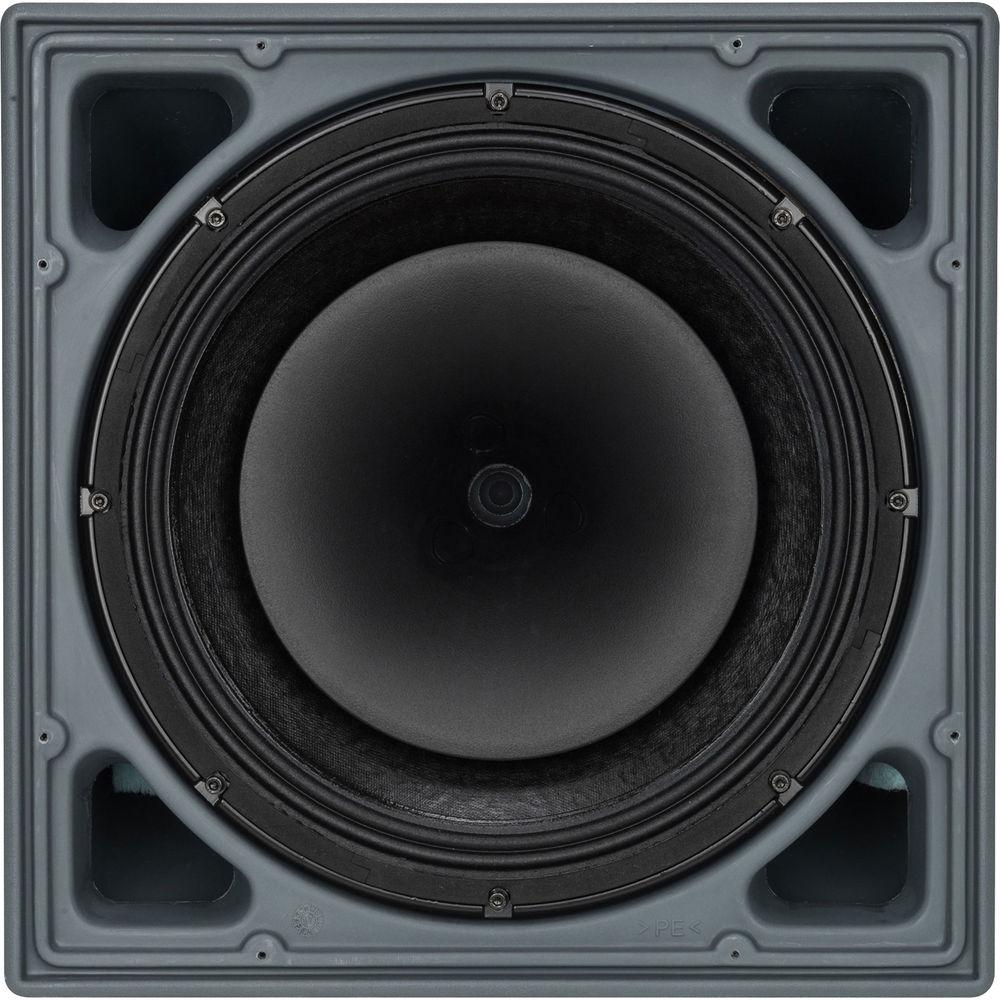

The low frequency transducer is a 15" woofer with a 3" voice coil. The cabinet is equipped with 12 x M10 brass inserts, a stainless steel U-Bracket and a pair of spacers for 90° mounting. This speaker system meets the requirements of IP 55 code. - Cabinet is a single piece rotational molded in medium density polyethylene, fully UV protected and waterproof IP55

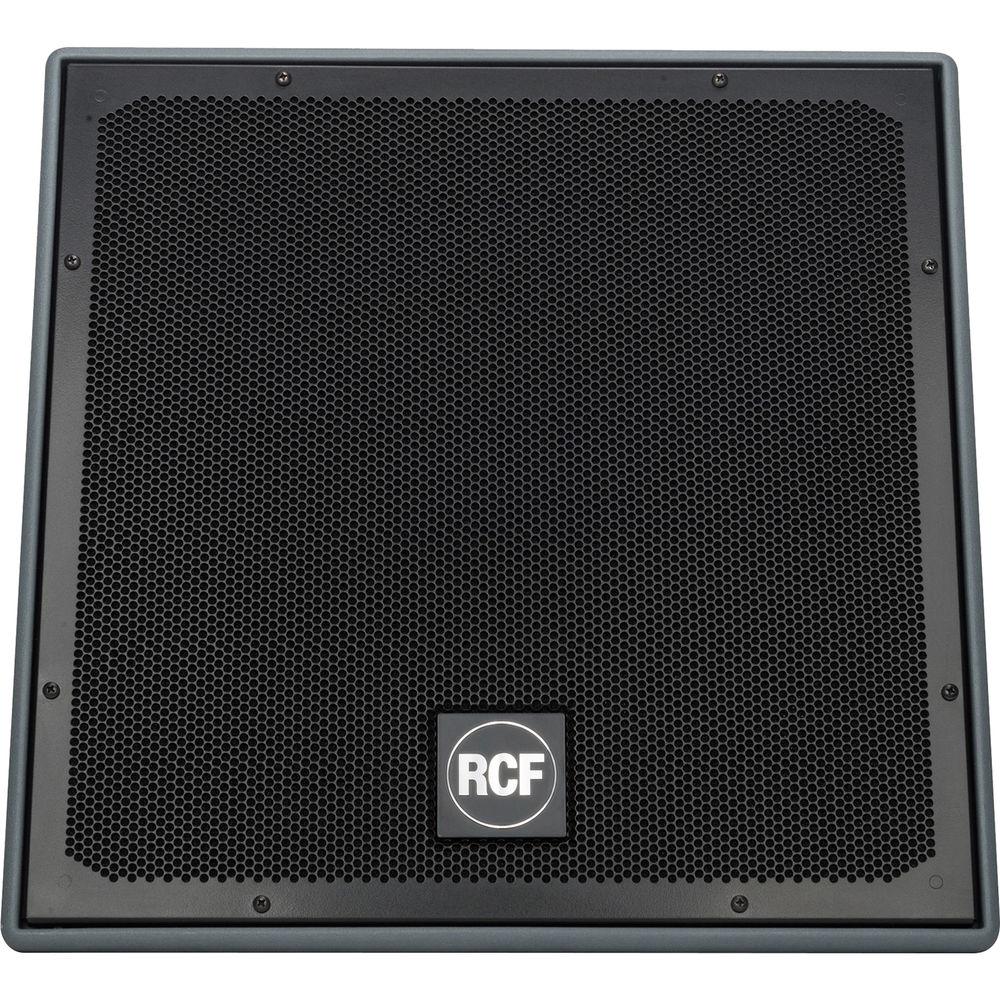

- Front grille in custom perforated aluminum with open-cell fibers and water repellent woven fabric backing
- One 15" high-output LF transducer with 3" voice coil
- One RCF precision neodymium 1.3" compression driver with 2.5" voice coil
- 60x60° constant directivity horn
- 10x20° enclosure sides for array configurations
- Active Mosfet Compression Driver Protection

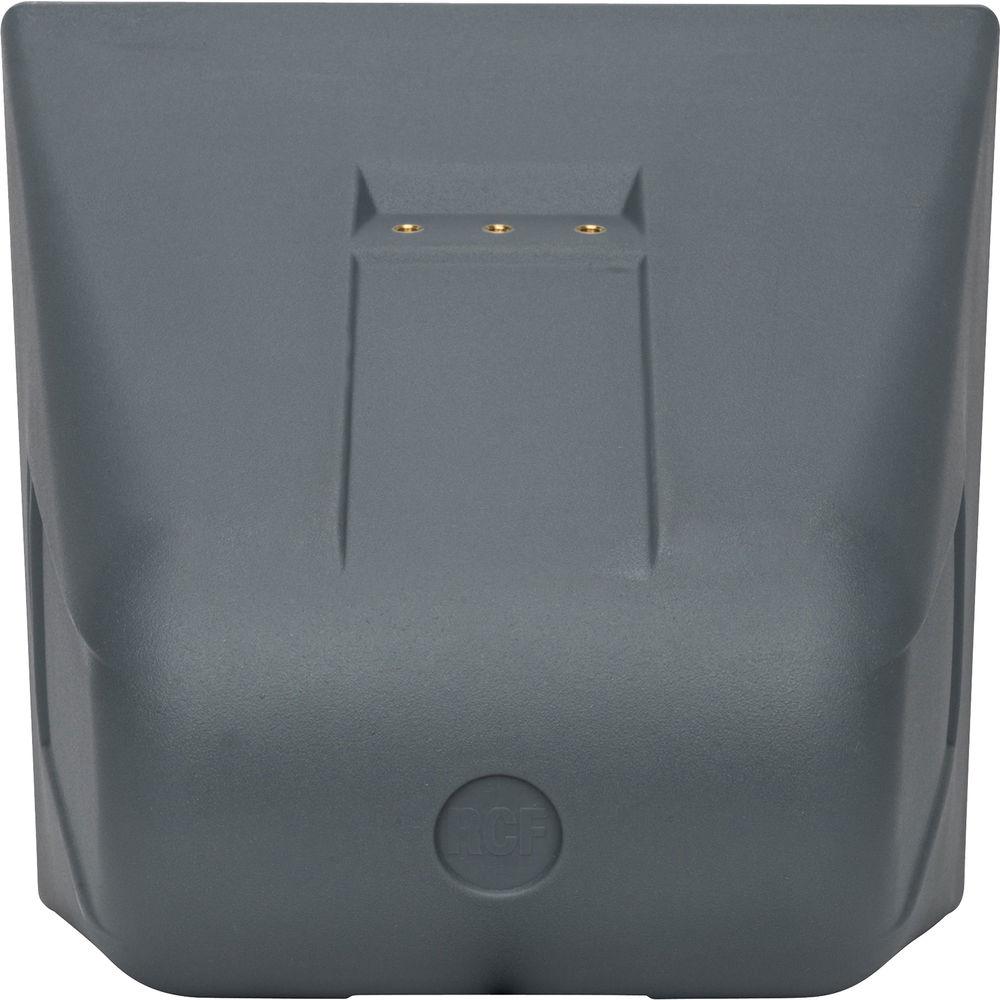

- 12 brass suspension points (M10)
In the Box RCF 15" 600W Coaxial Weatherproof 2-Way Speaker System 12 x M10 Brass Inserts Steel U-Bracket 2 x Spacers 4 x Neoprene Cables Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the RCF 15" 600W Coaxial Weatherproof 2-Way Speaker System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRCF P6215 Specs | | | Frequency Response | 75Hz-20kHz | | Maximum SPL | @ 1 m: 134 dB | | Coverage Angle | Horizontal: 60°
Vertical: 60° | | Directivity | Index, Q: 12.8 | | Sensitivity | 100 dB | | Impedance | 8 Ω | | Power Handling | 600W | | Peak Power Output | 2400W | | Protection | Dynamic | | Crossover Frequencies | 1100Hz | | | | Driver | 1.3" (33.02 mm) HD driver, 2.5" (63.5 mm) voice coil | | Woofer | 15" (381 mm) woofer, 3" (76.2 mm) coil | | Impedance | Compression Driver: 8 Ω
Woofer: 8 Ω | | Input Power | Compression Driver: 90W AES
Woofer: 90W AES | | Sensitivity | Compression Driver: 108 dB

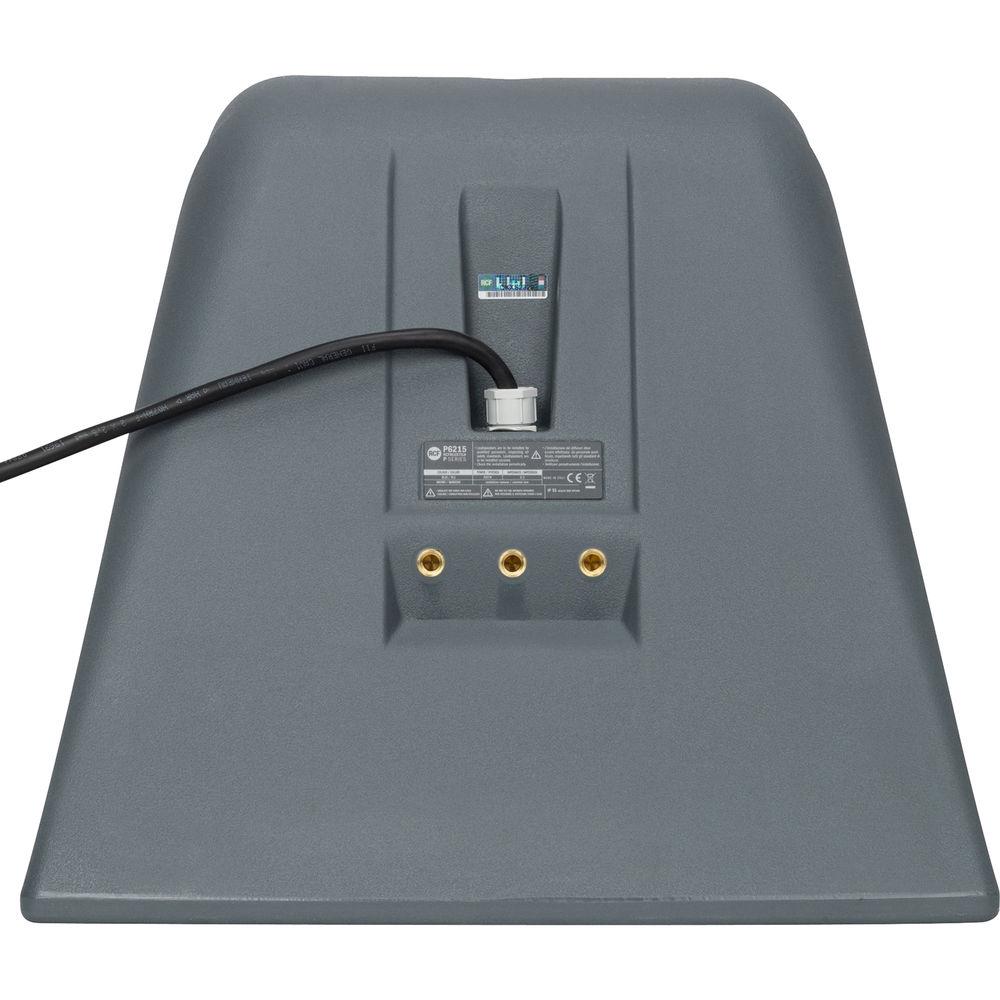

Woofer: 101 dB | | | | Input Connector | 4 x 0.05" (1.5 mm) square, 16.4' (5 m) Neoprene cable | | | | Material | Polyethylene roto-molded | | Grille | Custom perforated aluminum grille with open-cell fiber and water repellent woven fabric backing | | Dimensions | 18.22 x 18.22 x 17.04" (463 x 463 x 433 mm) | | Weight | 42.32 lbs (19.2 kg) |
Rating80% users recommend this product to others. And what about you?
This product has already been rated by 42 owners. Add your rating and experience with the product.
