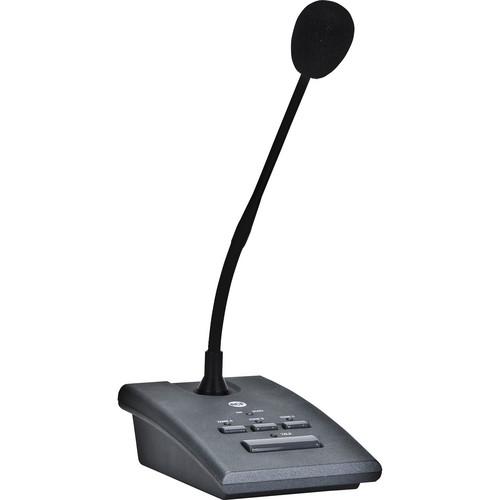

User Manual for RCF 3-Zone Paging Microphone Click to enlarge the picture
Contents of the user manual for the RCF 3-Zone Paging Microphone
- Product category: Paging & Security Microphones RCF
- Brand: RCF
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for RCF Paging & Security Microphones
|
User manual for the RCF 3-Zone Paging Microphone contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any RCF product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official RCF user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a RCF product will considerably shorten its lifespan!
|
Product description The RCF 3-Zone Paging Microphone allows you to make selective calls to 3 zones and is suitable for use with the RCF ES 3323 Mixer Amplifier (with tuner and CD/USB-MP3 player inside).The inputs 2 and 3 of the RCF ES 3323 Amplifier have a RJ-45 port (each) to connect a BM 3003 Paging Microphone quickly and directly (through a CAT5 cable) or a line made of a maximum of 12 BM 3003 paging microphones by using 1 or more additional power supply units. - Plastic body with 11.8" (300.00mm) gooseneck
- PTT button with LED, zone buttons with LED
- Power supplied by Phantom (18 to 48 VDC), for the BM 3003 directly connect to the ES 3323 Amplifier
- Can be directly connected to ES 3323 amplifiers
- External AC power supply AD2405 (Sold separately) to be used with BM 3003
- Lines of maximum 12 BM 3003 paging microphones
- Polyurethane foam wind screen
- 16.4' (5.0m) connecting cable (with RJ-45 plugs) included
In the Box RCF 3-Zone Paging Microphone CAT5 FTP Cable 16.4' (5.0m) Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the RCF 3-Zone Paging Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRCF BM 3003 Specs | | | Type | Desktop paging microphone with electret capsule | | Directivity | Cardioid | | Frequency Response | 50 Hz to 18 kHz | | Microphone Sensitivity | -65 +/- 3 dB (0 dB = 1 µbar at 1 kHz) | | Minimum Load Impedance | 470 Ω | | Nominal Output Voltage | 100 mV rms (at 3.3 kΩ); maximum 1 Vrms | | Phantom Power | 18 to 48 VDC | | Connector | 8 pole RJ 45 | | | | Power Consumption | 2.8 mA | | Power Supply | 24 V direct current (consumption 150 mA) or 18 V alternating current (consumption 200 mA) | | | | Dimensions (H x W x D) | 4.0 x 5.0 x 12.0" (10.2 x 12.7 x 30.5 cm) | | Weight | 1.80 lb (0.82 kg) |
