User Manual for RCF 4PRO 1031-A Active 2-Way 800W Speaker Click to enlarge the picture
Contents of the user manual for the RCF 4PRO 1031-A Active 2-Way 800W
- Product category: PA Speakers RCF
- Brand: RCF
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for RCF PA Speakers
 |
User manual for the RCF 4PRO 1031-A Active 2-Way 800W contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any RCF product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official RCF user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a RCF product will considerably shorten its lifespan!
|

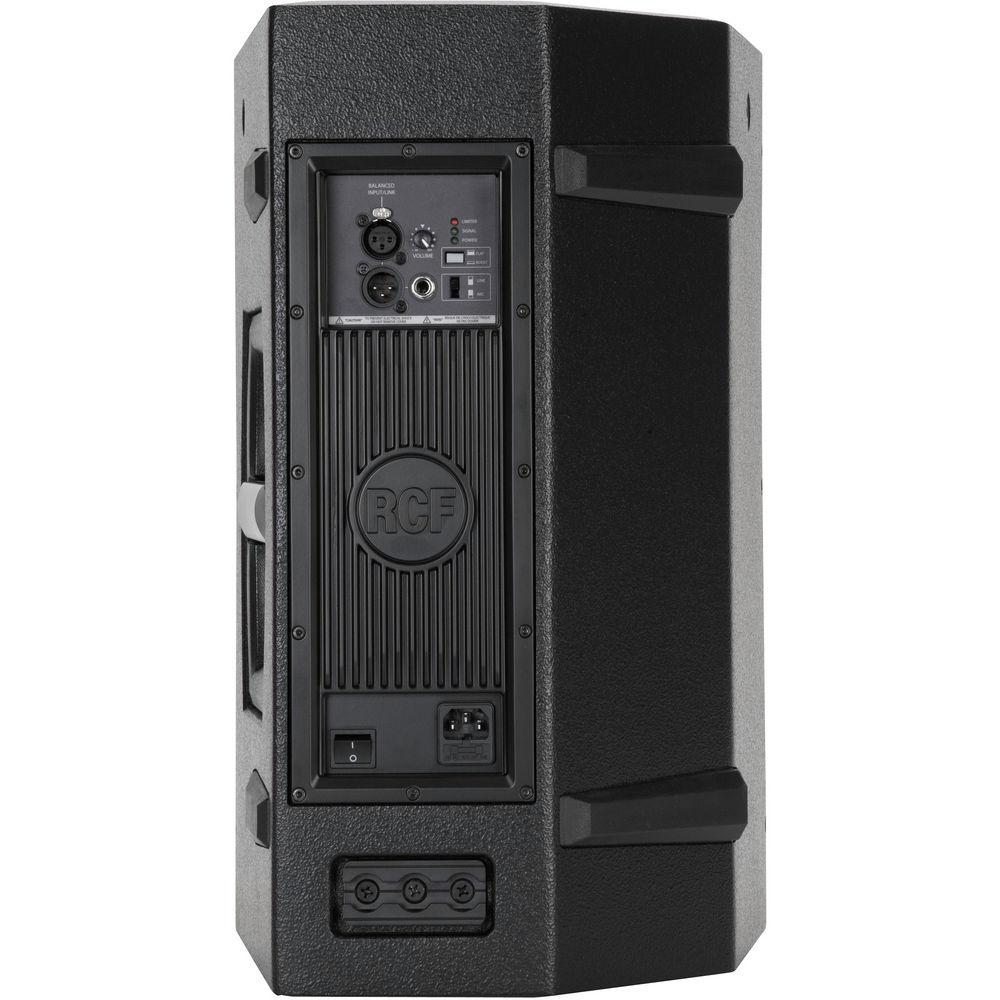

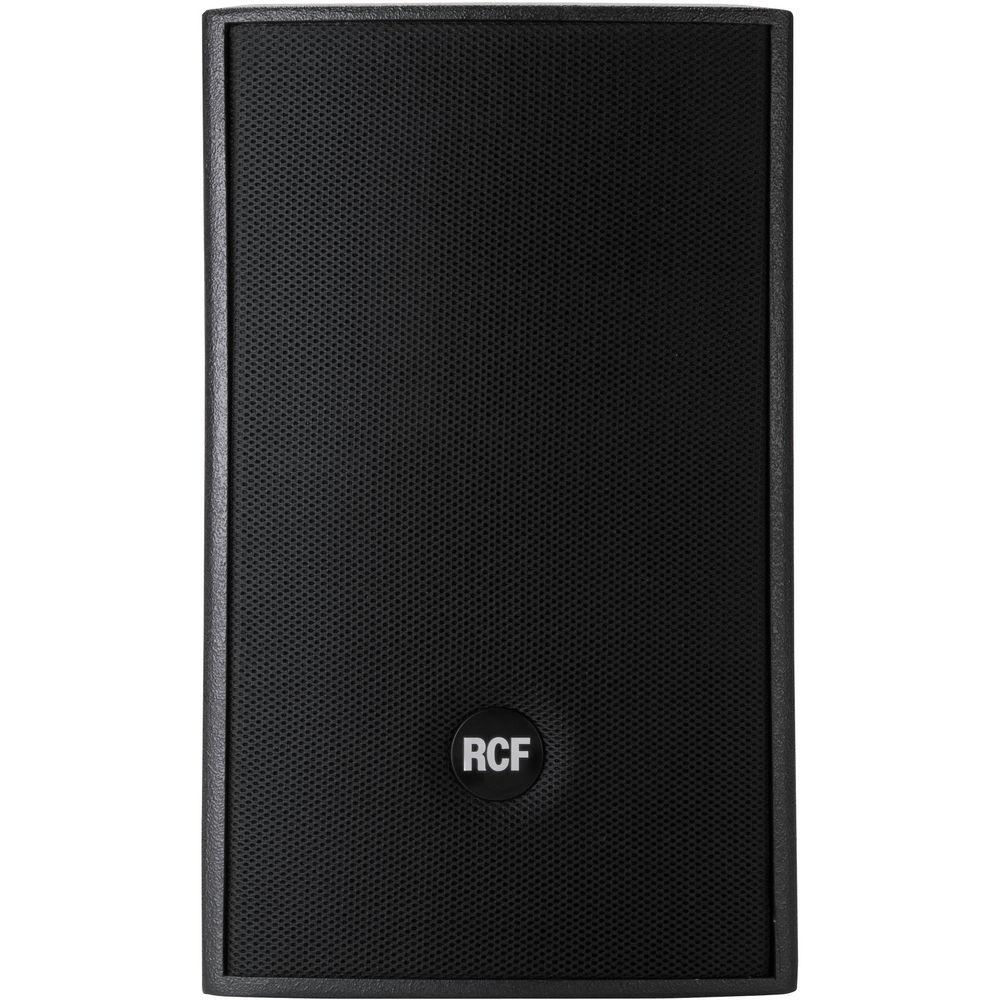

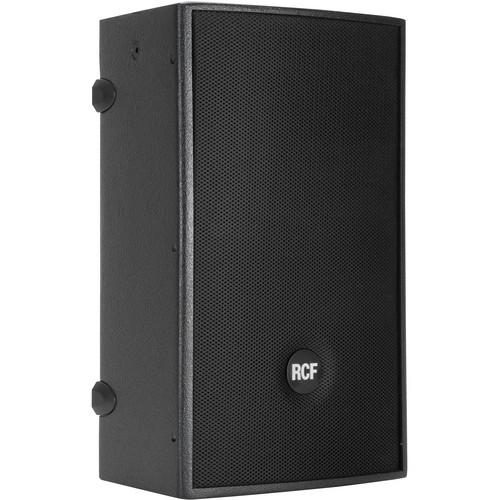

Product description The black RCF 4PRO 1031-A Active 2-Way 800 W Speaker is an active bass reflex loudspeaker offering compact size, high output and vocal fidelity. It provides low distortion and consistent polar response in a flyable lightweight enclosure. The speaker comprises a 10" woofer and a 1.4" voice coil compression driver that is mounted to a 90 x 60° constant directivity horn. It integrates a 400 W digital bi-amplification, a complete electronic processor section and RCF low distortion, high power transducers. The system is compact and linear and offers the typical balanced sound of high level two way systems. The 90° angle is wide enough to provide coverage of an audience when used one per side, yet narrow enough to allow displaying of multiple enclosures without excessive coverage overlap. The compression driver uses a new 1 dome, with 1.4” voice coil, in front of a low compression, optimized geometry, and radial phase plug. This innovative design is powered from a high flux magnet offering precision in high frequency reproduction. The amplifier presents XLR/jack (Combo) balanced inputs, XLR output link, volume, a switchable EQ Mode (Contour) and a mic/line switch. The amplifier features solid mechanical aluminum structure, which not only stabilizes the amplifier during transportation but also assists in the heat dissipation. The processor section includes active crossover, system equalization, transducer phase alignment, limiter and protection functions. The system is visually monitored from 4 status LEDs. All components are housed in a strong Baltic birch plywood enclosure where high density polystyrene end caps guarantee the maximum strength. The front is protected from a strong, powder-coated, metal grille. The cabinet features two comfortable recessed side handles for easy portability. - 800 W peak power, 400 W RMS output
- Well suited for sound reinforcement systems, band and vocal PA, DJ PA systems, and small-to-medium size venue main PA
In the Box RCF 4PRO 1031-A Active 2-Way 800W Speaker (Black) Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the RCF 4PRO 1031-A Active 2-Way 800W Speaker in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRCF 4PRO 1031-A Specs | | | Frequency Response | 50 Hz to 20 kHz | | Maximum SPL | 127 dB | | Coverage Angle | H x V: 90 x 60° | | Driver | 1", 1.4" Voice Coil | | Woofer | 10", 2" Voice Coil | | | | Input Connector | Combo XLR-Jack | | Output Connector | XLR | | Input Sensitivity | -2 / +4 dBu | | | | Crossover Frequencies | 1800 Hz | | Protection | Themel, RMS | | Limiter | Fast limiter | | Controls | Volume, EQ Shape, Mic/Line | | | | Power Supply | 400 W | | Frequencies | High: 100 W
Low: 300 W | | Cooling | Convection | | Connection | VDE connector In/Out | | | | Cabinet | Baltic Birch | | Hardware | 3 x Flytracks | | Handles | 1 side | | Dimensions (H x W x D) | 21.22 x 12.59 x 12.59" (538.90 x 319.70 x 319.70 mm) | | Weight | 36.81 lb (16.70 kg) |
