User Manual for RCF 5" Active Ultra Compact Wide Dispersion Speaker Click to enlarge the picture
Contents of the user manual for the RCF 5" Active Ultra Compact Wide
- Product category: PA Speakers RCF
- Brand: RCF
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for RCF PA Speakers
 |
User manual for the RCF 5" Active Ultra Compact Wide contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any RCF product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official RCF user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a RCF product will considerably shorten its lifespan!
|

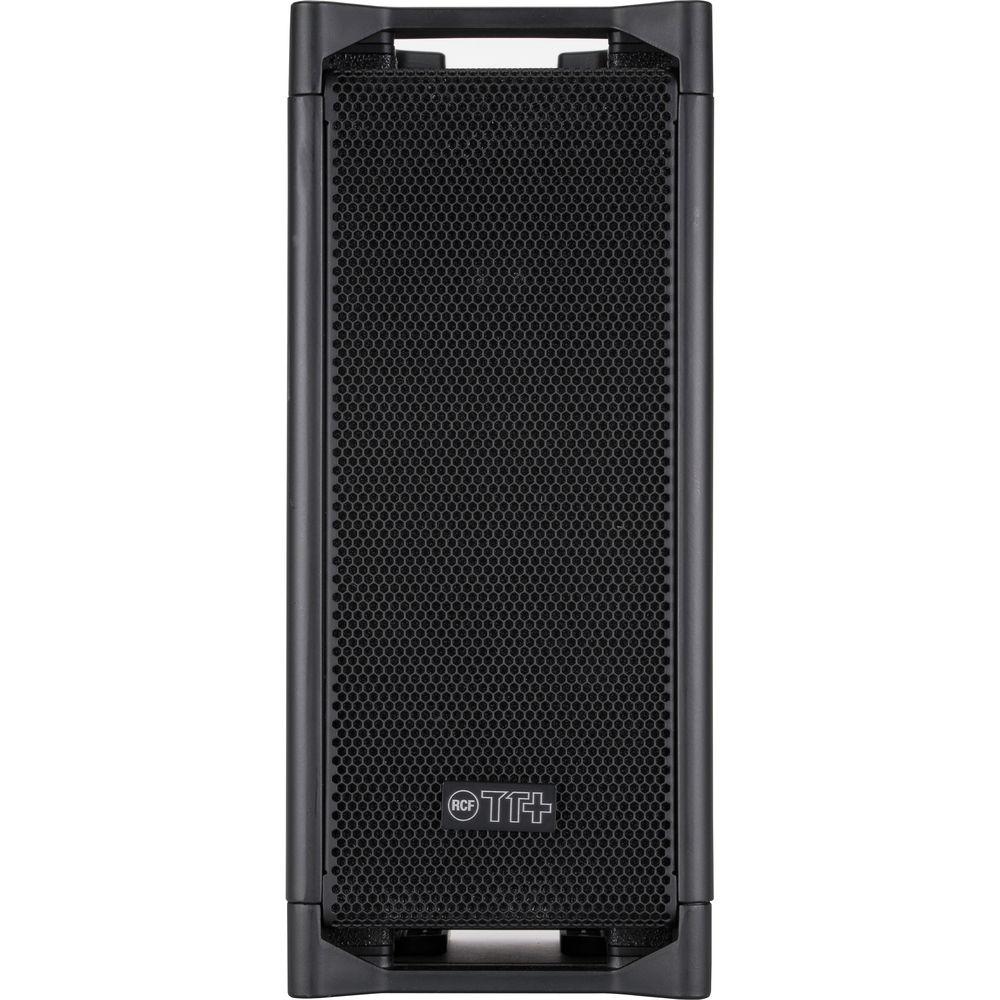

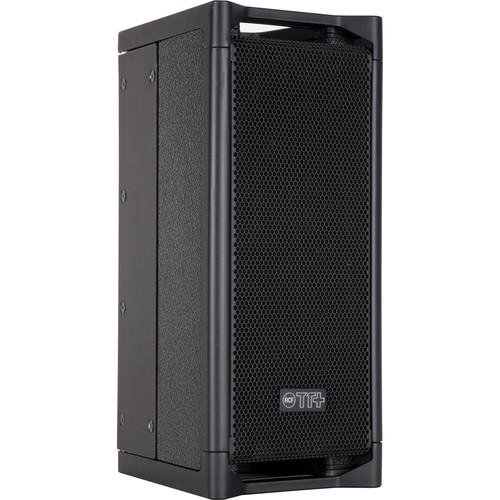

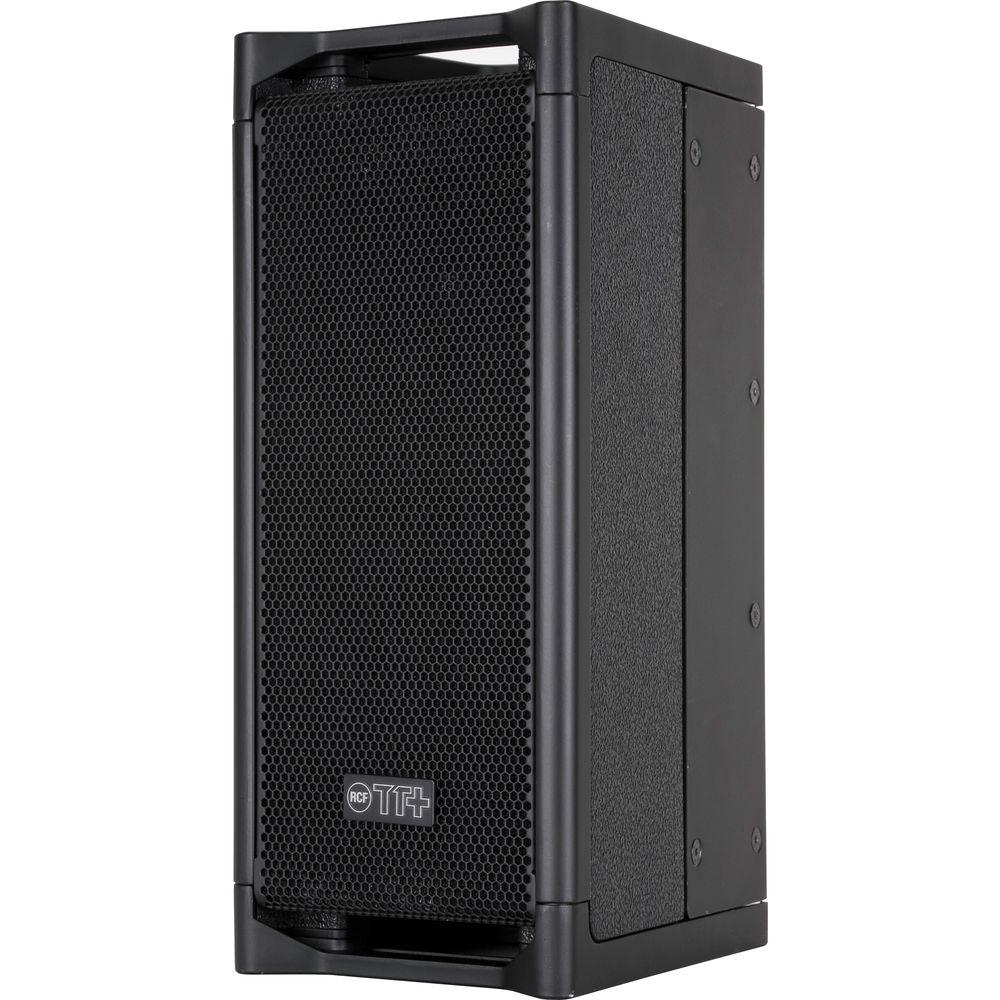

Product description The TT051-A 5" Active Ultra Compact Wide Dispersion Speaker from RCF is specifically designed for high quality indoor nearfield sound amplification. It's 5" woofer and 1" titanium dome tweeter speaker compliment is loaded to a wide dispersion constant directivity horn. The TT51-A is powered by a bi-amped, 300 Watt, digital amplifier, with 150 Watts assigned for the low frequencies and 150 Watts for the high frequencies.
The speaker, designed for use in concert halls, theaters, and for multimedia and monitoring, features DSP processing and accepts either balanced or unbalanced input signals, and is RDNet ready.
The TT51-A is also known as the TT051-A. - 300 Watt, bi-amped amplification
- Wall mount EQ
High pass EQ - Accepts balanced or unbalanced signal
- Top and bottom carrying handles
In the Box RCF 5" Active Ultra Compact Wide Dispersion Speaker Limited 2-Year Warranty and the when the product is registered you get an extra one year warrranty informed by Nick Lomauro Table of Contents
|
Upload User Manual
Have you got an user manual for the RCF 5" Active Ultra Compact Wide Dispersion Speaker in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

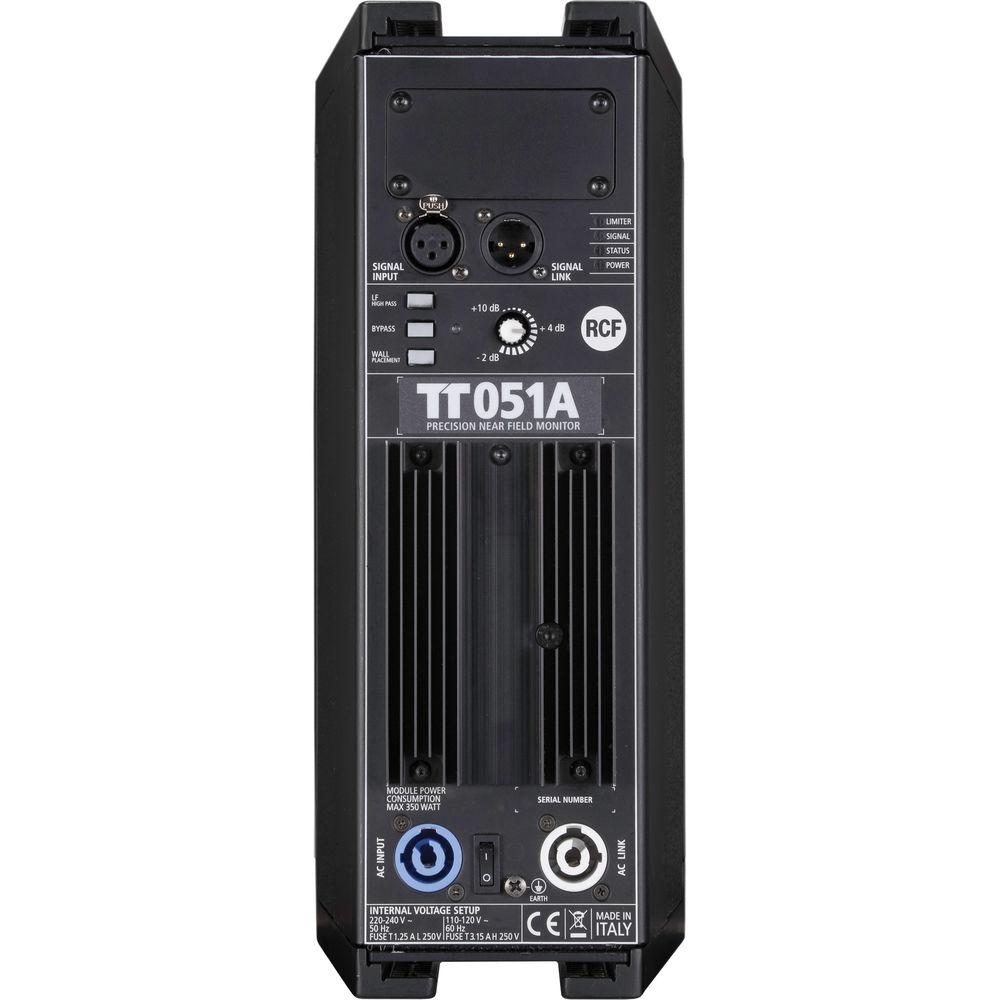

Technical parametersRCF TT51-A Specs | | | Frequency Response | 65 Hz to 20 kHz | | Maximum Sound Pressure Level (SPL) | 116 dB | | Horizontal Coverage Angle | Conical 110° | | Vertical Coverage Angle | Conical 110° | | Low Frequency Driver | 5.0" (12.7 cm) | | High Frequency Driver | 1.0" (2.5 cm) Metal tweeter | | | | Input Signal | Balanced / unbalanced | | Input Connections | XLR, RDNet ready | | Input Sensitivity (Selectable) | -2 dBu / + 10 dBu | | Output Connectors | XLR | | | | Crossover Frequency | 1800 Hz | | Protection Features | Thermal, Excurs., HF | | Limiter | Soft limiter | | Controls | DSP controlled | | | | Active or Passive | Active | | Total Power | 300 Watts,RMS | | High Frequency Driver | Digital, 150 Watts RMS | | Low Frequency Driver | Digital, 150 Watts RMS | | Cooling | Convection | | Connections | Powercon in/out | | | | Enclosure Material | Baltic Birch | | Hardware | Multi-functional | | Handles | Top, bottom | | Color | Black | | | | Dimensions (H x W x D) | 13.70 x 5.90 x 7.48" (348 x 150 x 190 mm) | | Weight | 15.43 lb (7.0 kg) | | | | Package Weight | 18.345 lb | | Box Dimensions (LxWxH) | 17.0 x 11.6 x 8.9" |
