User Manual for RCF 70V Tappable EN54-24 Compliant Plastic Horn Speaker Click to enlarge the picture
Contents of the user manual for the RCF 70V Tappable EN54-24 Compliant Plastic
- Product category: Installed Speakers RCF
- Brand: RCF
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for RCF Installed Speakers
 |
User manual for the RCF 70V Tappable EN54-24 Compliant Plastic contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any RCF product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official RCF user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a RCF product will considerably shorten its lifespan!
|

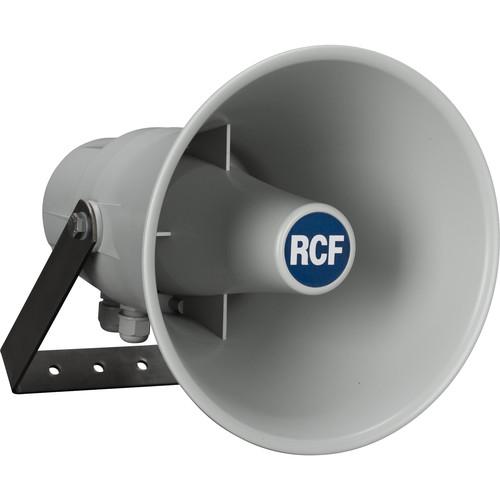

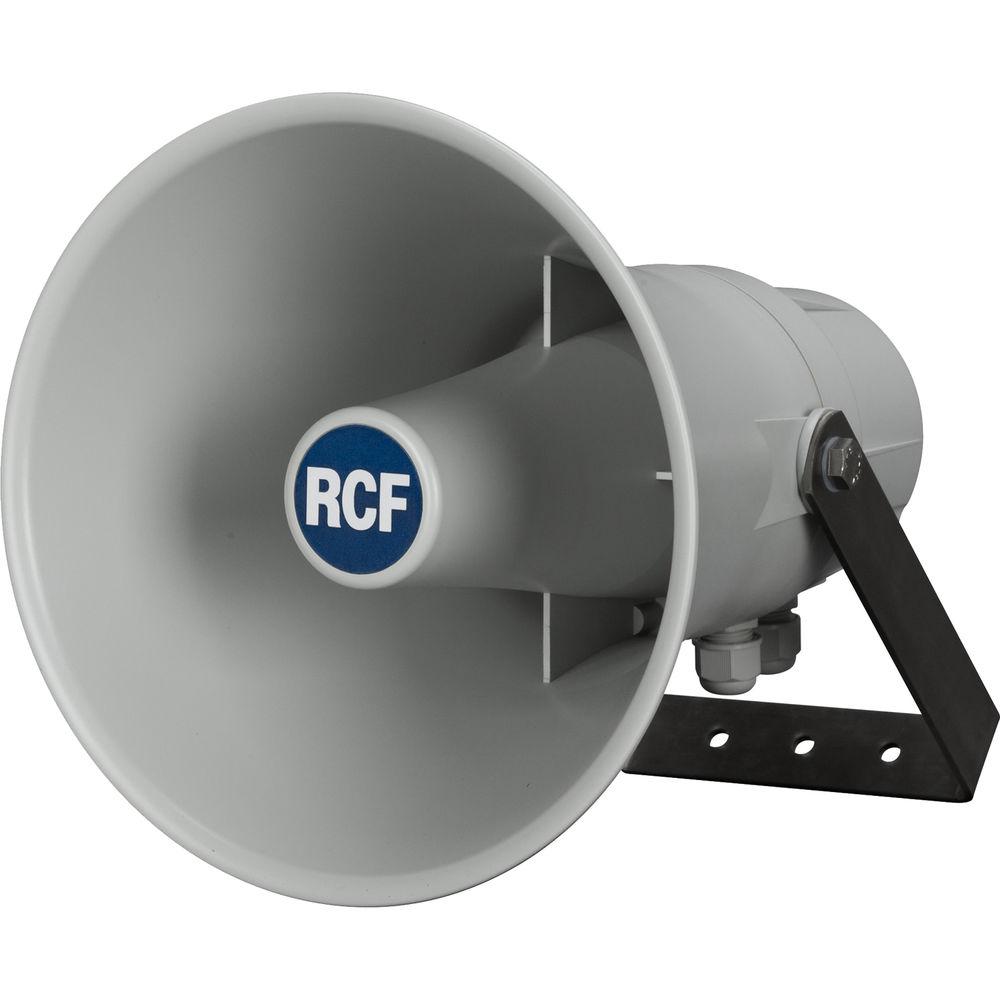

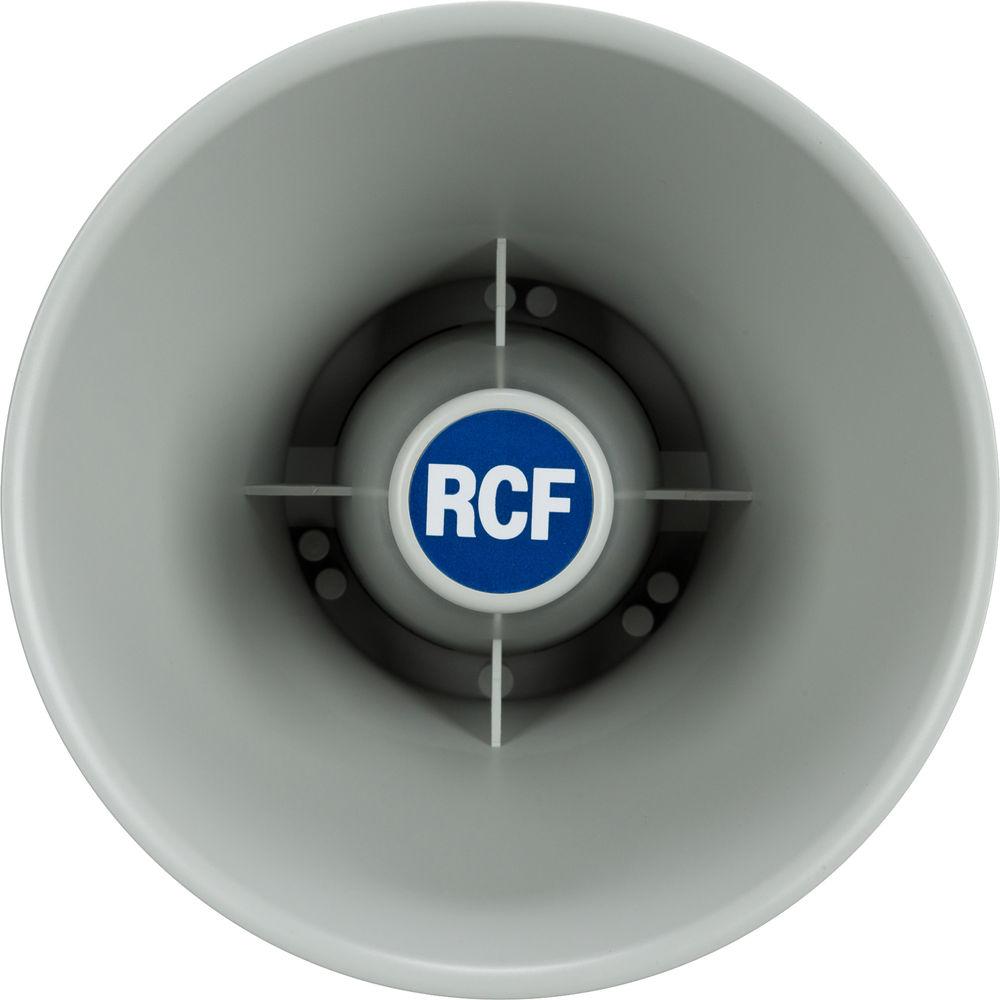

Product description Provided by third party: HD 21EN is a 30 W horn loudspeaker compliant with EN 54-24 standard. Thanks to IP66 protection and its UV resistant ABS housing and it is suitable for both indoors and outdoors applications.

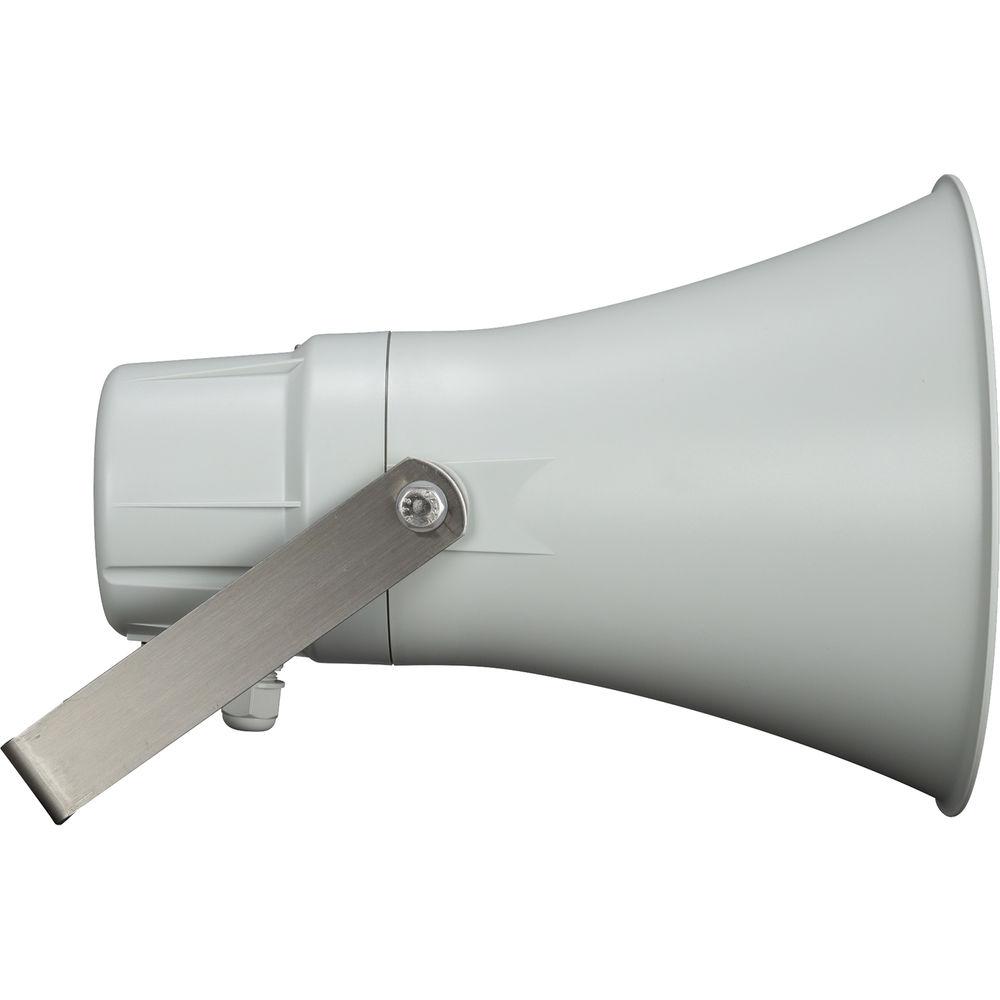

It can be easily aimed towards any direction through the adjustable wall-mount bracket, and can used in sounds systems having large spaces, for instance supermarkets, railway stations, undergrounds, factories, warehouses, etc. and also in all environments that need high efficiency loudspeakers grade. Equipped with transformer for 100 V/70 V constant voltage lines, internal power setting and ceramic terminal strip to link cables, it also has a thermal fuse that prevents damages to the audio line due to heat.
- Key Features
-
- Compact speaker with 30 W driver in compliance with EN 54-24
- Rear cover in UV stabilized self-extinguishing ABS
- Suitable for indoor and outdoor use (thanks to IP 66 protection)
- Transformer for 100 V /70 V constant voltage connection
- Thermal fuse to pretect the audio line from heat
Table of Contents
|
Upload User Manual
Have you got an user manual for the RCF 70V Tappable EN54-24 Compliant Plastic Horn Speaker in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

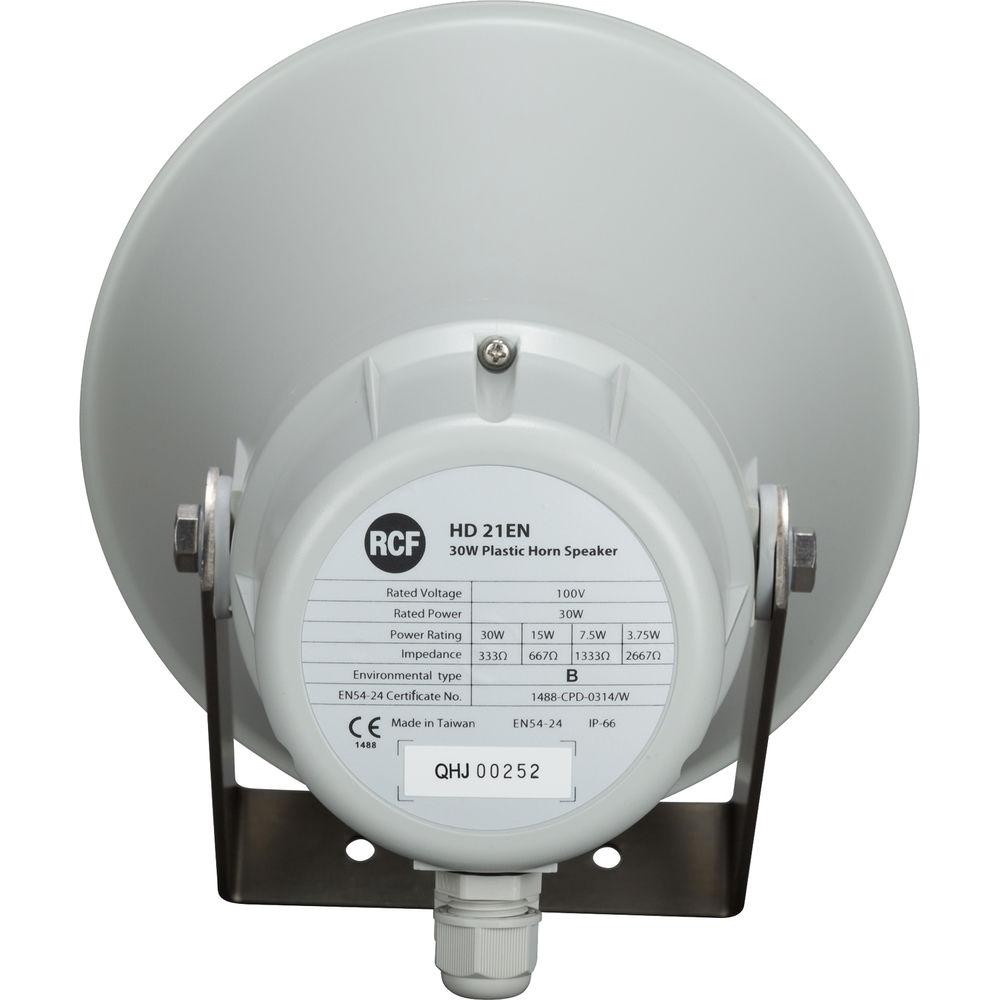

Technical parametersRCF HD21EN Specs | | | Product Type | Speaker - for PA system | | Enclosure Color | Light gray | | Enclosure Material | Plastic | | | | Speaker Type | Passive | | Nominal Output Power | 30 Watt | | Max (RMS) Output Power | 40 Watt | | Frequency Response | 340 - 9000 Hz | | Nominal Impedance | 333 Ohm | | Output Level (SPL) | 119 dB | | Sensitivity | 108 dB | | Integrated Transformer | 70V/100V operation | | | | Driver Details | Speaker: full-range driver - Horn | | | | Connector Type | Speakers input | | | | Width | 11.7 in | | Depth | 11.7 in | | Height | 8.3 in | | Weight | 4.52 lbs |
Rating90% users recommend this product to others. And what about you?
This product has already been rated by 56 owners. Add your rating and experience with the product.
