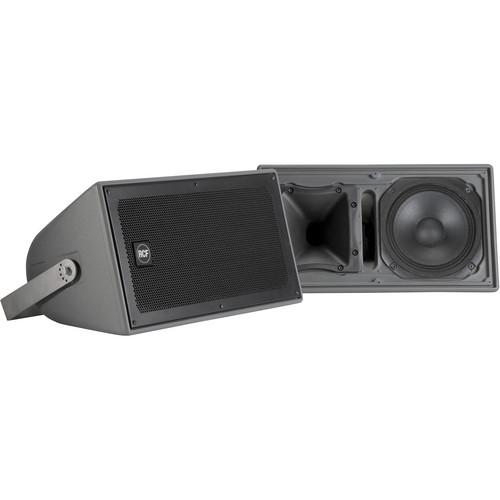

User Manual for RCF 8" 100W Weatherproof 2-Way Speaker System Click to enlarge the picture
Contents of the user manual for the RCF 8" 100W Weatherproof 2-Way Speaker
- Product category: Installed Speakers RCF
- Brand: RCF
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for RCF Installed Speakers
|
User manual for the RCF 8" 100W Weatherproof 2-Way Speaker contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any RCF product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official RCF user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a RCF product will considerably shorten its lifespan!
|
Product description RCF's 8" 100W Weatherproof 2-Way Speaker System is a weatherproof, full-range, wide-dispersion, two-way loudspeaker system suitable for several indoor or outdoor applications.
This speaker features a 1.5" diaphragm compression driver, a 1" rotatable horn with constant directivity of 90x60°, and a 8" high-efficiency, low-frequency transducer with a 1.5" voice coil. This speaker system in enclosed in a single-piece rotational-molded, UV-protected, polyethylene cabinet. The cabinet is equipped with 4x8 brass inserts and a steel U-Bracket. The front logo is in aluminum and rotatable.
The grille is custom perforated aluminum with open-cell fibers and water-repellent, woven fabric backing.
This speaker system is suitable for indoor and outdoor installations, and meets the requirements of IP55 code. - Weatherproof cabinet IP55
- Aluminum grille and stainless steel bracket
- One 8" high-output LF transducer with 1.5" voice coil
- One RCF precision 1" compression driver with 1.5" voice coil
- 60x90° constant directivity horn
- 2x15° enclosure sides for cluster configurations
- LICC (Low Impedance Compensated Crossover) network
In the Box RCF 8" 100W Weatherproof 2-Way Speaker System 4 x M8 Brass Inserts Steel U-Bracket 2 x Spacers 4 x Input Cables Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the RCF 8" 100W Weatherproof 2-Way Speaker System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRCF P1108-T Specs | | | Frequency Response | 80 Hz-20 kHz | | Maximum SPL | @ 1 m: 121 dB | | Coverage Angle | Horizontal: 90°
Vertical: 60° | | Directivity | Index, Q: 11 | | Sensitivity | 95 dB | | Impedance | 16 Ω | | Power Handling | 100 W | | Peak Power Output | 400 W | | Recommended Amplifier Power | 200 W | | Protection | Dynamic protection on compression driver | | Crossover Frequencies | 2200 Hz | | | | Driver | 1.0" (25.4 mm) throat, 1.5" (38.1 mm) coil diaphragm assembly | | Woofer | 8.0" (203.2 mm) woofer, 1.5" (38.1 mm) voice coil | | Impedance | Compression Driver: 8 Ω
Woofer: 16 Ω | | Input Power | Compression Driver: 20 W AES
Woofer: 100 W AES | | Sensitivity | Compression Driver: 107 dB
Woofer: 94 dB | | | | Input Connector | 4 x 0.05" (1.5 mm) square, 6.56' (2 m) Neoprene cable | | Voltage | Constant Voltage Transformer: 70/100 | | Power | Selection: 70 V/ 30 W, 15 W- 100 V/ 60 W, 30 W | | | | Material | 0.31" (8 mm) Polyethylene roto-molded | | Grille | Custom perforated aluminum grille with open-cell fiber and water repellent woven fabric backing | | Dimensions | 10.47 x 19.4 x 9.84" (266 x 493 x 250 mm) | | Weight | 27.55 lbs (12.5 kg) |
Rating90% users recommend this product to others. And what about you?
This product has already been rated by 13 owners. Add your rating and experience with the product.
