User Manual for RCF 8000 Series UP 8502 Power Amplifier Click to enlarge the picture
Contents of the user manual for the RCF 8000 Series UP 8502 Power
- Product category: 70-Volt Amplifiers RCF
- Brand: RCF
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for RCF 70-Volt Amplifiers
 |
User manual for the RCF 8000 Series UP 8502 Power contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any RCF product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official RCF user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a RCF product will considerably shorten its lifespan!
|

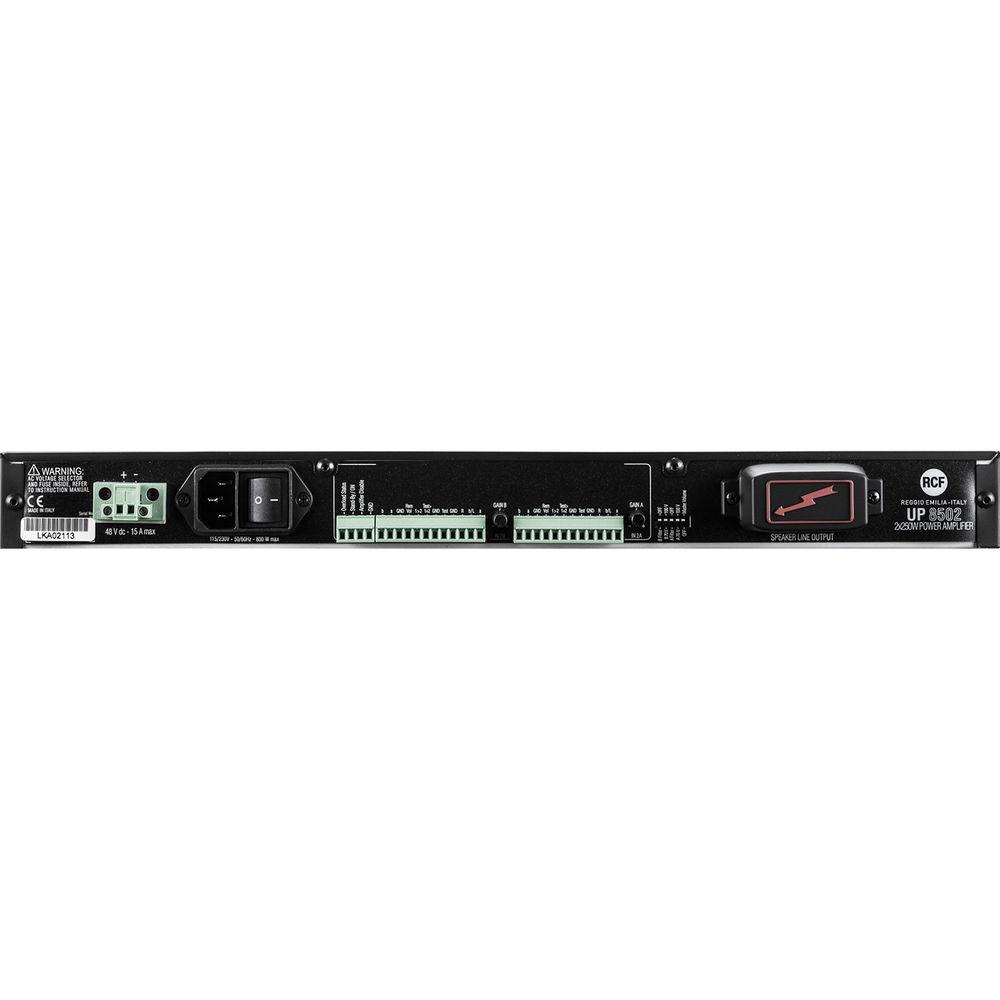

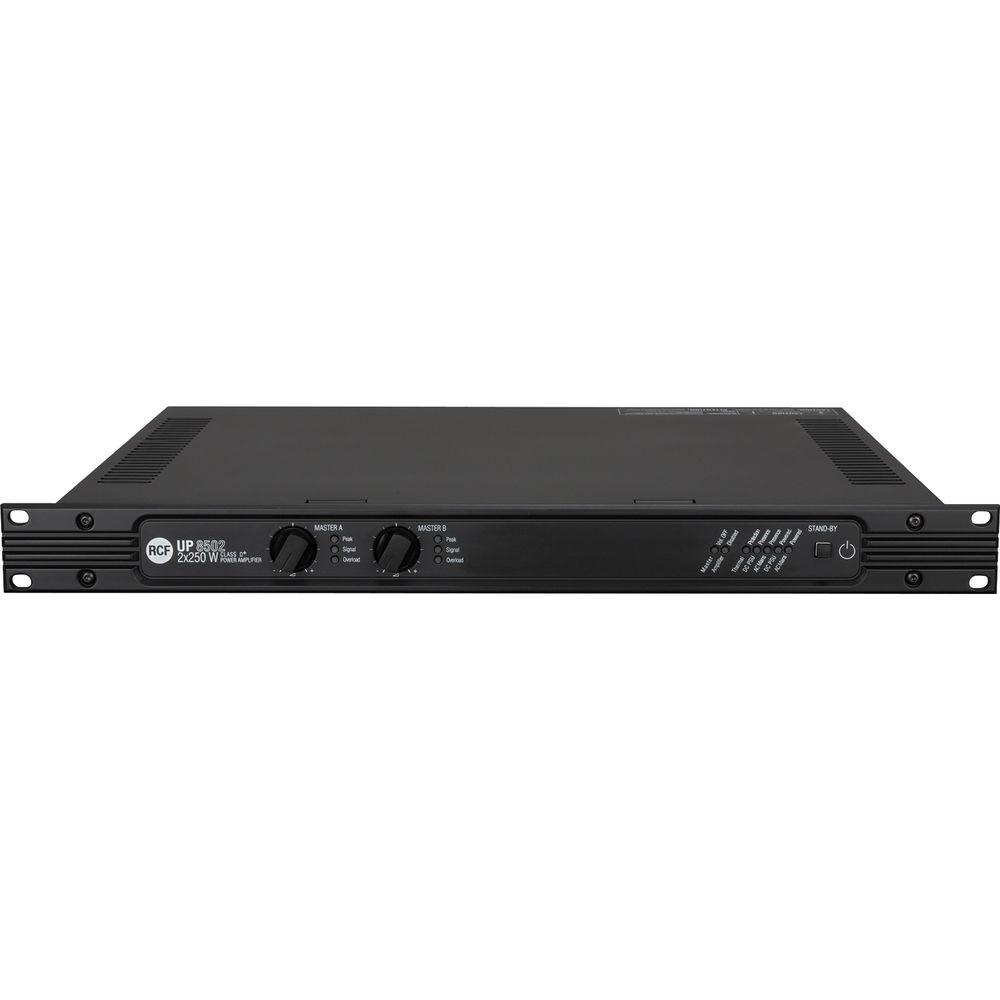

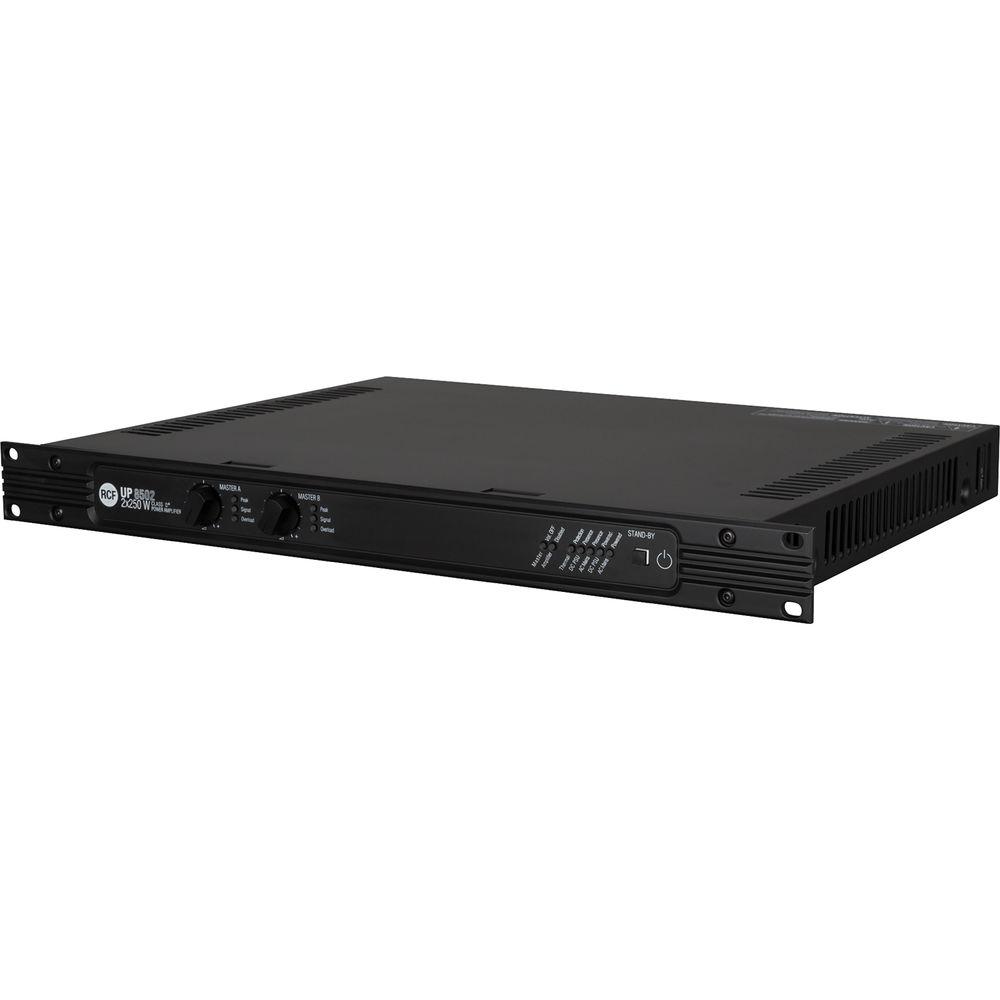

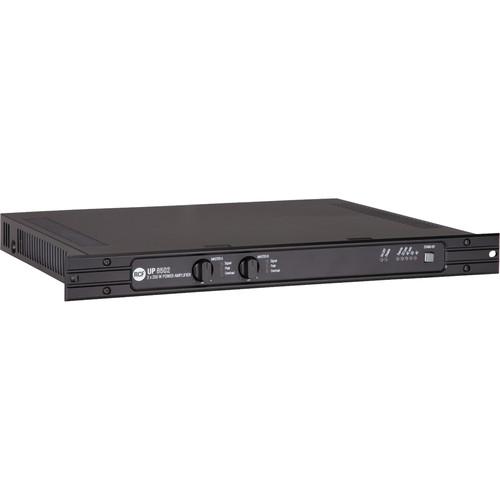

Product description The 1 RU 8000 Series UP 8502 Power Amplifier from RCF is a 2 x 250W amplifier which uses digital technology, and allows AC and DC power operation. The switching mode power supplies includes an independent 48 VDC section designed for redundancy. Each channel is provided with two inputs and dedicated priority circuit to get mix/mute and priority operation. The amplifier is suitable for 70/100V applications. It features front panel status LEDs and a rear panel DIP switch which allows you to disable the frontal volume controls. All connectors are removable screw terminals. The UP 8502 is ideal for use in restaurants, shops, supermarkets, hotels, offices, department stores, industrial systems, and similar venues. - Class D amplifier and double switching AC-DC power supply, transformer-less galvanic insulated speaker output
- Selectable 70/100V output per channel
- Active full protections on amplifier and power supply
- Stand-by, priority and fault remote commands
- Activity and status indicators
- Volume knobs on front panel with disablement facility
- Light-weight 1 RU 19" rack enclosure
In the Box RCF 8000 Series UP 8502 Power Amplifier (2 x 250 W) Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the RCF 8000 Series UP 8502 Power Amplifier in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRCF UP8502 Specs | Power Output | 500 W RMS | | Frequency Response | 20 Hz to 20 kHz | | Distortion | 0.3% | | Signal / Noise | 86 dB | | Crosstalk | 86 dB | | Input Sensitivity | Line: 0 dBu (775 mV, max 7 V)
Aux: 0 to -20 dBu (775 to 778 mV, max 7 V) | | Mic Input Impedance | 10 kOhms | | High-Pass Filter | 200 Hz to 8 kHz (passband) | | Output Level | 100 - 70 V | | Output Voltage | 70 V (20 ohms) 100 V (40 ohms) | | Operating Voltage | Mains: 115-230 V ±10%, 50/60 Hz
Batteries: 48 VDC ±10% | | Power Consumption | 2 x 250 W | | Fuse | 5 x 20 /FKS | | Controls | Volume | | Protections | Overload, thermal | | Dimensions (H x W x D) | 1.7 x 19.0 x 14.7" (44 x 482 x 375 mm) | | Weight | 11.68 lb (5.3 kg) |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 15 owners. Add your rating and experience with the product.
