User Manual for RCF Active 2-Way Array Speaker System Click to enlarge the picture
Contents of the user manual for the RCF Active 2-Way Array Speaker System
- Product category: PA Speakers RCF
- Brand: RCF
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for RCF PA Speakers
 |
User manual for the RCF Active 2-Way Array Speaker System contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any RCF product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official RCF user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a RCF product will considerably shorten its lifespan!
|

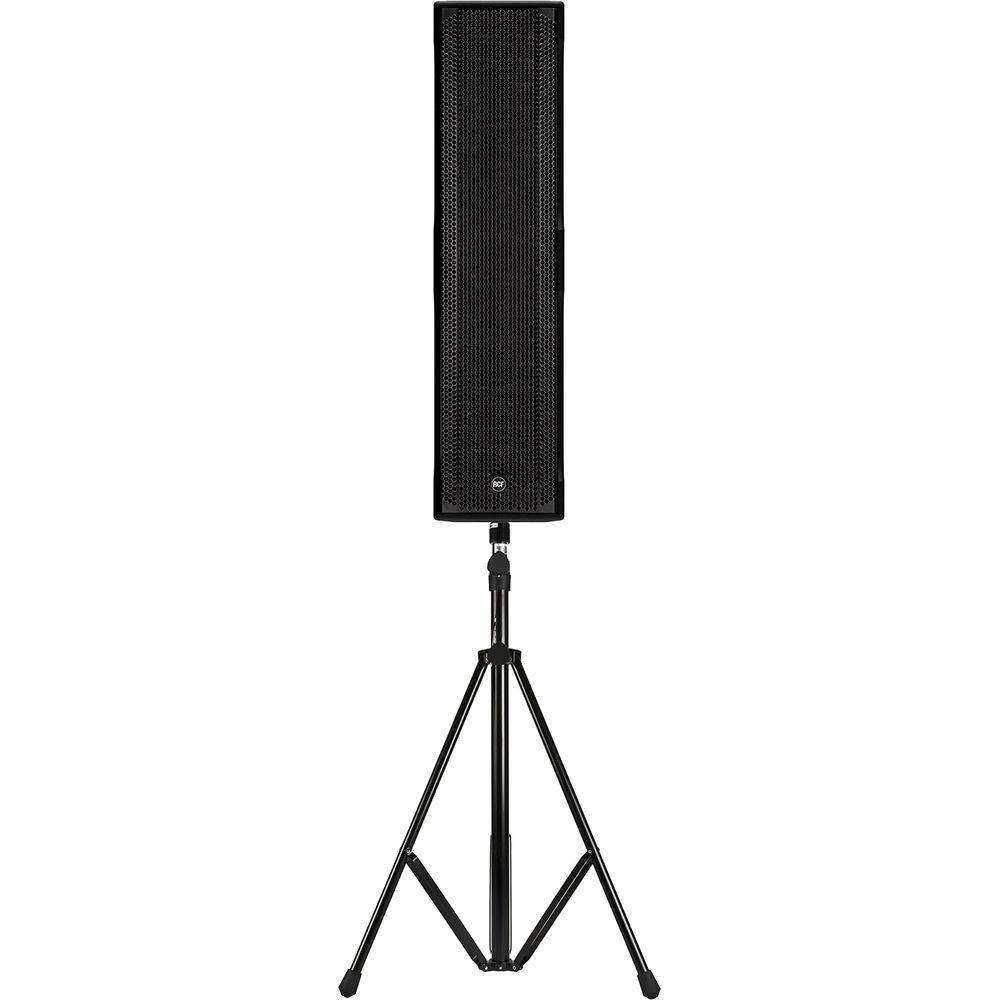

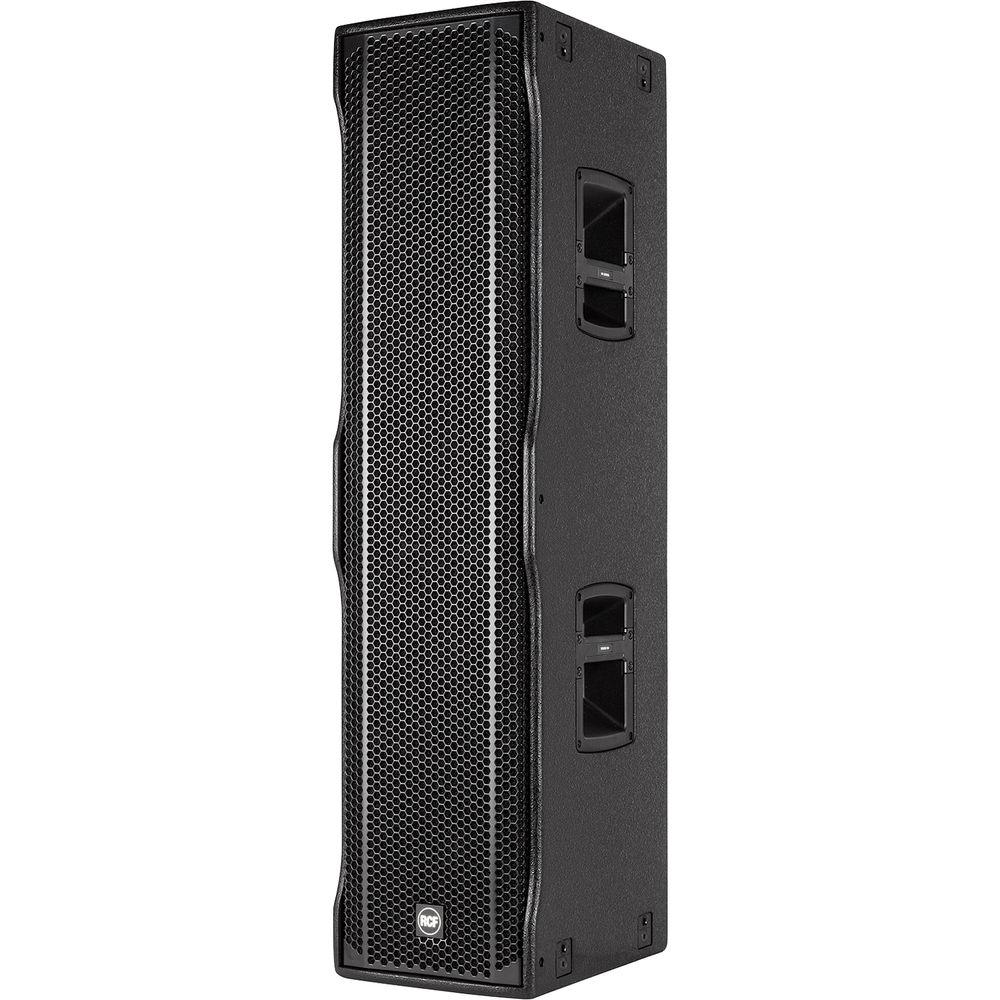

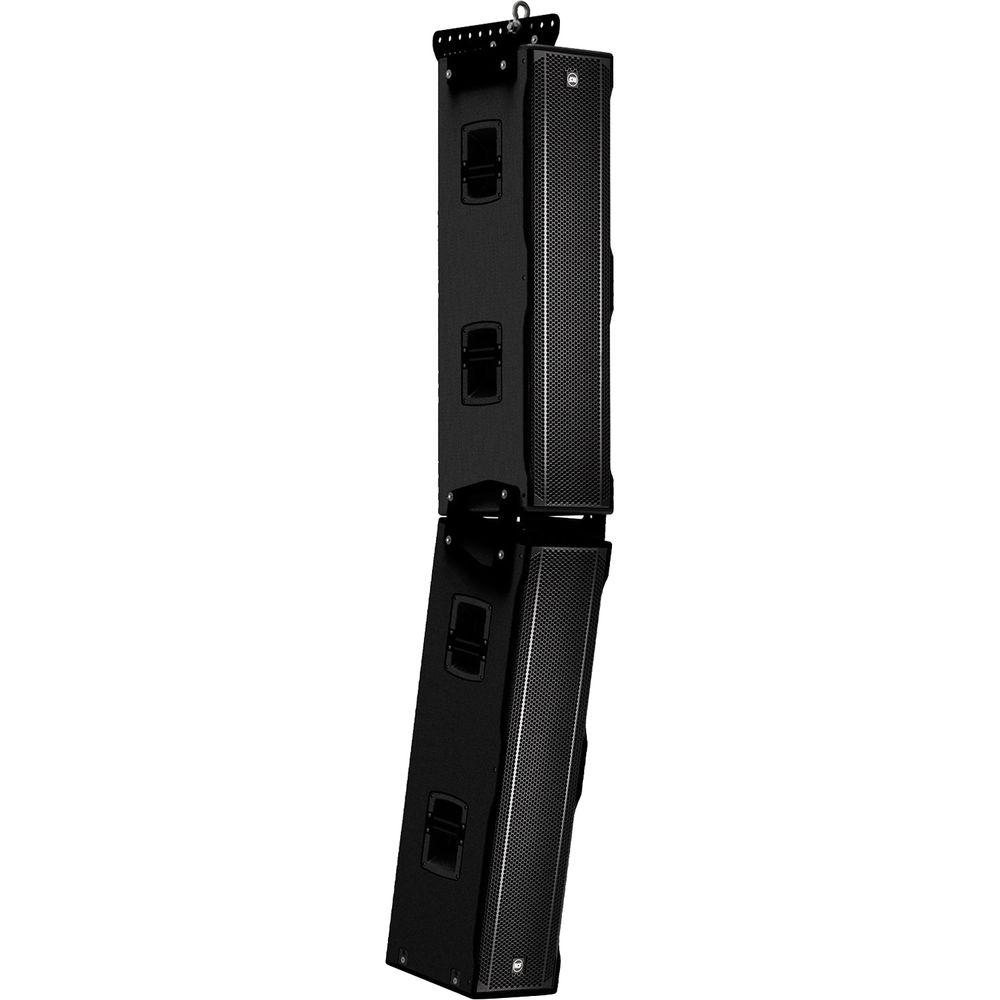

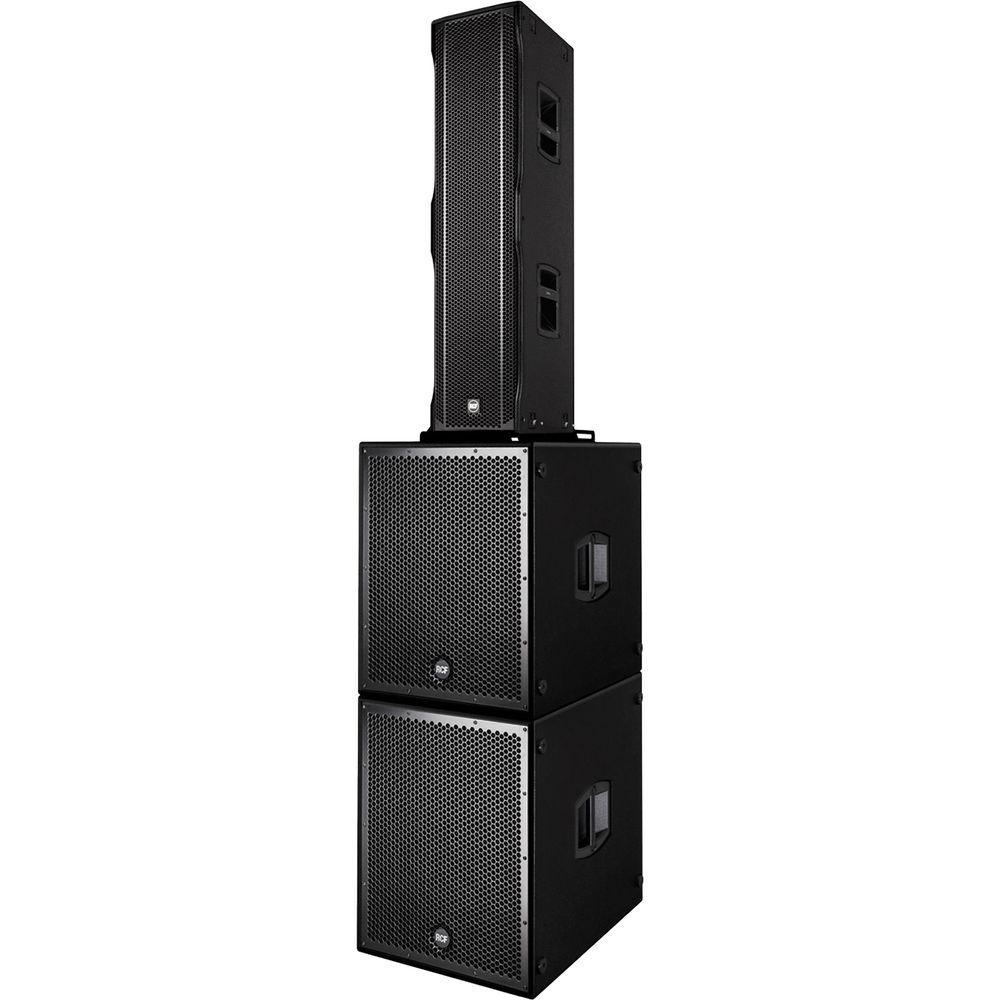

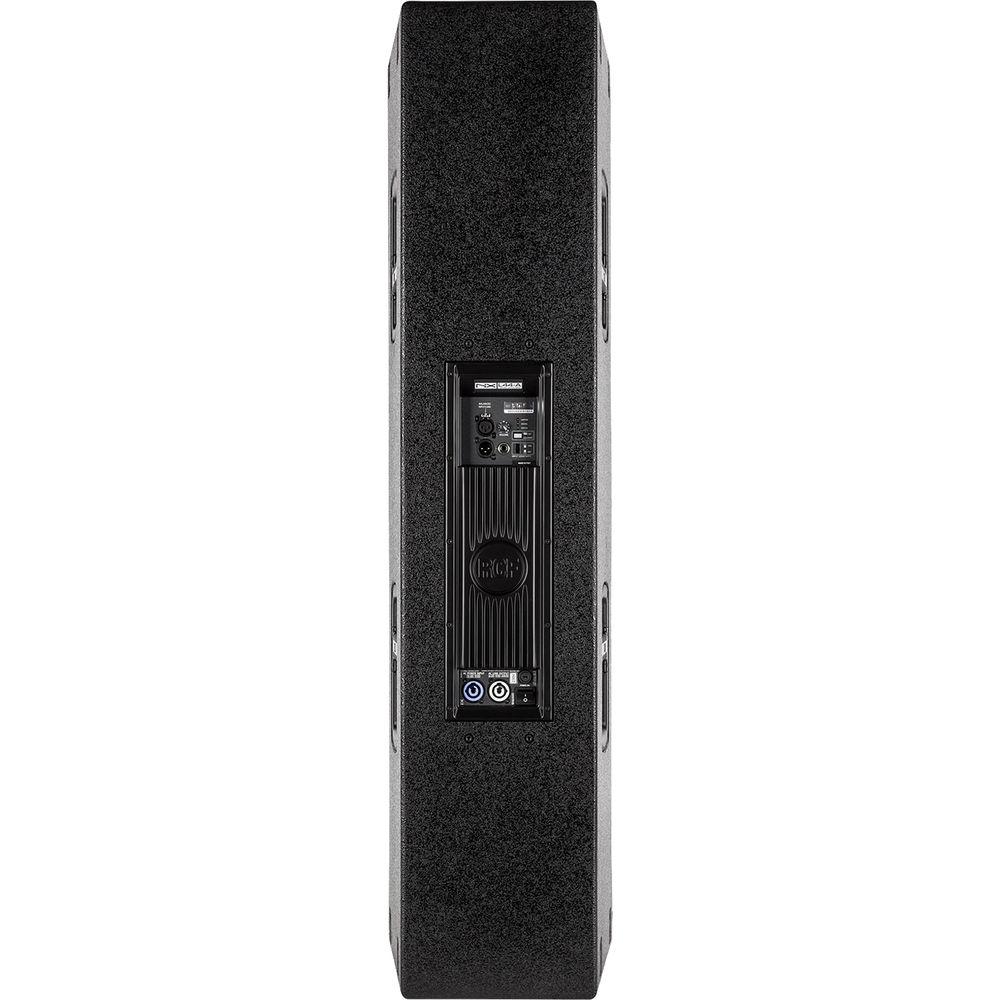

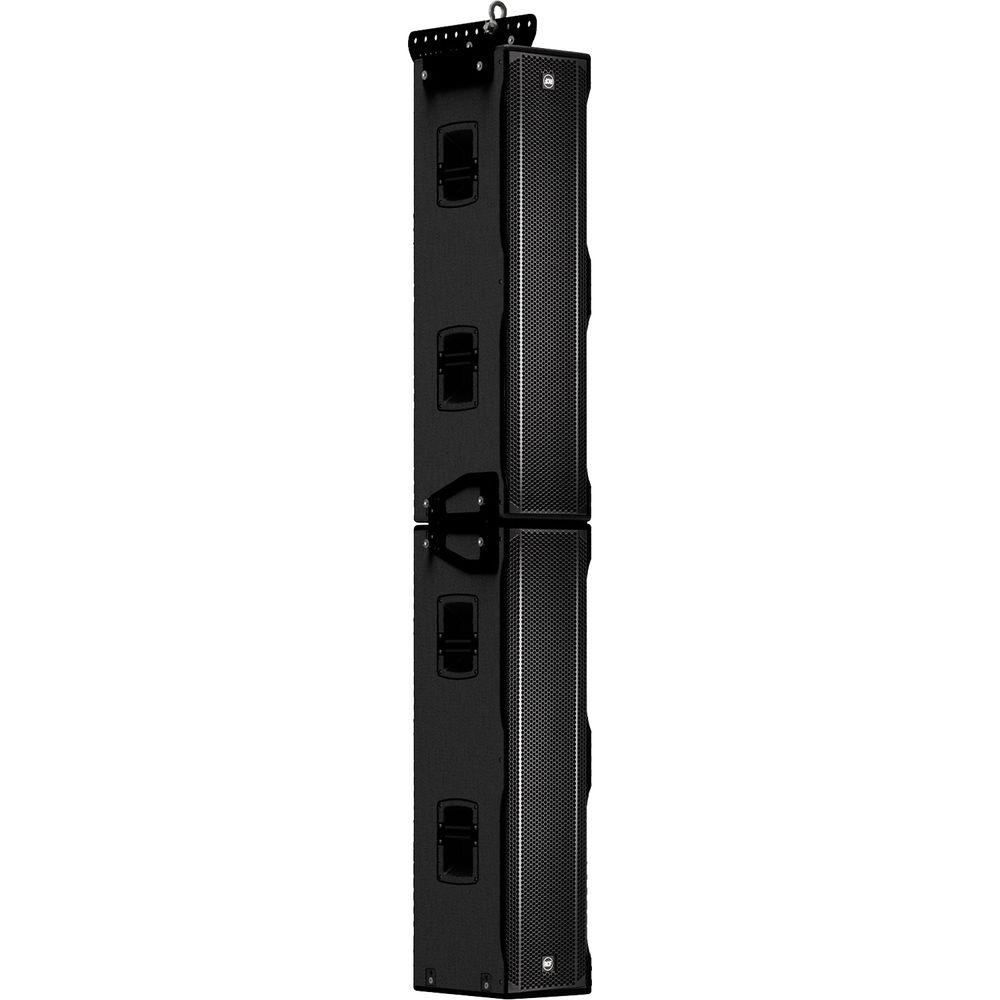

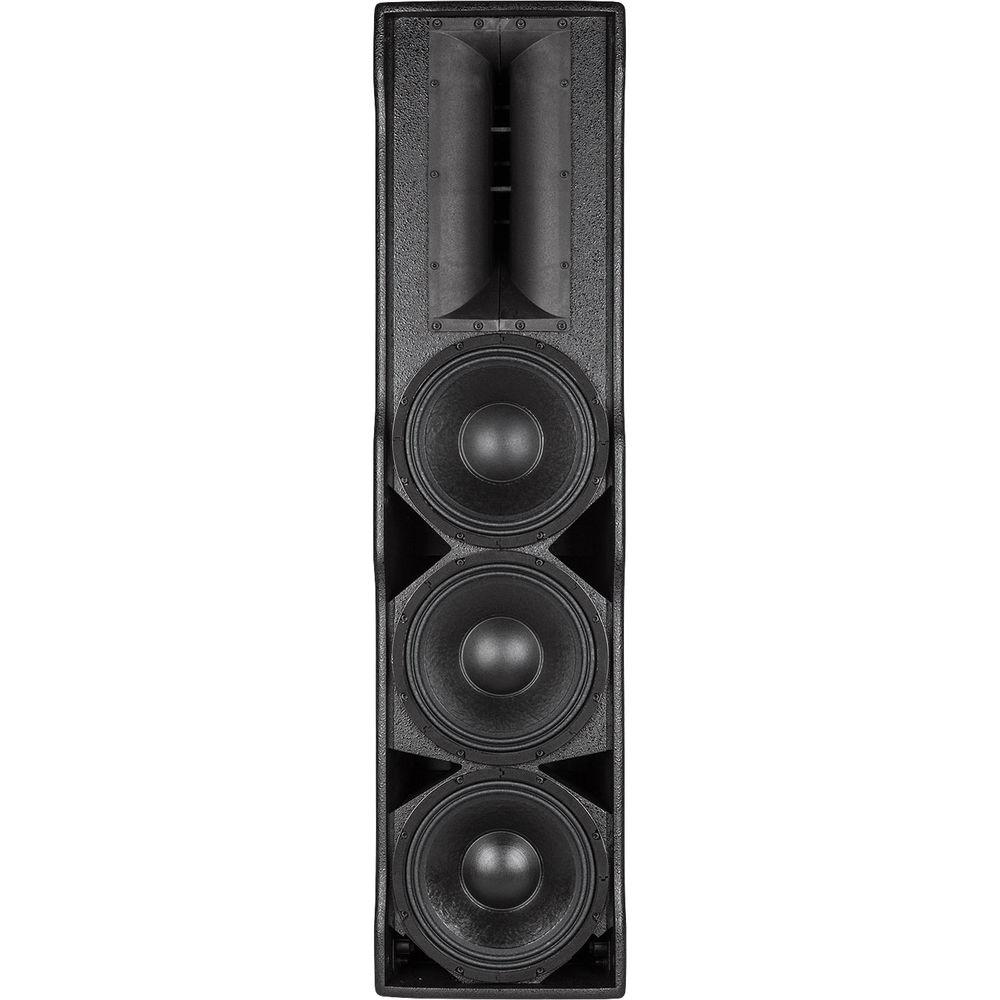

Product description The Active 2-Way Array Speaker System from RCF is equipped with three 10" neodymium woofers and a 1.4" compression driver with a 3" voice coil on an asymmetrical waveguide. The system accepts female XLR input connectors and line level signals from a mixing console or other signal source, while the output XLR male connector provides a loop-through for daisy-chaining speakers. The Mic/Line switch is used to adjust the input sensitivity. When used just for speech, the Mic setting allows you to use a microphone directly with the speaker. You can set the selector to Line when using the speaker for live music or playback. - Status Indicators
-
- Power indicator: When the power cord is connected and the power switch is turned on this indicator lights green.
- Signal indicator: Lights green if there is signal present on the main XLR input.
- Limiter indicator: The amplifier has a built-in limiter circuit to prevent clipping of the amplifiers or overdriving the transducers. When the peak clipping circuit is active the LED blinks orange.
- RMS limiter: Prevents damages to the transducers. If the RMS limiter is active the LED lights red.
- Other Features
-
- Powered by a 1400W peak power digital amplifier (split 400W for high frequency and 1000W for low frequency)
- 3 x 10" neodymium mid-bass drivers, 2.5" voice coil combined with a fiberglass former
- Precision controlled by an on-board DSP-driven controllers
- M-roll surround shape
- Edge wound voice coils
- ND 840 compression driver with 3" diaphragm with a 1.4" exit throat; asymmetrical horn for optimized coverage
- EQ switch
- PowerCON locking 3-pole AC mains
- Volume knob controls the volume of the power amplifier
- AC PowerCON link receptacle to link one or more units
- Power switch turns the AC power on and off
- Provides two-way line source
- Applications
-
- Portable PA
- Live sound
- Performance venues
- Houses of worship
- Live clubs
Table of Contents
|
Upload User Manual
Have you got an user manual for the RCF Active 2-Way Array Speaker System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

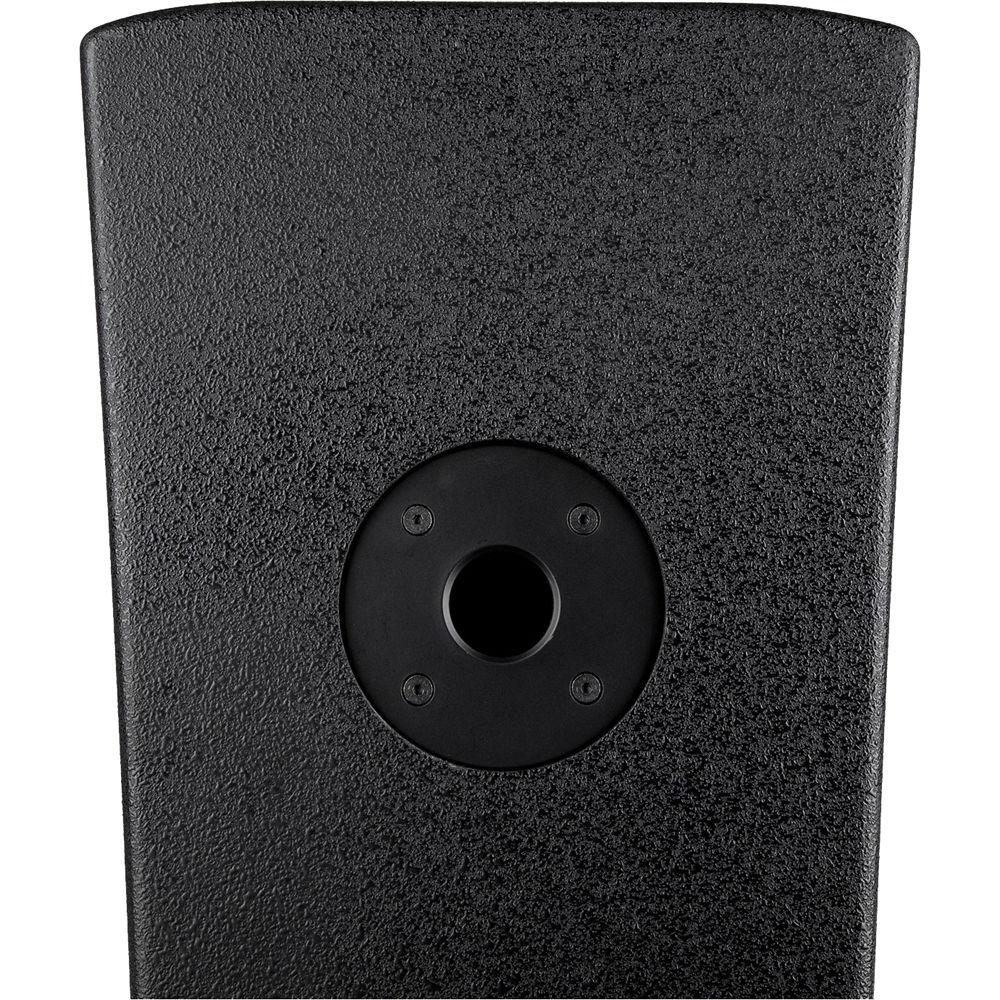

Technical parametersRCF NX-L44A Specs | | | Frequency Response (-3 dB) | 45 Hz to 20 kHz | | Maximum SPL | 134 dB | | Coverage Angle | Horizontal: 90°
Vertical: 30° | | Compression Driver | 1.4" / 3.6 cm neodymium, 3.0" / 7.6 cm voice coil | | Woofer | 3 x 10" / 25.4 cm neodymium, 2.5" / 6.4 cm voice coil | | | | Input Connectors | XLR male | | Output Connectors | XLR female | | Input Sensitivity | -2 dBu / 4 dBu | | | | Crossover Frequencies | 800 Hz | | Protections | Thermal, RMS | | Limiter | Soft limiter | | Controls | Volume, EQ shape, mic/line | | | | Power | Peak:
Total Power: 1400 W
High Frequencies: 400 W
Low Frequencies: 1000 W
RMS
Total Power: 700 W
High Frequencies: 200 W
Low Frequencies: 500 W | | Cooling | Convection | | Connection | PowerCON in/out | | | | Material | Baltic birch plywood | | Hardware | 4 x M8, 4 x quick lock, 2 x pole mount | | Handles | 2 side | | Pole Mount/Cap | Yes | | | | Dimensions | 47.2 x 11.9 x 15.8" / 119.8 x 30.3 x 40.2 cm | | Weight | 74.9 lb / 34.5 kg |
