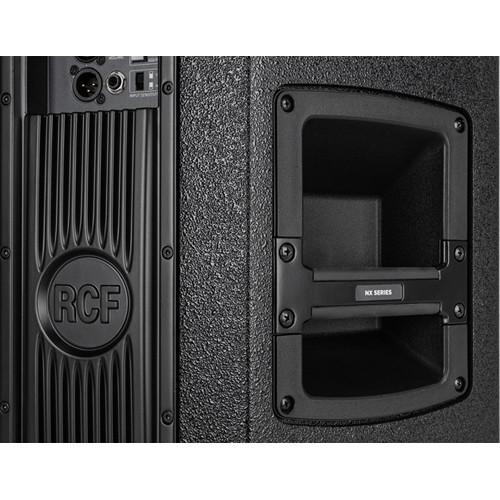

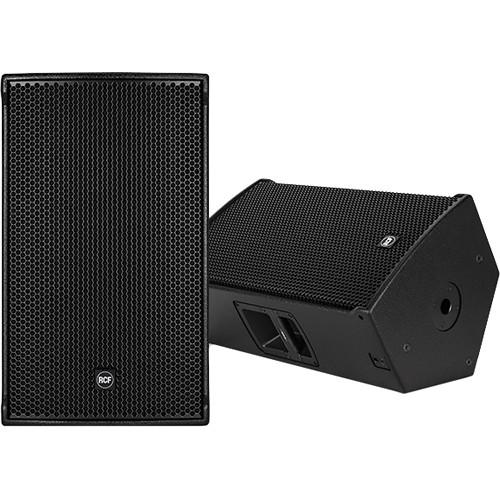

Product description The Active Two-Way Multi-Purpose Speaker from RCF can be used either as a standalone FOH system or as a satellite speaker and is designed to be an everyday tool for rental companies and professional musicians. The integrated two-way 1400W amplifier features a solid machined aluminum structure, which not only stabilizes it during transportation but also assists in heat dissipation. The internal DSP has limiters and protections for the transducers and uses FiRPHASE filters to help achieve a coherent distribution of sound without phase distortion. A single button shapes the sound for background music purposes when the system plays at minimum volume levels. - In/Out Connectors
- The amplifier presents both XLR in/out connectors and a jack input for connection versatility.
- Switchable EQ
- A switchable EQ Mode makes it easier to select among two different equalization presets:
- Extended response switch, slightly emphasizes bass response for playback music and low-volume applications
- Linear response switch, useful when the speaker is used to amplify a live mix — the amplifier's built-in limiter circuit prevents clipping or over-driving the transducers.
- Mic/Line Switch
- A mic/line switch helps adjust the input sensitivity. When used for speech, the mic setting allows to use a microphone directly with the speaker. Set the selector to line when using the speaker for live music or playback.
- Volume Knob
- An easy-to-reach volume knob on the back allows to set the overall volume of the speaker according to its application.
- Status LEDs
- Status LEDs are provided for monitoring the system's power, signal, and status.
In the Box RCF Active Two-Way Multi-Purpose Speaker Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the RCF Active Two-Way Multi-Purpose Speaker in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

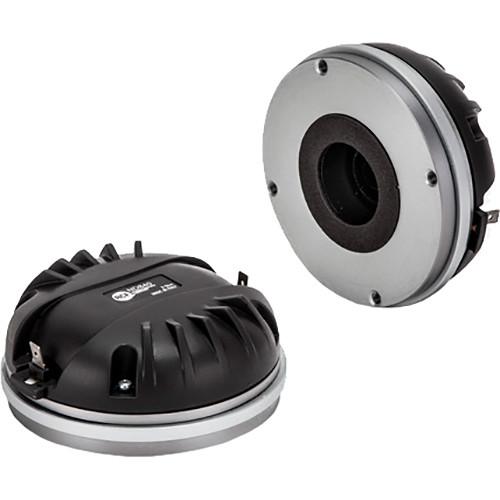

Technical parametersRCF NX32A Specs | | | Frequency Response | 50 Hz - 20 kHz at -3 dB | | Max SPL | 131 dB | | Horizontal Coverage Angle | 90° | | Vertical Coverage Angle | 40° | | Compression Driver | 1.4" / 36 mm, neodymium, 3.0" / 76 mm voice coil | | Woofer | 12" / 305 mm, 2.5" / 63 mm voice coil | | | | Input Signal | Balanced/unbalanced | | Input Connectors | XLR, jack | | Output Connectors | XLR | | Input Sensitivity | -2 / +4 dBu | | Mic Input Sensitivity | -32 dBu | | | | Crossover Frequencies | 700 Hz | | Protections | Thermal, RMS | | Limiter | Soft limiter | | Controls | Volume, boost, mic/line | | | | Peak | Total Power: 1400 W
High Frequencies: 400 W
Low Frequencies: 1000 W | | RMS Power | Total Power: 700 W
High Frequencies: 200 W
Low Frequencies: 500 W | | Cooling | Convection | | Connections | PowerCON in/out | | | | Material | Baltic birch plywood | | Hardware | 5 x M10, 4 x quick lock | | Handles | 2, side-mounted | | Pole Mount/Cap | Yes | | Grille | Steel | | | | Dimensions | 23.62 x 14.37 x 14.88" / 60.0 x 36.5 x 37.8 cm | | Weight | 46.51 lb / 21.1 kg |
