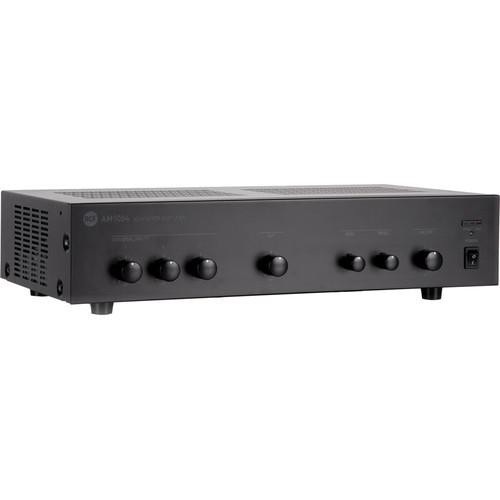

User Manual for RCF AM 1064 60W Mixer-Amplifier with 3 Audio Inputs Click to enlarge the picture
Contents of the user manual for the RCF AM 1064 60W Mixer-Amplifier with
- Product category: Mixer/Amplifiers RCF
- Brand: RCF
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for RCF Mixer/Amplifiers
|
User manual for the RCF AM 1064 60W Mixer-Amplifier with contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any RCF product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official RCF user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a RCF product will considerably shorten its lifespan!
|
Product description The RCF AM 1064 60W Mixer-Amplifier has 4 audio inputs. The Mic/Line 1 with XLR audio input has phantom power supply and priority over the other audio inputs through either an external command or automatically, thanks to the VOX circuit, which detects the signal presence. Two adittional Mic/Line inputs with XLR connection, and a Line input with dual RCA connectors can be used to link unbalanced stereo sound sources such as CD/MP3 players, tuners, and others. The amplifier output is available either for low impedance loudspeakers (minimum 4 Ohms) or 100/70V constant voltage line (for loudspeakers having 100/70V transformers). The mixer-amplifier features front panel LEDs that indicate power status and the audio signal level. In the Box RCF AM 1064 60W Mixer-Amplifier with 3 Audio Inputs Rack Ear Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the RCF AM 1064 60W Mixer-Amplifier with 3 Audio Inputs in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRCF AM 1064 Specs | Amplifier Type | Analog | | Power Output | 60 W | | Frequency Response | Mic: 60 Hz - 15 kHz
Line / AUX: 50 Hz - 15 kHz | | Distortion | < 1.5% | | Audio Input (Mic In / Line In) | 1x Mic/Line with XLR connector, phantom power, priority by contact or VOX
2x Mic/Line with XLR connector | | AUX Input | Dual RCA connector
Sensitivity: 200 mV (-12 dBu)
10 kOhms (unbalanced) | | Sensitivity | Main: 1 V (+ 2 dBu) | | Impedance | 10 kOhms (unbalanced) | | Mic/Line Input | Sensitivity:
Mic: 1.5 mV (-54 dBu)
Line: 200 mV (-12 dBu)
Impedance: 600 Ohms (balanced) | | Phantom Power | > 18 VDC (maximum 20 mA) (input 1 only) | | Pre-Out | 600 Ohms (unbalanced, 1 V + 2 dBm) | | Speaker Output | 100 V (167 Ohms) / 70 V (83 Ohms) / 4 Ohms | | LEDs | Blue: Power on
Green: -20 dB signal
Orange: -9 dB signal
Red: 0 dB signal (peak) | | Operating Temperature | 14 to 113°F (-10 to 45°C) | | Power Consumption | 170 W | | Dimensions (H x W x D) | 3.5 x 17.0 x 15.1" (88.0 x 431.0 x 385.0 mm) | | Weight | 22 lb (10 Kg) |
