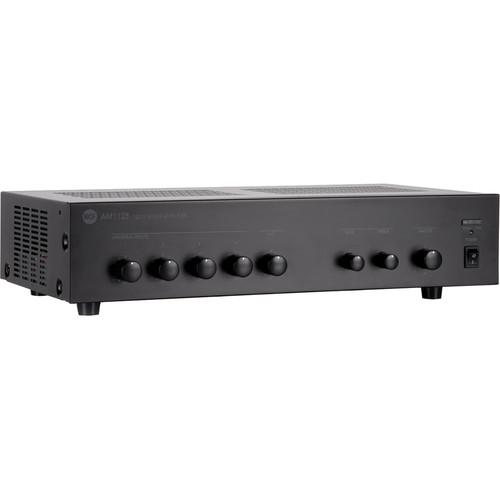

Product description The AM 1125 from RCF is a 120W mixer-amplifier with 4 audio inputs. Audio input 1 has Phantom power supply and priority over the other audio inputs through either external command or automatically, due to the 'VOX' circuit. Dual RCA connectors can be used to link unbalanced stereo sound sources such as CD or MP players, tuners, etc. The amplifier output is available either for low impedance loudspeakers (min. 4 Ω) or 100 - 70 V constant voltage line (for loudspeakers having 100 - 70 V transformers). It can also be powered by 24 V batteries in order to ensure its proper operation even when the main supply is unavailable. -
- 120W 4-inputs Mixer-Amplifier
- 4 XLR input
- VOX facility and Phantom power supply on input 1
- Audio input 3 with dual RCA connector
- Aux input on dual RCA connector
- DUCKING Control to adjust the Aux in level
- Audio output (RCA connector) sends the same signal routed to the internal amplifier
- Audio input for external devices directly to the internal power amplifier
- AM 1125 Input for the secondary 24 V dc power supply (batteries)
- Amplifier output to loudspeakers, available as 100 / 70 V constant voltage line and Low
In the Box RCF AM 1125 120W Mixer-Amplifier with 4 Audio Inputs Limited 3-Year Warranty, Extendable to 5-Years with Registration Table of Contents
|
Upload User Manual
Have you got an user manual for the RCF AM 1125 120W Mixer-Amplifier with 4 Audio Inputs in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRCF AM1125 Specs | Power Output | 120 W RMS | | Frequency Response | 50 Hz to 15 kHz | | Distortion | < 1.5% | | Signal-to-Noise Ratio (SNR) | > 85 dB | | Crosstalk | > 85 dB | | Phantom Power | > 18 VDC (max. 20 mA) VDC | | Input Sensitivity | MIC: 1.5 mV (- 54 dBu) dBu
LINE: 200 mV (- 12 dBu) dBu
AUX: 200 mV (- 12 dBu) dBu
| | Input Impedance | MIC:600 Ω (balanced) kΩ
LINE:10 kΩ
AUX:10 kΩ
| | Output Level | 1 V (+ 2 dBm) dBu | | Output Impedance | 600 ohms (unbalanced) ohms | | Output Voltage | 100 V ; 70 V | | AUX Outputs | Pre; Music on hold | | Protection | Overload, thermal, short circuit and fuse | | Power Requirement | Voltage: 220÷240 / 110÷120 ~ 50 / 60 V ˜ Hz
Consumption: 240 W
Fuse: T2.5AL 250V ;T5AL 250V
| | Dimensions (H x W x D) | 3.5 x 17.0 x 15.1" (88.0 x 431.0 x 385.0 mm) | | Weight | 27 lb (12 Kg) | | | | Box Dimensions (LxWxH) | 20.0 x 14.0 x 7.0" |
