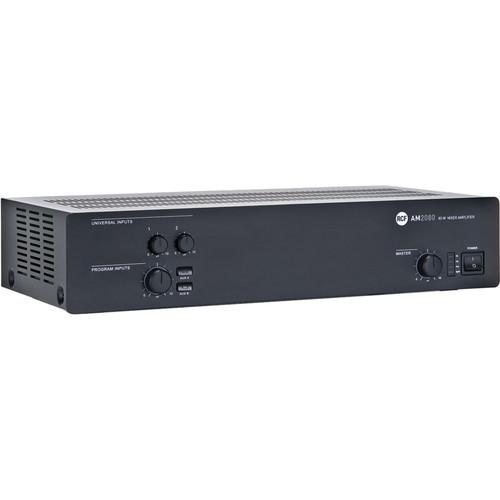

User Manual for RCF AM 2080 Mixer-Amplifier with 2 Microphone Line and 2 Auxiliary Inputs Click to enlarge the picture
Contents of the user manual for the RCF AM 2080 Mixer-Amplifier with 2
- Product category: Mixer/Amplifiers RCF
- Brand: RCF
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for RCF Mixer/Amplifiers
|
User manual for the RCF AM 2080 Mixer-Amplifier with 2 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any RCF product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official RCF user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a RCF product will considerably shorten its lifespan!
|
Product description The AM 2080 Mixer-Amplifier with 2 Microphone/Line and 2 Auxiliary Inputs from RCF is a mixer-amplifier with two mic-line audio inputs on removable connectors (the first input also has an XLR socket) and two aux inputs for music sources such as CD players and tuners. The nominal power is 80W. The amplifier output is available either for low impedance loudspeakers or 70-100V constant voltage line. - Full digital technology Mixer-Amplifier 80W RMS
- 70-100V and 4 Ohms outputs
- 2 universal inputs with phantom power on screw terminal connections
- RJ45 port on input 2 for connection to a BM3001 microphone
- Configurable Priority settings, VOX feature on input 1
- Selectable aux inputs with two keys on the front panel for music source
- Aux inputs with volume and tone controls
- Music On-Hold and PRE outputs
- Digital Chime and Siren built-in generator
- Suitable for use at restaurants, boutiques, pubs, beauty centers, markets, hotels, office buildings, and medical centers
In the Box RCF AM 2080 Mixer-Amplifier with 2 Microphone/Line and 2 Auxiliary Inputs 2 x Audio 4-Pole Removable Connectors Amplifier Output 4-Pole Removable Connector Safety Protection Cover for Outputs Rack Mount Kit AC Power Cord Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the RCF AM 2080 Mixer-Amplifier with 2 Microphone Line and 2 Auxiliary Inputs in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRCF AM 2080 Specs | | | Power Output | 80 W RMS | | Frequency Response | 50 Hz - 18 kHz (± 3 dB) | | Distortion | < 0.3% | | Signal / Noise | Channels 1 - 2: 60 dB
Aux input: 80 dB | | Phantom Power | 30 VDC, 18 mA | | | | Sensitivity | Channels 1 - 2, Mic: -62 dBu
Channels 1 - 2, Line: -29 to 11 dBu
Aux: -18 to 20 dBu | | Impedance | Channels 1 - 2, Mic: 10 kOhms
Channels 1 - 2, Line: 10 kOhms
Aux: 20 kOhms | | AUX Inputs | EQ
Bass: (100 Hz) -9 to 6 dB
Treble: (10 kHz) -14 to 8 dB | | High Pass Filter | 150 Hz | | | | Output Level | 0 dBu | | Loudspeaker | Low impedance: 4 Ohms
Constant voltage: 100 V, 70 V | | AUX Outputs | Pre, Music on hold | | Protections | Overload, thermal, Short circuit, fuse | | | | Operating Voltage | 115 - 230 VAC, 50 - 60 Hz | | Power | 160 W | | Fuse | T1.6AL - 250 V, T3.15AL - 250 V | | | | Dimensions | 17.4 x 3.5 x 9.9" (44.2 x 8.8 x 25.1 cm) | | Weight | 8.37 lb (3.80 kg) | | | | Package Weight | 12.35 lb | | Box Dimensions (LxWxH) | 19.4 x 13.1 x 8.3" |
