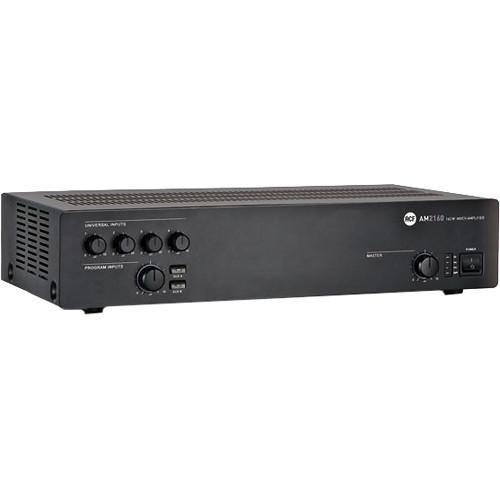

Product description The AM 2160 from RCF is a 160 W mixer-amplifier with 4 audio inputs on removable connectors. It features two aux inputs for music sources such as CD or MP players, tuners, etc., and the first input has an XLR socket. 160 W nominal output power is available for either low impedance loudspeakers or 100 - 70 VAC constant voltage line. -
- Full digital technology Mixer Amplifier 160 W RMS
- 100 V - 70 V and 4 Ohm outputs
- 4 universal inputs with phantom facility on screw terminal connections
- Presence Control and per-channel High-Pass filters
- XLR connector on input 1
- RJ45 connectors on input 2 and 3 for connection to BM 3001 microphone
- Configurable Priority settings, VOX facility on input 1
- Selectable aux inputs with two keys on the front panel for music source
- Aux inputs with volume and tone controls
- Music On Hold and PRE outputs
- Microprocessor controlled
- Digital Chime and Siren built-in generator
- 24 V / 0.5 A priority relay output
In the Box RCF AM 2160 Mixer Amplifier with 4 Audio Inputs Limited 3-Year Warranty, Extendable to 5-Years with Registration Table of Contents
|
Upload User Manual
Have you got an user manual for the RCF AM 2160 Mixer Amplifier with 4 Audio Inputs in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRCF AM2160 Specs | Power Output | 160 W RMS | | Frequency Response | 50 Hz to 18 kHz | | Distortion | < 3% | | Signal-to-Noise Ratio (SNR) | (MIC) > 60 dB; (AUX) > 80 dB | | Crosstalk | (MIC) > 60 dB; (AUX) > 80 dB | | Phantom Power | 32 V dc | | Input Sensitivity | MIC: -56 dBu
PHANTOM: -28 dBu
LINE: -7 ÷ + 19 dBu
AUX: -4 ÷ + 15 dBu
| | Input Impedance | MIC: 10 kΩ
PHANTOM: 5 kΩ
LINE: 10 kΩ
AUX: 10 kΩ
| | Tone | Bass: (80 Hz) ± 8 dB
Treble: (13 kHz) ± 8 dB
Presence control:(2.15 kHz) + 10 dB
High-pass filter: 150 Hz
| | Output Level | -1 dBu | | Output Impedance | 600 ohms | | Output Voltage | 100 V ; 70 V | | Outputs | Output Level: -1 dBu
Output impedance: 600 ohms
Phantom power voltage/current: 32 VDC 0.018 Amperes Output Loudspeaker Low impedance: 4 ohms
Output Loudspeaker Constant voltage: 100 VAC ; 70 VDC
AUX output: Pre ; Music on hold
| | Protection | Overload, thermal, short circuit and fuse | | Power Requirement | Voltage: 220-240, 110-120 VAC, ~50/60 Hz
Consumption: 240 W
Fuse: T3.15AL - 250 V; T6.3AL - 250 V
| | Dimensions (H x W x D) | 3.5 x 17.4 x 9.1" (88.0 x 442.0 x 230.0 mm) | | Weight | 9 lb (4 Kg) |
