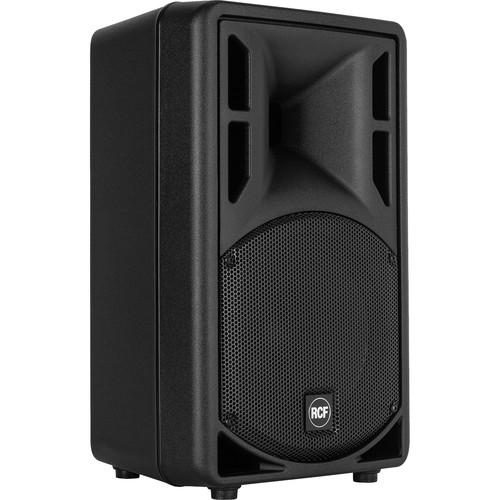

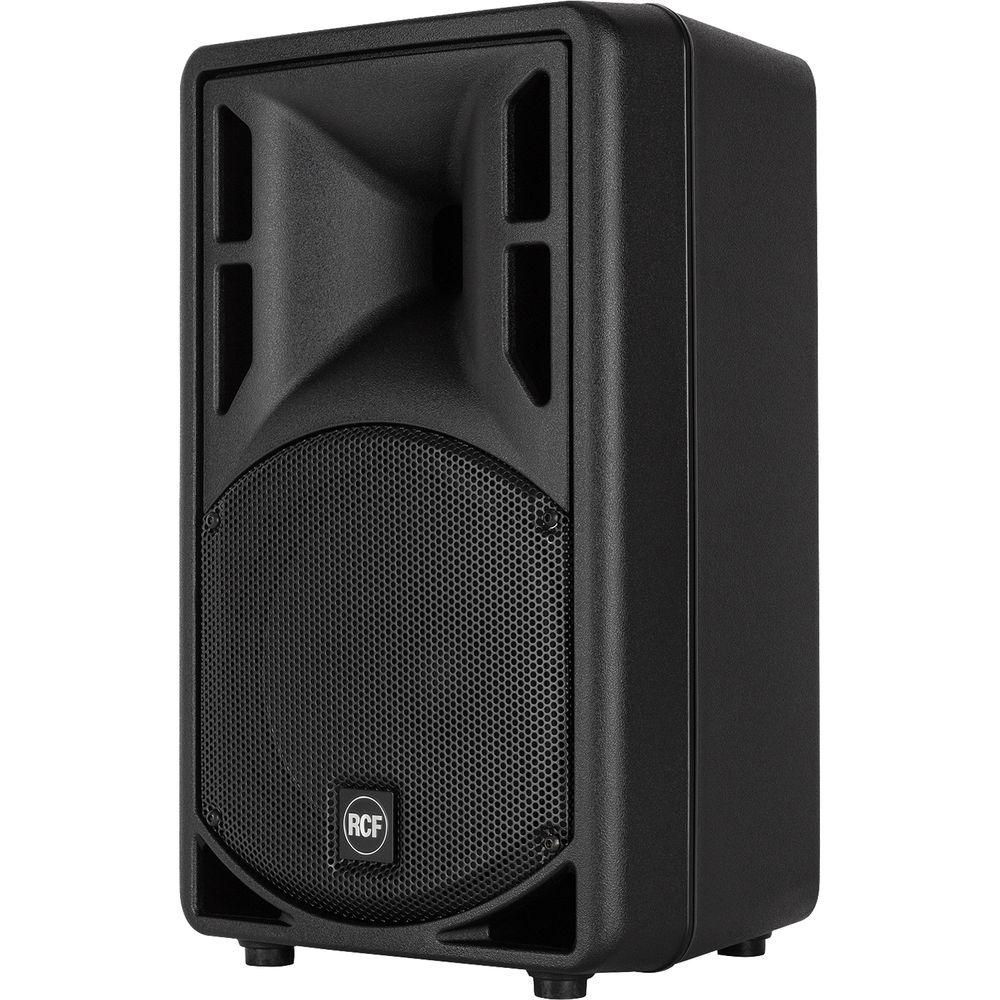

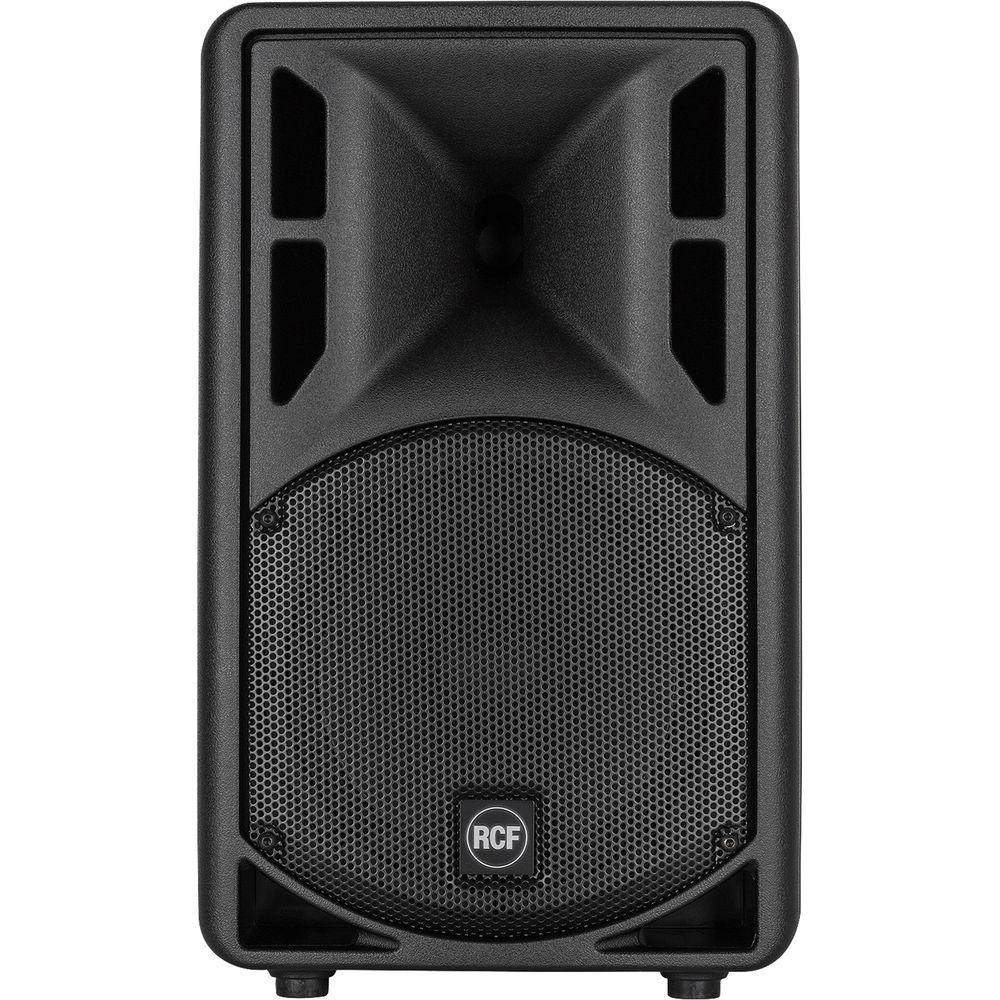

Product description The black Art 310-A MK4 active speaker from RCF features a 10" high-powered woofer, 1" HF driver, mylar dome, and 1.5" voice coil. It offers a total power output of 800W, and uses DSP Processing with FiRPHASE filtering technology. The FiRPHASE filtering technology helps in delivering transparent sound, improved clarity, and accurate stereo images to the listener. The FiRPHASE algorithm optimizes dynamics, amplitude, and phase patterns, ensuring minimum system latency at the same time.
The loudspeaker features a switch for extended response and linear response. The extended response switch slightly emphasizes the bass response for playback music and low volume applications. The Linear response switch can be used when the speaker is used to amplify a live mix. The amplifier has a built-in limiter circuit to prevent clipping or overdriving the transducers.
The loudspeaker comes with a mic/line switch that helps in adjusting the input sensitivity. When used for speech, the mic setting allows you to use a microphone directly with the speaker. You can set the selector to line when using the speaker for live music or playback. - ART 3 Series MK4 active speaker for live sound reinforcement/stage monitoring, distributed sound systems for clubs, music venues, and corporate events, or mobile DJ setups
- Supports plug-and-play functionality for connecting your microphones, mixers, or other audio devices

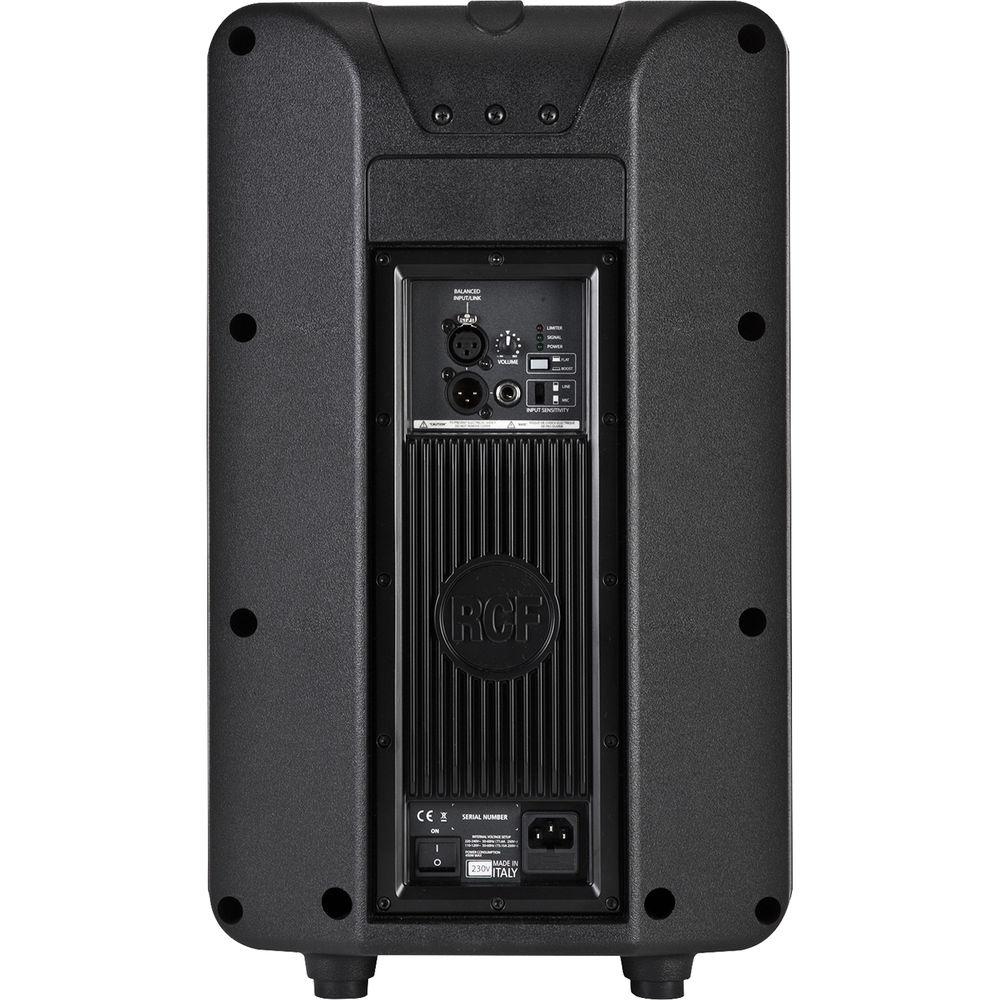

- XLR in/out connectors and a jack input
- Two-way Class-D fanless amplifiers
- Integrated DSP manages full loudspeaker processing, FiRPHASE filters, crossover and EQ, soft limiter, and dynamic bass boost
- Power, Signal, and Status LEDs are provided for monitoring the system
- Easy-to-reach volume knob on the back allows you to set the overall volume of the speaker according to its application
- Suitable for applications where the output of a PA system and the size of a monitor are important
- Constructed from polypropylene composite material to dampen down vibrations even at maximum volume settings

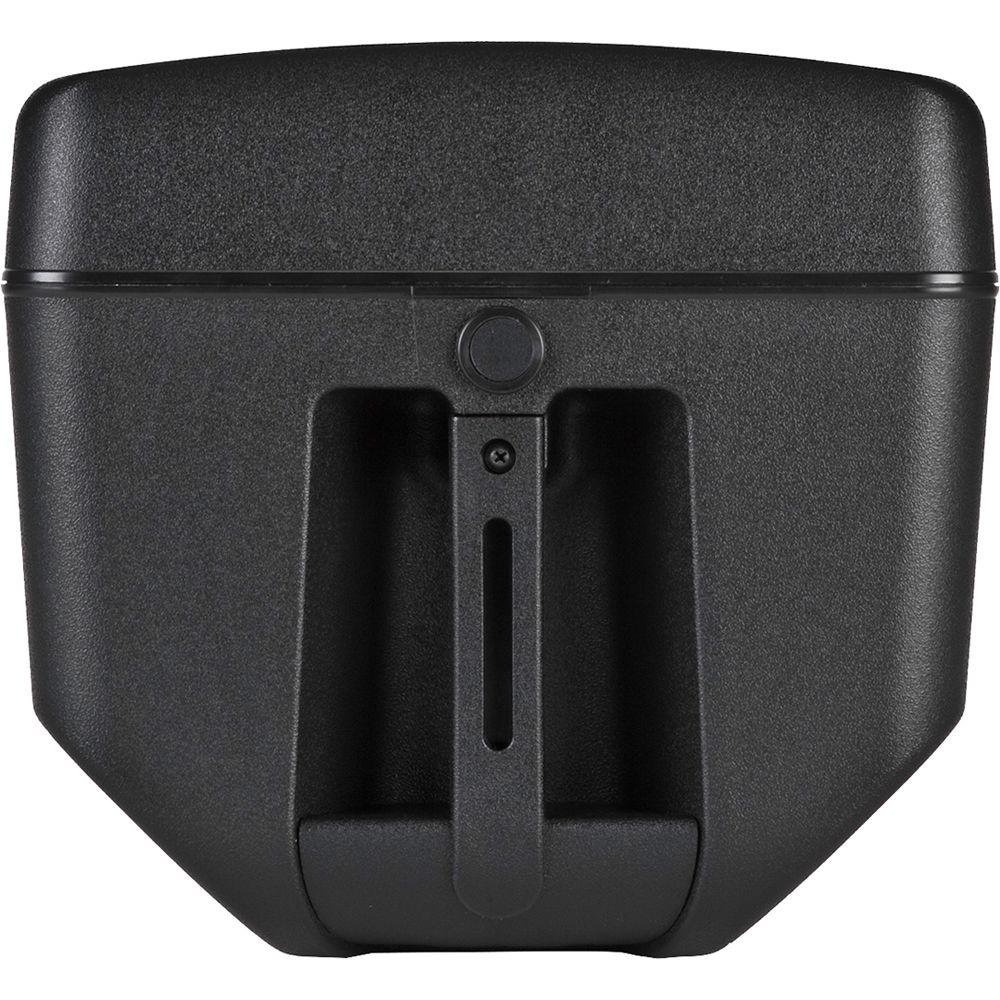

- Rubber-coated plastic handle for portability
- Base of the speaker includes a steel pole socket for mounting on a stand or on a subwoofer pole
- Rear cabinet profile allows you to use the speaker as a stage monitor
- Internal reinforcement prevents any deformation of the cabinet
In the Box RCF Art 310-A MK4 - 10" 2-Way 800W Active Speaker Power Cord Limited 2-Year Warranty, Extended to 3 Years with Online Registration Table of Contents
|
Upload User Manual
Have you got an user manual for the RCF Art 310-A MK4 - 10" 2-Way 800W Active Speaker in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRCF ART-310A-MK4 Specs | | | Configuration | Active 2-Way | | Total Power Capacity | 800 W Peak
400 W RMS | | Amplifier Power Rating | HF:
200 W Peak
100 W RMS
LF:
600 W Peak
300 W RMS | | | | HF Driver | 1 x 1" / 2.5 cm Tweeter | | HF Voice Coil | 1.5" / 3.81 cm | | LF Driver | 1 x 10" / 25.4 cm Woofer | | LF Voice Coil | 2" / 5 cm | | | | Frequency Response | 50 Hz to 20 kHz -3 dB | | Maximum SPL | 127 dB | | Coverage Angle | 90° H x 70° V | | Input Sensitivity | +4 dBu / -2 dBu
Mic Input:
-32 dBu | | Protections | RMS, Thermal | | | | Audio I/O | 1 x XLR Input
1 x 1/4" Input
1 x XLR Output | | | | Crossover | 1.8 kHz | | Dynamic Processing | Soft Limiter | | | | AC Input Power | 220 to 240 VAC, 50 Hz
115 VAC, 60 Hz | | AC Power Connector | 1 x VDE | | | | Mounting | 2 x M10 | | Handles | 1 x Top | | Cooling | Convection | | Construction Material | Metal Grille, Polypropylene | | Dimensions | 13.3 x 12.4 x 21.1" / 337.0 x 315.0 x 537.0 mm | | Weight | 26.9 lb / 12.2 kg | | | | Package Weight | 28.0 lb | | Box Dimensions (LxWxH) | 23.0 x 15.0 x 14.5" |
