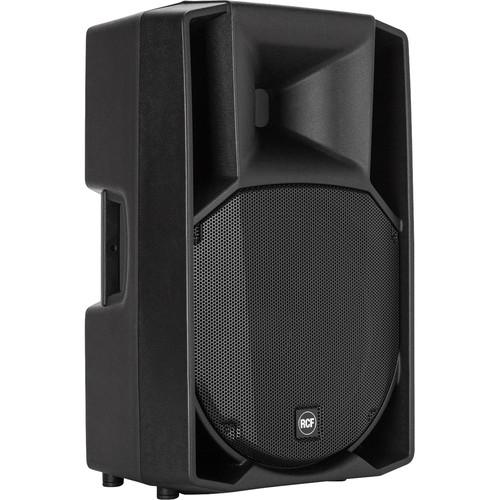

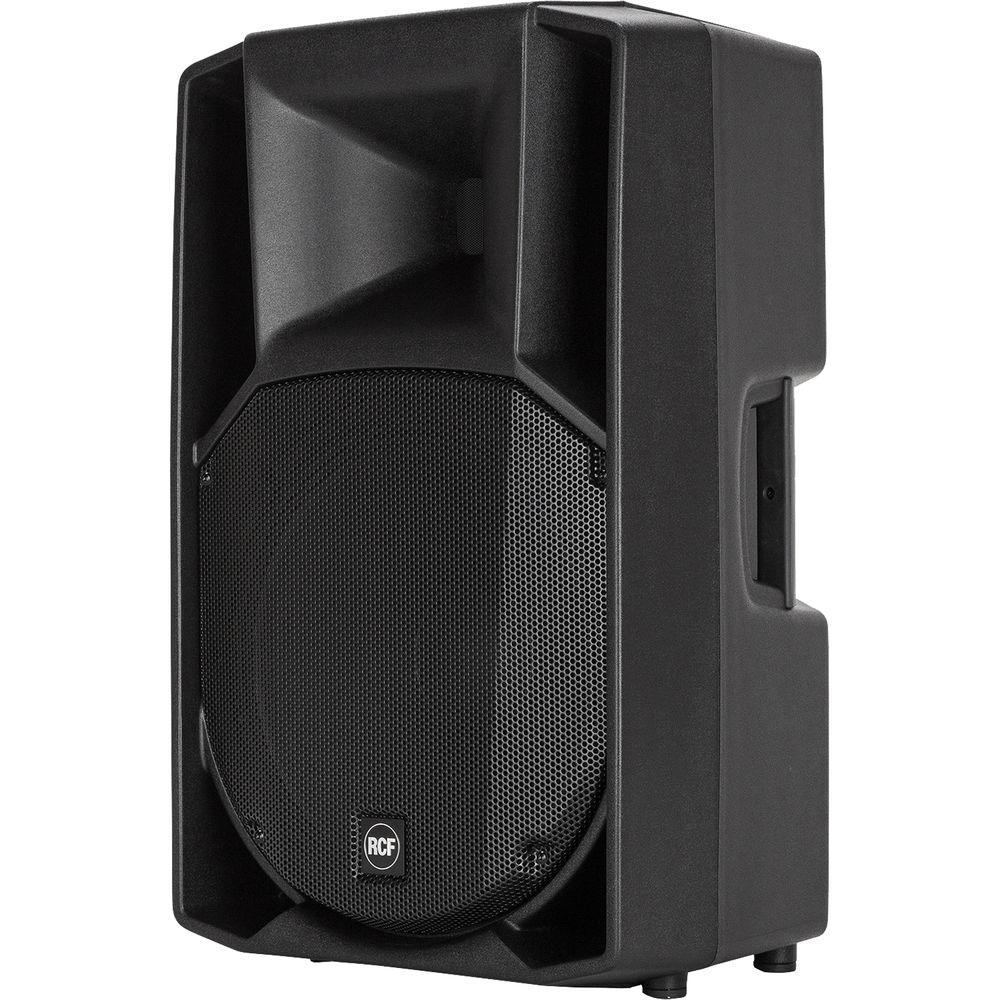

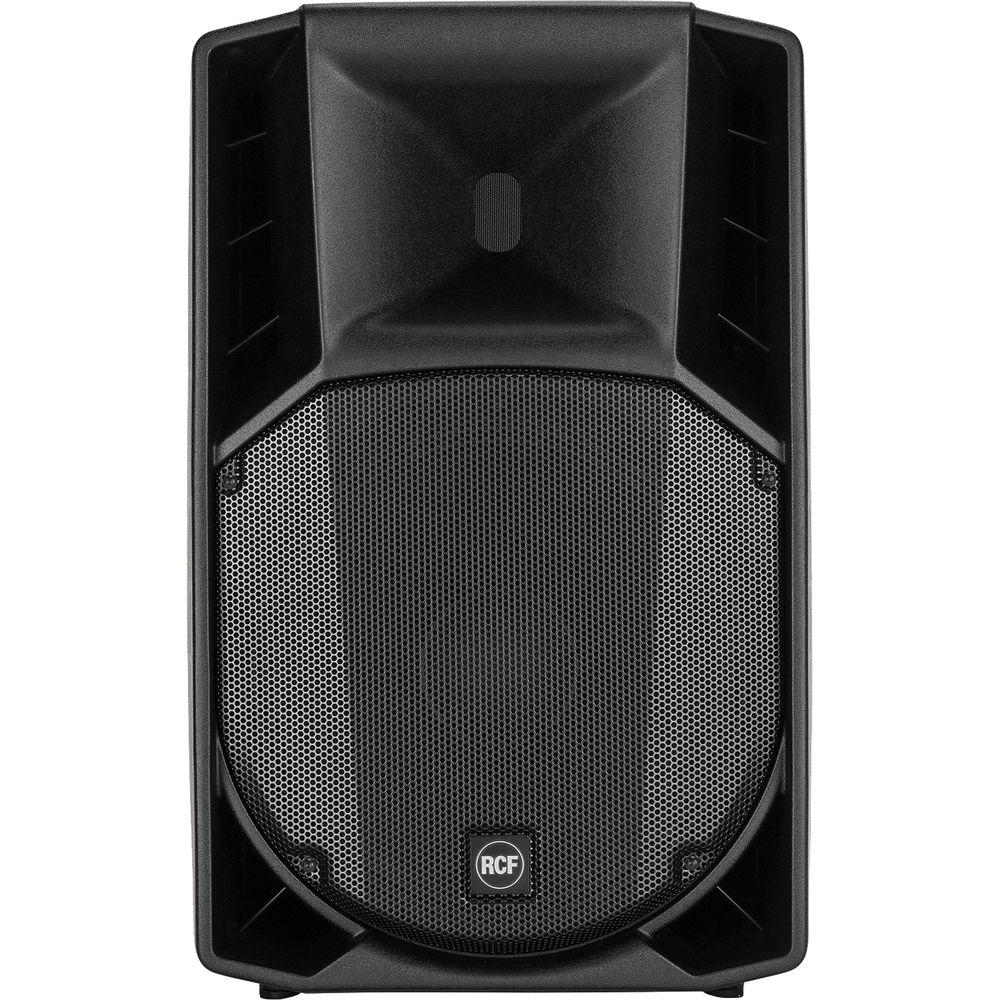

User Manual for RCF ART 735-A MK4 - 15" 2-Way 1400W Active Speaker Click to enlarge the picture
Contents of the user manual for the RCF ART 735-A MK4 - 15"
- Product category: PA Speakers RCF
- Brand: RCF
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for RCF PA Speakers
 |
User manual for the RCF ART 735-A MK4 - 15" contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any RCF product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official RCF user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a RCF product will considerably shorten its lifespan!
|
Product description Part of the Art 7 Series MK4 line of speakers, the RCF ART 735-A MK4 is a lightweight (at 47.18 lb) and portable active speaker designed to deliver full-range sound with accurate high-frequencies, and controlled deep bass. It is well suited for live sound reinforcement or distributed sound systems in clubs, corporate spaces, houses of worship, or for mobile DJ setups.The ART 735-A MK4 is equipped with a 1400W peak, Class-D digital amplifier, which drives 1000W into the 15" neodymium woofer and 400W into the 1.4" titanium compression driver. The speaker delivers a frequency response of 45 Hz to 20 kHz with a peak SPL output of 132 dB, and wide, 90°H x 60°V coverage angles. The driver features a 3.0" voice coil, perfect for a crossover point at only 800 Hz, which allows for better impulse response, fast decay, and superior efficiency. The integrated DSP manages the loudspeaker processing, including crossover and EQ, soft limiter, and dynamic bass boost. Phase and amplitude are corrected using proprietary FiRPHASE technology conceived for delivering a natural and transparent sound with a balanced stereo image.Easy to operate, the ART 735-A MK4 comes with XLR and 1/4" balanced/unbalanced inputs for connecting a microphone, mixer, or audio device, and with a volume knob to set the level. Furthermore, the switchable Flat/Boost mode enables you to emphasize the bass response when playing at low volume, or keep it flat for all other applications.The cabinet is molded with rugged polypropylene composite material (PP), and designed to dampen vibrations, even at maximum volume settings. It features top and side handles, which allows you to firmly hold the speaker, and move it easily. The ART 735-A MK4 can be mounted on a stand or a subwoofer pole, or positioned on its side to serve as a wedge monitor. - Key Features
-
- ART 7 Series MK4 portable active speaker for live sound reinforcement, stage monitoring, front-fill/side-fill applications
- Use in clubs, music venues, corporate spaces, or for mobile DJ setups
- 15" woofer – delivers deep and accurate reproduction of the mid-bass frequency range, and precise deep bass
- 1.4" titanium compression driver – offers open and natural midrange frequencies, precise high-frequency reproduction, and sound projection. It also features a 3.0" voice coil, and a neodymium magnet; perfect for a crossover point at only 800 Hz – allows for better impulse response, fast decay, and superior efficiency
- 90°H x 60°V, wide-dispersion horn with constant directivity
- Class-D amplifier – 1400W, 2-way peak power
- Connect microphone, mixer, or audio device

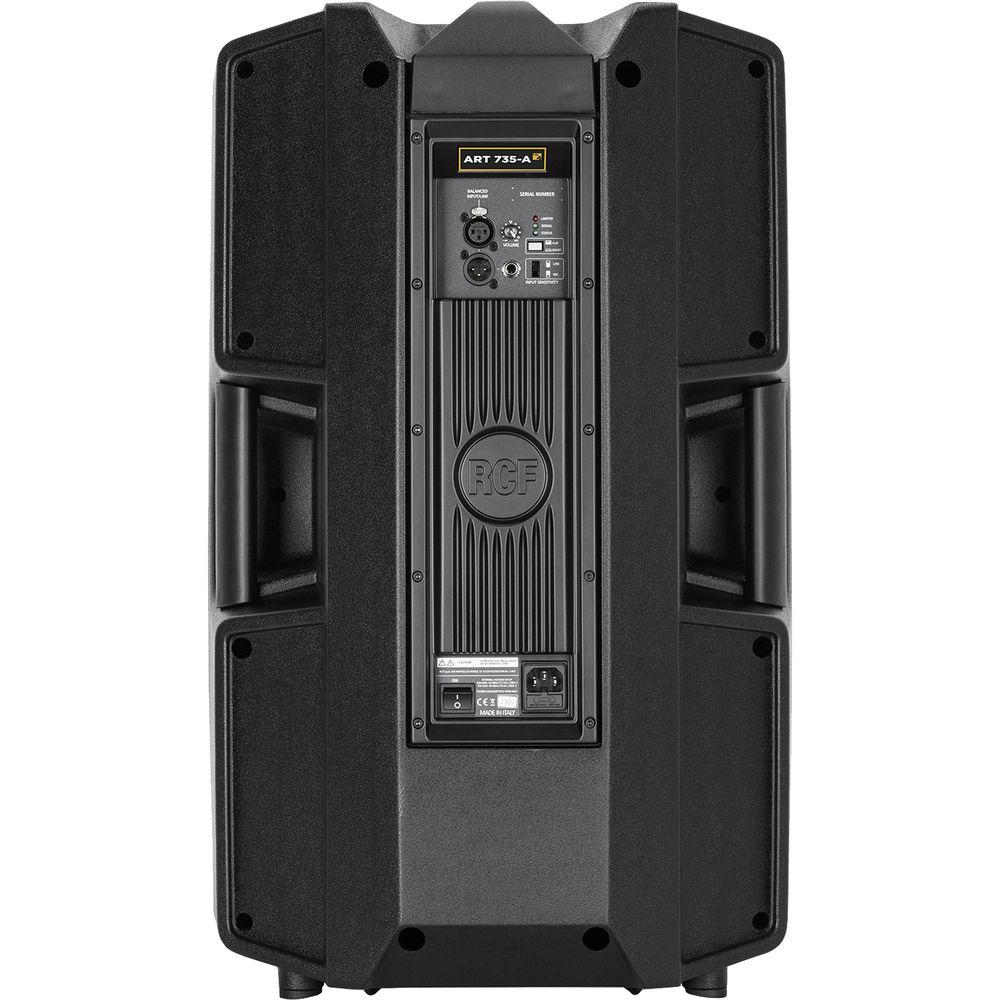

- Simple to operate plug'n'go design with double input (XLR or 1/4" jack) and one volume knob
- 132 dB maximum SPL
- 45 Hz to 20 kHz frequency response
- Integrated DSP manages full loudspeaker processing, FiRPHASE filters, crossover and EQ, soft limiter, and dynamic bass boost
- FiRPHASE proprietary and advanced FIR filtering technology delivers transparent sound, and balanced stereo image
- Solid mechanical aluminum structure stabilizes the amplifier during transportation, and facilitates fan-less heat dissipation
- Cabinet is molded with polypropylene composite material (PP) and designed to dampen vibrations, even at maximum volume settings
- Rugged construction with internal reinforcement prevents any deformation of the cabinet
- Rear profile design of the cabinet allows speaker to be used as a monitor wedge

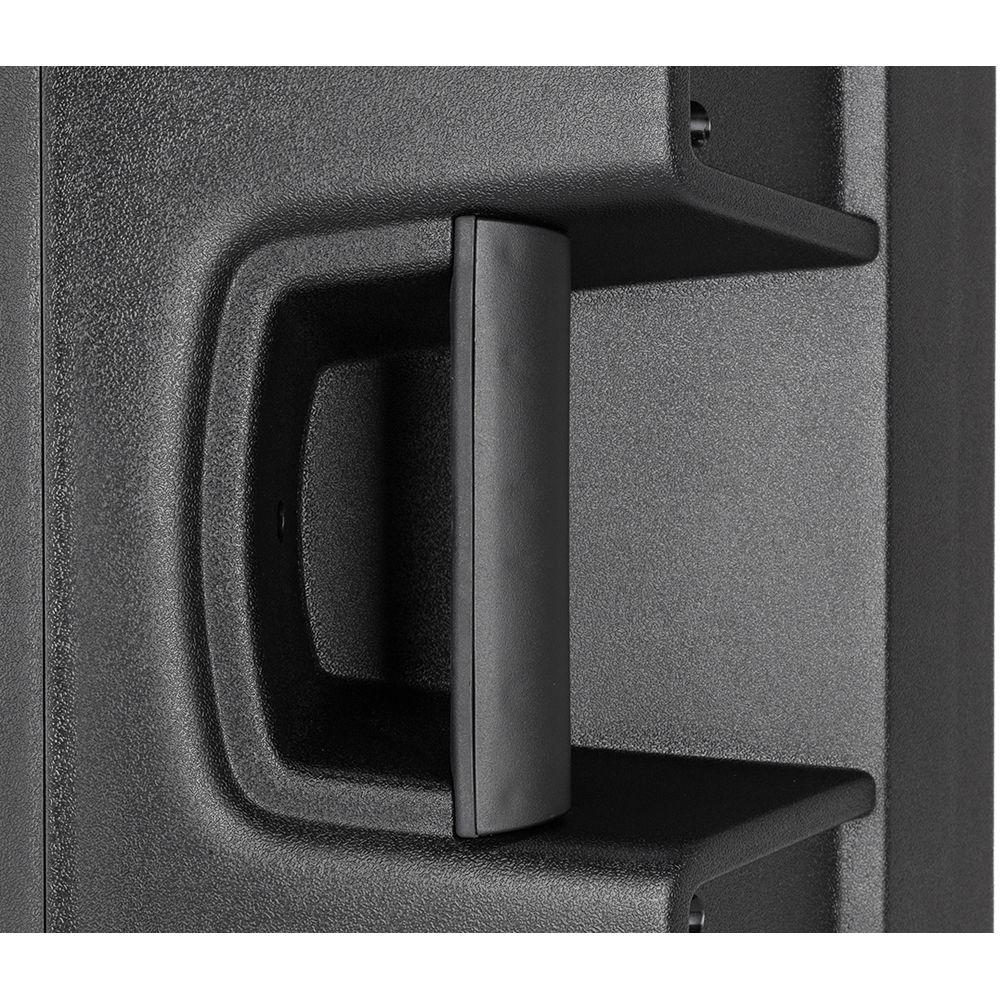

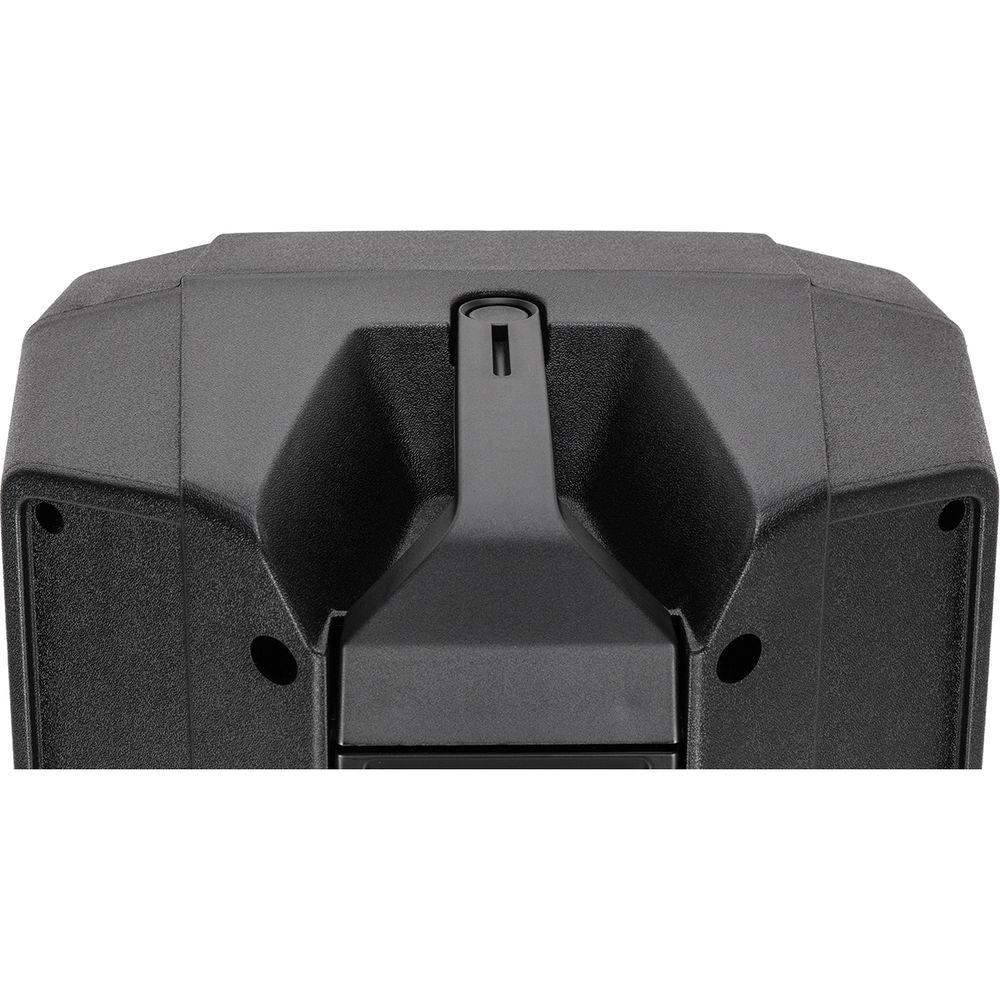

- Ergonomically designed top and side handles allow to firmly hold the cabinet, and move it easily
- Lightweight (at 47.18 lb) design for portability
- Steel pole socket for mounting on a stand or on a subwoofer pole
- M10 fittings for flown applications
- 110-240V operation, user switchable
In the Box RCF ART 735-A MK4 - 15" 2-Way 1400W Active Speaker Power Cord Limited 2-Year Warranty, Extended to 3 Years with Online Registration User Manual PDF 663.7kbcvrbxuyzed Table of Contents
|
Upload User Manual
Have you got an user manual for the RCF ART 735-A MK4 - 15" 2-Way 1400W Active Speaker in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRCF ART-735A-MK4 Specs | | | Configuration | Active 2-Way | | Total Power Capacity | 1400 W Peak
700 W RMS | | Amplifier Power Rating | HF:
400 W Peak
200 W RMS
LF:
1000 W Peak
500 W RMS | | Amplifier Class | Class-D | | | | HF Driver | 1 x 1.4" / 35.6 mm Titanium | | HF Voice Coil | 3" / 76.2 mm | | LF Driver | 1 x 15" / 381 mm Woofer | | LF Voice Coil | 3" / 76 mm | | | | Frequency Response | 45 Hz to 20 kHz -3 dB | | Maximum SPL | 132 dB | | Coverage Angle | 90° H x 60° V | | Input Sensitivity | Line Input:
+4 dBu to -2 dBu
Mic Input:
-32 dBu | | Protections | RMS, Thermal | | | | Audio I/O | Combo XLR / 1/4" Balanced/Unbalanced Input
XLR Male Balanced Output | | | | Crossover | 800 Hz | | Dynamic Processing | Soft Limiter | | | | AC Input Power | User Selectable:
100 to 120 VAC, 50 / 60 Hz (T 6.3 A L 250 V)
200 to 240 VAC, 50 / 60 Hz (3.15 A L 250 V) | | AC Power Connector | 1 x VDE | | | | Mounting | 2 x M10 | | Handles | 1 x Top
2 x Side | | Cooling | Forced Convection | | Construction Material | Metal Grille, Polypropylene | | Dimensions | 27.9 x 17.2 x 15.3" / 708.0 x 437.0 x 389.0 mm | | Weight | 47.2 lb / 21.4 kg | | | | Package Weight | 44.0 lb | | Box Dimensions (LxWxH) | 30.0 x 19.0 x 17.5" |
