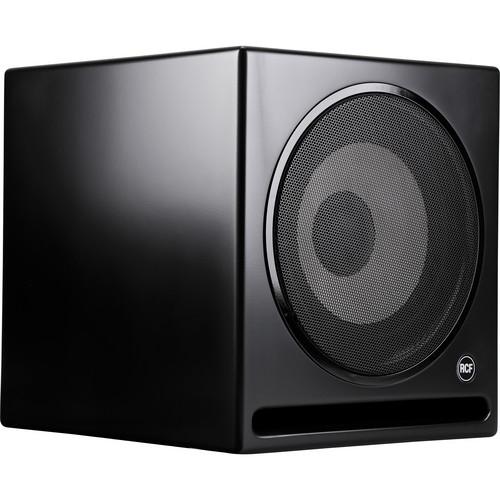

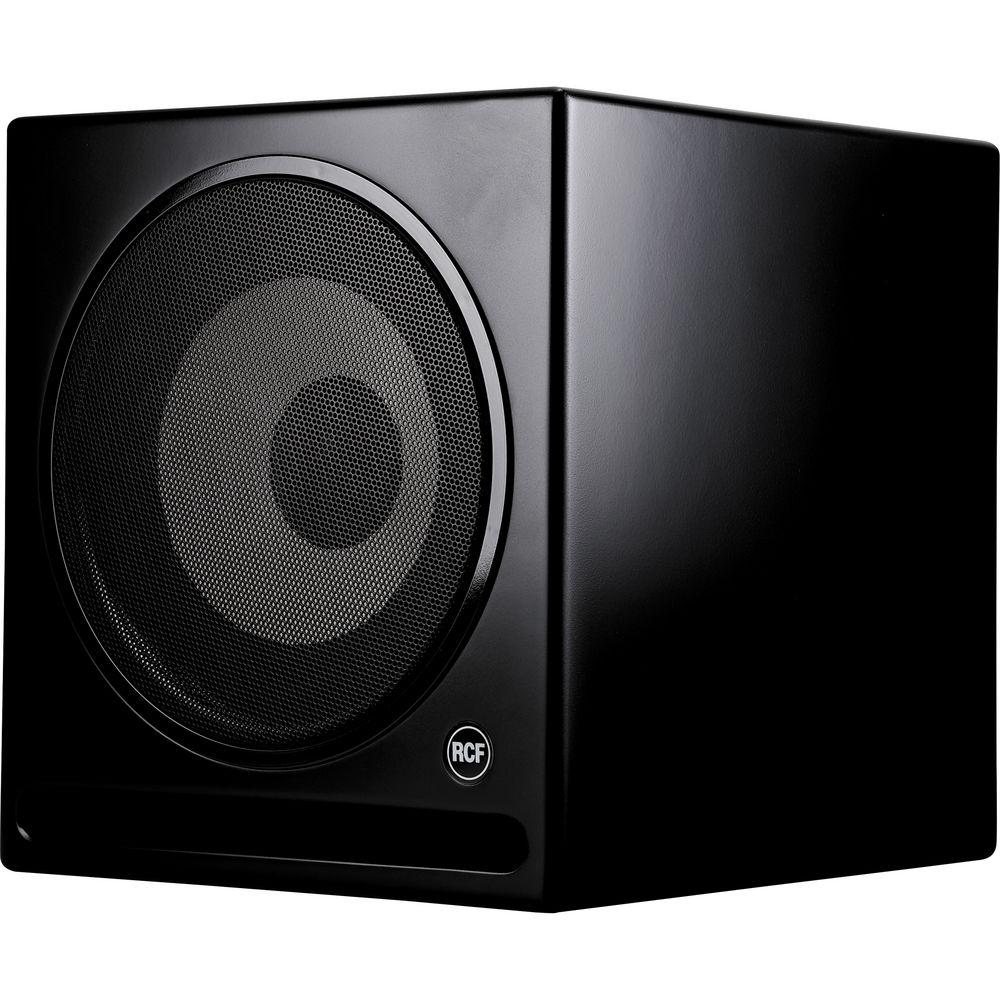

Product description The AYRA 10 SUB Active 10" Professional Subwoofer from RCF provides high-quality bass reinforcement in a compact design that's ideal for use alongside the AYRA-series monitor speakers or other nearfield monitors. The MDF cabinet has a stylish design with lacquer painted finish to give it a modern look with a retro twist.
The sub has a 10" composite fiberglass woofer to provide deep bass reproduction with frequencies as low as 35Hz. The woofer is white to add unique contrast to the black cabinet and it has a mesh grille for protection. There is a slotted bass port on the front of the cabinet that helps to extend low frequency response while reducing distortion and turbulence.
The subwoofer has a Class-AB amplifier design that provides 200W of total power to deliver a strong performance with minimal distortion. The rear panel offers stereo XLR, 1/4", and RCA inputs as well as stereo XLR crossover outputs for wide compatibility with a variety of professional and consumer audio systems and devices.
There is an input sensitivity control and a low pass filter control so you can set the volume and crossover to match your full-range speakers. There is also a phase switch for further customization. A soft limiter is built-in to ensure smooth operation. The sub also has a selectable 115/230V operating voltage for international use. - The compact design is ideal for use alongside the AYRA-series monitor speakers or other nearfield monitors
- The MDF cabinet has a stylish design with lacquer painted finish to give it a modern look with a retro twist. The white woofer provides a unique contrast to the cabinet to further enhance the style of the subwoofer
- The 10" composite fiberglass woofer provides deep bass reproduction with frequencies as low as 35Hz. It has a mesh grille for protection
- The slotted bass port on the front of the cabinet helps to extend low frequency response while reducing distortion and turbulence
- The Class-AB amplifier design provides 200W of total power to deliver a strong performance with minimal distortion
- The rear panel offers stereo XLR, 1/4", and RCA inputs as well as stereo XLR crossover outputs for wide compatibility with a variety of professional and consumer audio systems and devices
- The input sensitivity control and low pass filter control let you set the volume and crossover to match your full-range speakers. There is also a phase switch for further customization
- A soft limiter is built-in to ensure smooth operation
- The sub has a selectable 115/230V operating voltage for international use
In the Box RCF AYRA 10 SUB Active 10" Professional Subwoofer Power Cord Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the RCF AYRA 10 SUB Active 10" Professional Subwoofer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRCF AYRA 10 SUB Specs | | | Monitor Type | Active Subwoofer | | Enclosure | Bass-Reflex, Shielded | | Power Rating | 200 W | | Drivers | LF Driver: 1 x 10" / 254 mm Fiberglass Woofer | | | | Frequency Range | 35 Hz to 130 Hz (at -3 dB) | | Maximum Sound Pressure Level (SPL) | 113 dB | | Analog Input Sensitivity/Gain | -2 dBu (Continuously Variable) | | Phase Adjustment | Phase Inversion 0 / 180° | | Protections and Limiting | Soft Limiter | | | | Crossover Frequency | 120 Hz Crossover Frequency is Adjustable from 50 to 120 Hz | | | | I/O | 2 x 3-Pin XLR Balanced Female Analog Input (10 kOhms)
2 x 3-Pin XLR Balanced Male Analog Output
2 x Unbalanced Analog Input
1 x Stereo RCA Unbalanced Analog Input
1 x Stereo RCA Unbalanced Analog Output | | | | AC Input Power | 115 VAC at 60 Hz
230 VAC at 50 Hz Voltage is Selectable | | | | Enclosure Material | MDF | | Dimensions (W x H x D) | 14.0 x 15.1 x 15.9" / 356.0 x 384.0 x 403.0 mm | | Weight | 37.0 lb / 16.8 kg | | | | Package Weight | 46.05 lb | | Box Dimensions (LxWxH) | 21.2 x 20.5 x 19.6" |
