User Manual for RCF AYRA 4 Active Two-Way Professional Monitor Speaker Click to enlarge the picture
Contents of the user manual for the RCF AYRA 4 Active Two-Way Professional
- Product category: Studio Monitors RCF
- Brand: RCF
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for RCF Studio Monitors
 |
User manual for the RCF AYRA 4 Active Two-Way Professional contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any RCF product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official RCF user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a RCF product will considerably shorten its lifespan!
|

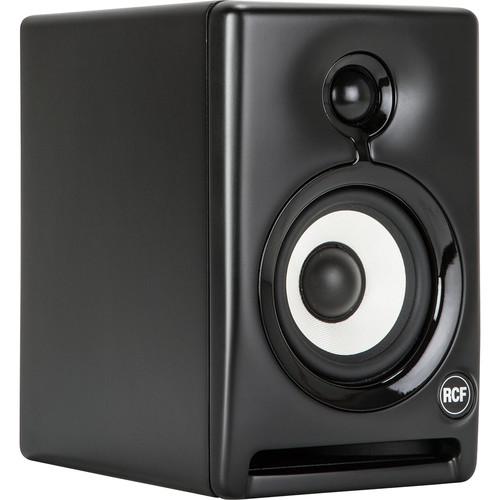

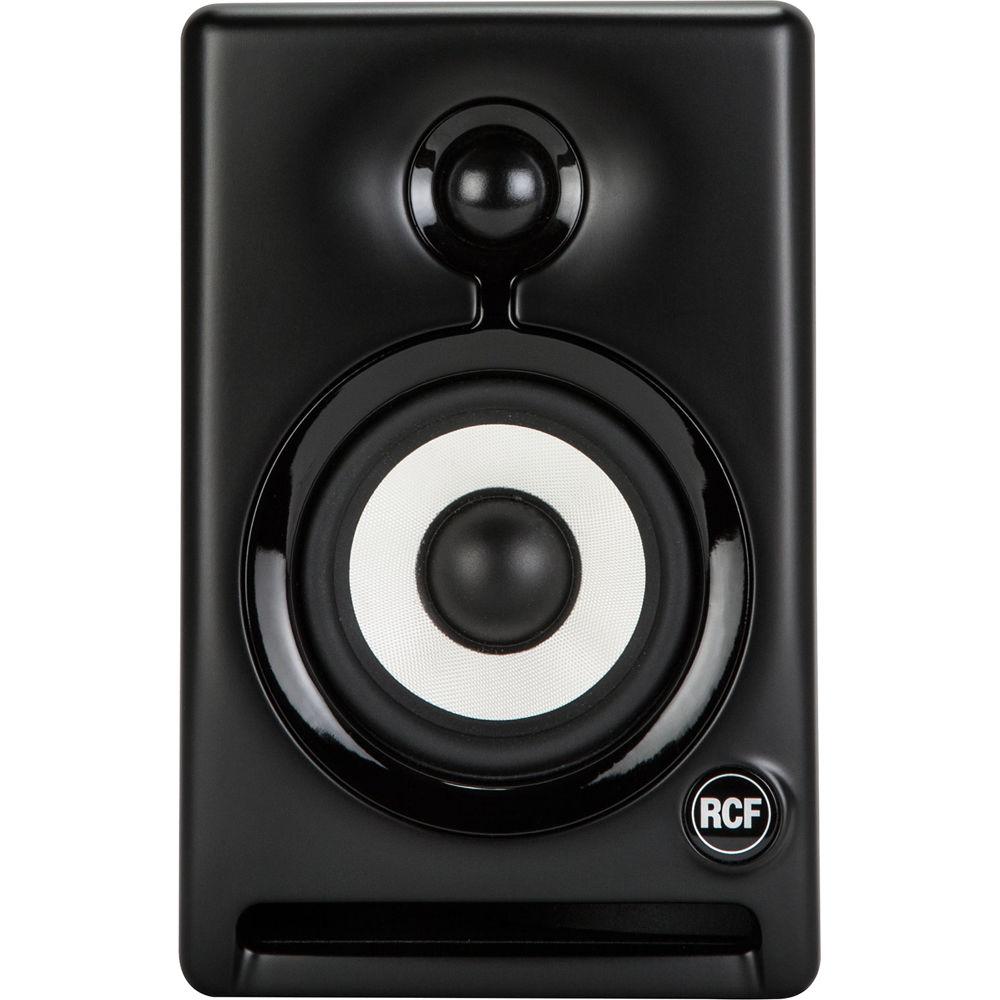

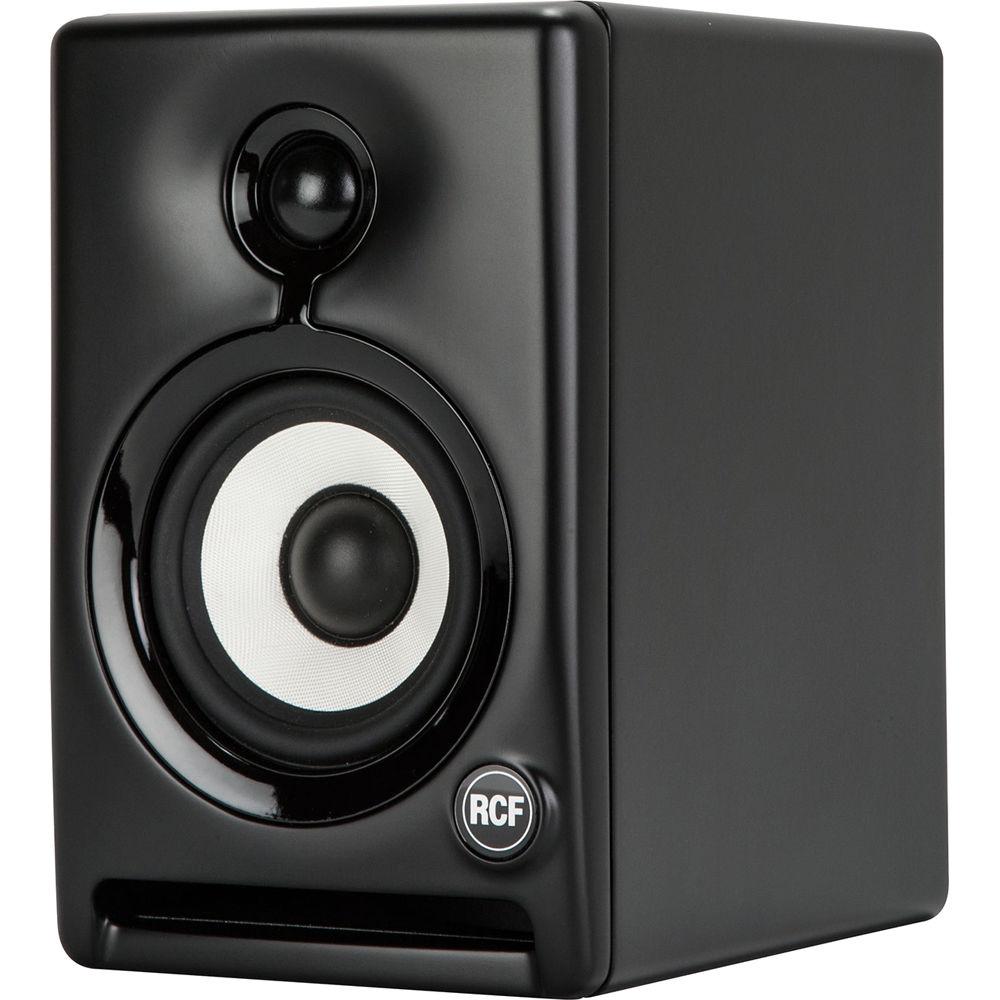

Product description The AYRA 4 from RCF is a two-way reference studio monitor speaker designed for near-field applications, equally suited to your home recording studio. It features a 1” soft dome tweeter designed on a precision directivity waveguide and a 4'' composite fiberglass woofer.

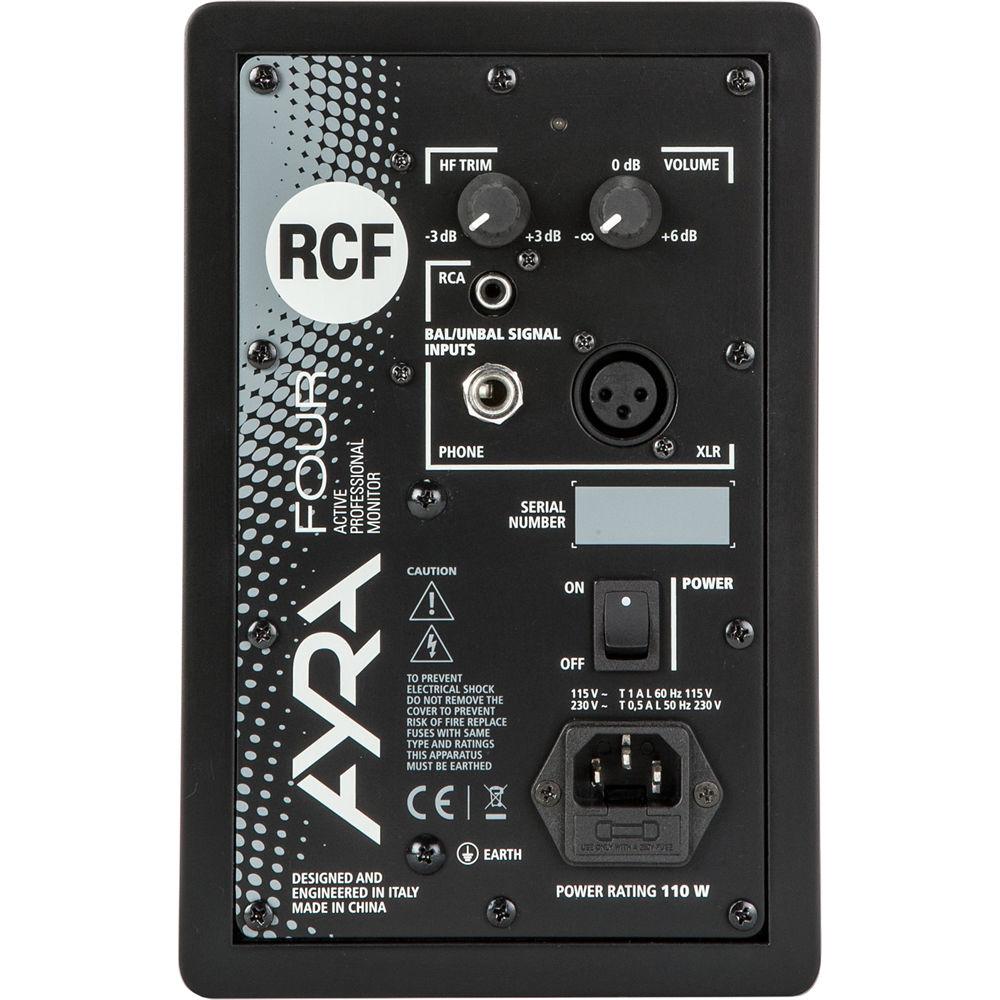

This speaker is equipped with a true active 35W + 20W class AB amplifier. The result of this is very high output, low distortion, and a natural sound. There are XLR, 1/4", and RCA inputs on the rear panel. Furthermore, it features input sensitivity control, high-frequency trim knobs, a switch for power on/off, and a selector switch for 115V or 230V operation. - True active 35W + 20W class AB design
- 60 to 20,000 Hz frequency response
- Precision directivity tweeter waveguide
- Fully featured input board
- 4" composite fiberglass woofer
- Reflection-free front cabinet design
- Low-distortion reflex port
- Applications: Home recording, studio recording, personal monitoring, DJ monitoring, multimedia, and AV production facilities
Table of Contents
|
Upload User Manual
Have you got an user manual for the RCF AYRA 4 Active Two-Way Professional Monitor Speaker in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRCF AYRA 4 Specs | | | Monitor Type | Active 2-Way | | Enclosure | Bass-Reflex, Shielded | | Drivers | HF Driver: 1 x / Compression Driver with 1" / 25.4 mm Voice Coil
LF Driver: 1 x 4" / 100 mm Cone | | Amplification | HF Amplifier: Rated at 20 W
LF Amplifier: Rated at 35 W | | | | Frequency Range | 60 Hz to 20 kHz | | Maximum Sound Pressure Level (SPL) | 104 dB | | Analog Input Sensitivity/Gain | -2 dBu (Continuously Variable) | | Dispersion | 110 x 70° (Horizontal x Vertical) | | Protections and Limiting | Output Current Limiting, Soft Limiter, and Thermal Limiting | | | | Crossover Frequency | 2.1 kHz | | | | I/O | 1 x 3-Pin XLR Balanced Analog Input
1 x 1/4" (6.3 mm) TRS Balanced Analog Input
1 x RCA Unbalanced Analog Input | | | | AC Input Power | 115 VAC at 60 Hz
230 VAC at 50 Hz | | Power Consumption | 55 W | | | | Cooling | Passive Cooling | | Dimensions (W x H x D) | 5.7 x 8.9 x 8.0" / 14.5 x 22.5 x 20.3 cm | | Weight | 9.7 lb / 4.4 kg |
