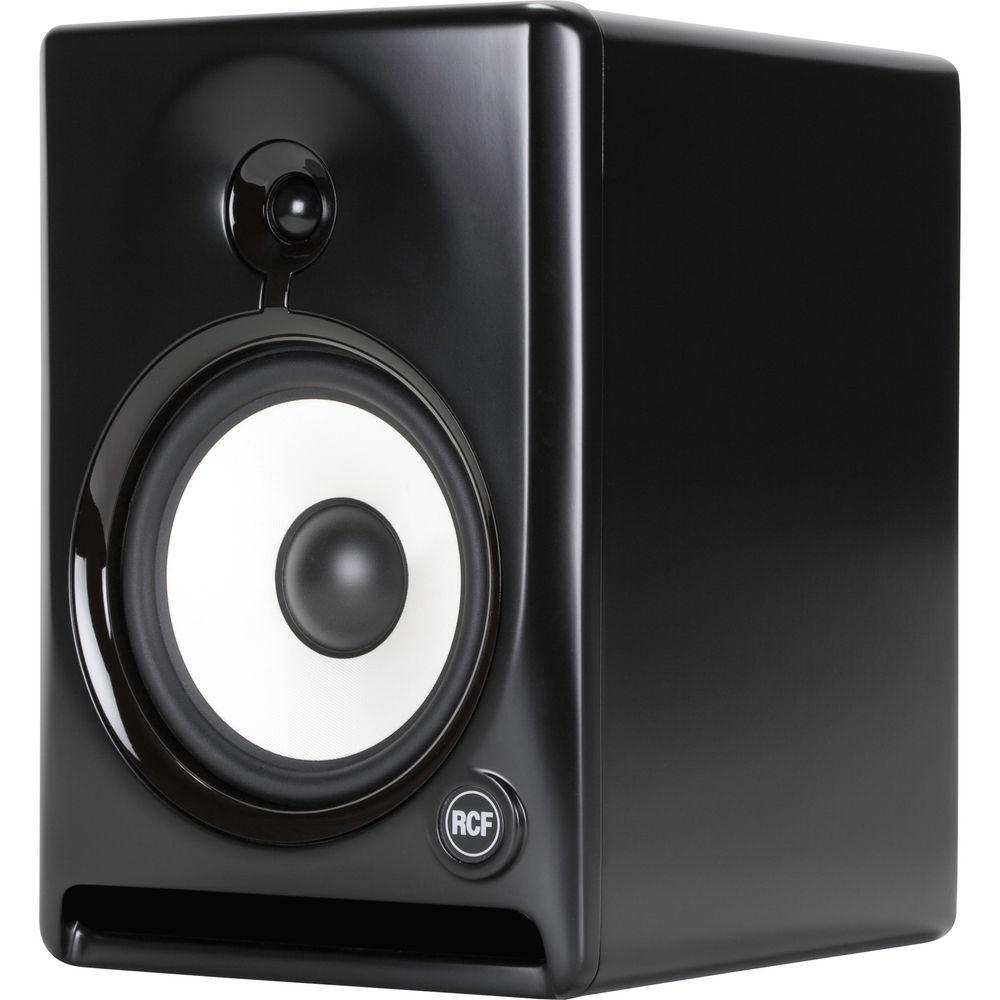

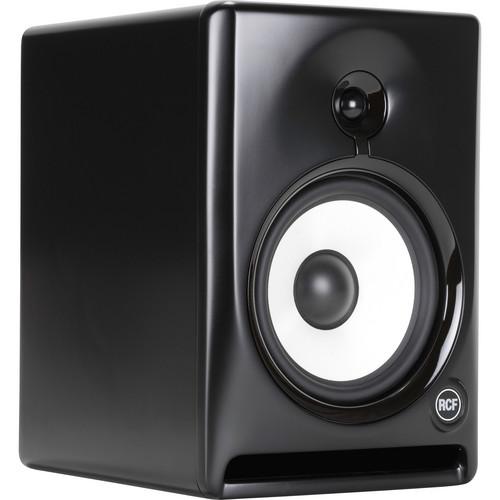

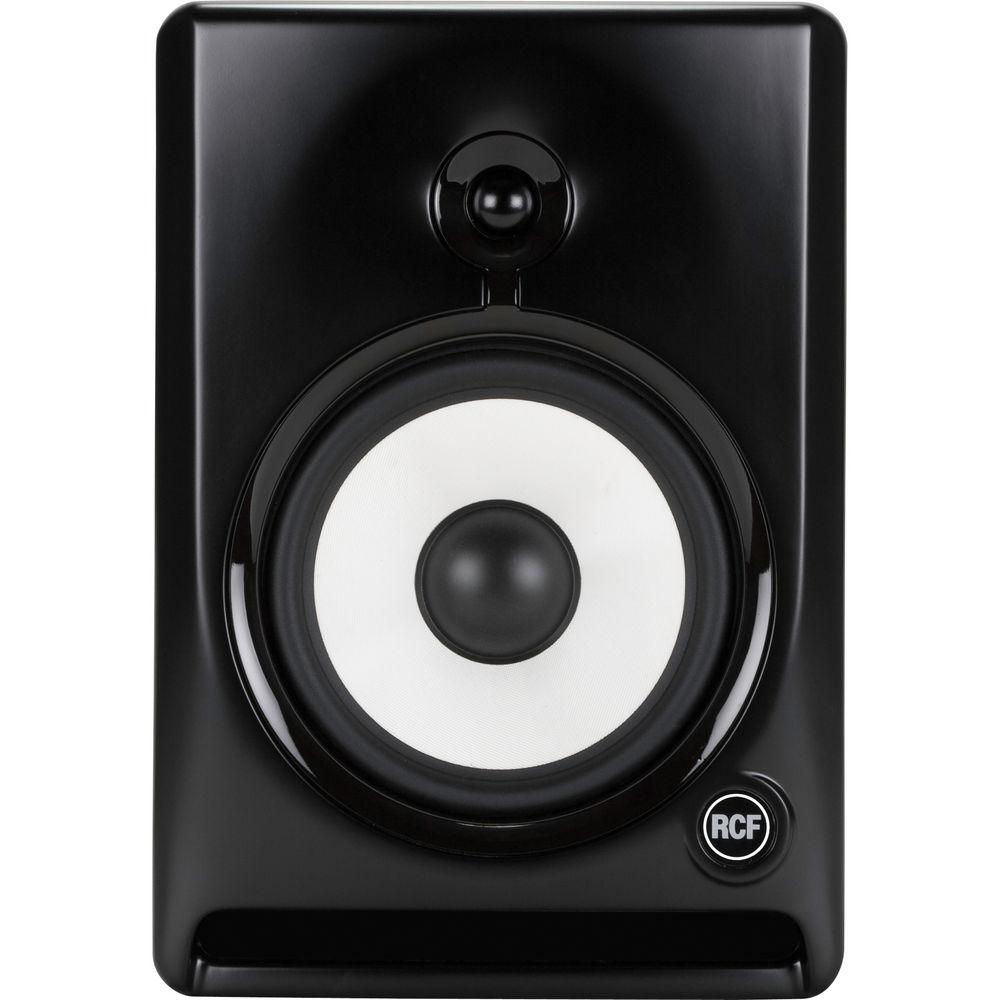

Product description The AYRA 8 Active 8" 2-Way Professional Studio Monitor Speaker from RCF provides high-quality audio in a compact design that's ideal for nearfield applications such as home and studio recording, DJ monitoring, multimedia applications, and more. The MDF cabinet has a stylish design with a reflection-free front and a lacquer painted finish to give it a modern look with a retro twist.
The speaker has an 8" composite fiberglass woofer and a 1" soft dome tweeter to provide clear, natural audio reproduction with a wide frequency response. The woofer is white to add unique contrast to the black cabinet for a combination of a classic 70's look and modern style. There is a slotted bass port on the front of the cabinet that helps to extend low frequency response while reducing distortion and turbulence. A precise directivity waveguide around the tweeter provides consistent coverage and a wide sweet spot.
The speaker has a biamplified Class-AB design that provides 80W to the woofer and 30W to the tweeter to deliver a strong performance with low distortion. The rear panel offers XLR, 1/4", and RCA inputs for wide compatibility with a variety of professional and consumer audio systems and devices. Input sensitivity and HF trim controls let you customize the speaker's performance, and there is also a soft limiter to ensure smooth operation. The speaker also has a selectable 115/230V operating voltage for international use. - The compact design is ideal for nearfield applications such as home and studio recording, DJ monitoring, multimedia applications, and more
- The MDF cabinet has a stylish design with a lacquer painted finish and a white woofer to give it a modern look with a retro twist
- The 8" composite fiberglass woofer and 1" soft dome tweeter provide clear, natural audio reproduction with a wide frequency response
- The cabinet has a smooth front that reduces audio reflections. There is also a slotted bass port on the front of the cabinet that helps to extend low frequency response while reducing distortion and turbulence
- A precise directivity waveguide around the tweeter provides consistent coverage and a wide sweet spot
- The speaker has a biamplified Class-AB design that provides 80W to the woofer and 30W to the tweeter to deliver a strong performance with low distortion
- The rear panel offers XLR, 1/4", and RCA inputs for wide compatibility with a variety of professional and consumer audio systems and devices
- Input sensitivity and HF trim controls let you customize the speaker's performance, and there is also a soft limiter to ensure smooth operation
- The speaker has a selectable 115/230V operating voltage for international use
In the Box RCF AYRA 8 Active 8" 2-Way Professional Studio Monitor Speaker Power Cord Limited 3-Year Warranty User Manual PDF 563.6kbtcvuxfdyedzbvwacqeuvx Table of Contents
|
Upload User Manual
Have you got an user manual for the RCF AYRA 8 Active 8" 2-Way Professional Studio Monitor Speaker in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRCF AYRA 8 Specs | | | Monitor Type | Active 2-Way | | Enclosure | Bass-Reflex, Shielded | | Power Rating | 110 W | | Drivers | HF Driver: 1 x 1" / 25 mm Soft Dome Tweeter with 1" / 25.4 mm Voice Coil
LF Driver: 1 x 8" / 203 mm Fiberglass Cone | | Amplification | HF Amplifier: Rated at 30 W
LF Amplifier: Rated at 80 W | | | | Frequency Range | 45 Hz to 20 kHz (at -3 dB) | | Maximum Sound Pressure Level (SPL) | 110 dB | | Analog Input Sensitivity/Gain | -2 dBu (Continuously Variable) | | Dispersion | 110 x 110° (Horizontal x Vertical) | | Protections and Limiting | Soft Limiter | | | | Crossover Frequency | 1.8 kHz | | | | I/O | 1 x 3-Pin XLR Balanced Analog Input (10 kOhms)
1 x 1/4" (6.3 mm) TRS Balanced Analog Input
1 x RCA Unbalanced Analog Input | | | | AC Input Power | 115 VAC at 60 Hz
230 VAC at 50 Hz Voltage is Selectable | | | | Enclosure Material | MDF | | Dimensions (W x H x D) | 10.5 x 15.1 x 12.9" / 266.0 x 384.0 x 328.0 mm | | Weight | 24.2 lb / 11.0 kg | | | | Package Weight | 28.8 lb | | Box Dimensions (LxWxH) | 19.1 x 16.0 x 14.0" |
