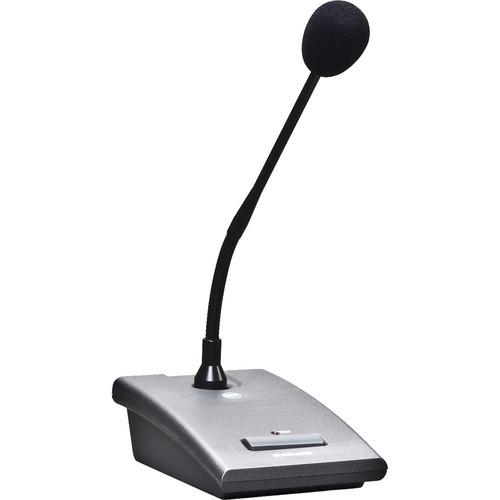

User Manual for RCF BM 3001 Desktop Paging Microphone Click to enlarge the picture
Contents of the user manual for the RCF BM 3001 Desktop Paging Microphone
- Product category: Paging & Security Microphones RCF
- Brand: RCF
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for RCF Paging & Security Microphones
|
User manual for the RCF BM 3001 Desktop Paging Microphone contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any RCF product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official RCF user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a RCF product will considerably shorten its lifespan!
|
Product description The RCF BM 3001 Desktop Paging Microphone allows you to send announcements toward a single zone. It is suitable for use with the RCF mixer amplifiers ES3160 (with tuner and CD / USB MP3 player), ES3323, AM 2080, AM2160, and AM 2320, and RCF amplifiers UP 2161 and UP 2321. It can also be used with other mixer-preamplifiers that have phantom power (18 to 48V).
Inputs 2 and 3 of the amplifiers ES 3160, AM 2160, and AM 2320 (all with a switchable Smart function) have an RJ-45 socket (each) to connect the BM 3001 paging microphone quickly via a CAT5 cable. - Plastic body with 300mm gooseneck
- Supports phantom power supply (18 to 48VDC)
- ES 3160, AM 2160, AM 2320 chime activation
- Can be directly connected to ES 3160, ES 3323, AM 2160, AM 2320, UP 2161, UP 2321, and UP 2081 amplifiers
- Amplifiers AM 2080, UP 2161, and Up 2321 have a dedicated input with an RJ-45 socket
- Dedicated microphone console with a 16.4' (5m) CAT5 connection cable (with RJ-45 plugs)
- Polyurethane foam wind screen
- Features an on/off switch
- Suitable for use in applications such as speech, announcement, communication, and conference
In the Box RCF BM 3001 Desktop Paging Microphone 16.4' (5m) CAT5 FTP Cable with RJ-45 connector Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the RCF BM 3001 Desktop Paging Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRCF BM 3001 Specs | | | Type | Desktop paging microphone with electret capsule | | Directivity | Cardioid | | Sensitivity | -65 dB ± 3 dB (0 dB = 1 μbar at 1 kHz) | | Frequency Response | 50 Hz to 18 kHz | | Minimum Load Impedance | 470 Ω | | Nominal Output Voltage | 100 mV RMS (at 3.3 kΩ); maximum 1 V RMS | | Phantom Power | 18 to 48 VDC | | Connector | 8 pole RJ-45 | | | | Dimensions (H x W x D) | With Gooseneck: 13.78 x 3.94 x 6.26" (350.00 x 100.00 x 159.00 mm)
Without Gooseneck: 3.93 x 6.25 x 1.88" (100.00 x 159.00 x 48.00 mm) | | Net Weight | 1.54 lb (0.70 kg) |
