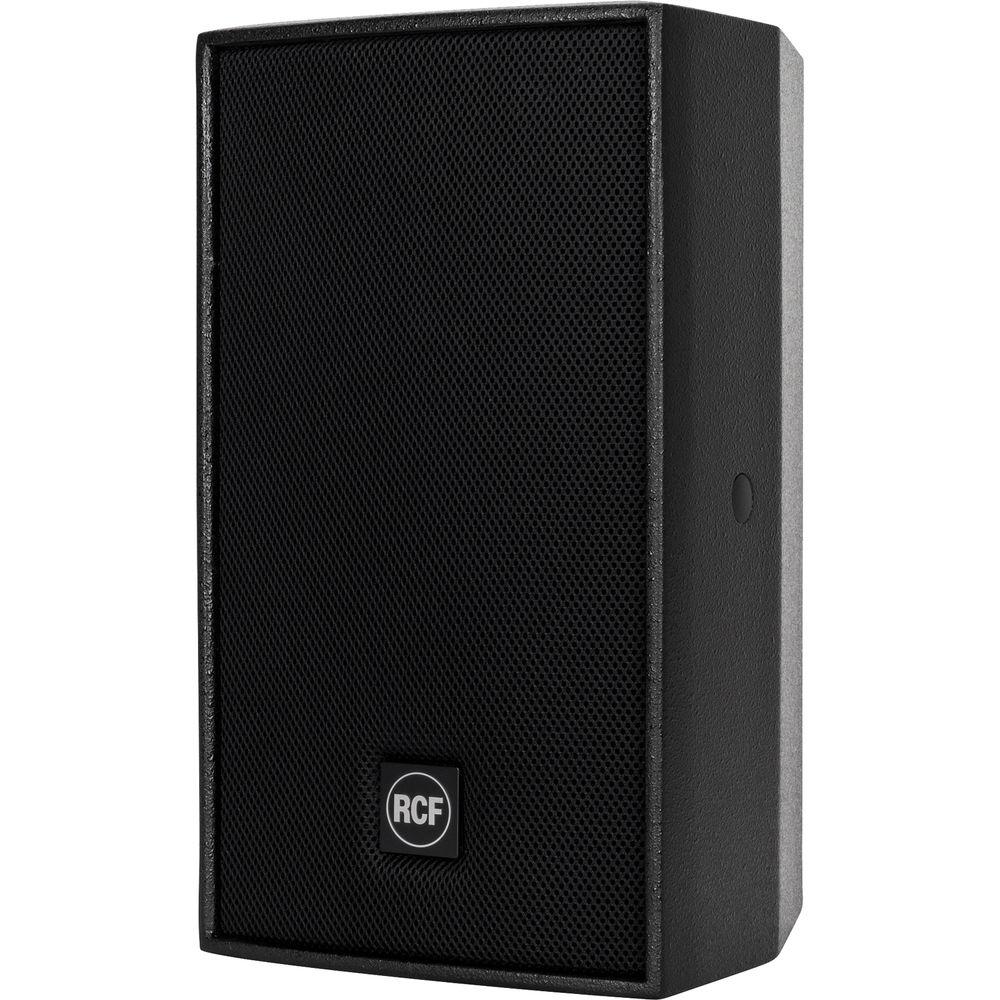

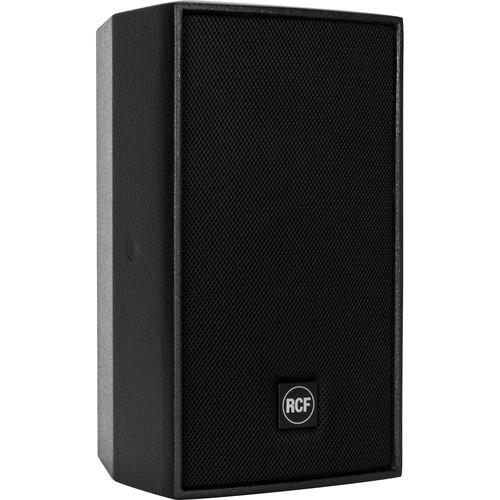

User Manual for RCF C3108-126 Two-Way Passive Speaker System Click to enlarge the picture
Contents of the user manual for the RCF C3108-126 Two-Way Passive Speaker System
- Product category: PA Speakers RCF
- Brand: RCF
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for RCF PA Speakers
 |
User manual for the RCF C3108-126 Two-Way Passive Speaker System contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any RCF product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official RCF user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a RCF product will considerably shorten its lifespan!
|

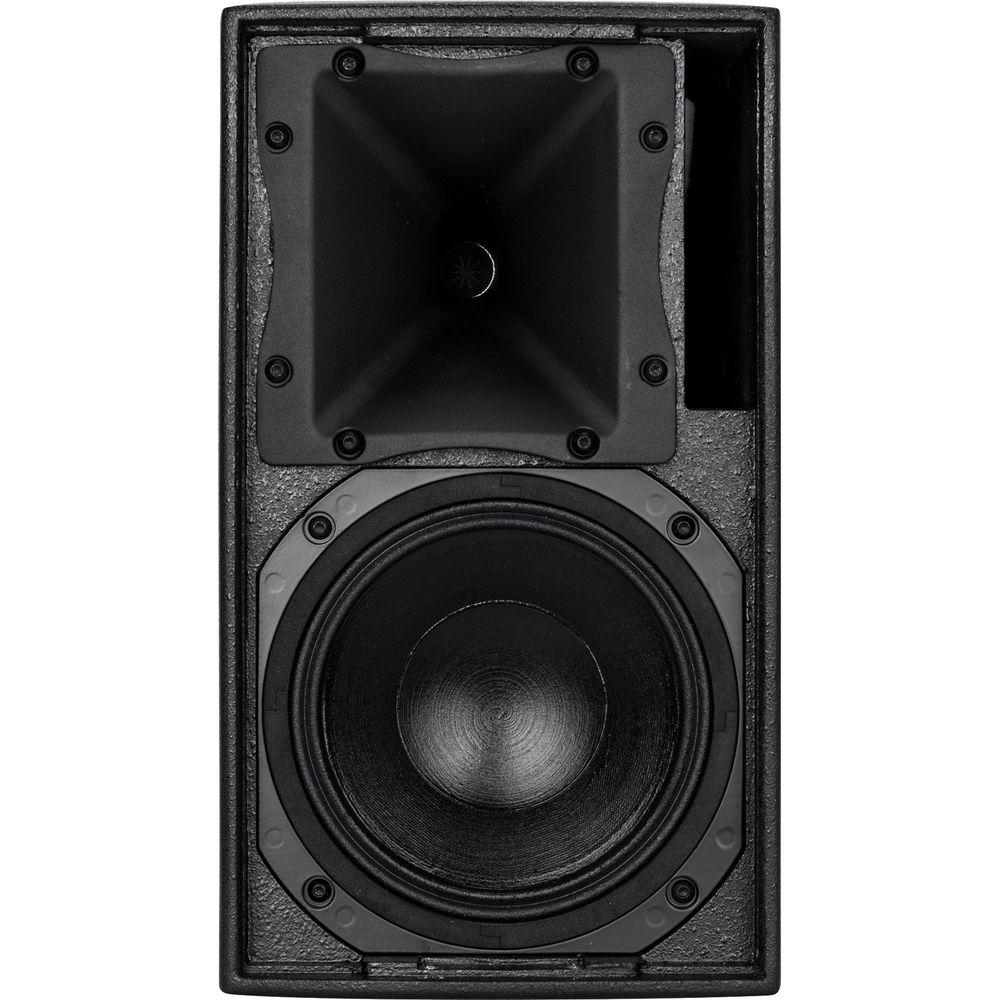

Product description The C3108-126 Two-Way Passive Speaker System from RCF features Constant Matching Design technology for optimal transition between the high frequency horn polar pattern and the low frequency woofer directivity. The horn can be rotated, allowing the loudspeaker to be installed either vertically or horizontally. The high-frequency transducer in this system is a 1" compression driver with 1.5" voice coil for smooth, wide dispersion. The low-frequency transducer is an 8" woofer with a 2" voice coil.
The system includes a high-level crossover network that features the LICC (Low Impedance Compensated Crossover) that offers delay reduction, reduced phase shift, and superior transient response. Dynamic high-frequency driver protection is accomplished with the Active Mosfet Compression Driver Protection System (AMCDP) that complements the driver power curve.

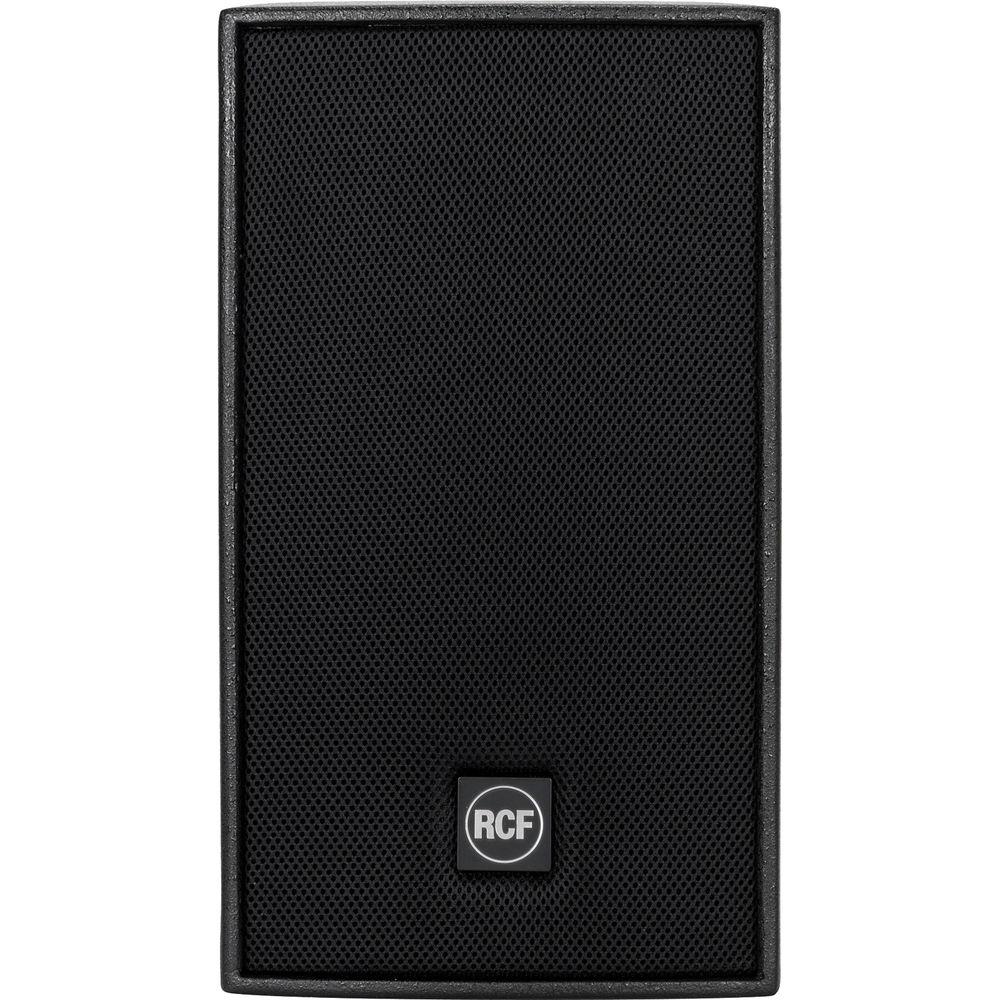

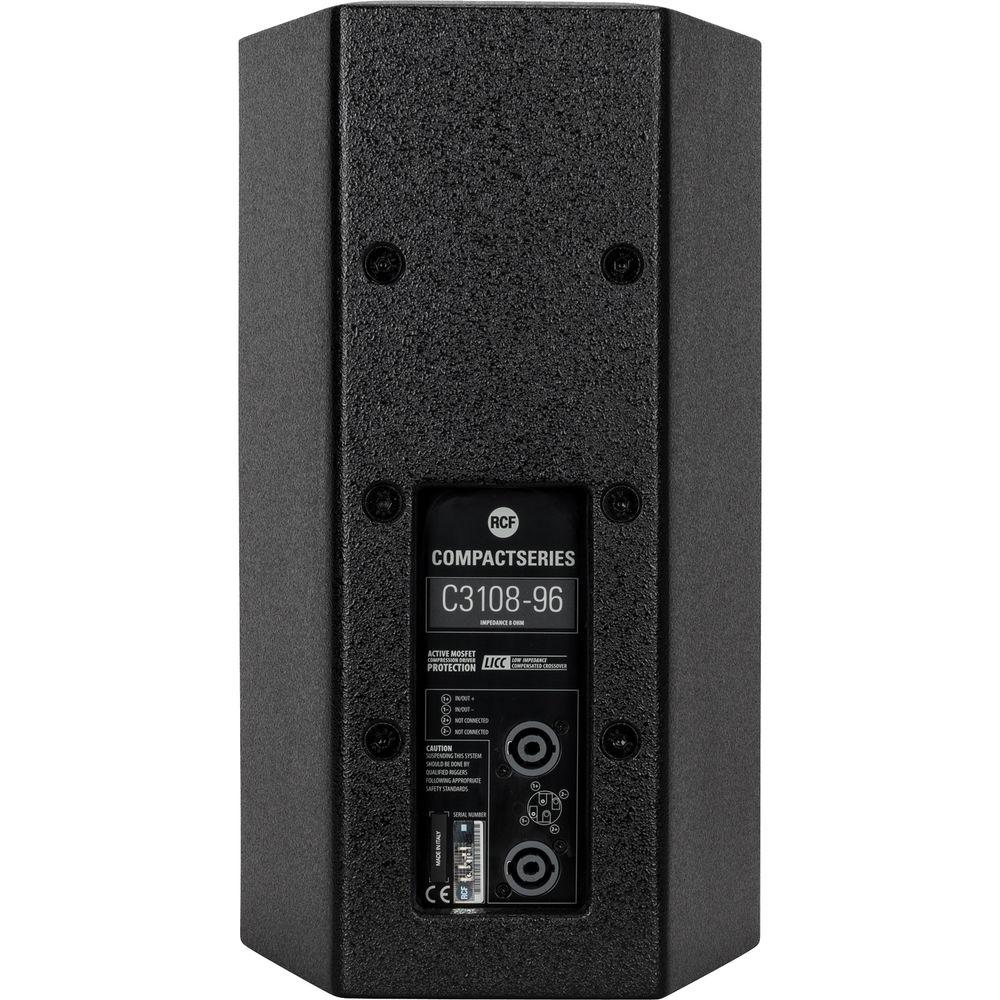

The cabinet is made of Baltic birch and is equipped with top and bottom 'multiplates' for either wall or suspended mounting with chains. The steel front grille is protected with a double layer polyurethane fabric. Connections are made through two Neutrik Speakon NL4 connectors (audio input and parallel link output). This passive speaker system is suitable for use in permanent installations, main reinforcement in small spaces, high-level AV playback, zone delay and fill systems, and under balcony installations. - Features an 8" high-output woofer and a 1" compression driver
- 120 x 60° CMD (Constant Matching Design) constant directivity horn
- Rotatable horn for horizontal mounting
- Trapezoidal enclosure made of 12mm birch plywood
- HF driver with Active Mosfet Compression Driver Protection (AMCDP)
- Low Impedance Compensated Crossover (LICC)

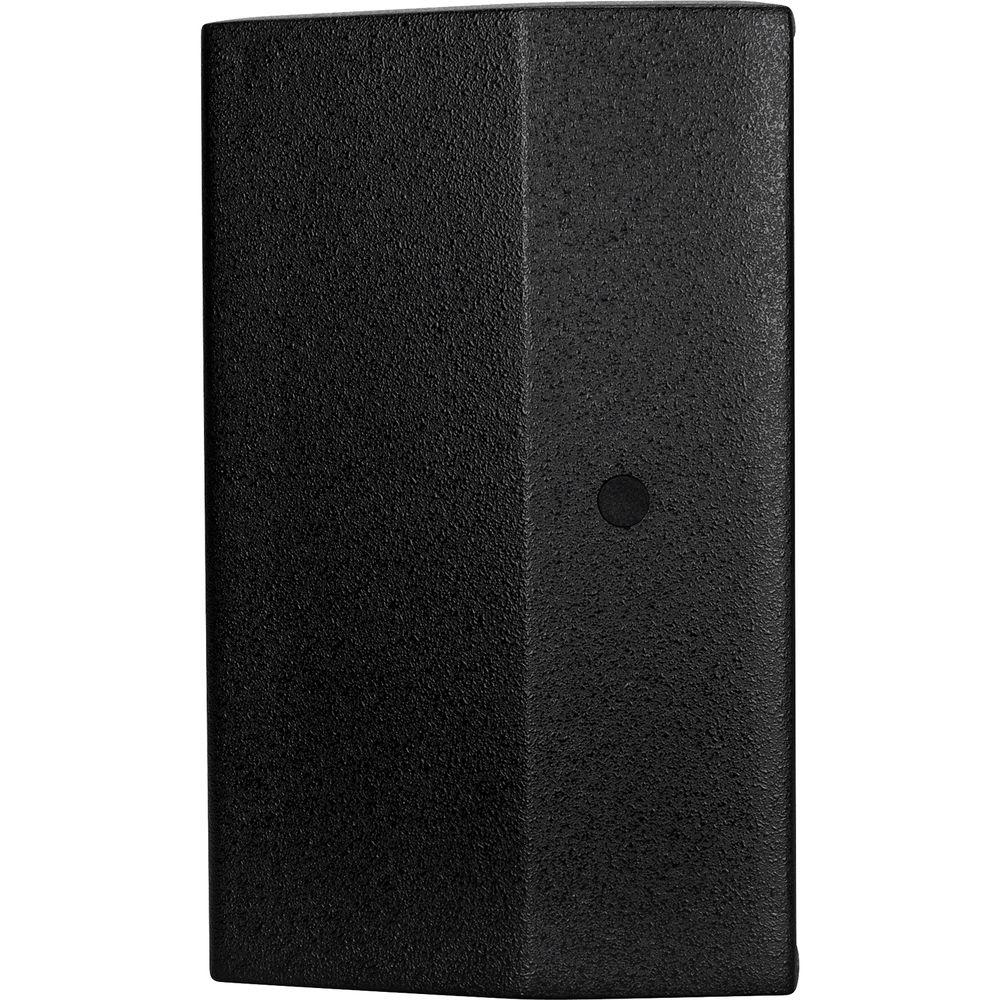

- Rigging inserts: 6 x M8 (rear), 2 x M10 (lateral)

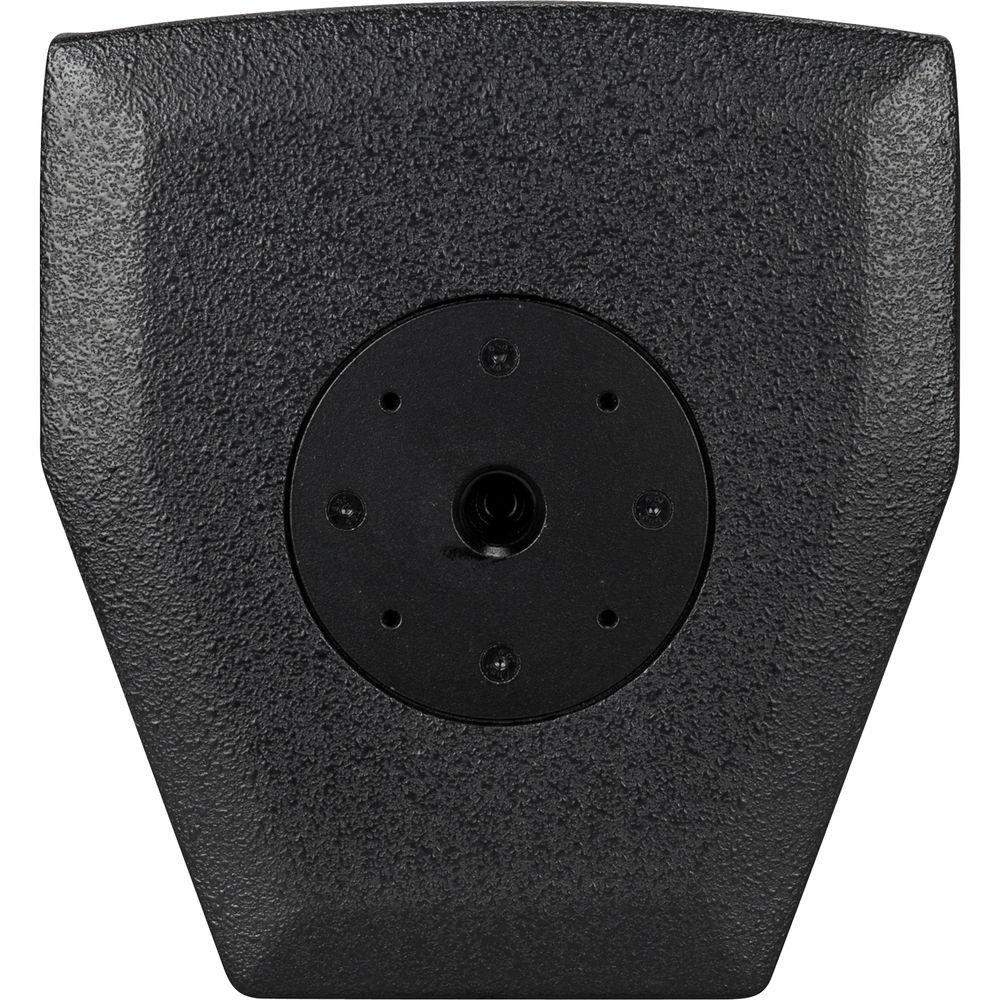

- Two multiplates (top and bottom) for either wall or suspended mounting with chains
- Installation points on rear panel
- Easily rotatable front RCF logo
In the Box RCF C3108-126 Two-Way Passive Speaker System Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the RCF C3108-126 Two-Way Passive Speaker System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRCF C3108 Specs | | | Frequency Response | 70 Hz to 20 kHz @ -10 dB | | Coverage Angle | Horizontal (-6 dB): 120°
Vertical (-6 dB): 60° | | Directivity Factor | Q: 10 | | Sensitivity | 1 W, 3.3' (1.0 m): 94.5 dB | | Maximum SPL | Peak Power, 3.3' (1.0 m): 125.5 dB | | Impedance | 8 Ω | | Power | RMS: 300 W
Peak: 1200 W | | Protection | Dynamic HF protection | | Crossover | 2 kHz | | | | Type | Low Frequency: 8.0" (20.3 cm) woofer with 2.0" (5.1 cm) voice coil
High Frequency: 1.0" (2.5 cm) driver with 1.5" (3.8 cm) voice coil | | Impedance | 8 Ω | | Power | Low Frequency Range: 200 W (AES), 400 W (peak)
High Frequency Range: 25 W (AES), 50 W (peak) | | Sensitivity | 1 W, 3.3' (1.0 m)
Low Frequency Range: 94 dB
High Frequency Range: 106 dB | | | | Enclosure | Trapezoidal, 20° side angles, 0.5" (12 mm) birch plywood construction | | Insert | Rigging Inserts: 6 x M8 (rear), 2 x M10 (lateral), multiplates (top and bottom) | | Grille | Perforated powder-coated steel covered with double layer polyurethane fabric | | Input Connectors | 2 x SPEAKON NL4 | | Dimensions (W x H x D) | 9.5 x 16.8 x 10.3" (24.2, 42.7, 26.3 cm) | | Weight | 29.9 lb (12.2 kg) | | | | Box Dimensions (LxWxH) | 20.0 x 15.0 x 13.0" |
