User Manual for RCF C5212-99 Acustica Series 500W Two-Way Passive Speaker Click to enlarge the picture
Contents of the user manual for the RCF C5212-99 Acustica Series 500W Two-Way
- Product category: Installed Speakers RCF
- Brand: RCF
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for RCF Installed Speakers
 |
User manual for the RCF C5212-99 Acustica Series 500W Two-Way contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any RCF product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official RCF user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a RCF product will considerably shorten its lifespan!
|

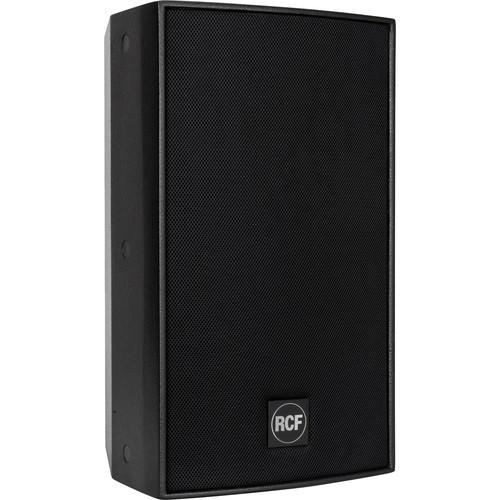

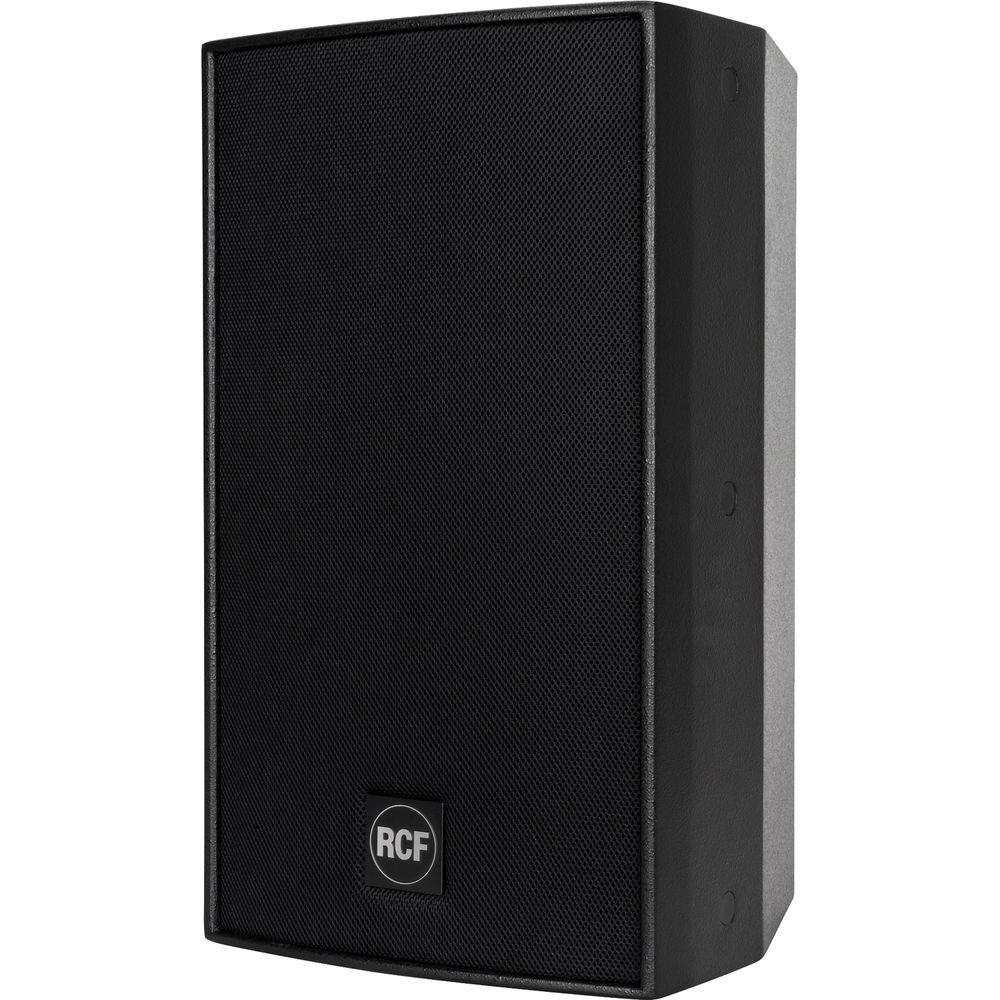

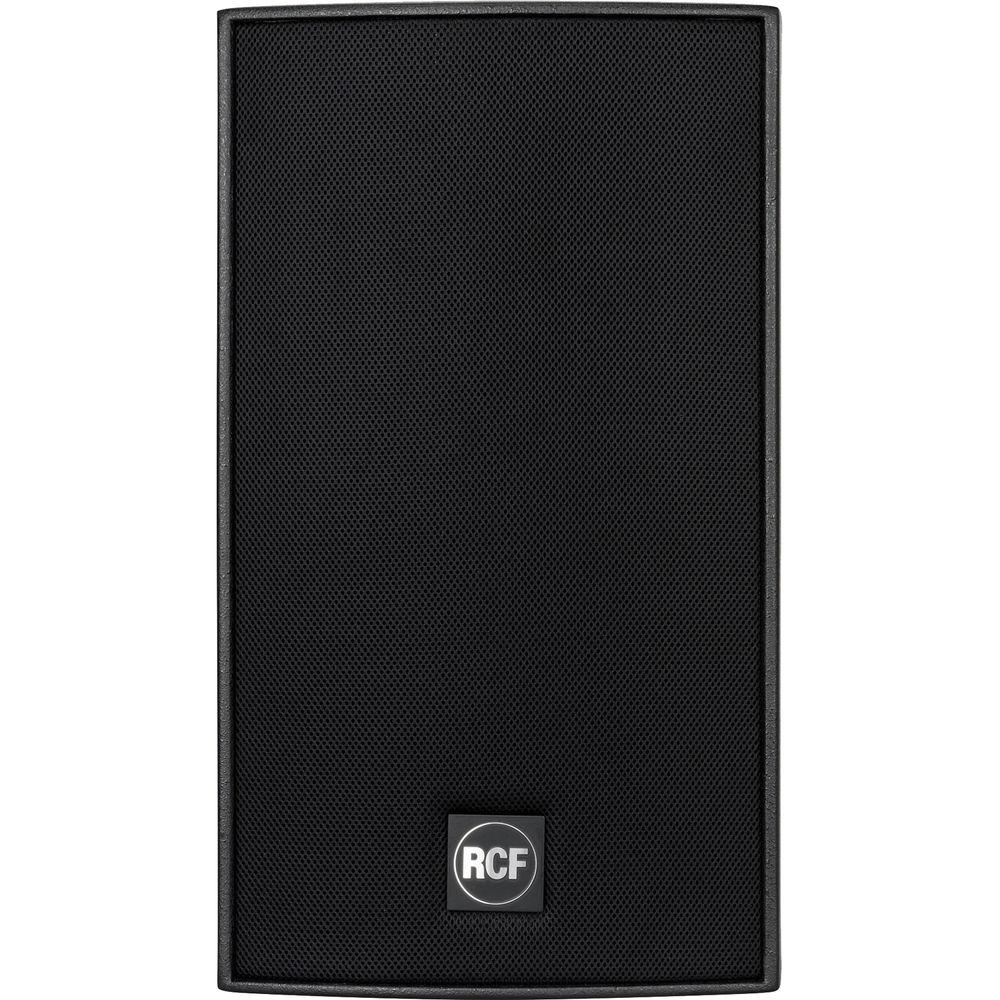

Product description The black C5212-99 Acustica Series 500W Passive Speaker from RCF is a full-range versatile wide-dispersion, two-way loudspeaker, offering substantial power and efficiency for several professional applications. It can be used as a main unit in permanent installations, or as a supplementary fill in large speaker systems.

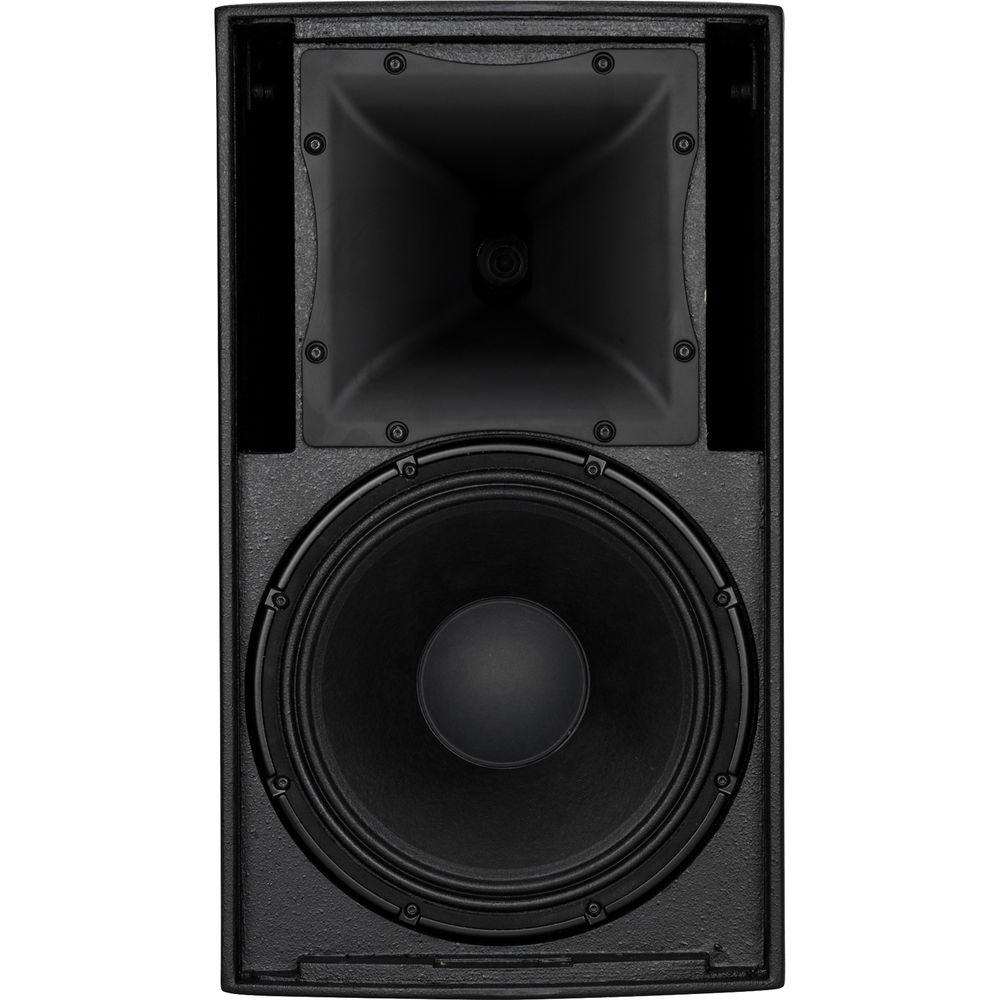

The Constant Matching Design technology helps guarantee an optimal transition between the high-frequency horn polar pattern and the low-frequency woofer directivity. The hi-frequency transducer is a 1.4” RCF precision compression driver with a 2.5” voice coil. The low-frequency transducer is a 12” RCF precision woofer with a 3” voice coil.
The speaker also includes a high-level crossover network that features low induction values in series with the woofer. This innovation, named LICC (Low Impedance Compensated Crossover), helps delay reduction, reduces phase shift, and lends superior transient response.
Dynamic high-frequency driver protection is accomplished with the RCF AMCDP (Active MOSFET Compression Driver Protection System), which is chosen to complement the driver power curve.

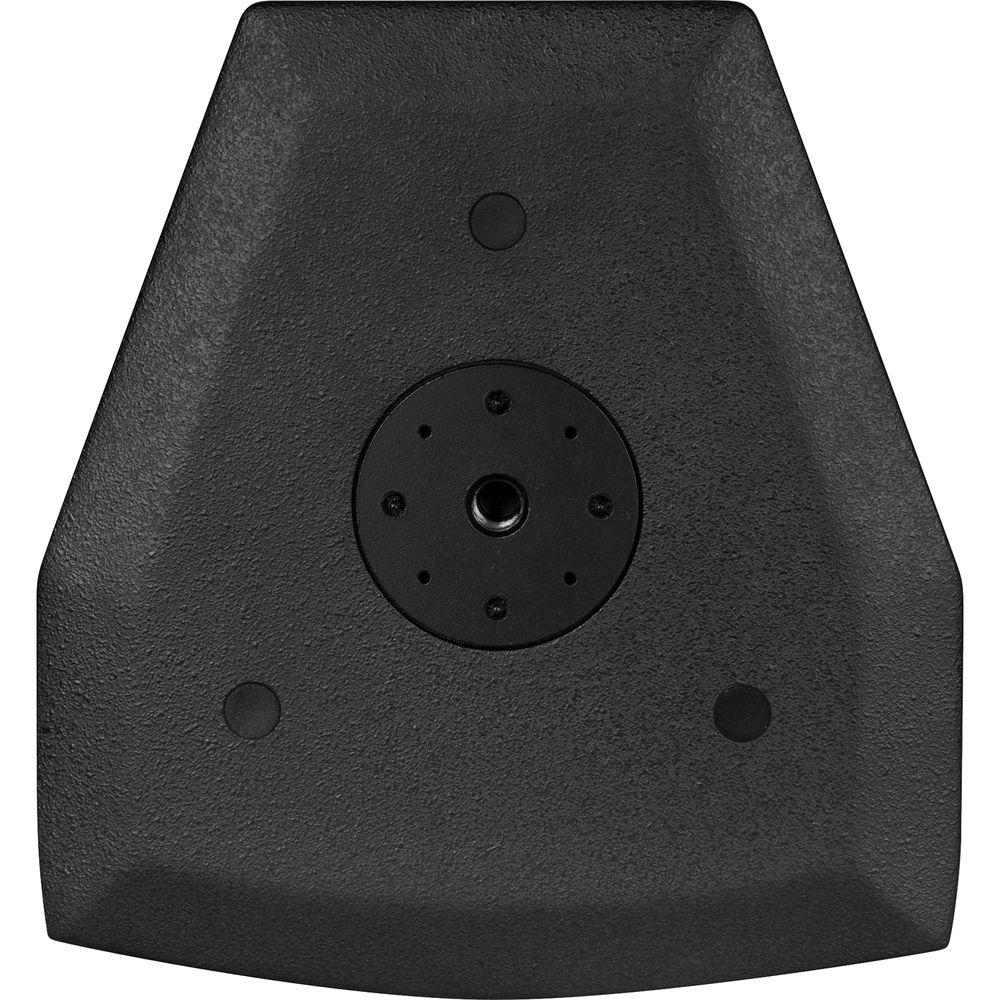

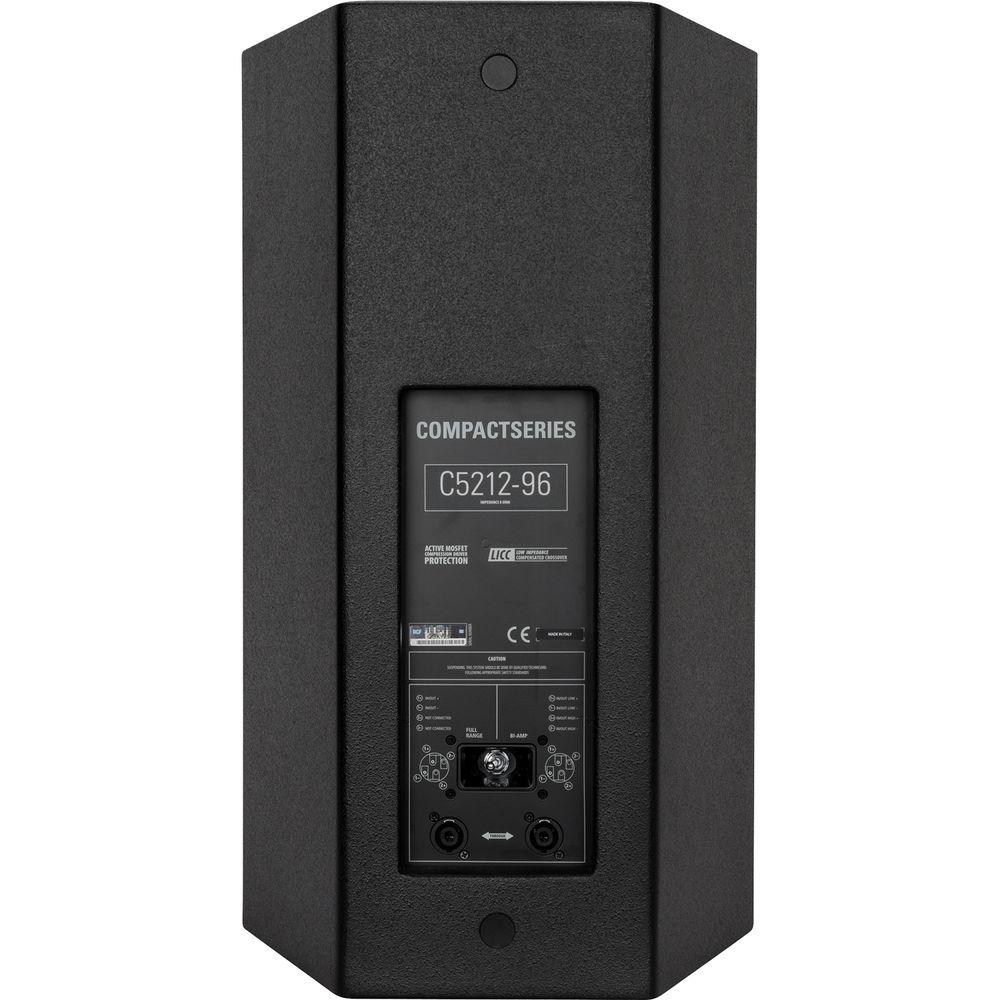

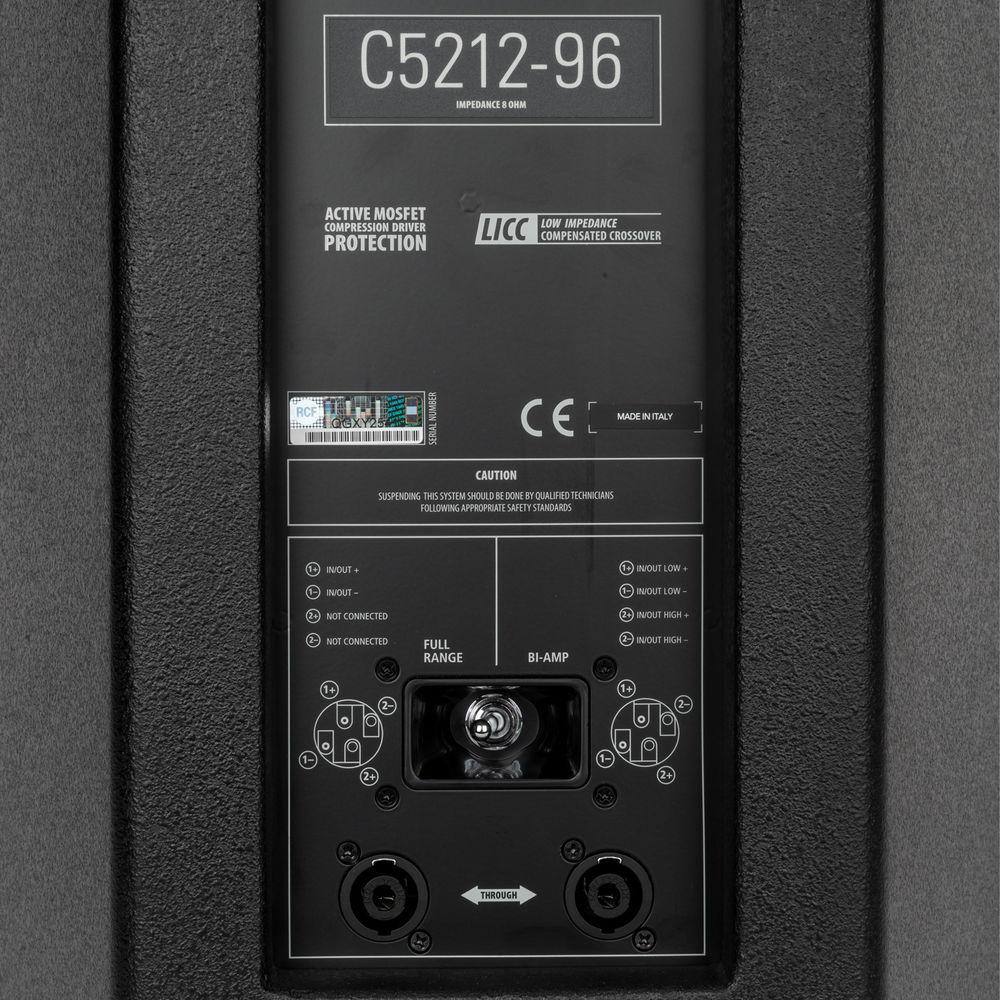

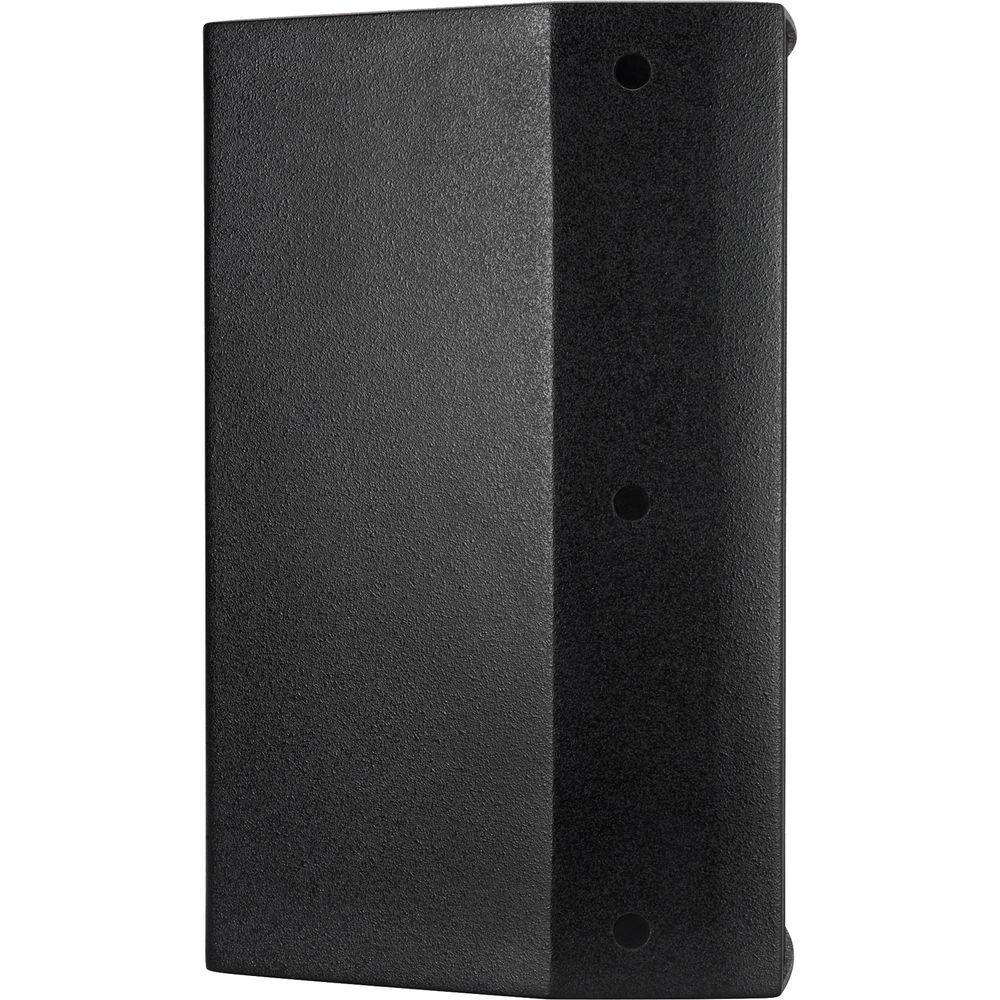

The internal crossover can be easily bypassed for bi-amplification. The cabinet is made of Baltic birch (heavy duty painted) and allows different installation options. It comes equipped with top and bottom multiplates for either wall or suspended mounting with chains. The installation points are available on its rear panel as well. The steel front grille is protected with a double layer polyurethane fabric and the front RCF logo is easily rotatable. Connections are made through 2 Neutrik SpeakON NL4 connectors (audio input and parallel link output). - One 12" high-output RCF precision woofer
- One 1.4" RCF precision compression driver
- 90 x 90° CMD (Constant Matching Design) constant directivity horn
- Rotatable horn for horizontal mounting
- Dual-Function Design: Built-in passive crossover or external bi-amp
- Trapezoidal enclosure made of 15mm birch plywood
- HF driver with (AMCDP) Active MOSFET Compression Driver Protection
- LICC (Low Impedance Compensated Crossover) innovation
- Rigging Inserts: 2 x M10 (lateral)
- Two (top and bottom) multiplates for mounting
- Applications: Permanent installations, main reinforcement in small and medium spaces, high-level AV playback, live music reinforcement, and large speech systems
Table of Contents
|
Upload User Manual
Have you got an user manual for the RCF C5212-99 Acustica Series 500W Two-Way Passive Speaker in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRCF C5212-99 Specs | | | Frequency Response | 54 Hz to 20 kHz at -10 dB | | Coverage Angle | Horizontal (-6 dB): 90°
Vertical (-6 dB): 90° | | Directivity | Factor (Q): 13 | | Sensitivity | 1 W, 1 m: 99 dB | | Maximum SPL | Peak Power, 1 m: 132 dB | | Impedance | 8 Ω | | Power | 500 W (rms), 2000 W (peak) | | Recommended Amplifier Power | 1000 W | | Protection | HF: Dynamic | | Crossover | 1.2 kHz | | | | Low Frequency Transducer | Low Range: 12.0" (304.8 mm) woofer with 3.0" (76.2 mm) voice coil | | Impedance | 8 Ω | | Power | 400 W (AES), 800 W (peak) | | Sensitivity | 1 W, 1 m: 98 dB | | High Frequency Transducer | High Range: 1.4" (35.5 mm) driver with 2.5" (63.5 mm) voice coil | | Impedance | 8 Ω | | Power | 100 W (AES), 200 W (peak) | | Sensitivity | 1 W, 1 m: 111 dB | | | | Enclosure | Trapezoidal, 20° side angles, 0.5" (15.0 mm) birch plywood construction | | Inserts | Rigging: 2 x M10 (lateral), multiplates (top and bottom) | | Grille | Perforated powder-coated steel covered with double layer polyurethane fabric | | Input Connectors | 2 x SpeakON NL4 | | Dimensions (W x H x D) | 14.17 x 24.80 x 15.35" (360.00 x 630.00 x 390.00 mm) | | Weight | 63.93 lb (29.00 kg) |
