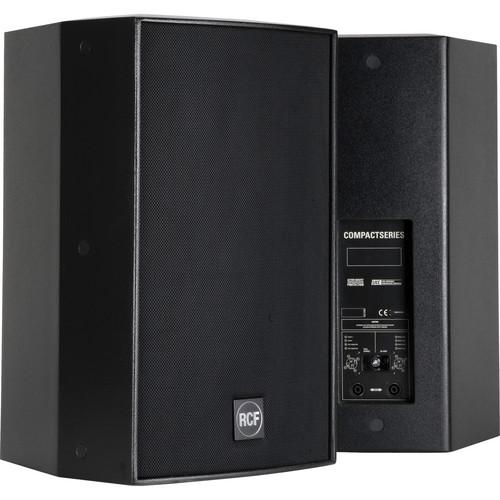

User Manual for RCF C5215-64 Acustica 500W Compact 2-Way Passive Speaker Click to enlarge the picture
Contents of the user manual for the RCF C5215-64 Acustica 500W Compact 2-Way
- Product category: PA Speakers RCF
- Brand: RCF
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for RCF PA Speakers
|
User manual for the RCF C5215-64 Acustica 500W Compact 2-Way contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any RCF product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official RCF user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a RCF product will considerably shorten its lifespan!
|
Product description The versatile black C5215-64 Acustica 500W Compact 2-Way Passive Speaker from RCF offers substantial power and efficiency for several professional applications. It can be used as a main unit in permanent installations, or as a supplementary fill in large speaker systems.
Constant Matching Design technology helps guarantee an optimal transition between the high frequency horn polar pattern and the low frequency woofer directivity. The horn can be rotated, allowing to install the loudspeaker either vertically or horizontally. The hi-frequency transducer is a 1.4” RCF PRECISION compression driver with a 2.5” voice coil. The low-frequency transducer is a 15” RCF PRECISION woofer with a 3” voice coil.
The speaker includes a high-level crossover network that features markedly low induction values in series with the woofer. This is named LICC (Low Impedance Compensated Crossover), which features delay reduction, reduced phase shift, and transient response.
Dynamic high-frequency driver protection is accomplished with AMCDP (Active Mosfet Compression Driver Protection System), chosen to complement the driver power curve. The internal crossover can be easily bypassed for bi-amplification.
The cabinet is made of Baltic birch (heavy duty painted) and allows different installation options, as it is equipped with top and bottom multiplates for either wall or suspended mounting with chains. Installation points are available on its rear panel as well. The steel front grille is protected with a double layer polyurethane fabric and the front RCF logo is easily rotatable. The connections are made through 2 Neutrik Speakon NL4 connectors (audio input and parallel link output). - One 15" high-output RCF PRECISION woofer & one 1.4" RCF PRECISION compression driver
- 60 x 40° CMD (Constant Matching Design) constant directivity horn
- Rotatable horn for horizontal mounting
- Dual-Function Design: Built-in passive crossover or external bi-amp
- Trapezoidal enclosure made of 15mm birch plywood
- HF driver with AMCDP (Active Mosfet Compression Driver Protection)
- LICC (Low Impedance Compensated Crossover)
- 2 x M10 (lateral) rigging inserts
- 2 (top and bottom) multiplates for mounting
- Applications: Permanent installations, main reinforcement in small and medium spaces, High-level AV playback, cluster configurations, live music reinforcement, large speech systems, 60 x 40° horn suitable for longer distance coverage
In the Box RCF C5215-64 Acustica 500W Compact 2-Way Passive Speaker (Black) Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the RCF C5215-64 Acustica 500W Compact 2-Way Passive Speaker in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRCF C5215-64 Specs | | | Frequency Response | 48 Hz to 20 kHz (-10 dB) | | Coverage Angle | Horizontal: 60° (-6 dB)
Vertical: 40° (-6 dB) | | Directivity | Q: 20 | | Sensitivity | 101 dB (1 W, 3.28'/1.00 m) | | Maximum SPL | 134 dB (peak power, 3.28'/1.00 m) | | Impedance | 8 Ω | | Power | 500 W (rms), 2,000 W (peak) | | Amplifier | Recommended: 1,000 W | | Protection | HF: Dynamic | | Crossover | 1.2 kHz | | | | Transducer | Low Frequency Range: 15.0" (381.0 mm) woofer with 3.0" (76.2 mm) voice coil
High Frequency Range: 1.40" (35.56 mm) driver with 2.50" (63.50 mm) voice coil | | Impedance | Low Frequency Range: 8 Ω
High Frequency Range: 8 Ω | | Power | Low Frequency Range: 400 W (AES), 800 W (peak)
High Frequency Range: 100 W (AES), 200 W (peak) | | Sensitivity | Low Frequency Range: 99 dB (1 W, 3.28'/1.00 m)
High Frequency Range: 111 dB (1 W, 3.28'/1.00 m) | | | | Enclosure | Trapezoidal, 20° side angles, 0.59" (15.00 mm) birch plywood construction | | Rigging Points | 2 x M10 (lateral), multiplates (top and bottom) | | Grille | Perforated powder-coated steel covered with double layer polyurethane fabric | | Input Connectors | 2 x SPEAKON NL4 | | Dimensions (W x H x D) | 16.93 x 27.36 x 18.11" (430.00 x 695.00 x 460.00 mm) | | Weight | 76.72 lb (34.80 kg) |
