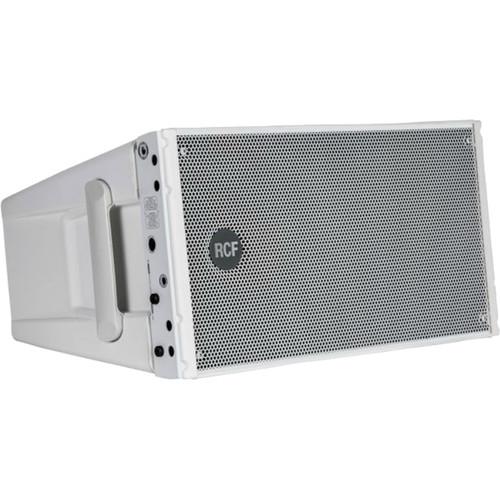

Product description The white D-Line HDL10-A-W Compact Line Array Module from RCF is designed for use in live sound reinforcement and installed situations. The system is powered by a 1400 W peak power two-way digital amplifier, and sound is processed from a powerful DSP. The system features two 8" transducers, each with a 2" voice coil for solid bass reproduction, and a large-format 2" compression driver to deliver vocal clarity and high definition. The custom-designed waveguide allows a coverage of 100 x 15°, whilst also delivering linear high frequency response.The 2.5" voice coil allows a crossover point of 800 Hz, which allows a wide vocal range to be produced by this driver. It is powered by a 1400 W peak power digital amplifier, split 400 W for the HF and 1000 W for the LF. - Features:
-
- 100 x 15°, wide dispersion constant directivity angle line array module
- 65 Hz to 20 kHz frequency response
- 2x 8” woofers, high-power 2” voice coil
- 2.5” voice coil RCF precision compression driver on waveguide
- Digital bi-amp and DSP-controlled input section with selectable presets
- 1400 W peak, 700 W RMS
- 133 dB maximum SPL
- Composite PP enclosure structurally wooden-reinforced
- Tour-grade safe and solid variable mechanics
- Applications:
-
- Live sound
- Rental
- Portable PA, clubs, ballrooms, live theater, houses of worship, theme parks
- Music playback and sound reinforcement in small and mid-size venues
- Corporate A/V professionals and sound system hire companies
In the Box RCF D-Line HDL 10-A-W Compact Line Array Module (White) Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the RCF D-Line HDL 10-A-W Compact Line Array Module in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRCF HDL 10-A Specs | | | Frequency Response | 65 Hz to 20 kHz | | Maximum SPL | 133 dB | | Horizontal Coverage Angle | 100° | | Vertical Coverage Angle | 15° maximum | | Compression Driver | 2.0" (5.1 cm) with 2.5" (6.4 cm) voice coil | | Woofer | 2x 8.0" (20.3 cm) with 2.0" (5.1 cm) voice coil | | | | Input Connectors | XLR-jack combo | | Output Connectors | XLR | | Input Sensitivity | -2 dBu / 4 dBu | | | | Crossover Frequencies | 800 Hz | | Protection | Thermal, RMS | | Limiter | Soft limiter | | Controls | Cluster, HF, high curving, indoor | | | | Power Supply | Switching 700 W | | Frequency | High Frequencies: D / 200 W
Low Frequencies: D / 500 W | | Cooling | Convection | | Connection | VDE connector in | | | | Hardware | Rigging flyware | | Cabinet | Composite PP | | Handles | 2 side | | Dimensions (H x W x D) | 11.5 x 22.4 x 17.1" (29.4 x 56.9 x 43.4 cm) | | Weight | 44.9 lb (20.4 kg) | | | | Box Dimensions (LxWxH) | 26.0 x 20.0 x 15.0" |
