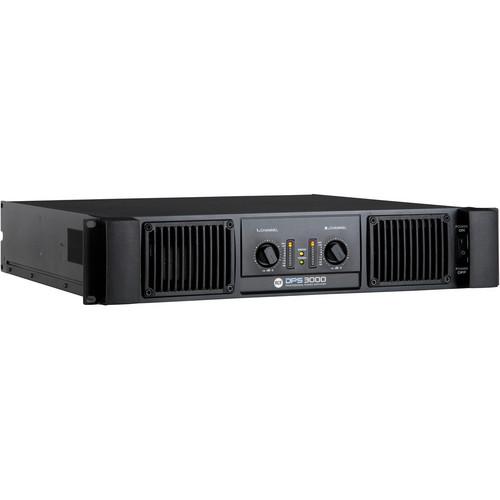

User Manual for RCF DPS 3000 Class HD 2-Channel Professional Power Amplifier Click to enlarge the picture
Contents of the user manual for the RCF DPS 3000 Class HD 2-Channel
- Product category: Power Amplifiers RCF
- Brand: RCF
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for RCF Power Amplifiers
|
User manual for the RCF DPS 3000 Class HD 2-Channel contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any RCF product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official RCF user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a RCF product will considerably shorten its lifespan!
|
Product description The DPS 3000 Class HD 2-Channel Professional Power Amplifier from RCF can handle high power ratings in a compact and lightweight 2 RU space. With class HD technology, this amplifier delivers up to 1,700W RMS at 2Ω per channel (3,400W RMS bridged at 4Ω).It comes with a PFC (Power Factor Correction) switched mode power supply, which ensures that a predominantly resistive load is presented to the mains power supply. This also leads to an improved amplifier performance at high output levels. Thanks to its high-efficiency heat sinks and variable speed DC fans, the DPS 3000 power amplifier can withstand extreme heat conditions ensuring great reliability. Note: The amplifier should not be installed in a place with too high temperature, dust or excessive humidity, fog machine outputs oriented towards the amplifier, exhaust air ventilators, permanent vibrations, high-intensity electromagnetic fields (due to transformers, transmitters, etc.). - Class HD technology to minimize thermal load and maximize efficiency
- Fast response and low distortion
- Easy to configure in stereo / mono / bridge modes
- Extensive protective circuits ensure high reliability and operating safety
- Front panel signal / clip / protect LED indicators
- Minimum load impedance (stereo / mono) is 2Ω
- speakON output connectors
- PFC (Power Factor Correction) switched-mode power supply
- Two 19" RU, low weight for easy transportation
- Applications: Professional touring racks, installed sound systems
Table of Contents
|
Upload User Manual
Have you got an user manual for the RCF DPS 3000 Class HD 2-Channel Professional Power Amplifier in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRCF DPS 3000 Specs | | | Power Output | Stereo:
2 x 1,700 W RMS at 2 Ω
2 x 1,200 W RMS at 4 Ω
2 x 800 W RMS at 8 Ω
Bridged:
3,400 W RMS at 4 Ω
2,400 W RMS at 8 Ω | | Frequency Response | 20 Hz to 20 kHz at ±0.25 dB | | Signal / Noise | Rate: 108 dB | | THD | 0.05%, 1dB below clip | | Damping Factor | >1000 | | Slew Rate | 55 V/μS | | | | Connector | XLR | | Sensitivity | 1.4 dBm/V RMS | | Impedance | 20 kΩ (balanced), 10 kΩ (unbalanced) | | | | Cooling | Temperature-controlled fan | | Protection | Temperature, DC, RFI, short-circuit | | Voltage Gain | 32 to 26 dB | | Amplifier | Class: HD | | | | Operating Voltage | 90 to 245 V (50 / 60 Hz) | | Power Supply | SMPS | | Power Factor | cos φ: 0.95 from 200 W to full power | | | | Dimensions (H x W x D) | 3.4 x 18.9 x 16.5" (88.0 x 482.0 x 420.0 mm) (2 RU) | | Weight | 30.8 lb (14.0 kg) |
