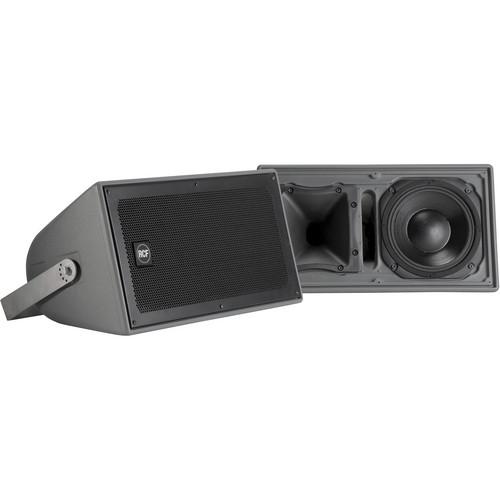

User Manual for RCF Dual 8" 400W Weatherproof 2-Way Speaker System Click to enlarge the picture
Contents of the user manual for the RCF Dual 8" 400W Weatherproof 2-Way
- Product category: Installed Speakers RCF
- Brand: RCF
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for RCF Installed Speakers
|
User manual for the RCF Dual 8" 400W Weatherproof 2-Way contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any RCF product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official RCF user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a RCF product will considerably shorten its lifespan!
|
Product description RCF's Dual 8" 400W Weatherproof 2-Way Speaker System is a weatherproof, full-range, wide-dispersion, two-way loudspeaker system offering substantial power and efficiency for a variety of professional indoor or outdoor applications.
The high-frequency section is a constant directivity CMD horn loaded to a 1.4" RCF precision Neodymium compression driver with a 2.5" diaphragm assembly for smooth, wide dispersion. The low-frequency transducer is a dual 8" woofer with a 2.5" voice coil. The cabinet is a single piece rotational molded in medium density polyethylene and is fully UV protected.
The cabinet is equipped with 4 x M 8 brass inserts, a stainless steel U-Bracket. The front logo is in aluminum and rotatable. The grille is custom perforated aluminum with open-cell fibers and water repellent woven fabric backing. The system meets the requirements of IP55 code. - Weatherproof cabinet IP 55
- Aluminum grill and stainless steel bracket
- Two 8" high-output LF transducer with 2.5" voice coil
- One RCF precision neodymium 1.4" compression driver with 2.5" voice coil
- 60 x 110° constant directivity horn
- Built in passive crossover
- 2 x 15° enclosure sides for array configurations
- Active Mosfet Compression Driver Protection
- LICC (Low Impedance Compensated Crossover) network
In the Box RCF Dual 8" 400W Weatherproof 2-Way Speaker System 4 x M8 Brass Inserts Steel U-Bracket 2 x Spacers Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the RCF Dual 8" 400W Weatherproof 2-Way Speaker System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRCF P4228 Specs | | | Frequency Response | 80 Hz - 20 kHz | | Maximum SPL | @ 1 m: 129dB | | Coverage Angle | Horizontal: 110°
Vertical: 60° | | Directivity | Index, Q: 9 | | Sensitivity | 97 dB | | Impedance | 8 Ω | | Power Handling | 400W | | Peak Power Output | 1600W | | Recommended Amplifier Power | 800W | | Protection | Dynamic | | Crossover Frequencies | 1100Hz | | | | Driver | 1.4" (35.5 mm) HF diver, 2.5" (63.7 mm) diaphragm assembly | | Woofer | 2 x 8" (200 mm) woofer, 2.5" (63.5 mm) voice coil | | Impedance | Compression Driver: 8 Ω
Woofer: 16 Ω | | Input Power | Compression Driver: 90W AES
Woofer: 300W AES | | Sensitivity | Compression Driver: 110 dB
Woofer: 95 dB | | | | Input Connector | 4-Pole Amphenol | | | | Material | 0.31" (8 mm) Polyethylene roto-molded | | Grille | Custom perforated aluminum grille with open-cell fiber and water repellent woven fabric backing | | Dimensions | 10.55 x 22.28 x 9.84" (268 x 566 x 250 mm) | | Weight | 29.7 lbs (13.5 kg) |
