User Manual for RCF Dual 8" 500W Weatherproof 2-Way Speaker System Click to enlarge the picture
Contents of the user manual for the RCF Dual 8" 500W Weatherproof 2-Way
- Product category: Installed Speakers RCF
- Brand: RCF
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for RCF Installed Speakers
|
User manual for the RCF Dual 8" 500W Weatherproof 2-Way contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any RCF product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official RCF user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a RCF product will considerably shorten its lifespan!
|

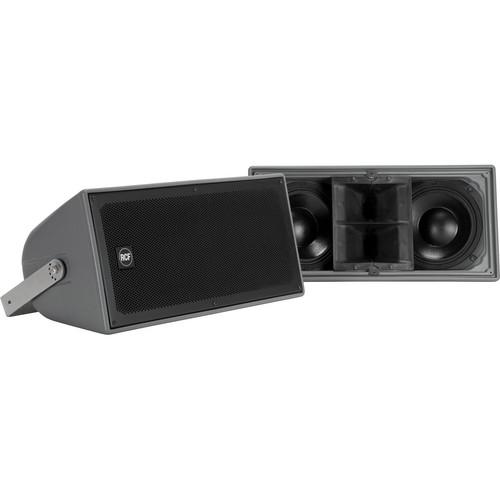

Product description RCF's Dual 8" 500W Weatherproof 2-Way Speaker System is an IP55 (International Protection Rating) weatherproof full range, two-way line array speaker module, offering substantial power and efficiency for a variety of professional indoor or outdoor applications.
The high frequency section includes two constant directivity CMD horns, each loaded with a 1" RCF precision neodymium compression driver with a 1.75" diaphragm assembly for smooth, wide horizontal dispersion and highly controlled 20° vertical coverage. The low frequency transducers are two 8" woofers with a 2.5" voice coil.
The cabinet is a single-piece rotational molded enclosure, made in medium density polyethylene, is fully UV protected, and equipped with 4 x M8 brass inserts and a stainless steel U-Bracket.
Connections to the amplifier are made through a watertight multi-pole connector. The grille is custom perforated aluminum with open-cell fibers and water repellent woven fabric backing. - Weatherproof cabinet IP55
- Aluminum grill and stainless steel bracket
- Dual 8" high-output LF transducer with 2.5" voice coil
- One RCF precision neodymium 1" compression driver with 1.75" diaphragm assembly
- 20 x 90° constant directivity horn
- 2 x 15° enclosure sides for array configurations
- Active Mosfet Compression Driver Protection
- LICC (Low Impedance Compensated Crossover) network
- Input connector 4 pole Amphenol IP67
In the Box RCF Dual 8" 500W Weatherproof 2-Way Speaker System 4 x M8 Brass Inserts Steel U-Bracket Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the RCF Dual 8" 500W Weatherproof 2-Way Speaker System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRCF P5228-L Specs | | | Frequency Response | 80 Hz - 20 kHz | | Maximum SPL | @ 1 m: 131dB | | Coverage Angle | Horizontal: 90°
Vertical: 20° | | Directivity | Index, Q: 11 | | Sensitivity | 98 dB | | Impedance | 8 Ω | | Power Handling | 500W | | Peak Power Output | 2000W | | Recommended Amplifier Power | 1000W | | Protection | Dynamic | | Crossover Frequencies | 1300Hz | | | | Driver | Dual 1" (25.4 mm) throat, 1.75" (44.45 mm) coil diaphragm assembly | | Woofer | Dual 8" (200 mm) woofer, 2.5" (63.5 mm) voice coil | | Impedance | Compression Driver: 16 Ω
Woofer: 16 Ω | | Input Power | Compression Driver: 50W AES
Woofer: 300W AES | | Sensitivity | Compression Driver: 109 dB
Woofer: 95 dB | | | | Input Connector | 4-Pole Amphenol | | | | Material | 0.31" (8 mm) Polyethylene roto-molded | | Grille | Custom perforated aluminum grille with open-cell fiber and water repellent woven fabric backing | | Dimensions | 10.55 x 22.28 x 16.23" (268.00 x 566.00 x 412.24 mm) | | Weight | 30.8 lbs (14.0 kg) | | | | Box Dimensions (LxWxH) | 24.0 x 12.0 x 12.0" |
