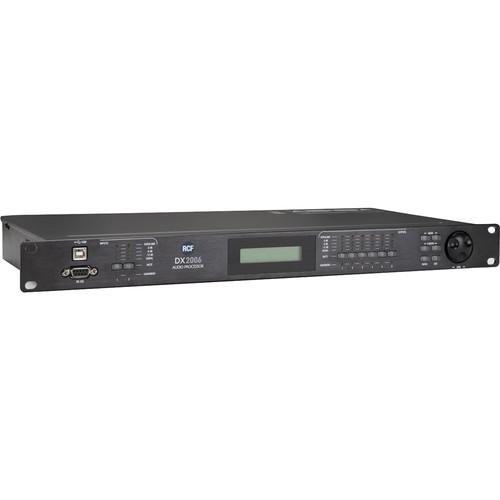

User Manual for RCF DX 2006 2-Input 6-Output Digital Processor Click to enlarge the picture
Contents of the user manual for the RCF DX 2006 2-Input 6-Output Digital
- Product category: System Processors RCF
- Brand: RCF
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for RCF System Processors
|
User manual for the RCF DX 2006 2-Input 6-Output Digital contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any RCF product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official RCF user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a RCF product will considerably shorten its lifespan!
|
Product description The DX 2006 from RCF is a 2-input, 6-output loudspeaker management device with 40-bit floating point DSP and 96 kHz sampling rate, suitable for the optimization of passive loudspeaker systems.The DX 2006 offers flexible routing, signal processing and equalization, and can be used in multiple ways for multi-amplified systems managing. LCD, controls and LED indicators are available on the front panel, and it is also possible to set up and control the processor through a PC. Various crossover modes are available and 30 programs or settings can be stored.The DX 2006 comes with a special PC Graphic User Interface (GUI) application, XConsole, which gives the user an option to control the digital processor. The GUI application makes it easier to control and monitor the device, allowing the user to get the whole picture on screen. Programs can be recalled and stored to or from a PC hard drive, thus expanding the storage to become virtually limitless. -
- 2 inputs that can be mixed to 6 outputs
- 40-bit floating point DSP
- 96 kHz sampling rate
- 24-bit A/D D/A converters
- 1 Hz frequency resolution (EQ / filters)
- 8 equalizers for each input and output
- Multiple crossover types; limiters
- Level, polarity and delay settings
- Firmware upgrade via PC
- Individual channel buttons (for editing) with linking capability
- 2-Line x 16 character backlit LCD display
- 5-segment LED arrays indicating the signal levels of every input and output
- Storage of up to 30 presets
- Security Lock (with password)
- USB and RS232 ports for PC configuration
In the Box RCF DX 2006 2-Input/6-Output Digital Processor Limited 3-Year Warranty, Extendable to 5-Year with Registration Table of Contents
|
Upload User Manual
Have you got an user manual for the RCF DX 2006 2-Input 6-Output Digital Processor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRCF DX-2006 Specs | Input Impedance | >10 k ohms | | Output Impedance | 50 ohms | | Maximum Level | 20 dBu | | Type | Electronically balanced | | Frequency Response | ± 0.1 dB (20 Hz to 20 kHz) | | Dynamic Range | 115 dB typical (unweighted) | | CMRR | >60 dB ( 50 Hz to 10 kHz) | | Crosstalk | <-100 dB | | Distortion | 0.002 % (1 kHz @ 18 dBu) | | Resolution | 40 bit | | Sampling Rate | 96 kHz | | A/D/A Converter | 24 bit | | Propagation Delay | 1.5 ms | | Display | 2x 16 character backlit LCD | | Buttons | Mute/edit controls, menu controls
Embedded Thumb Wheel "DATA" control | | Level Meters | 5 LEDs per channel | | Threshold | -20 to +20 dBu | | Attack Time | 0.3 to 100 ms | | Release Time | 2-4-8-16-32x the attack time | | EQ Type | Parametric, Lo-shelf, Hi-shelf, AP-1, AP-2 | | Gain | -15 to +15 dB in 0.25 dB steps | | Bandwidth | 0.02 to 3.61 octaves | | Filters | Butterworth, Linkwitz Riley, Bessel | | Crossover Slope | 6 / 12 to 48 dB / oct | | Dimensions (H x W x D) | 1.7 x 19.0 x 9.0" (44.0 x 483.0 x 229.0 mm) | | Weight | 10 lb (5 kg) |
