User Manual for RCF DX 4008 4-Input & 8-Output Digital Audio Processor Click to enlarge the picture
Contents of the user manual for the RCF DX 4008 4-Input & 8-Output
- Product category: System Processors RCF
- Brand: RCF
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for RCF System Processors
 |
User manual for the RCF DX 4008 4-Input & 8-Output contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any RCF product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official RCF user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a RCF product will considerably shorten its lifespan!
|

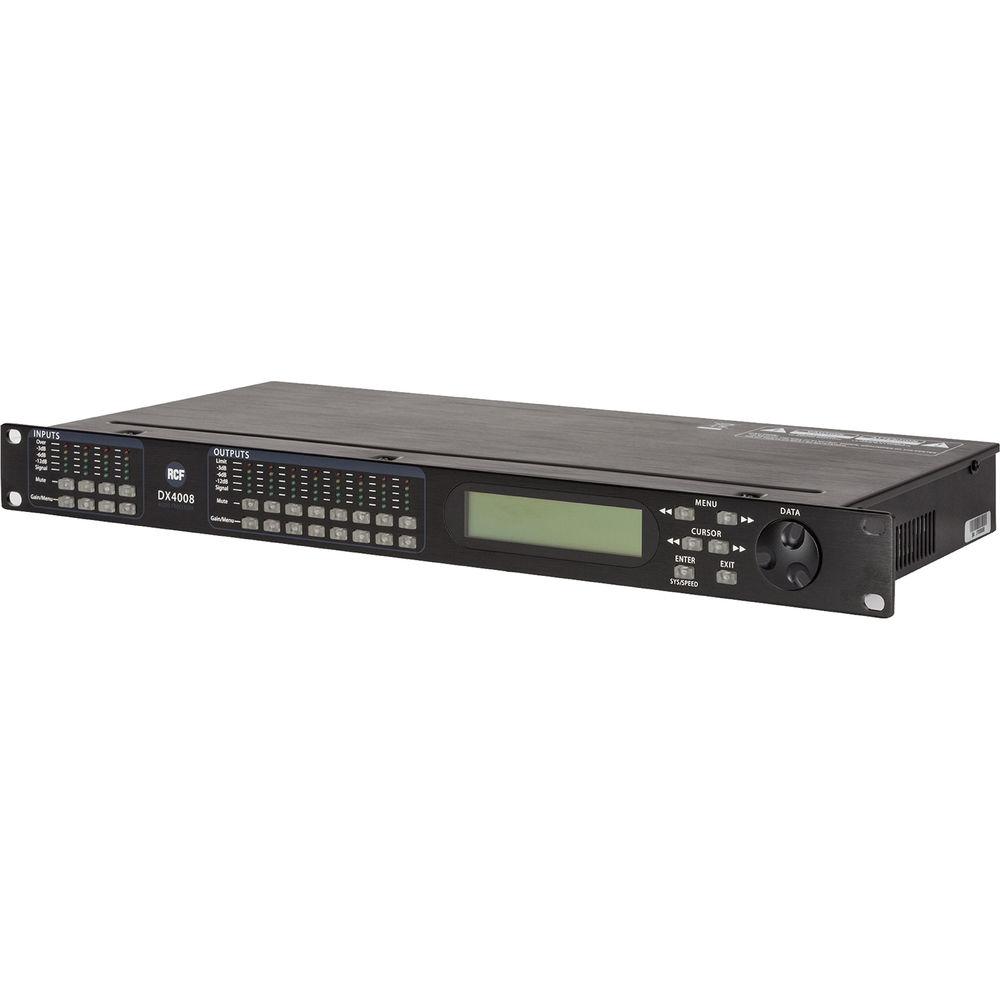

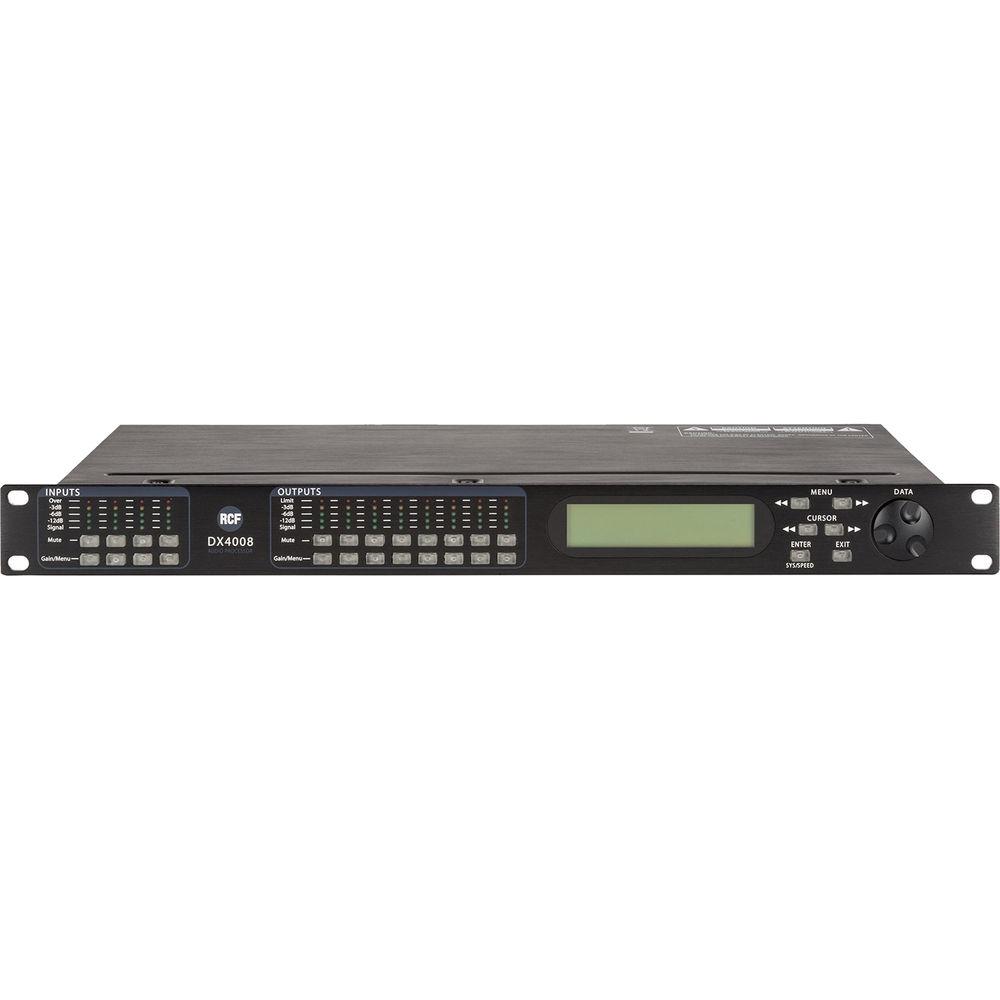

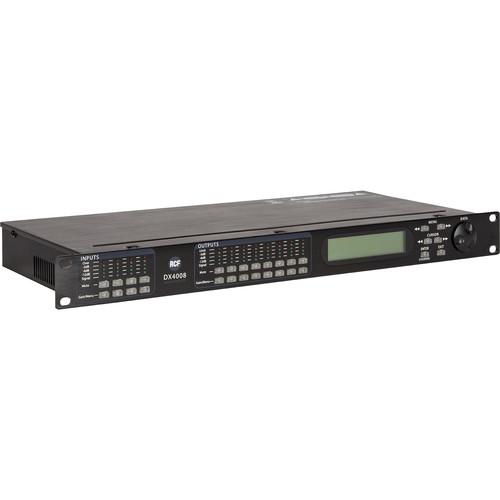

Product description The RCF DX 4008 4-Input & 8-Output Digital Audio Processor is a digital loudspeaker management system, designed for the touring or fixed sound installation markets. This loudspeaker has a built-in 32-bit (40-bit extended) floating point processor and high-performance 24-bit analog converters. The high-bit DSP prevents noise and distortion induced by truncation errors of the commonly used 24-bit fixed-point devices.
A complete set of parameters include I/O levels, delay, polarity, 6 bands of parametric EQ per channel, multiple crossover selections, and full function limiters. The DX 4008 Loudspeaker can be controlled or configured in real time on the panel or with the intuitive PC GUI accessed via the RS-232 interface.
The software upgrade for CPU and DSP via PC keeps the device updated with the algorithms and function. Multiple setup storage and system security complete this professional package. - Complete 4-input and 8-output digital loudspeaker management system designed for the touring or fixed sound installation markets
- 32-bit (40-bit extended) floating point DSP
- Sampling rate can be set to 48/96 kHz
- High-performance 24-bit A/D converters
- 6 parametric equalizers for each input and output
- Multiple crossover types with full function limiters
- Precise frequency control is achieved with its 1 Hz resolution
- Precise level, polarity, and delay
- Inputs and outputs can be routed in multiple configurations to meet any requirements
- Comes with a special PC GUI (Graphic User Interface) application XLink which gives you an option to control the DX 4008 Loudspeaker from a remote PC via the RS232 serial communication link
- GUI application makes controlling easy and monitors the device, allowing you to get the whole picture on one screen
- Individual channel buttons with linking capability
- 4-line x 26 character backlight LCD display
- Full 5-segment LED's on every input and output
- Storage of up to 30 program setups
- Multiple levels of security locks
- RS-232 interface for PC control and configuration
- Programs can be recalled and stored from/to PC's hard drive, thus expanding the storage to become virtually limitless
- Applications: Touring sound, fixed installations
In the Box RCF DX 4008 4-Input & 8-Output Digital Audio Processor Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the RCF DX 4008 4-Input & 8-Output Digital Audio Processor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersRCF DX 4008 Specs | | | Input Impedance | 10 kΩ | | Output Impedance | 50 Ω | | Maximum Level | 20 dBu | | Type | XLR 3 electronically balanced | | | | Frequency Response | ±0.1 dB (20 to 20 kHz) | | Dynamic Range | 115 dB typical (unweighted) | | CMRR | >60 dB (50 to 10 kHz) | | Crosstalk | <-100 dB | | Distortion | 0.001% (1 kHz at 18 dBu) | | Gain | -40 to 15 dB in 0.25 dB steps | | Delay | Up to 500 ms per I/O | | | | Resolution | 32-bit (40-bit extended) | | Sampling Rate | 48 / 96 kHz | | Converters | A/D - D/A: 24-bit | | Propagation Delay | 3 ms | | | | Display | 4 x 26 character backlit LCD | | Buttons | 12 mute controls, 12 gain / menu controls, 6 menu controls | | Control | DATA:
Dial encoder: Embedded thumb wheel | | Level Meters | 5 segment LED | | Interface | RS 232 Female DB-9 | | | | Threshold | -20 to +20 dBu | | Attack Time | 0.3 to 100 ms | | Release Time | 2 to 32 x the attack time | | | | Type | Parametric, Hi-shelf, Lo-shelf 6 per I/O | | Gain | In 0.25 dB steps -30 to +15 dB | | Bandwidth | (Q = 0.5 to 72) 0.02 to 2.50 octaves | | | | Filter Type | Butterworth, Bessel, Linkwitz Riley | | Slope | 6 to 24 dB/oct (96 kHz) 6 to 48 dB/oct (48 kHz) | | | | Programs | 30 | | Name | 12 character length | | Parameters | Delay unit: ms, ft, m | | Frequency | Mode: 36 step/oct, 1 Hz resolution | | Security Lock Slot | Any individual menu | | PC | Link: On/Off | | Channels | Copy: All parameters

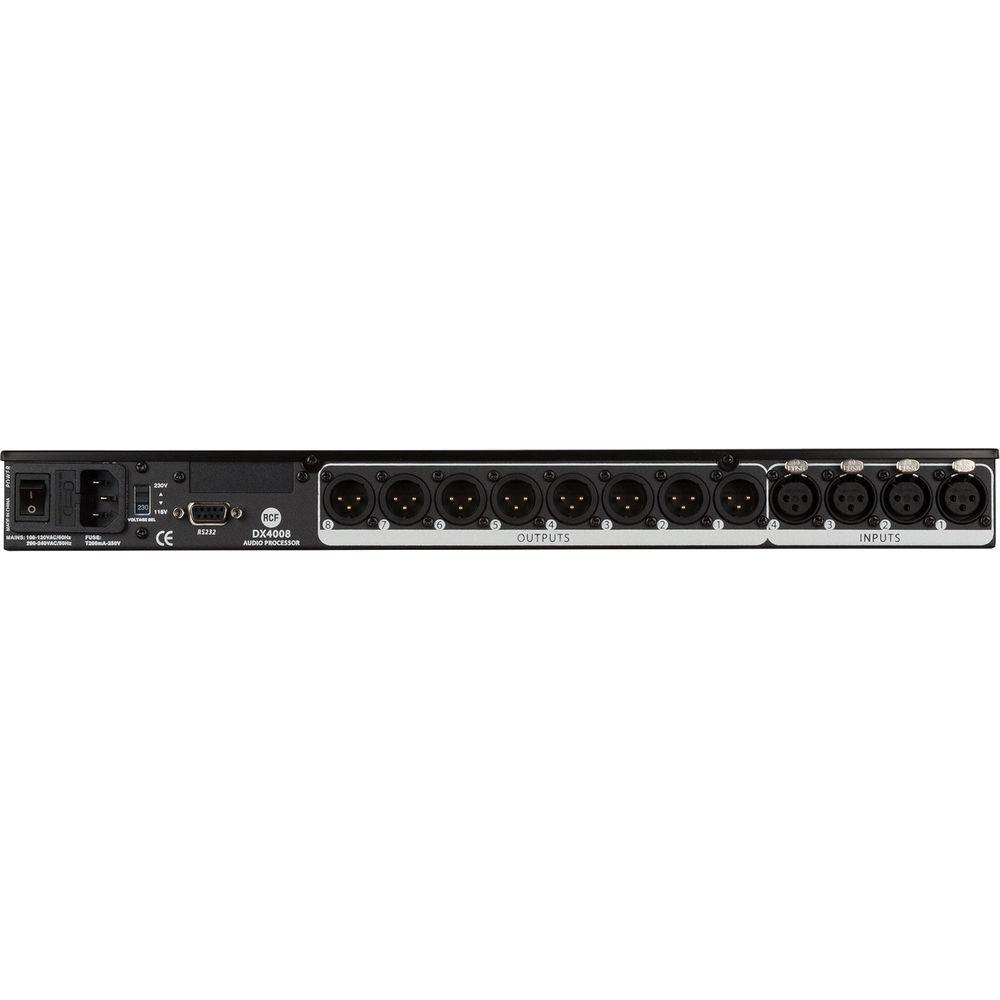

Name: 6 Character Length | | | | Analog Inputs | 3-pin Female XLR | | Analog Outputs | 3-pin Male XLR | | RS-232 | Female DB-9 (DX4008) | | Power | Standard IEC Socket | | | | Operating Voltage | 220 to 240 / 110 to 120 V, 50 / 60 Hz | | Operating Temperature Range | 32 to 131°F (0 to +55 °C) | | Operating Humidity | 20 to 90 % RH non-condensing | | | | Dimensions (H x W x D) | 1.73 x 19.01 x 7.99" (44.00 x 483.00 x 203.00 mm) | | Weight | 6.61 lb (3.00 kg) |
